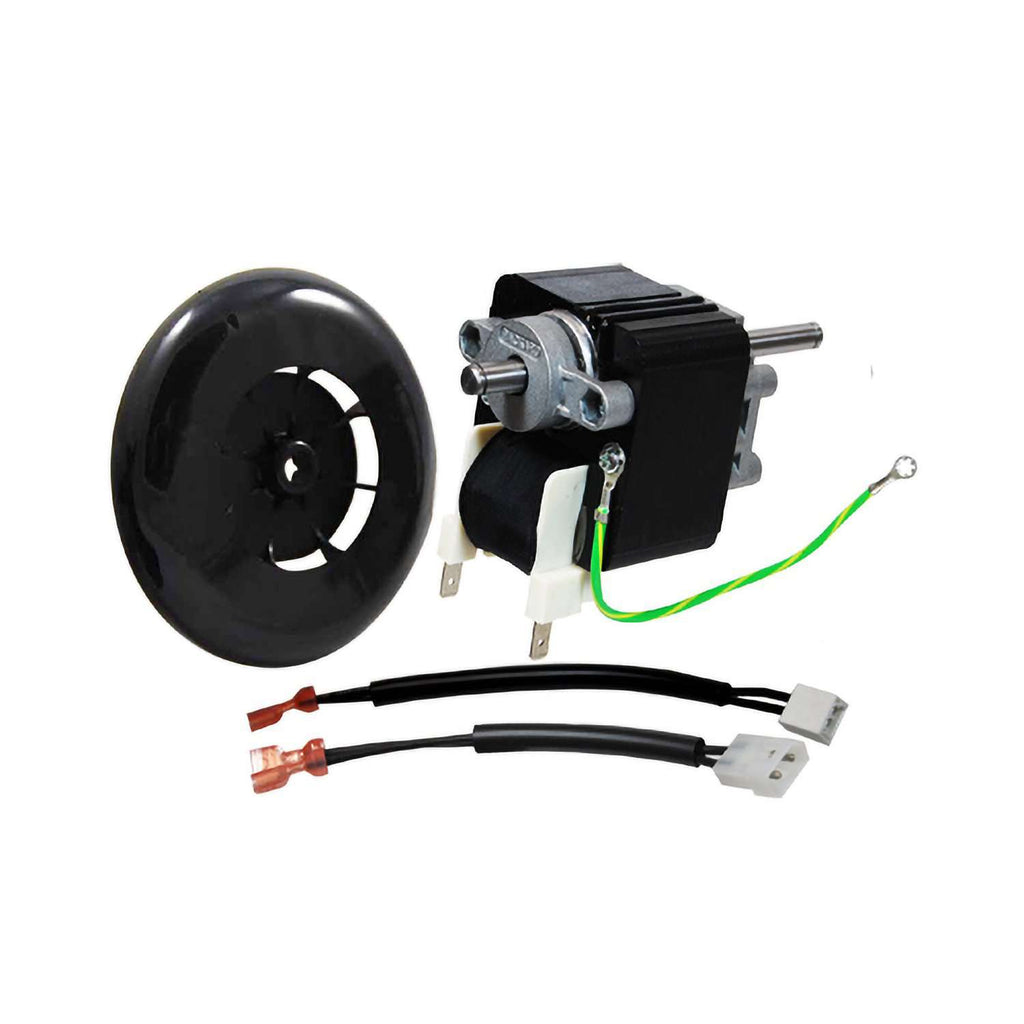

Packard 65570 C-Frame Draft Inducer Motor, Carrier HC24HE230 Replacement, 230 Volt, 3000 RPM

$68.72
SKU 65570

Packard 65570 C-Frame Draft Inducer Motor, Carrier HC24HE230 Replacement, 230 Volt, 3000 RPM

  • Replaces Carrier HC24HE230
  • CW Rotation is Determined by Viewing End Opposite the Terminals
  • Shaded Pole
  • Special Leads and Plug Included
  • Plastic Fan Blade Included
  • Single Speed
  • 1 1/2" Stack
  • C Frame
  • Single Phase
  • 60 Hz



Motor Voltage: 230
HP: 25 MHP
RPM: 3000
Amps: 0.80
Hertz: 60
NEMA Frame: C-Frame
Length Less Shaft (In.): 3-5/8
Stack Size (In.): 1-1/2
Overload Protection: Automatic
Phase: Single
Speeds: 1
Bearings: Ball
Enclosure: Open
Insulation Class: B
Motor Type: Shaded Pole
Mounting Option: Bracket

Direct Replacement For:
Carrier: HC24HE230
Jakel: J238-150-15103, J238-15161
