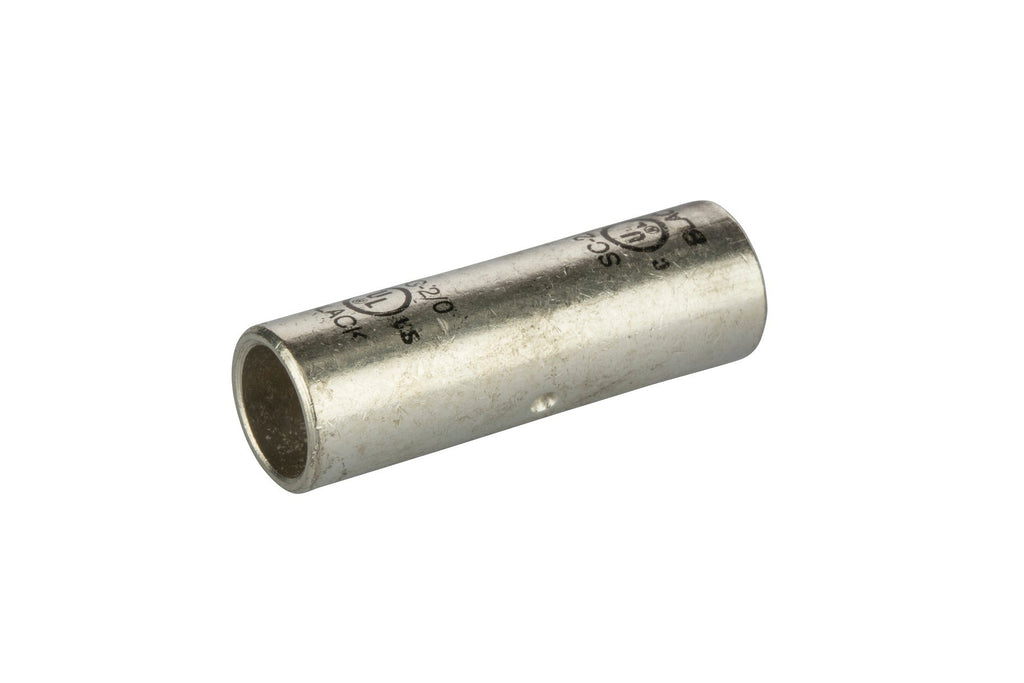

NSI SC-2/0 Short Copper Compression Splice, 2/0 AWG
Save 52%
Original price
$13.51
Current price
$6.48
SKU SC-2/0
NSI SC-2/0 Short Copper Compression Splice, 2/0 AWG
- Produced from high conductivity copper tubing
- Serrations indicate proper crimp locations
- Tin-plated to provide corrosion resistance
- Marked with die index and color coded
- Suitable for use at voltages up to 35kV provided connector is properly installed to cable manufacturer voltage stress relief instructions, 5KV is the maximum voltage in all bare splices
Product Drawing
Specifications
|
Voltage: |
600V |
| Material: | Copper |
| Finish: | Tin Plated |
| Ul Standard: | UL 486A |
| Barrel Inside Diameter: | 0.44 |
| Barrel Outside Diameter: | 0.56 |
| Wire Cable Class: | Class B, Class C |
| Conductor Type: |
Copper |
| Temp Rating: | 90C, 9CU |
| Wire Range: | 2/0 AWG |
| Die Color Coded: | Black |
| Barrel Length: | 1.75 |
