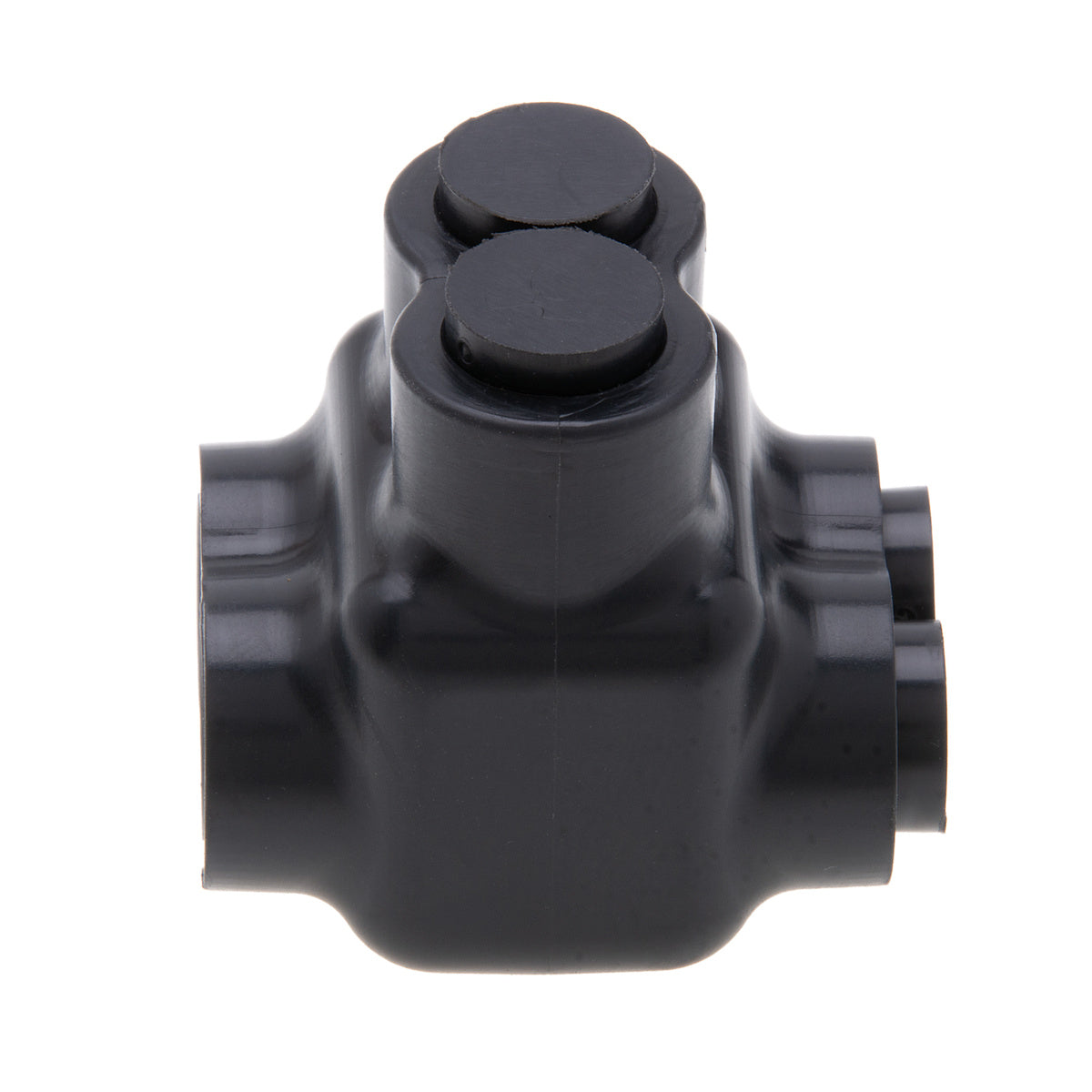

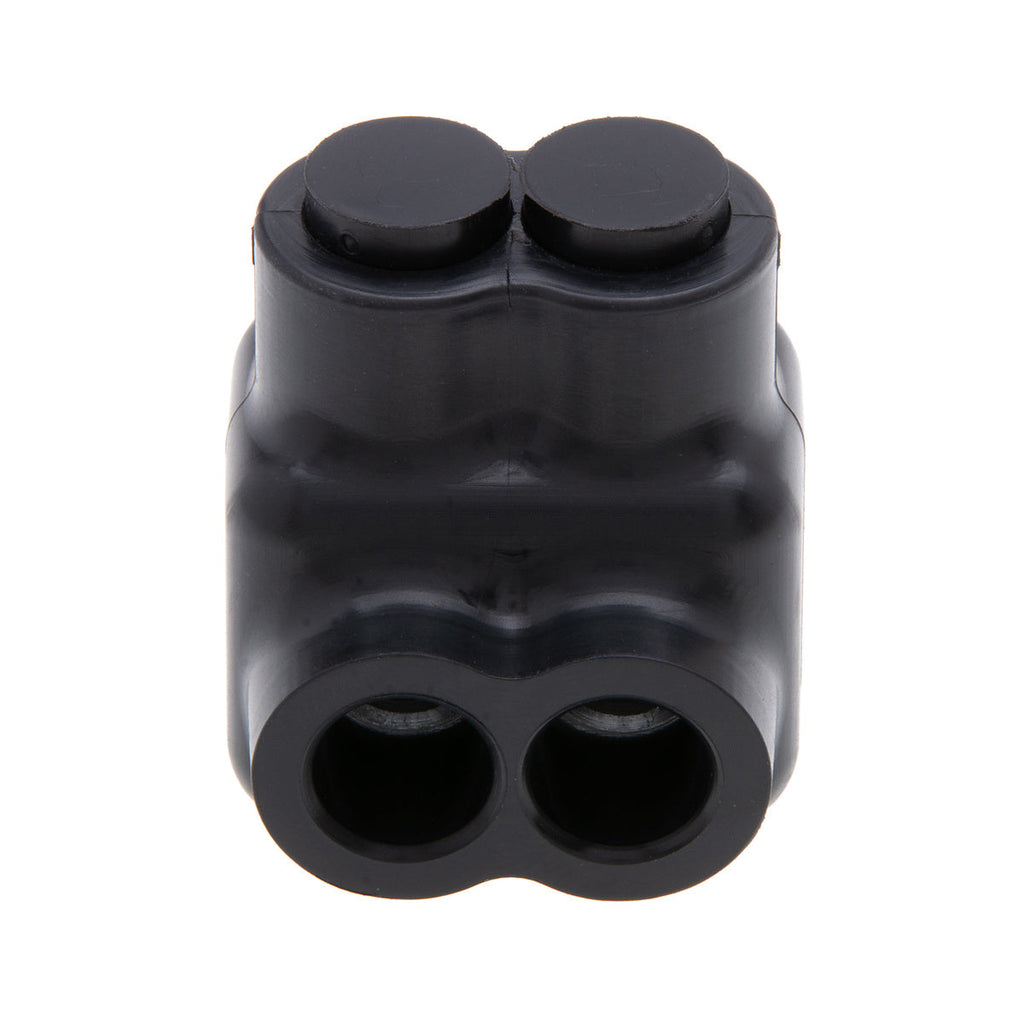

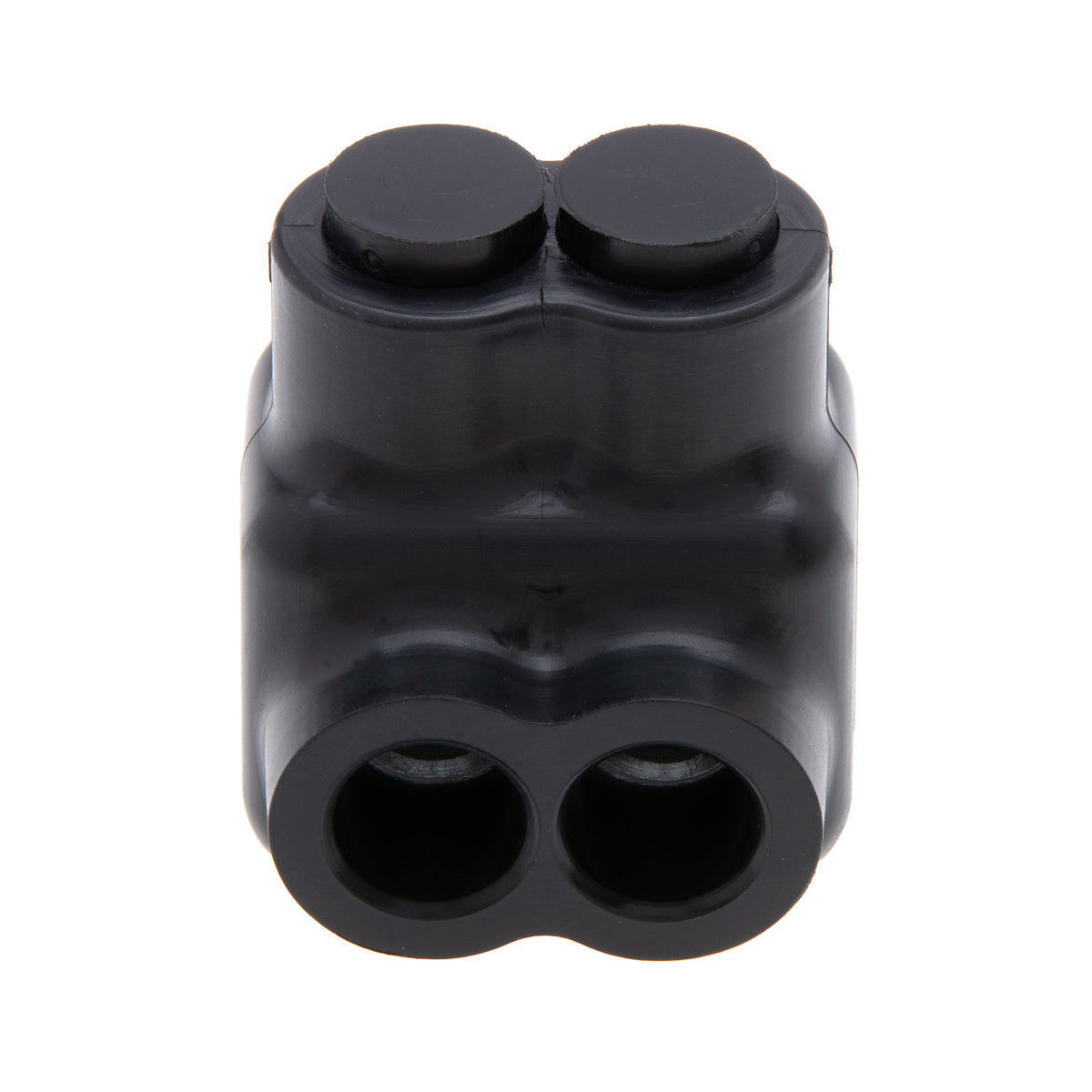

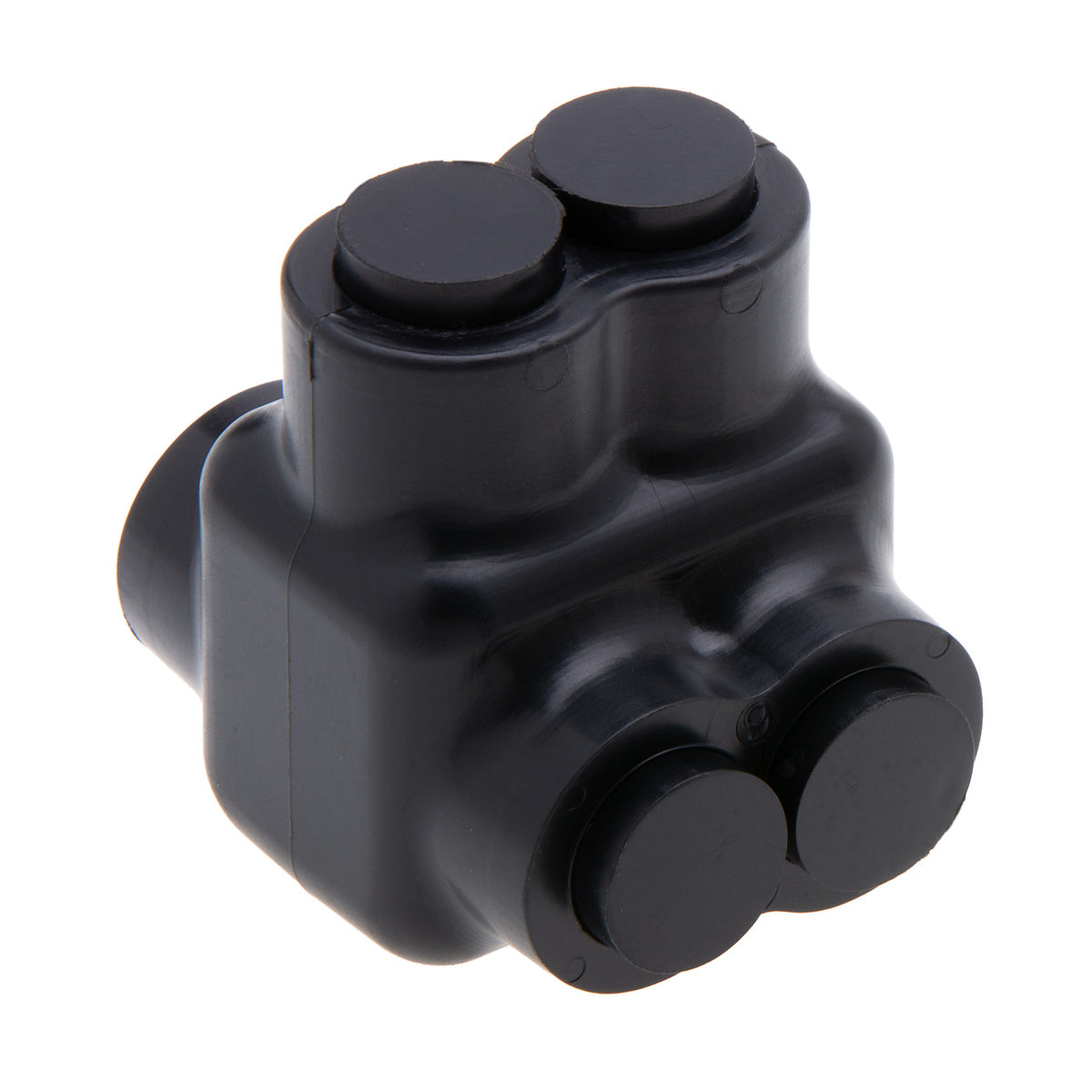

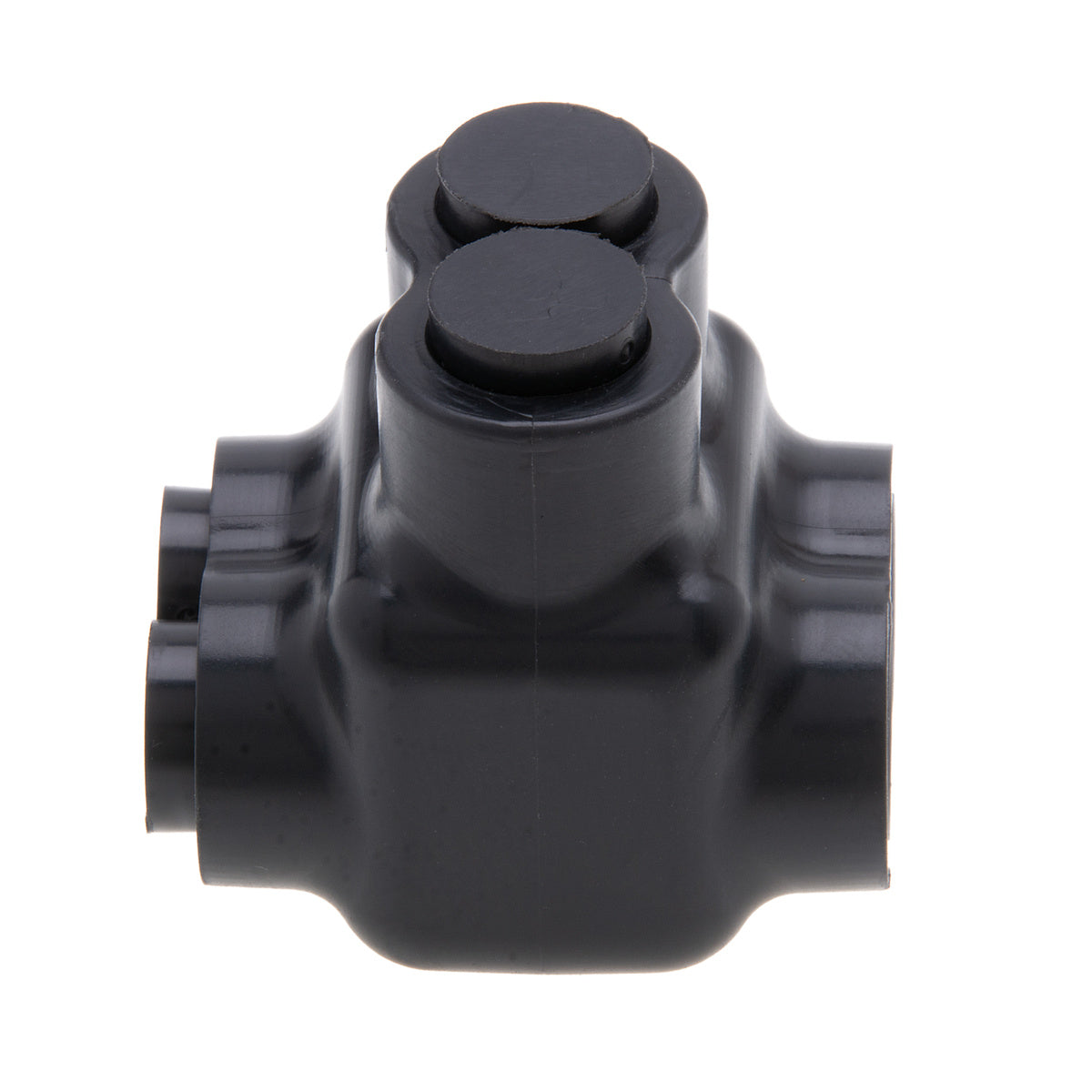

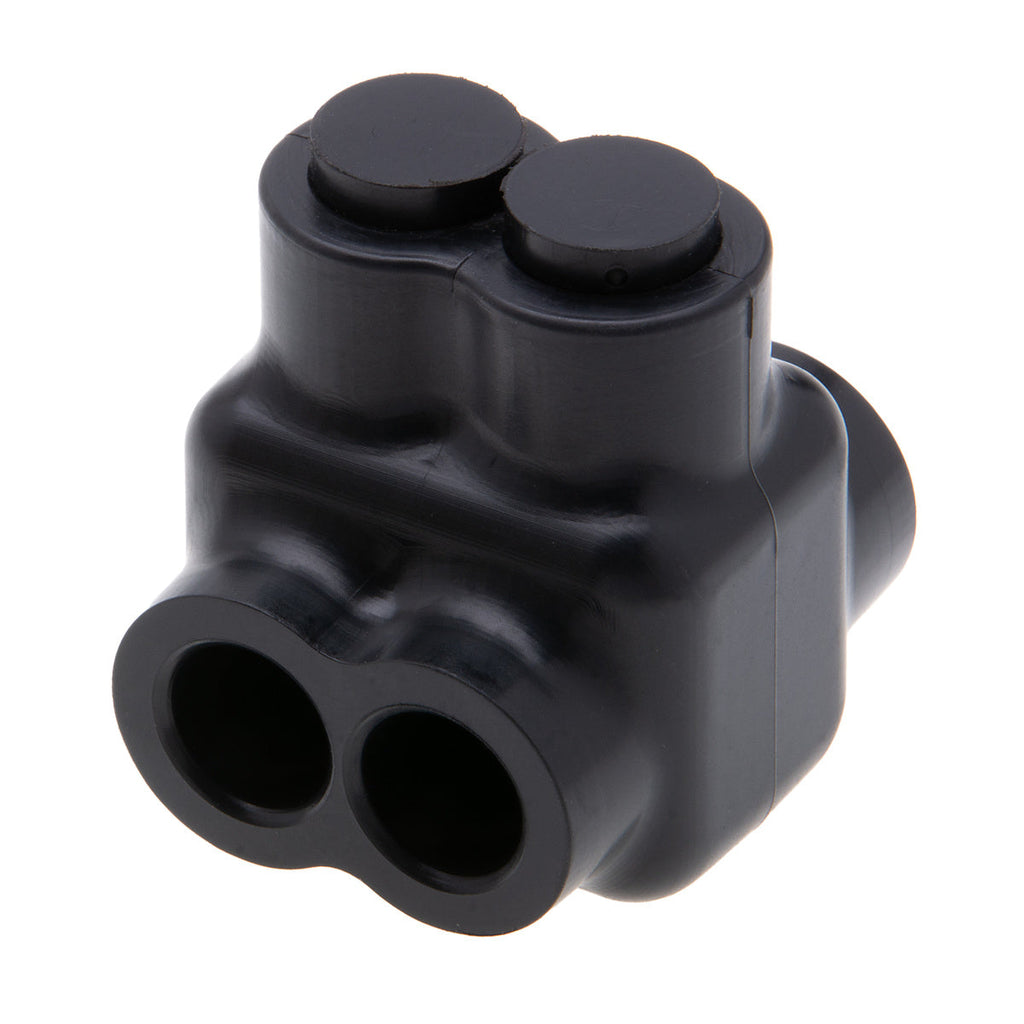

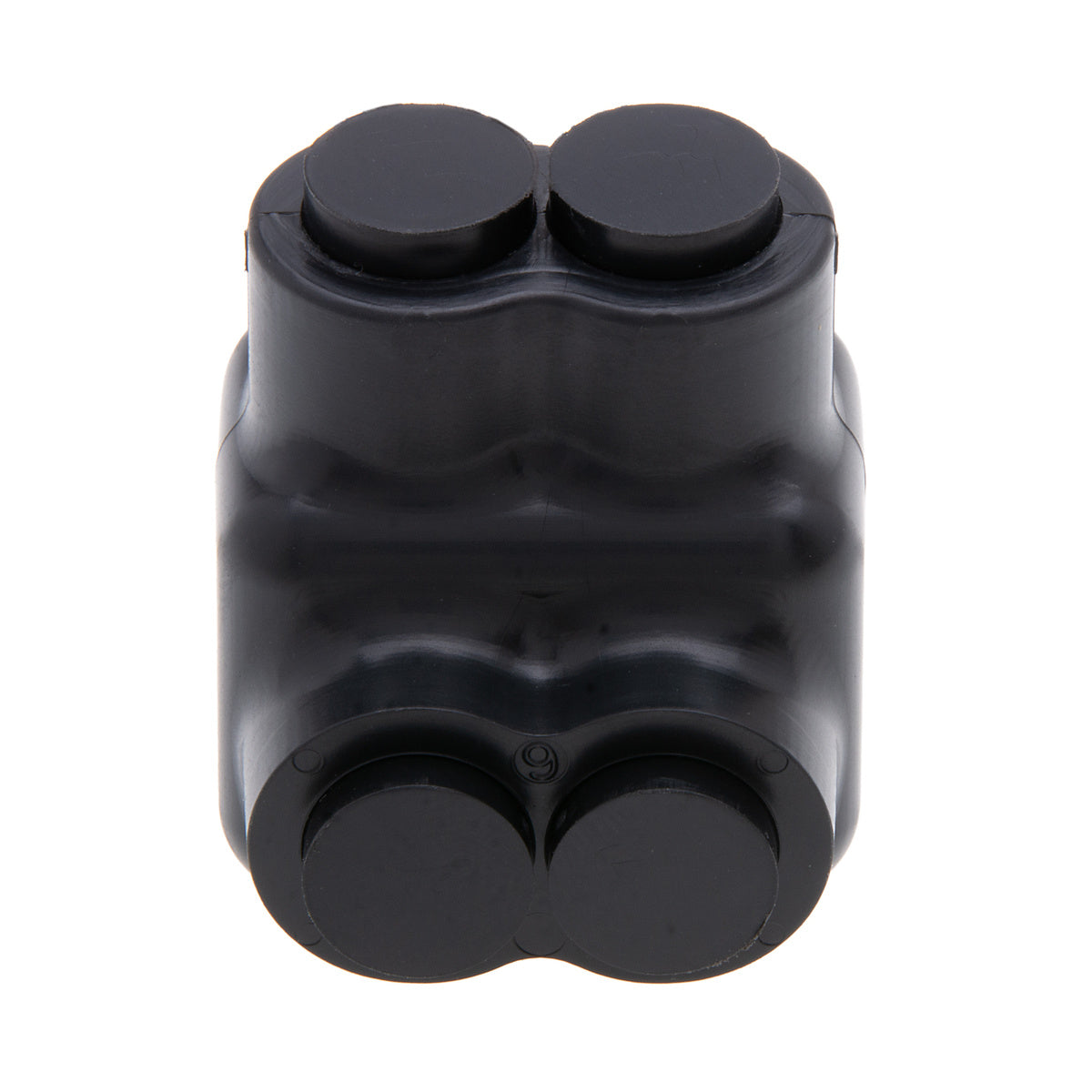

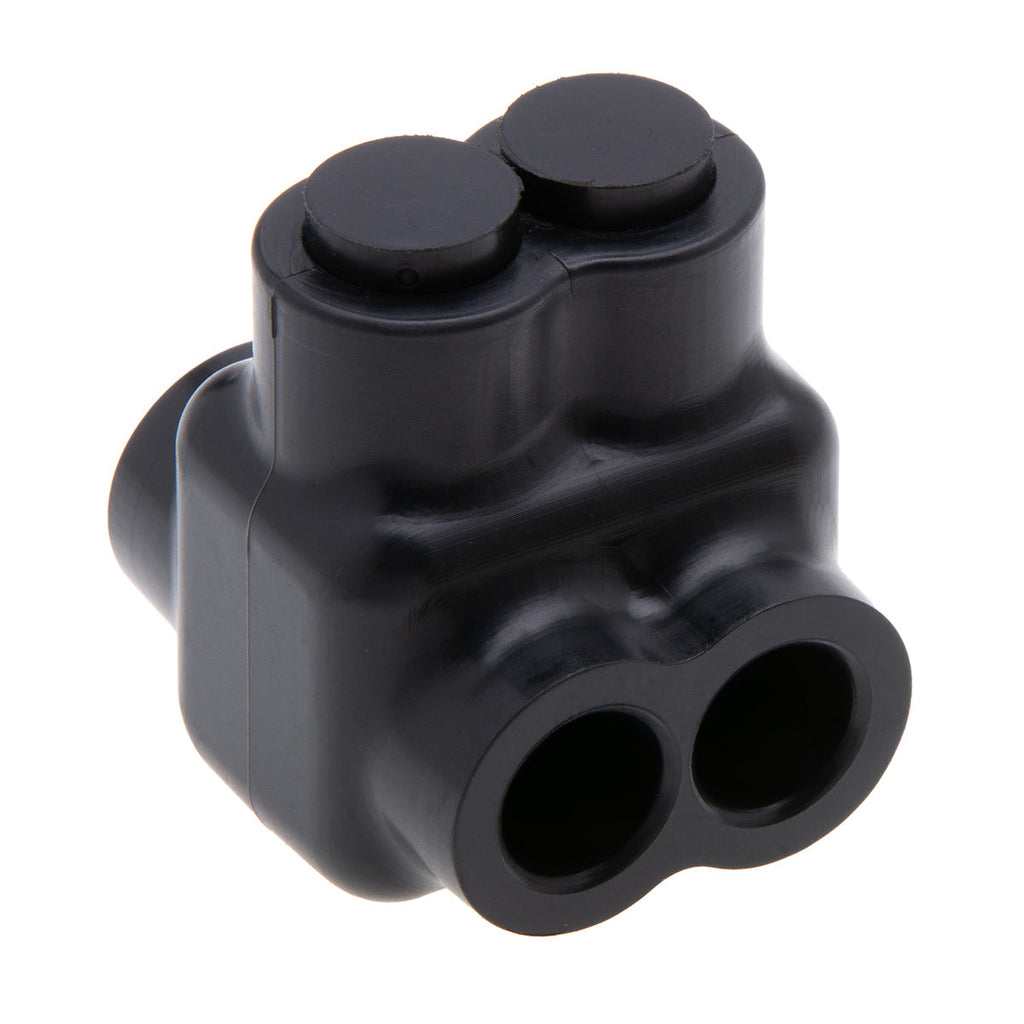

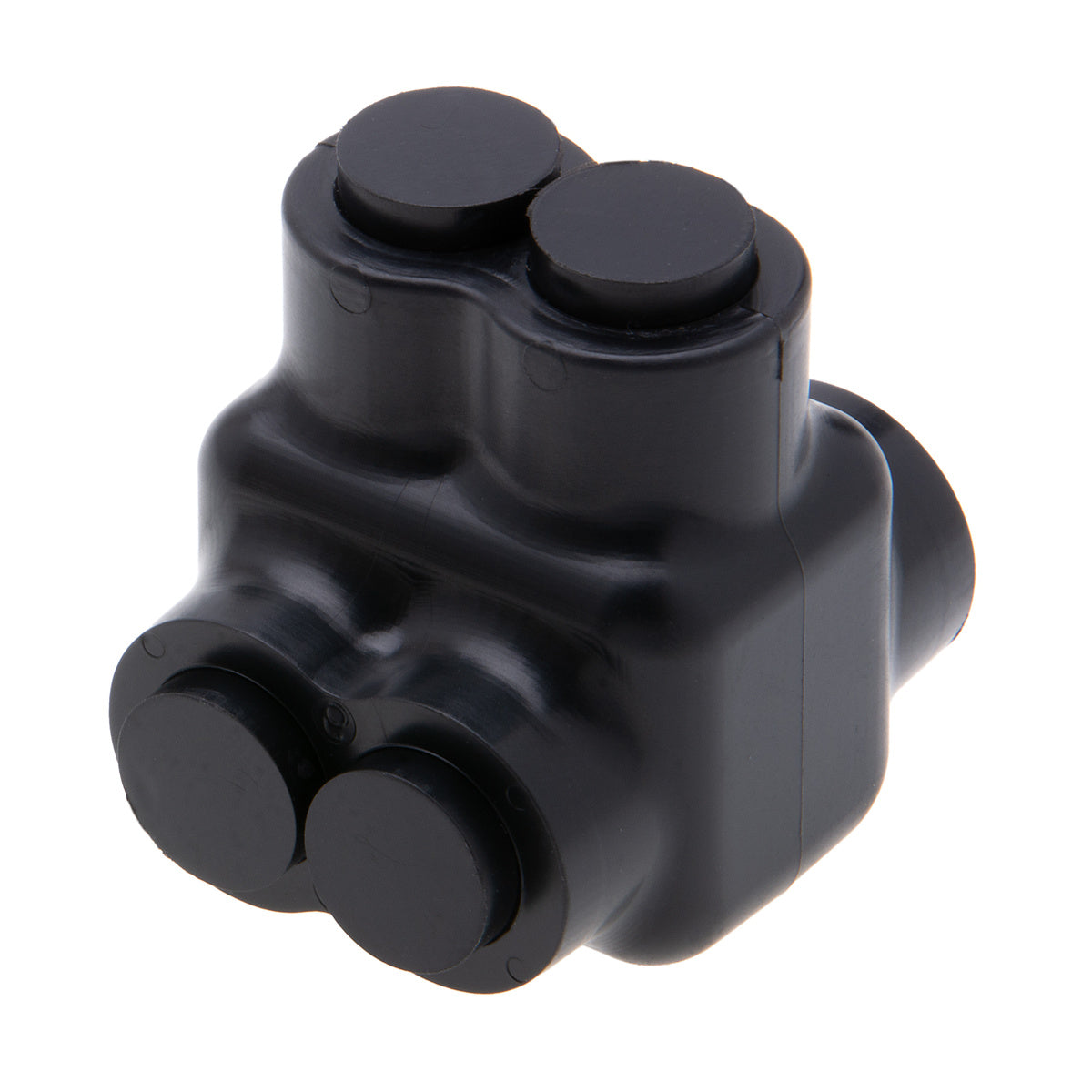

NSI Polaris IT-4 2-Port Black Multi-Tap Pre-Insulated Connector, 4 – 14 AWG
Save 29%
Original price
$21.57
Current price
$15.40
SKU IT-4B
NSI Polaris IT-4 2-Port Black Multi-Tap Pre-Insulated Connector, 4 – 14 AWG
Polaris Black Multi-Tap Connectors form secure connections between multiple conductors with a rounded design and UV-resistant insulation coating. Installs with a hex key and torque wrench, with no need for cover and taping.
- Dual-Sided Wire Entry: Form secure connections between 2 conductors quickly using the double-side entry ports sized for wires between 4 and 14 AWG
- Ergonomic Design: Rounded corners and a smooth exterior finish over the plastisol insulation make Polaris connectors comfortable to grip
- Removable Plugs: Each port and adjustable set screw is covered by a secure plug to prevent debris, moisture or contaminants from entering the insulated connector
- Pre-filled Oxide Inhibitor: Both dual-sided entry ports come pre-filled with an oxide inhibitor gel to prevent corrosion and provide low-contact resistance
- Professional Performance: The durable layer of insulation on each Polaris connector is UV, abrasion and chemical-resistant for reliable performance
Product Sheet
Product Drawing
Cross Reference
Installation Instructions
Specifications
|
Voltage: |
600V |
| Material: | Aluminum |
| Finish: | Paristol Insulatated |
| Color: | Black |
| Ul Standard: | UL 486A/B |
| Wire Cable Class: |
Class B, Class C |
| Al Conductor Max Amp: |
75 |
| Cu Conductor Max Amp: |
95 |
| Conductor Cu Size Range: |
4 AWG – 14 AWG |
| Conductor Al Size Range: | 4 AWG – 12 AWG |
| Conductor Type: |
Copper, Aluminum |
| Temp Rating: | 90C, AL9CU |
| Conductors Count: | 2 |
| Hex Wrench Size: | 1/8 |
| Env Temp: | Cold Temperature rated to -45C |
| Max Torque: | 35 |
