NSI Polaris ISR-1/0 2-Port Black Multi-Tap Pre-Insulated Connector, 1/0 – 14 AWG

Save 27%
Original price $34.25
Current price $24.89
Currently 10 in stock.

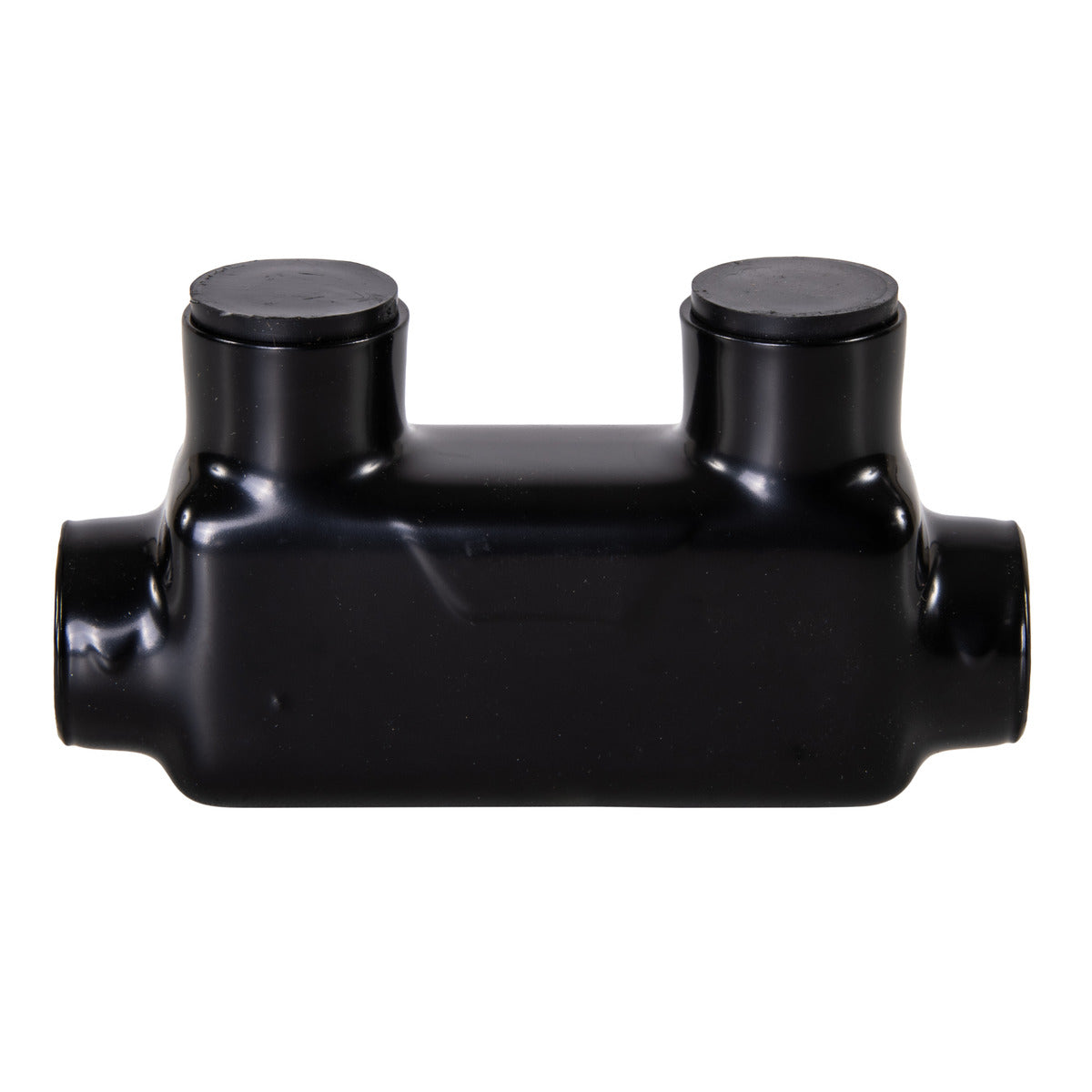

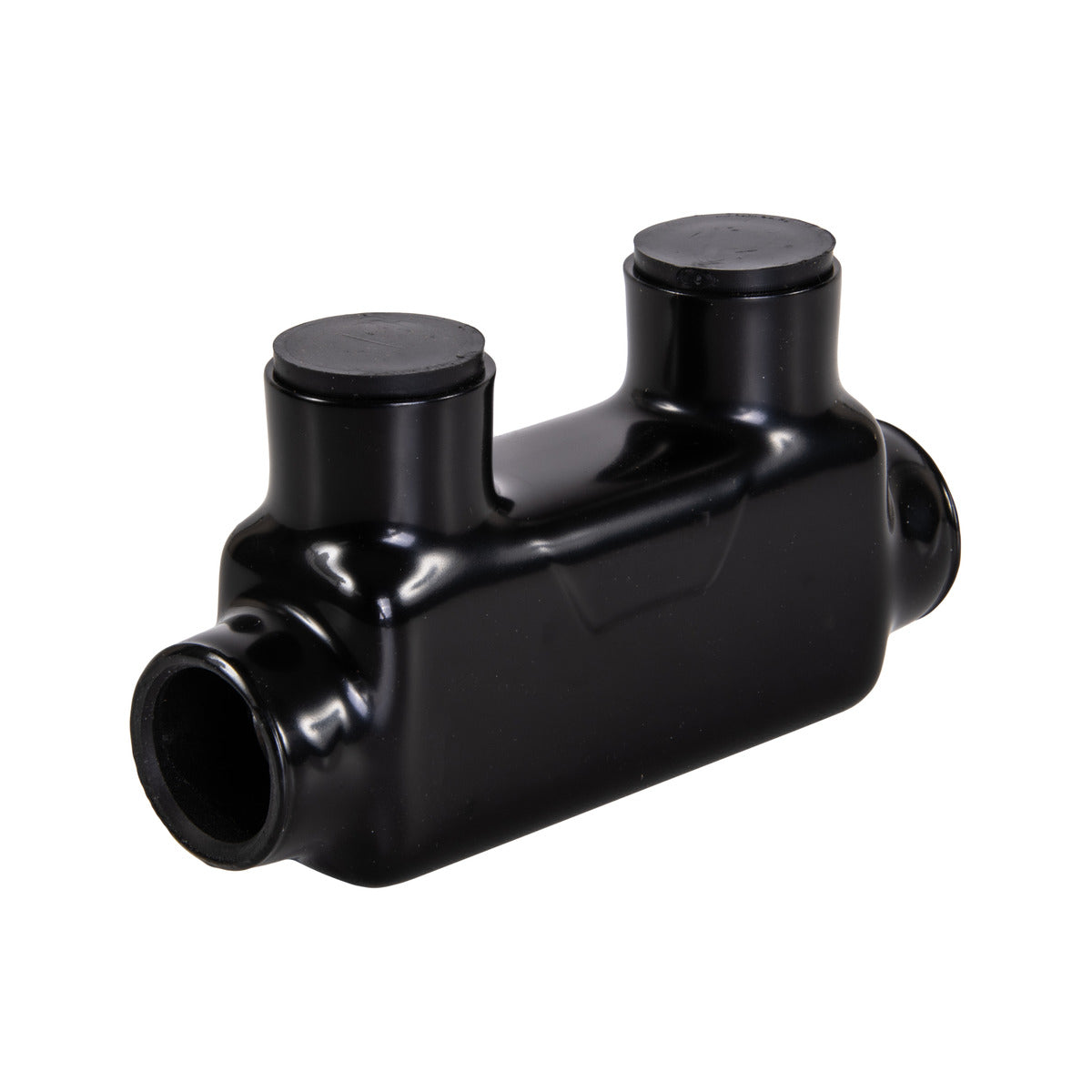

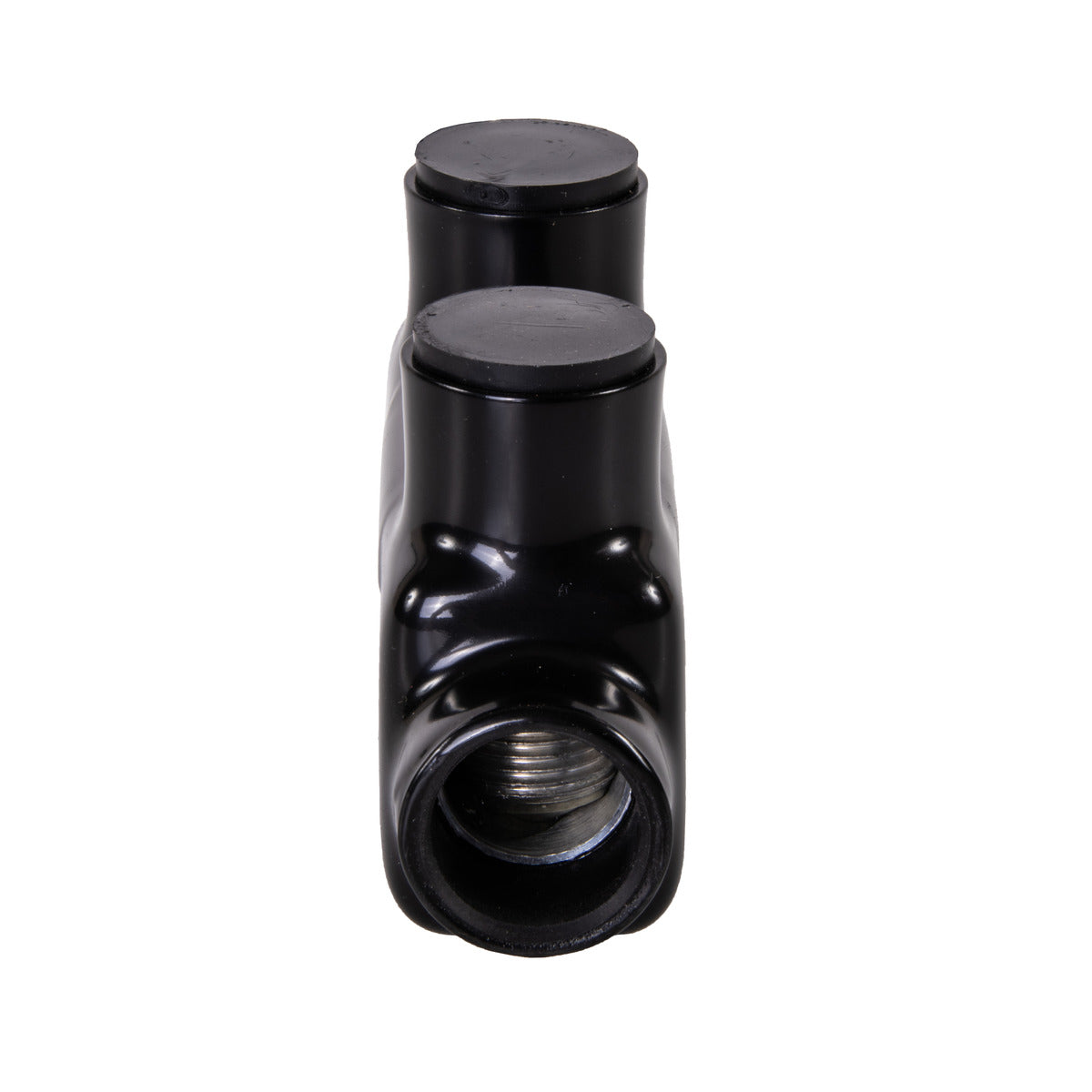

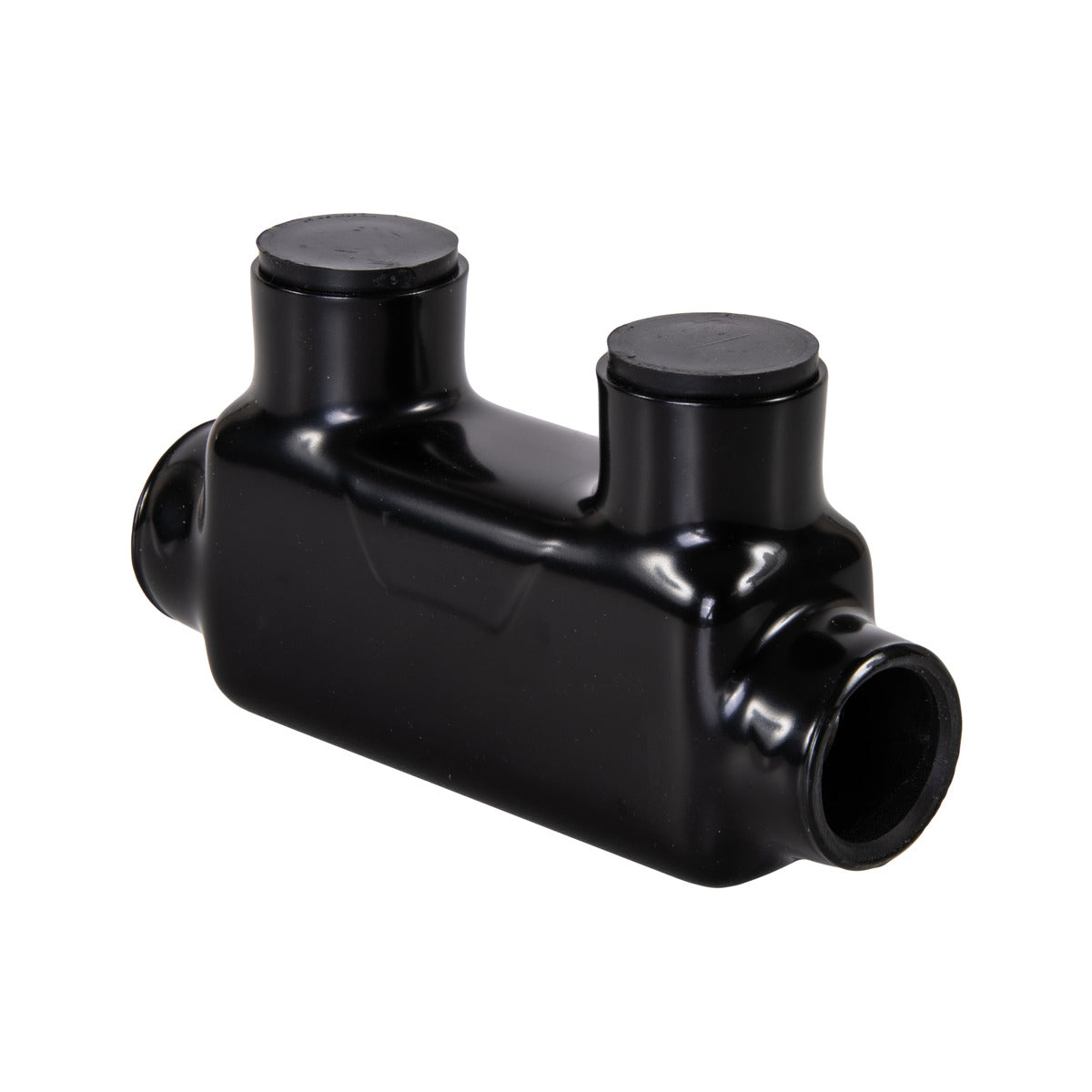

NSI Polaris ISR-1/0 2-Port Black Multi-Tap Pre-Insulated Connector, 1/0 – 14 AWG

Polaris Black Multi-Tap Connectors form secure connections between multiple conductors with a rounded design and UV-resistant insulation coating. Installs with a hex key and torque wrench, with no need for cover and taping.

  • In-Line Wire Entry: Form secure connections between 2 conductors quickly using the in-line entry ports sized for wires between 1/0 and 14 AWG
  • Ergonomic Design: Rounded corners and a smooth exterior finish over the abrasion-resistant plastisol insulation make Polaris connectors comfortable to grip
  • Removable Plugs: Each port and set screw comes with a secure plug to prevent debris from entering the insulated connector
  • Pre-filled Oxide Inhibitor: Both in-line ports come pre-filled with an oxide inhibitor gel to prevent corrosion and provide low-contact resistance
  • Professional Performance: Save time and labor when splicing or reducing in-line wires made from copper or aluminum, in a wide range of applications


Product Sheet

Product Drawing

Cross Reference

Installation Instructions



Voltage Rating:
Finish: Plastisol Insulated
Color: Black
Certifications: cULus
UL Standard: UL 486A/B
Wire Cable Class: Class B, Class C
Al Conductor Max Amp: 135
Cu Conductor Max Amp: 170
Conductor Al Size Range: 1/0 AWG – 12 AWG
Conductor Cu Size Range: 1/0 AWG – 14 AWG
Conductor Type: Copper, Aluminum
Temp Rating: 90C, AL9CU
Conductors Count: 2
Hex Wrench Size: 3/16
Env Temp: Cold Temperature rated to -45C
Application: Splice
Max Torque: 80
