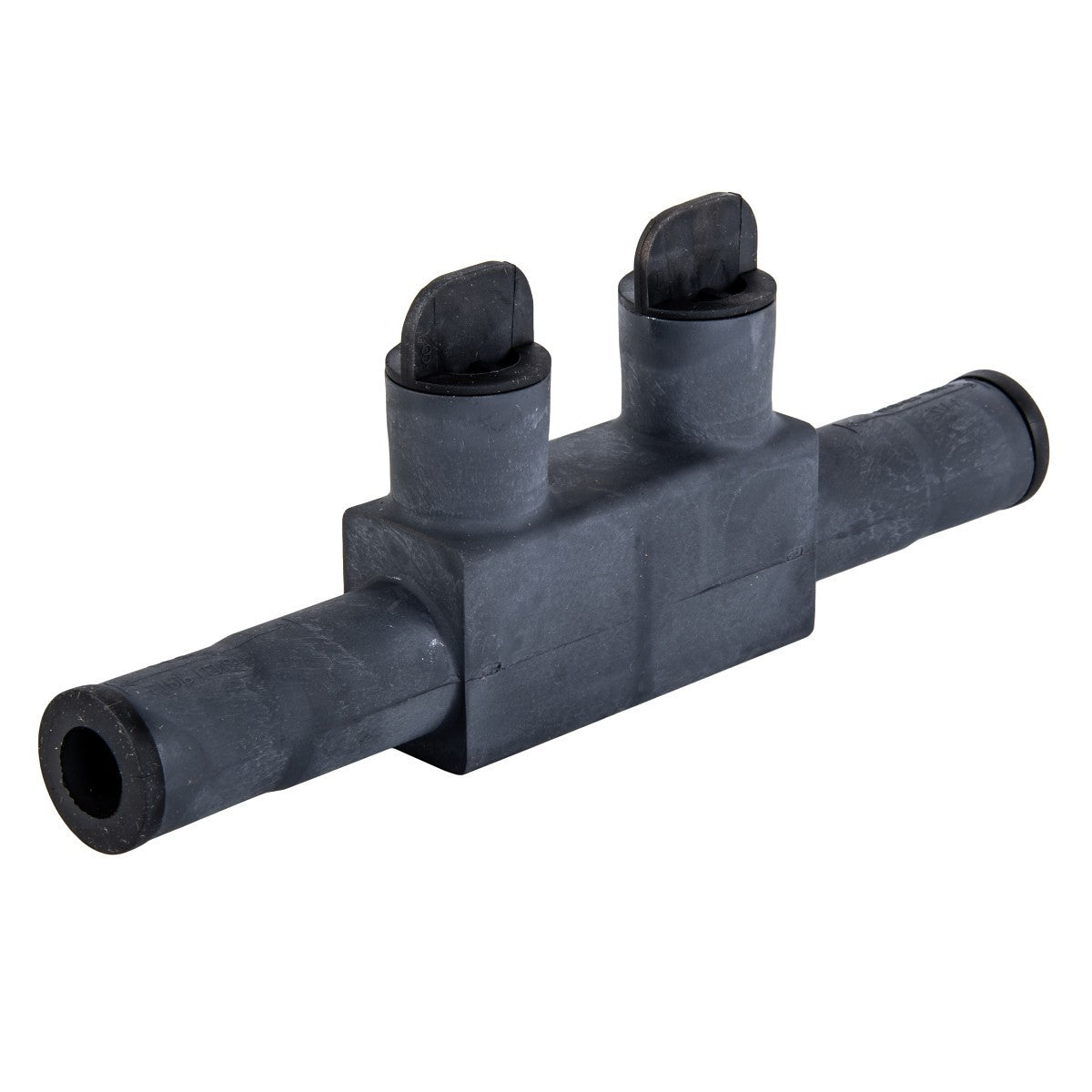

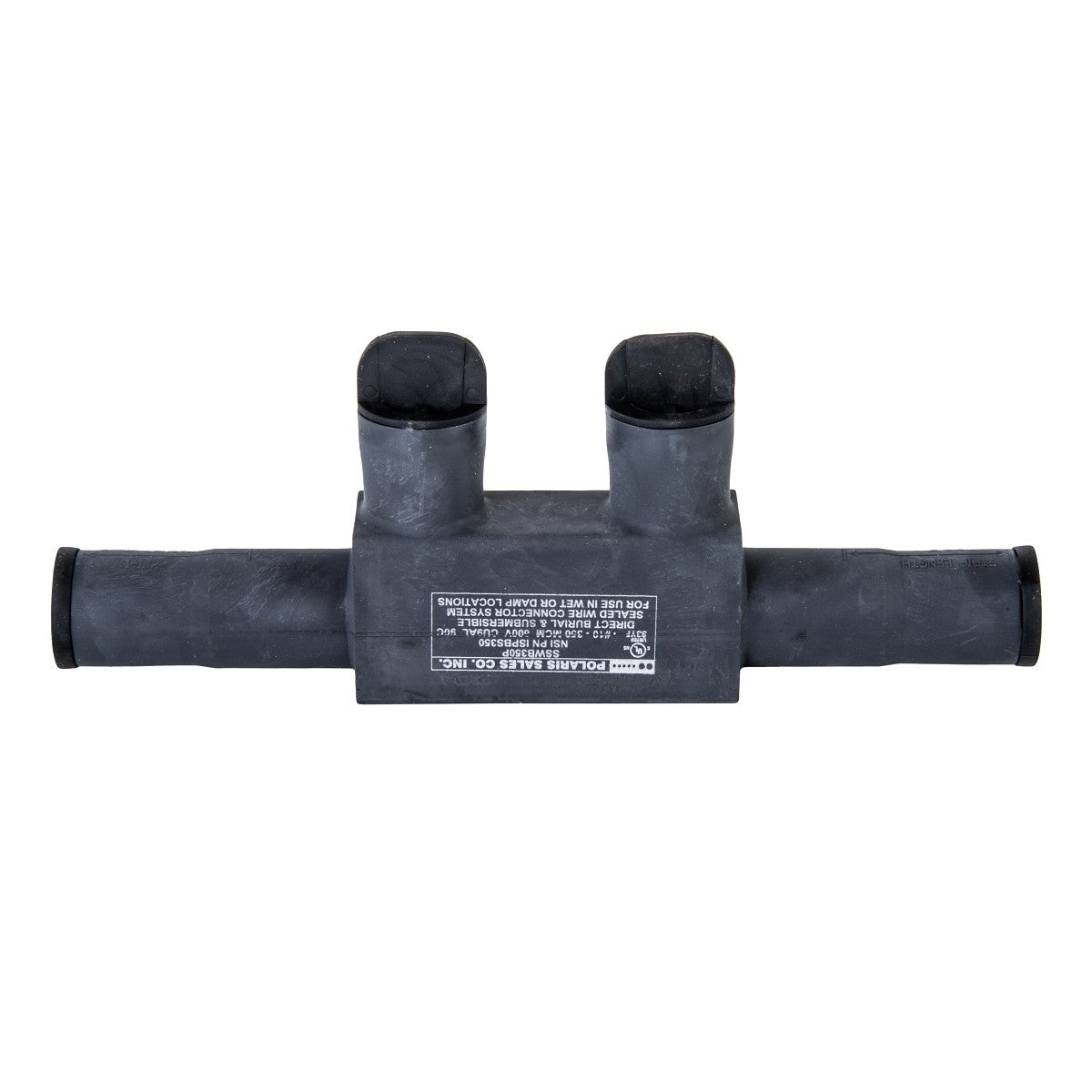

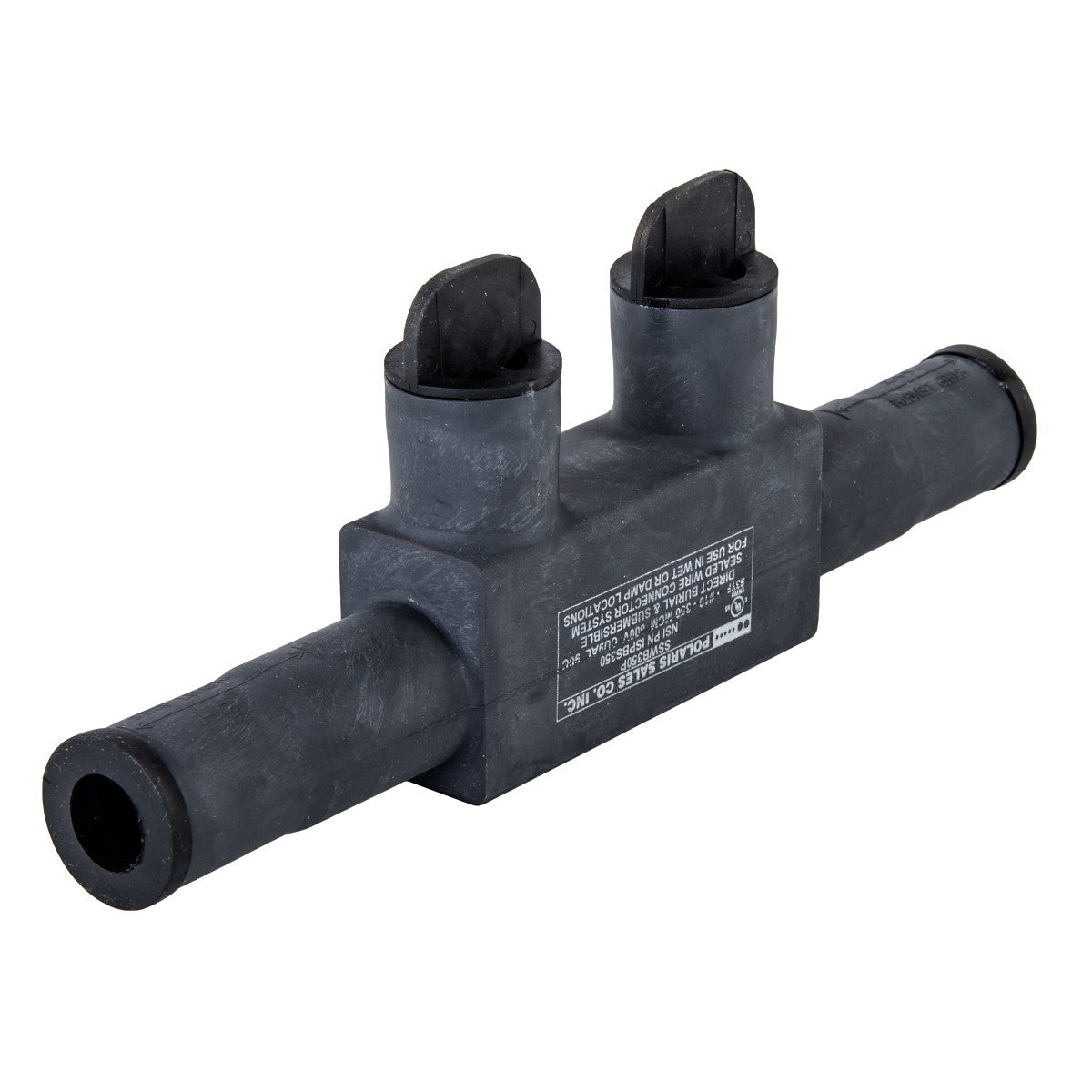

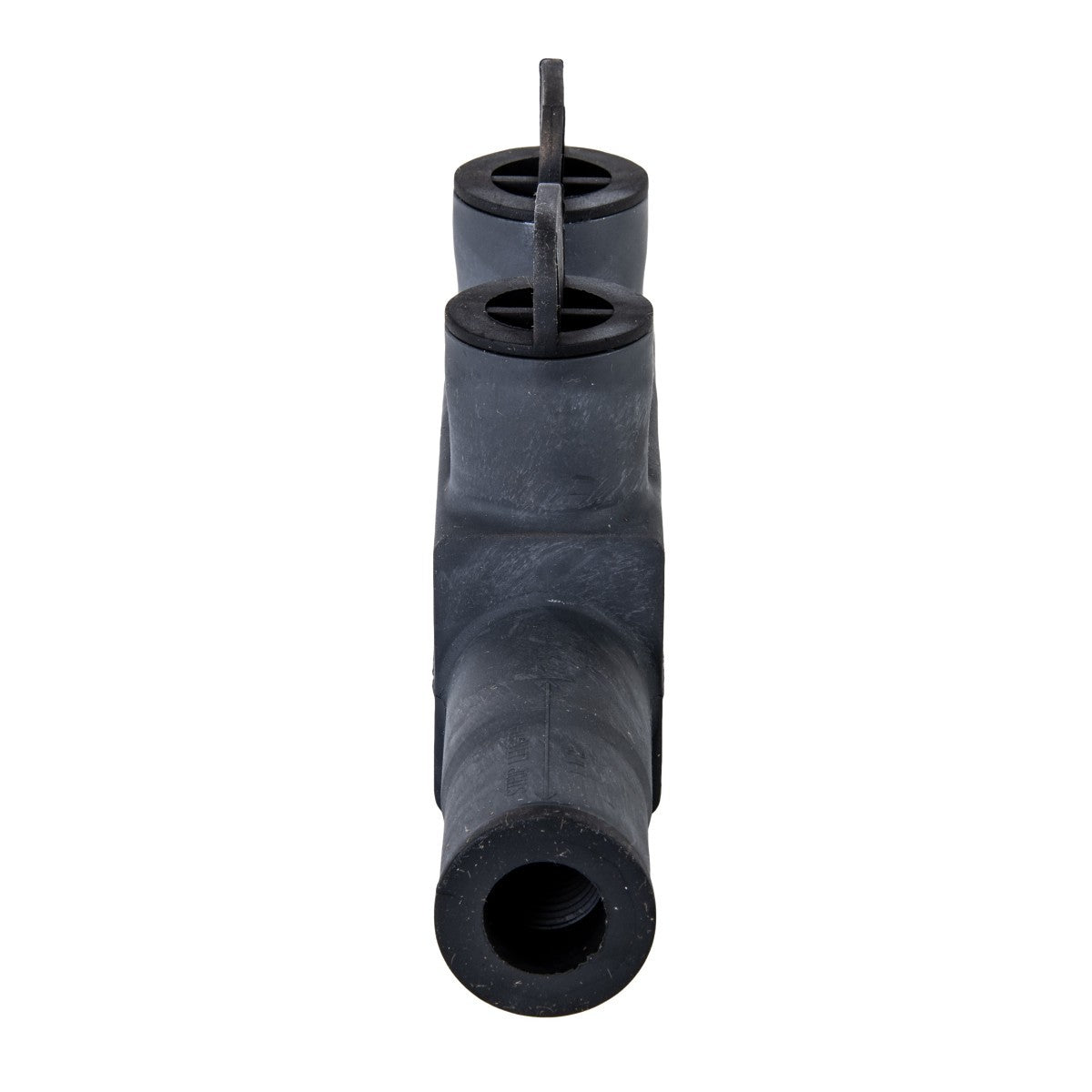

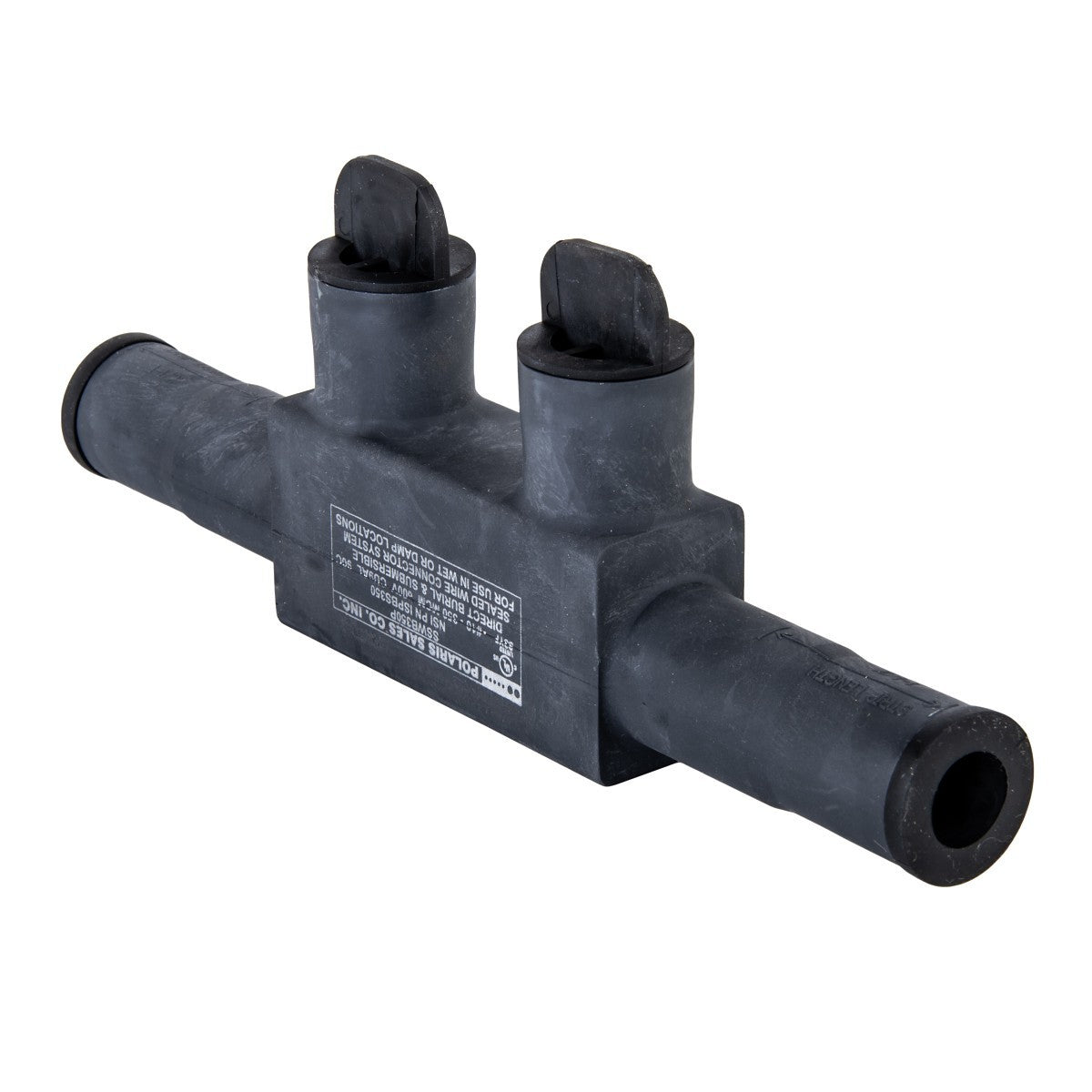

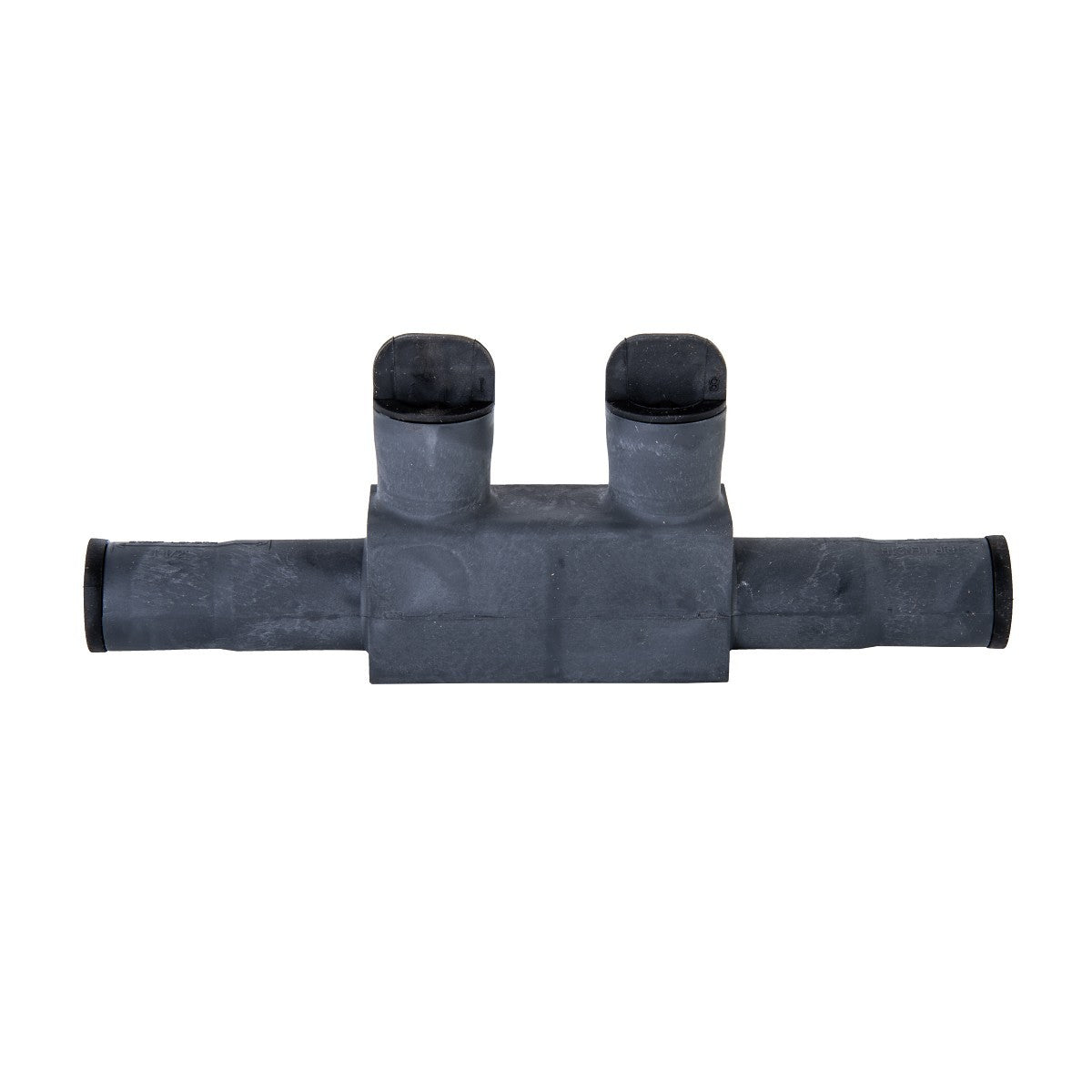

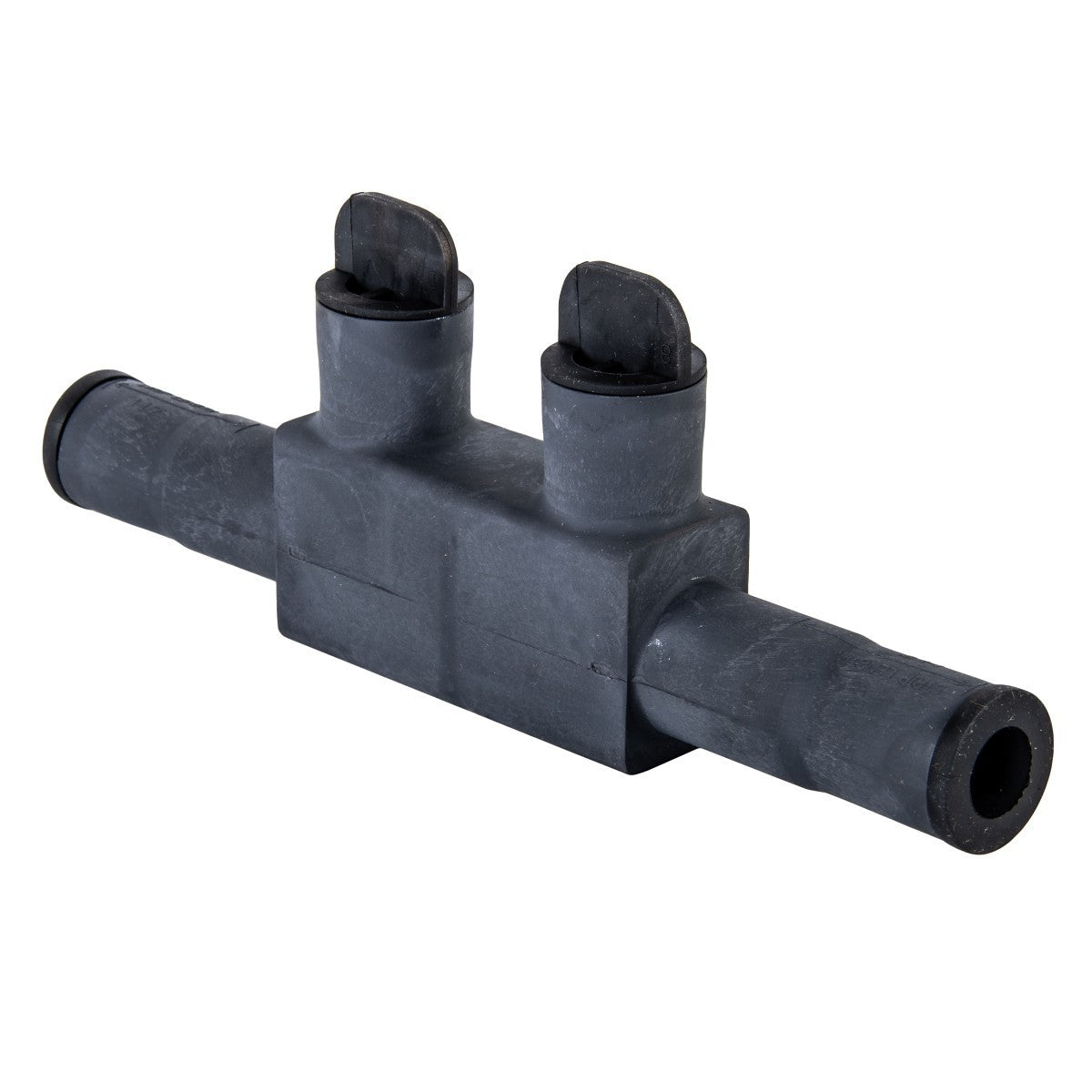

NSI ISPBS350B Polaris Submersible Pedestal Connector, 2 Port, 350 MCM – 12 AWG

Polaris Edge Multi-Tap Direct Burial Connectors form secure connections between multiple conductors and feature a squared-off design and EPDM rubber insulation coating for temporary submersion or direct burial. Installs with a hex key and torque wrench, with no need for cover and taping.

• In-line Wire Entry: Form secure connections between 2 conductors quickly using the in-line entry ports sized for wires between 350 MCM and 10 AWG. Suitable for use on the line side of the service equipment as per the NEC article 230.46 requirement.
• Direct Burial Applications: High-strength aluminum alloy body and rubber insulation with a nominal thickness of 125 mils built for temporary submersal or direct burial applications
• Squared-Off Design: The EPDM rubber insulation features square corners and is UV, abrasion and chemical-resistant for durable performance
• Pre-filled Oxide Inhibitor: Both entry ports are covered by removable plugs and pre-filled with an oxide inhibitor gel to prevent corrosion or contamination
• Professional Performance: The durable layer of insulation on each Polaris connector is UV, abrasion and chemical-resistant for reliable performance

SPECIFICATIONS:

Max Torque Value:	360.0
Assortment:	Submersible Pre-Insulated Connector
Material:	Aluminum
Ul Standard:	UL 486D
Finish:	EPDM Rubber Insulated
Color:	Black
Voltage Rating:	600 V
Conductor Type:	Copper, Aluminum
Conductor Cu Size Range:	350 MCM – 10 AWG
Conductor Al Size Range:	350 MCM – 10 AWG
Wire Cable Class:	Class B, Class C
