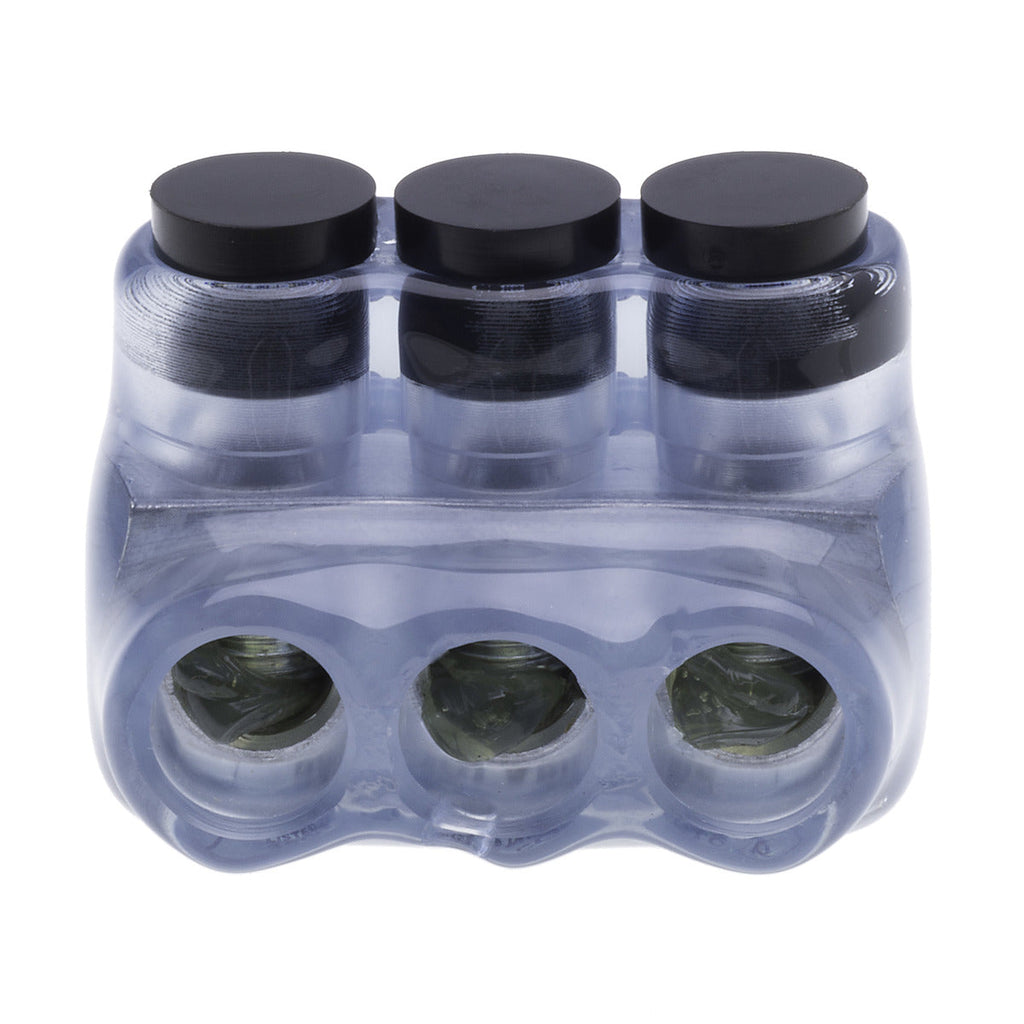

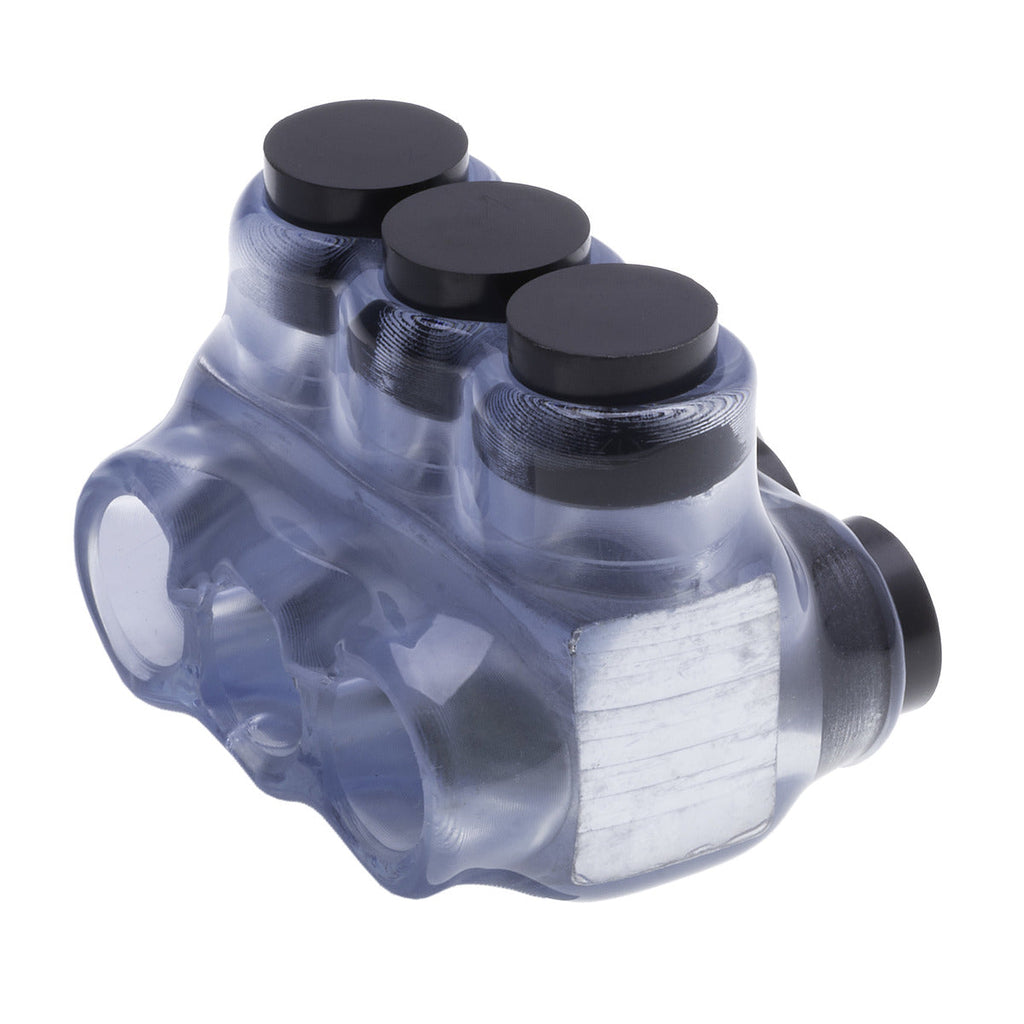

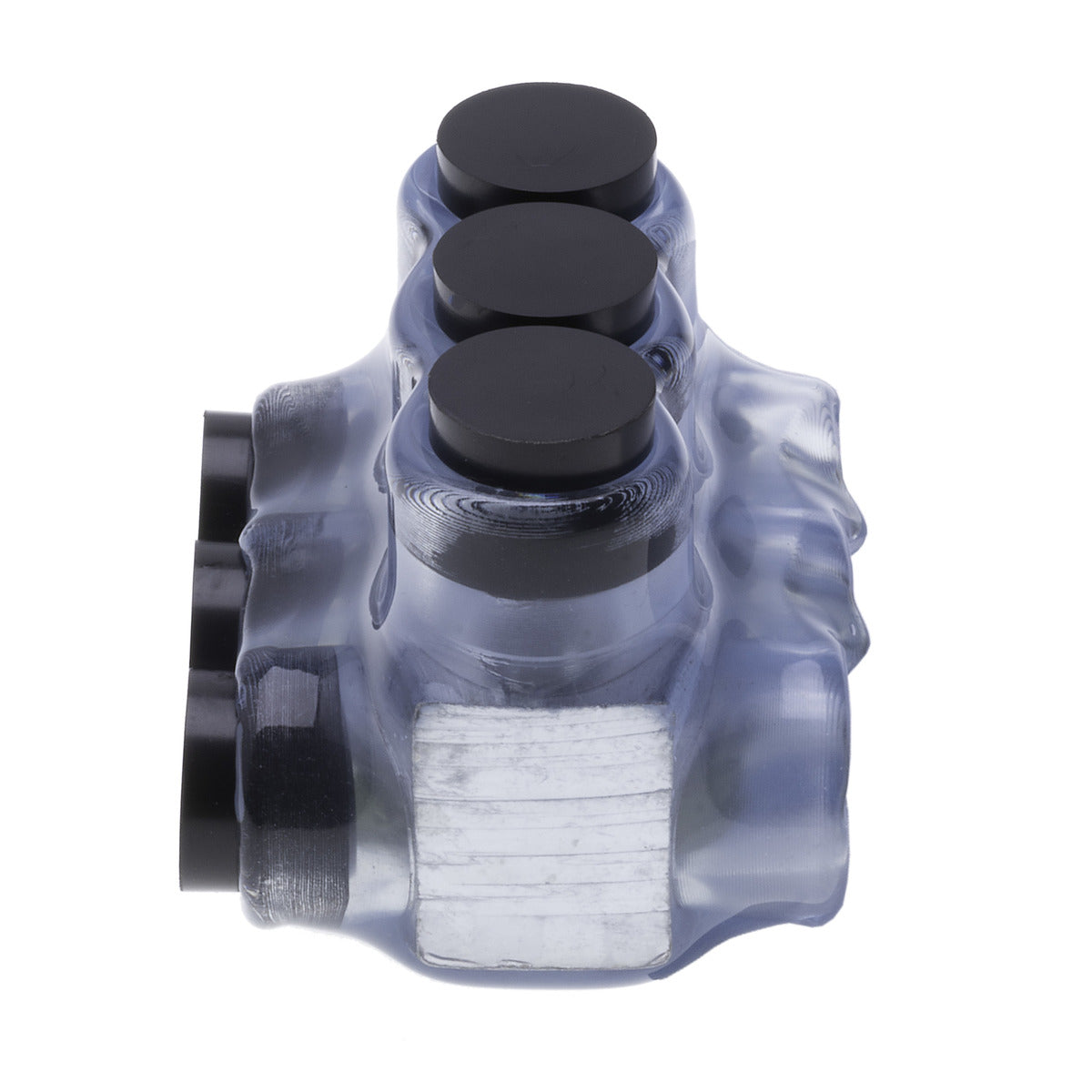

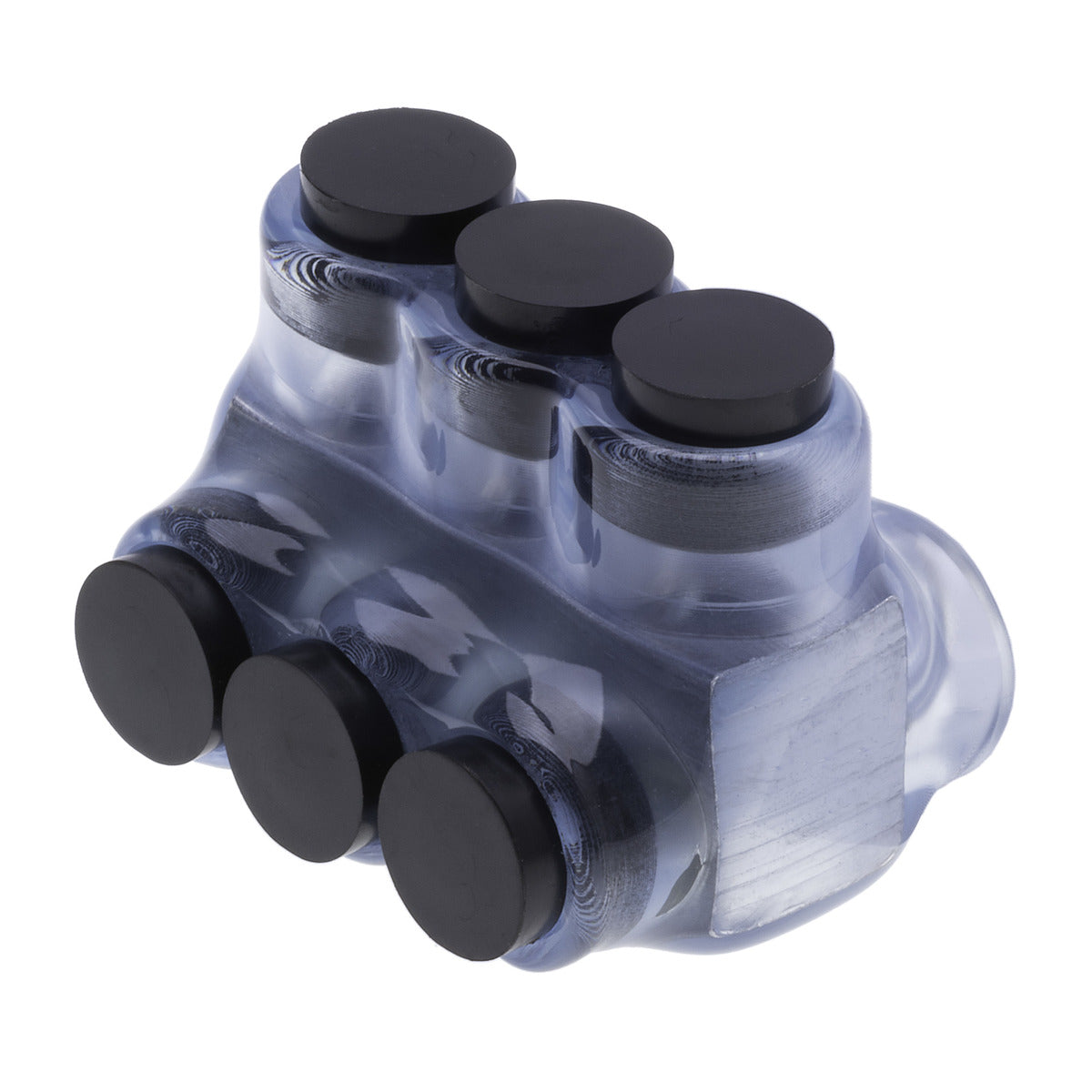

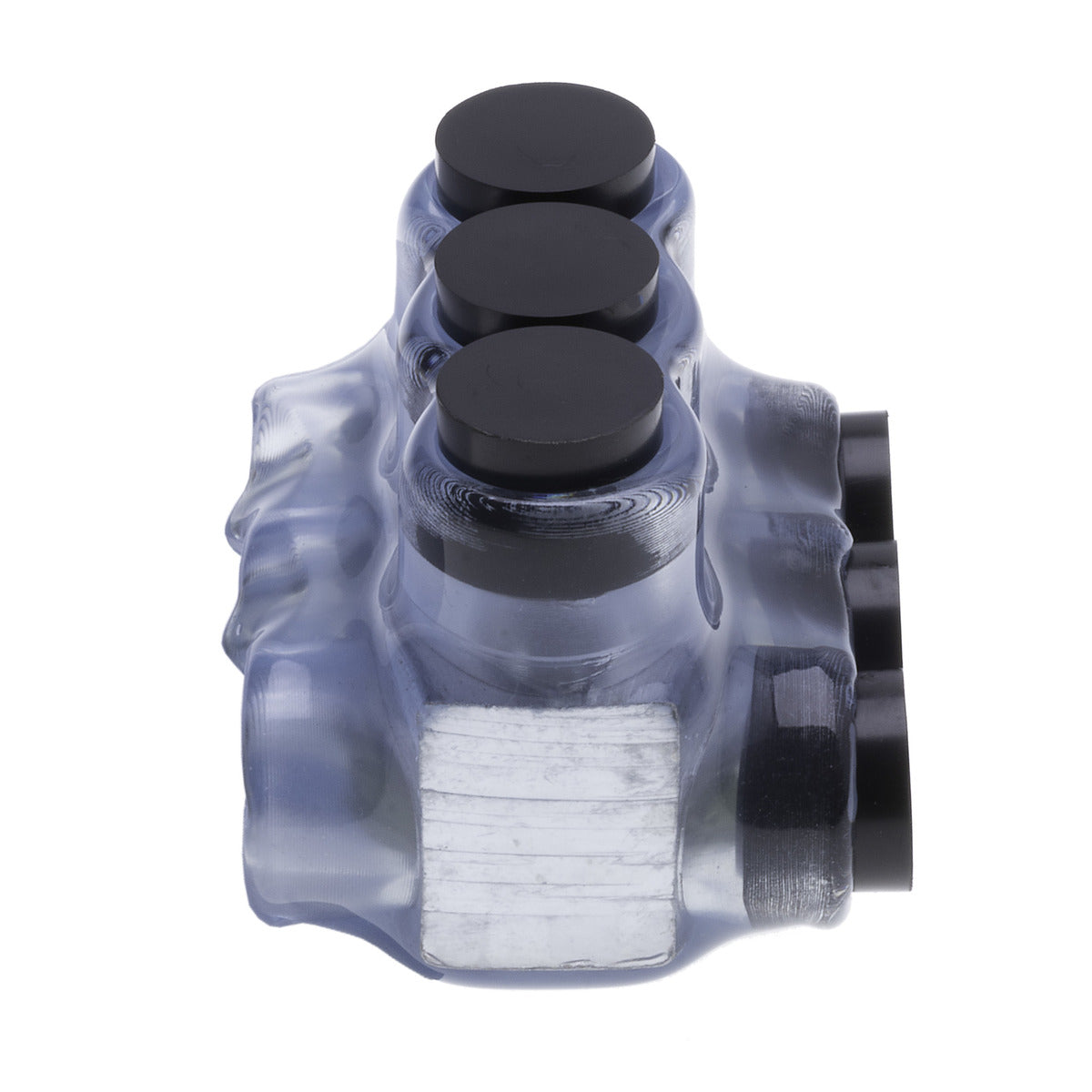

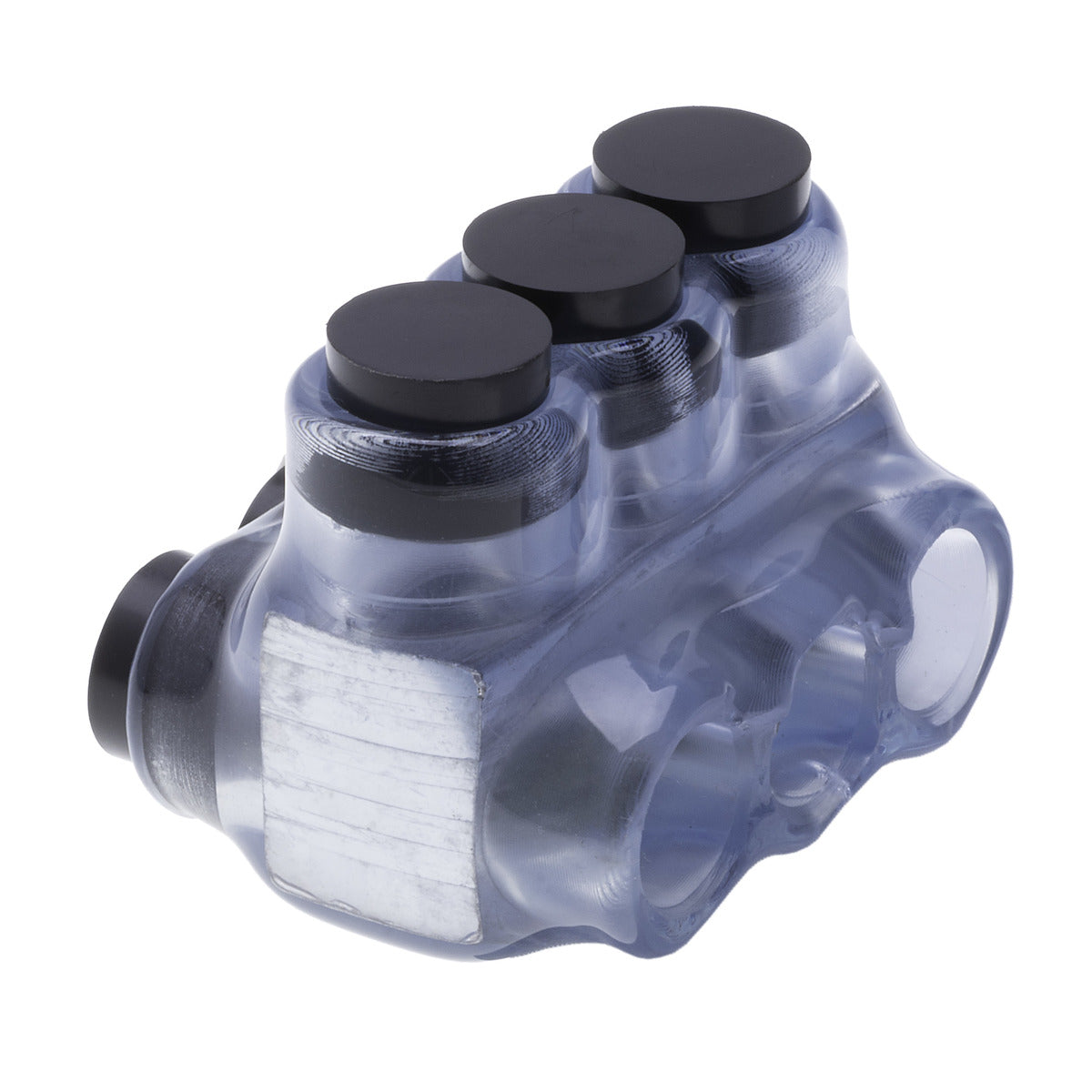

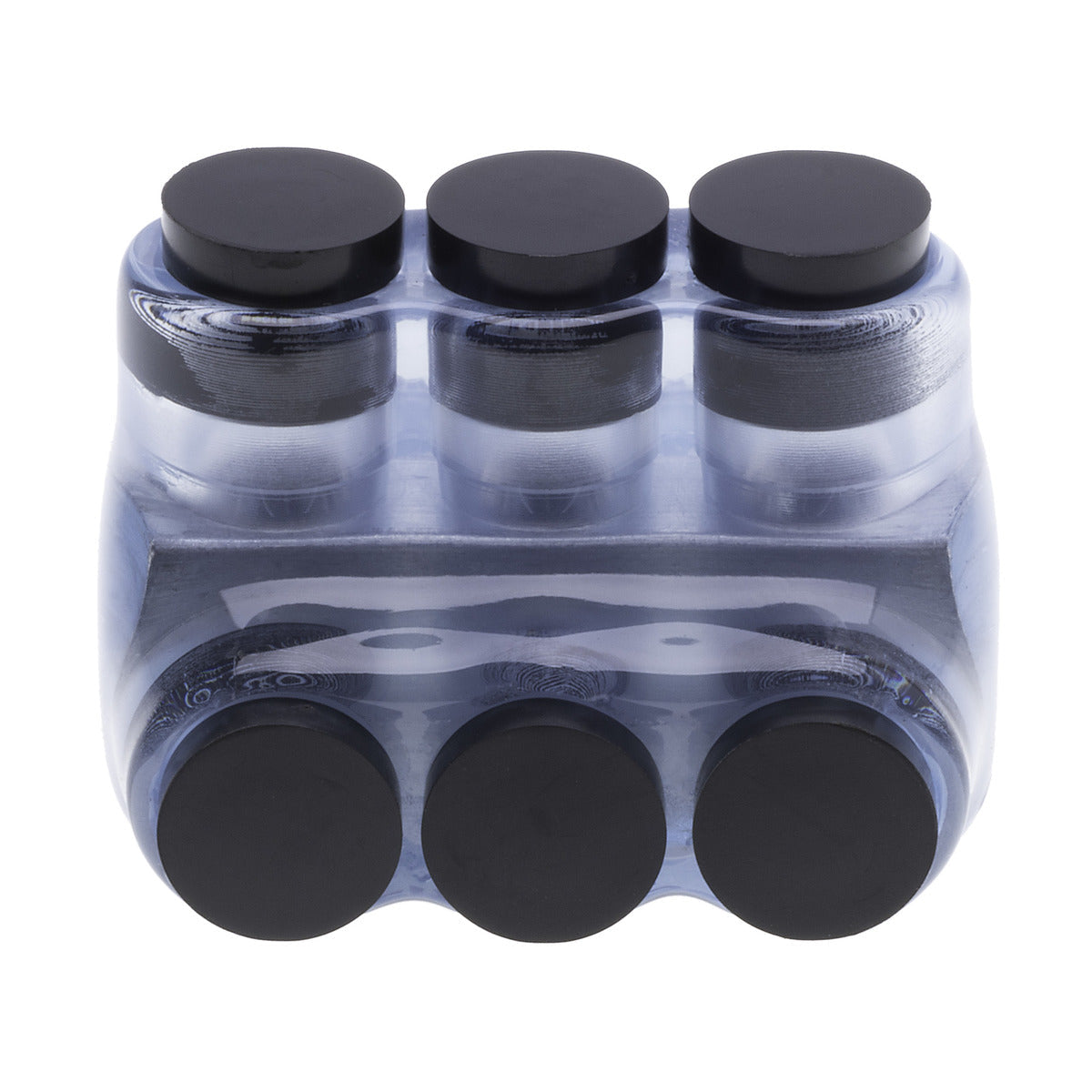

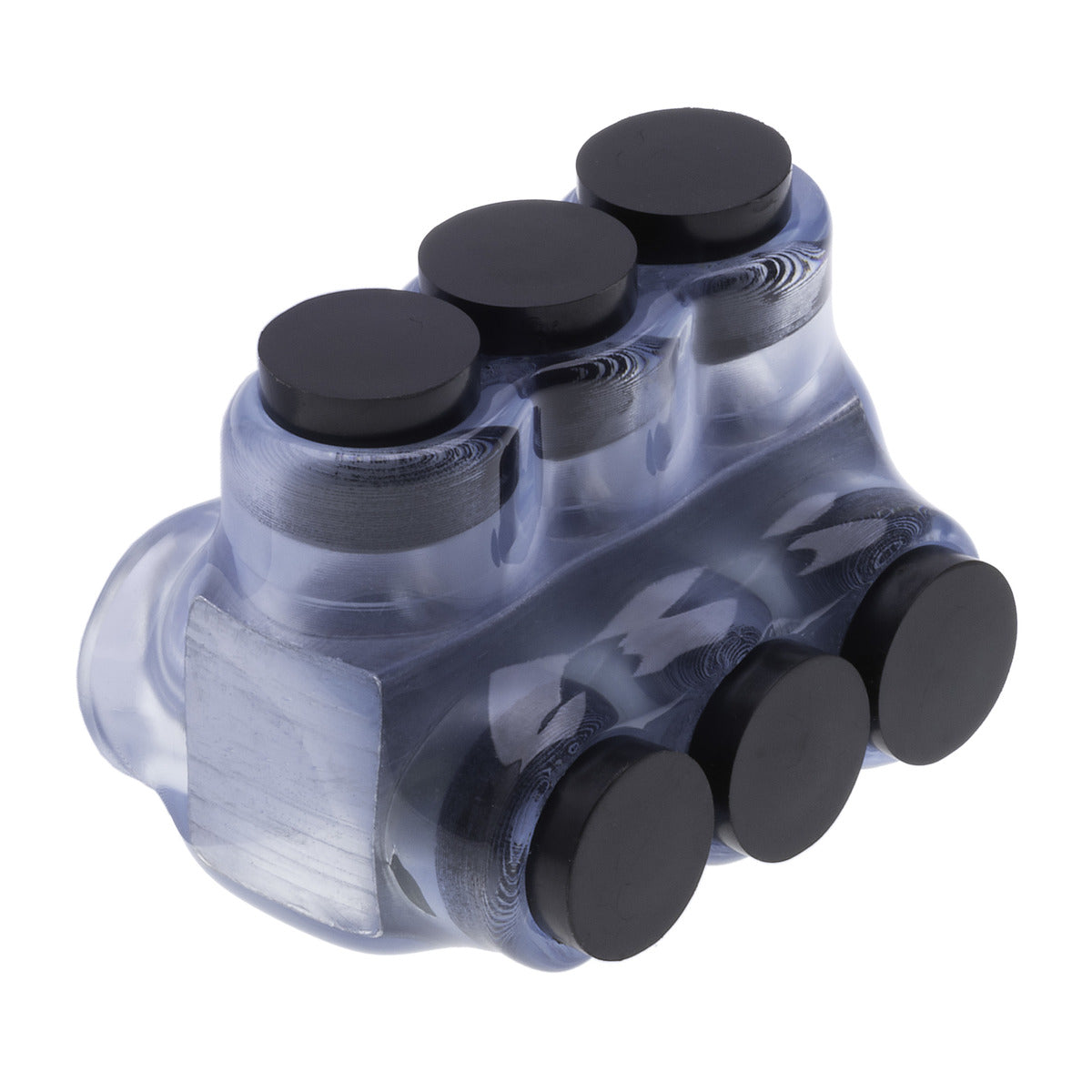

NSI IPLD2-3C 3-Port Clear Multi-Tap Pre-Insulated Connector, 2-14 Gauge
Save 29%
Original price
$27.34
Current price
$19.52
SKU IPLD2-3CB
NSI IPLD2-3C 3-Port Clear Multi-Tap Pre-Insulated Connector, 2-14 Gauge
Polaris Vision Tap Multi-Tap Connectors form secure connections between multiple conductors with a transparent rounded design and chemical-resistant insulation coating. Installs with a hex key and torque wrench, with no need for cover and taping.
- Clear Exterior: Vision Tap transparent design lets users see their work to ensure ideal conductor placement and the most secure connection
- Dual-Sided Wire Entry: Form secure connections between 3 conductors quickly using the double-side entry ports sized for wires between 2 AWG and 14 AWG
- Ergonomic Design: Rounded corners and a smooth exterior finish over the abrasion-resistant plastisol insulation make Polaris connectors comfortable to grip
- Pre-filled Oxide Inhibitor: All 3 dual-sided (DSE) entry ports are covered by removable plugs and pre-filled with an oxide inhibitor gel to protect against corrosion, debris or moisture
- Professional Performance: The durable layer of insulation on each Polaris connector is abrasion and chemical-resistant for reliable performance
Specifications
|
Voltage Rating: |
600V |
|
Material: |
Aluminum |
| Finish: | Plastisol Insulated |
| Color: | Clear |
| Certifications: | cULus |
| UL Standard: | UL 486A/B |
| Wire Cable Class: | Class B, Class C |
| Al Conductor Max Amp: | 100 |
| Cu Conductor Max Amp: | 130 |
| Conductor Al Size Range: | 2-14 AWG |
| Conductor Cu Size Range: | 2-12 AWG |
| Conductor Type: | Copper, Aluminum |
| Temp Rating: | 90C, AL9CU |
| Conductors Count: | 3 |
| Hex Wrench Size: | 5/32 |
| Env Temp: | Cold Temperature rated to -45C |
| Application: | Splice, Tap |
| Max Torque: | 65 |
