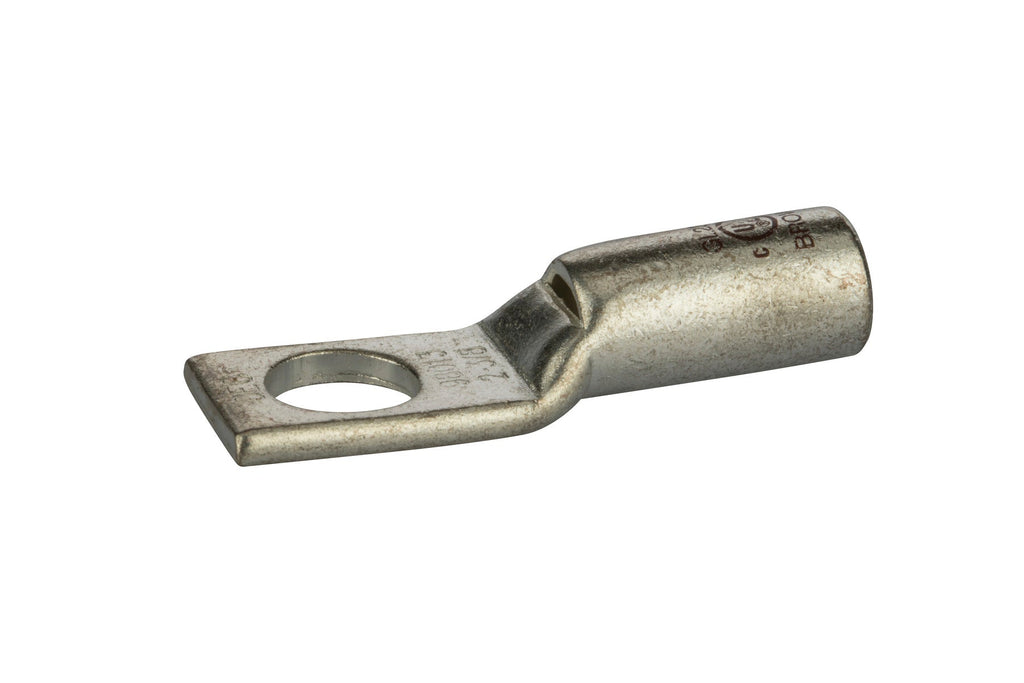

NSI GL238 Copper Brown Compression Short Lug, 2 AWG, 3/8” Mount
Save 53%
Original price
$7.56
Current price
$3.54
SKU GL238
NSI GL238 Copper Brown Compression Short Lug, 2 AWG, 3/8” Mount
POLARIS compression connectors terminate high-current wires safely, with a max voltage rating of 35kV when properly installed. The tin-plated copper body, chamfered entry and clear brown color coding make them easy to use.
- Strong Conductivity: Produced from high-conductivity copper tubing
- Corrosion-Resistant: Tin-plated to provide corrosion and low-contact resistance
- Die-Indexed: Marked with die index and color-coded brown
- Strong Termination: Listed for 35 kV maximum when properly installed
- Easy Inspection: Peephole allows easy inspection of the termination to assure complete cable insertion
Product Drawing
Installation Instructions
Specifications
|
Voltage: |
600V |
| Material: | Copper |
| Finish: | Tin Plated |
| Ul Standard: | UL 486A-486B, UL467 |
| Barrel Inside Diameter: | 0.32 |
| Barrel Outside Diameter: | 0.42 |
| Wire Cable Class: | Class B, Class C |
| Conductor Type: |
Copper |
| Tang Thickness: | 0.1 |
| Tang Length: | 0.81 |
| Temp Rating: | 90C, 9CU |
| Hole Count: | 1 |
| Expanded Wire Range: | 2 AWG – 6 AWG |
| Die Color Coded: | Brown |
| Mounting Hole Size: | 3/8 |
| Barrel Length: | 1 |
