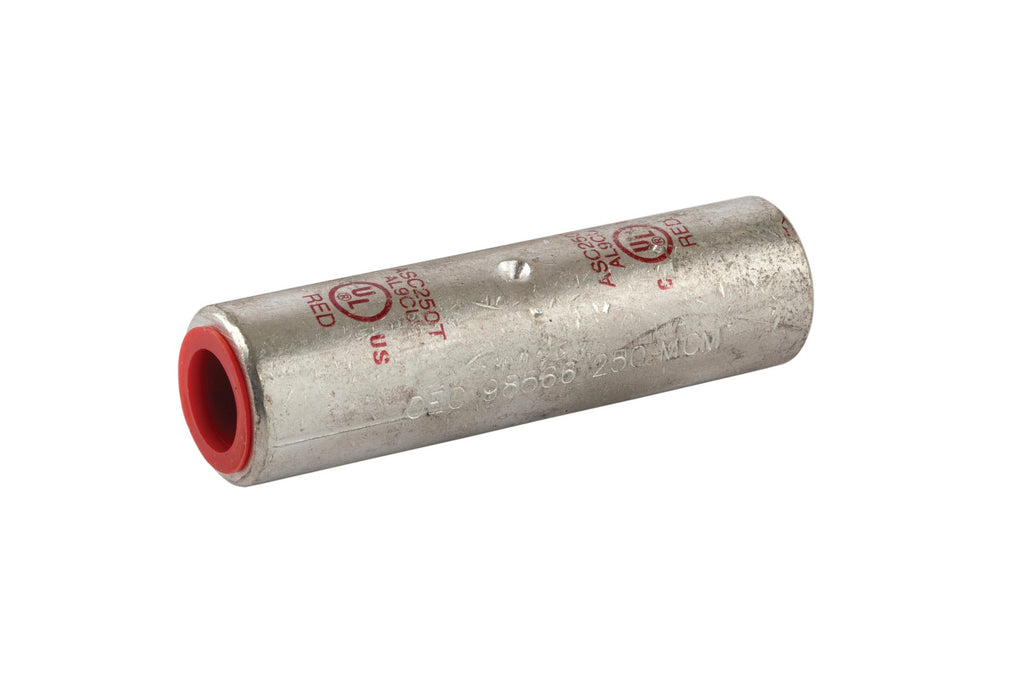

NSI ASC250T Aluminum Compression Splice, 250 MCM, AL/CU
Save 52%
Original price
$31.38
Current price
$15.06
SKU ASC250T
NSI ASC250T Aluminum Compression Splice, 250 MCM, AL/CU
- Produced from high conductivity aluminum tubing
- Center stop assures proper cable installation
- Electro-tin plated for corrosion resistance
- Listed for 35kV maximum when properly installed to cable manufactures specifications, Color coded and marked with die index information
- Pre-filled with oxide inhibitor and capped with color coded cap
Product Drawing
Specifications
|
Voltage: |
600V |
| Material: | Aluminum |
| Finish: | Tin Plated |
| Ul Standard: | UL 486A-486B |
| Barrel Inside Diameter: | 0.59 |
| Barrel Outside Diameter: | 0.92 |
| Wire Cable Class: | Class B, Class C |
| Conductor Type: |
Copper, Aluminum |
| Temp Rating: | 90C, 9CU |
| Wire Range: | 250 MCM |
| Expanded Wire Range: | 250 MCM-1/0 AWG |
| Die Color Coded: | Red |
| Barrel Length: | 3.25 |
