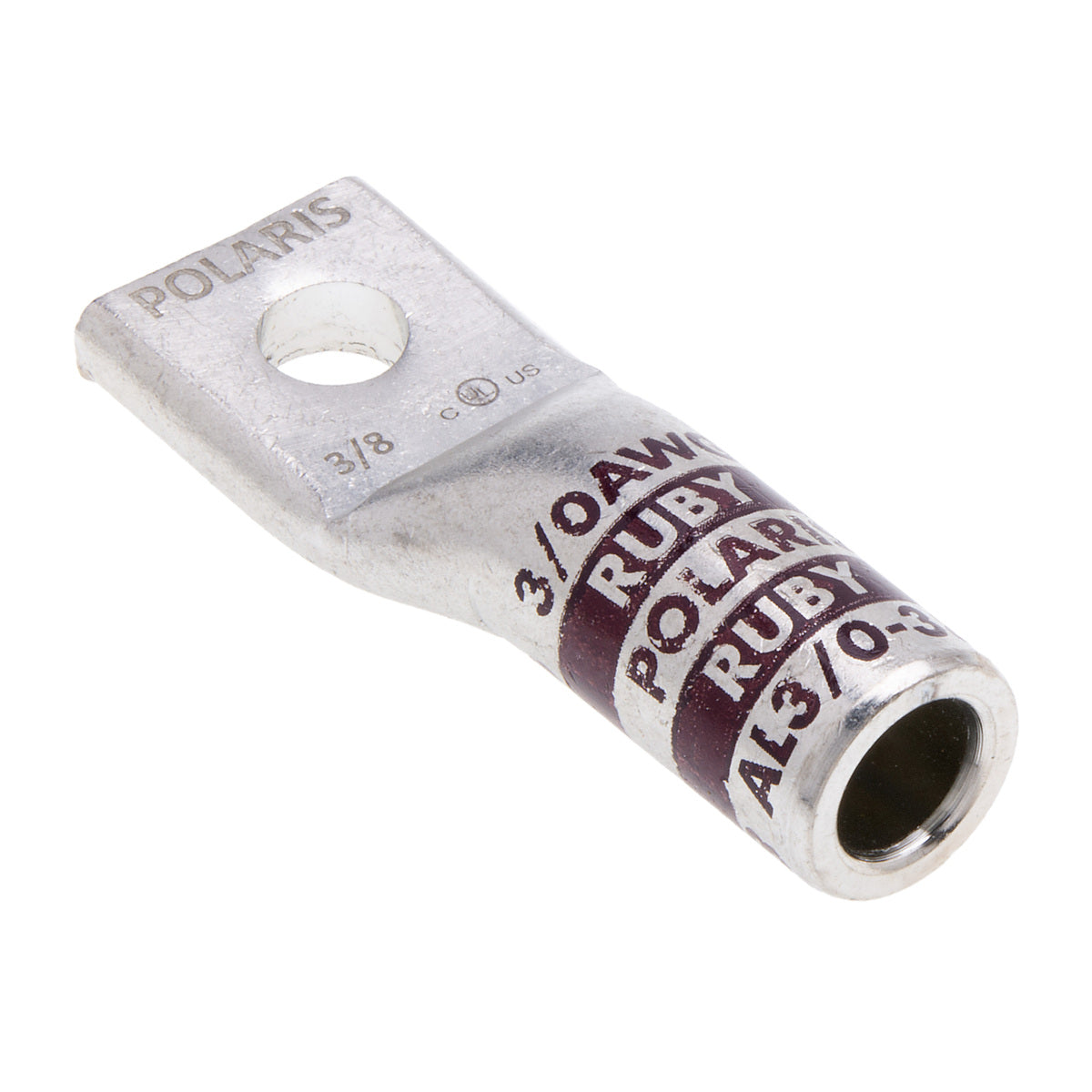

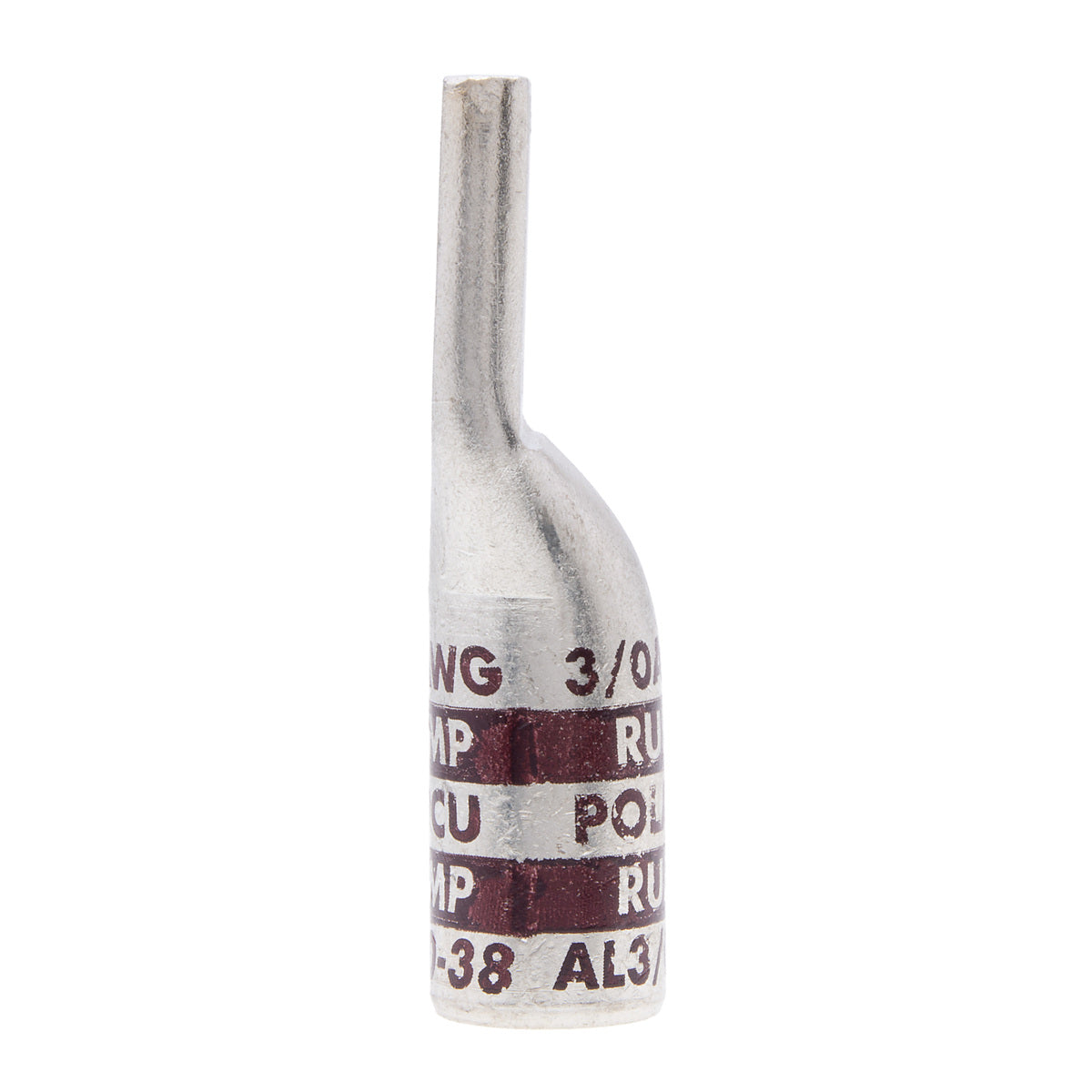

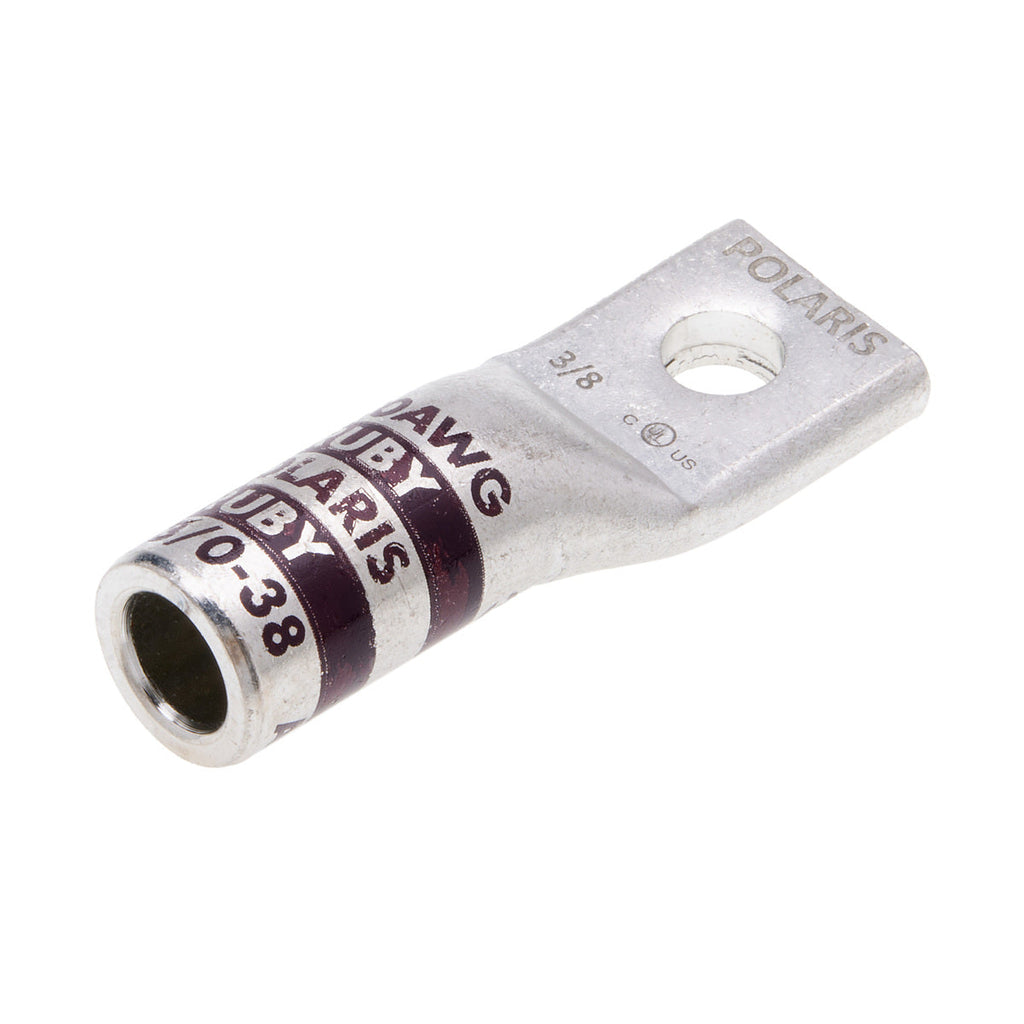

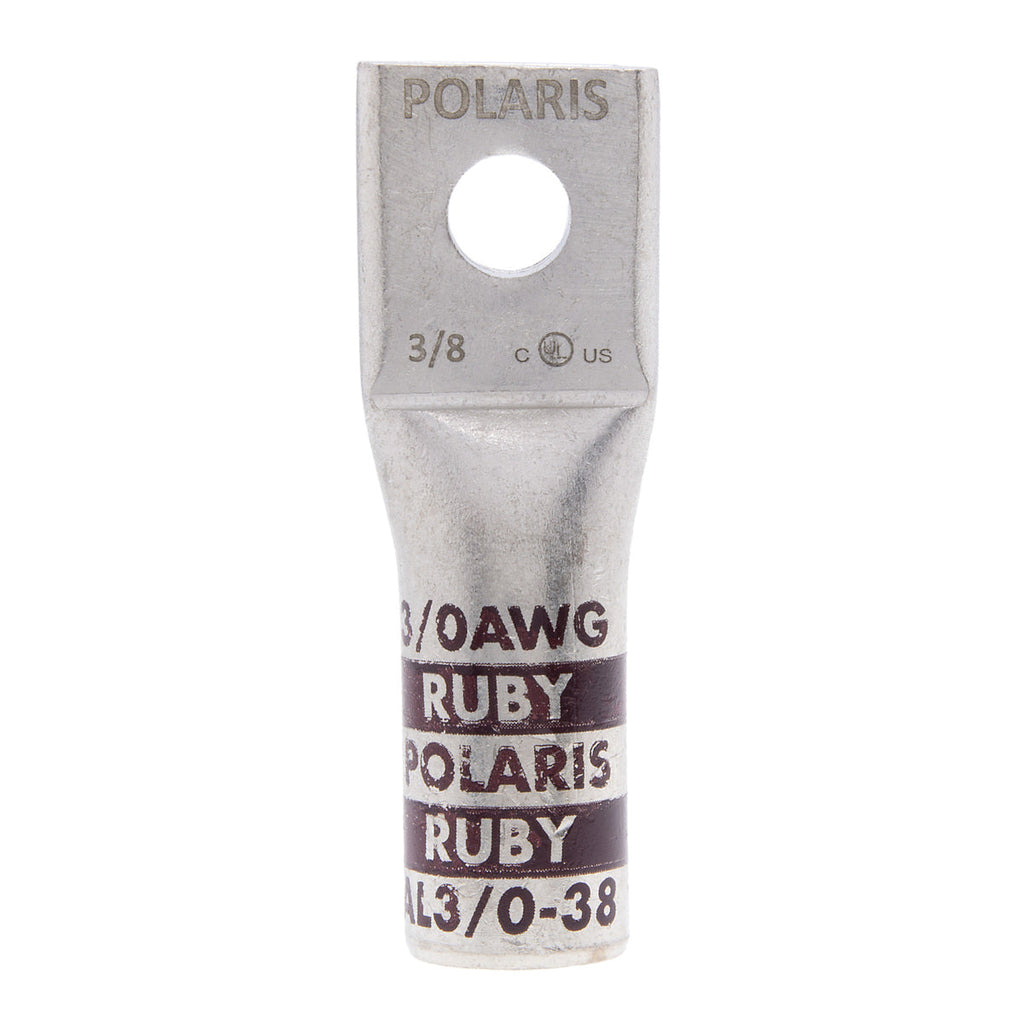

NSI AL3/0-38 Single-Hole Aluminum Barrel Compression Lug, 3/0 AWG, 3/8” Mount, AL/CU
Save 36%
Original price
$24.37
Current price
$15.60
SKU AL3/0-38
NSI AL3/0-38 Single-Hole Aluminum Barrel Compression Lug, 3/0 AWG, 3/8” Mount, AL/CU
POLARIS Compression Connectors terminate large, high-current wires safely, with a max voltage rating of 35kV when properly installed. The tin-plated aluminum body, chamfered entry and clear color coding make these lugs easy to use.
- Compression Lug: This single-hole barrel compression lug is rated for safe use in professional applications up to 35kV
- Functional Design: One-piece construction and closed barrel design made from tin-plated aluminum is simple and durable
- Easy to Install: Save time with a chamfered port, clear color-coded die index and a design that only requires a crimp tool to install
- Reliable Performance: This lug is resistant to moisture, contaminants, oxidation, corrosion and vibration due to the tin-plated aluminum design
Product Drawing
Installation Instructions
Specifications
|
Voltage: |
600V |
| Material: | Aluminum |
| Finish: | Tin Plated |
| Ul Standard: | UL 486A-486B |
| Barrel Inside Diameter: | 0.48 |
| Barrel Outside Diameter: | 0.76 |
| Wire Cable Class: | Class B, Class C |
| Conductor Type: |
Copper, Aluminum |
| Tang Thickness: | 0.28 |
| Tang Length: | 1.2 |
| Temp Rating: | 90C, AL9CU |
| Hole Count: | 1 |
| Wire Range: | 3/0 AWG |
| Expanded Wire Range: | 3/0 AWG – 2 AWG |
| Die Color Coded: | Ruby |
| Mounting Hole Size: | 3/8 |
| Barrel Length: | 1.4 |
