Description

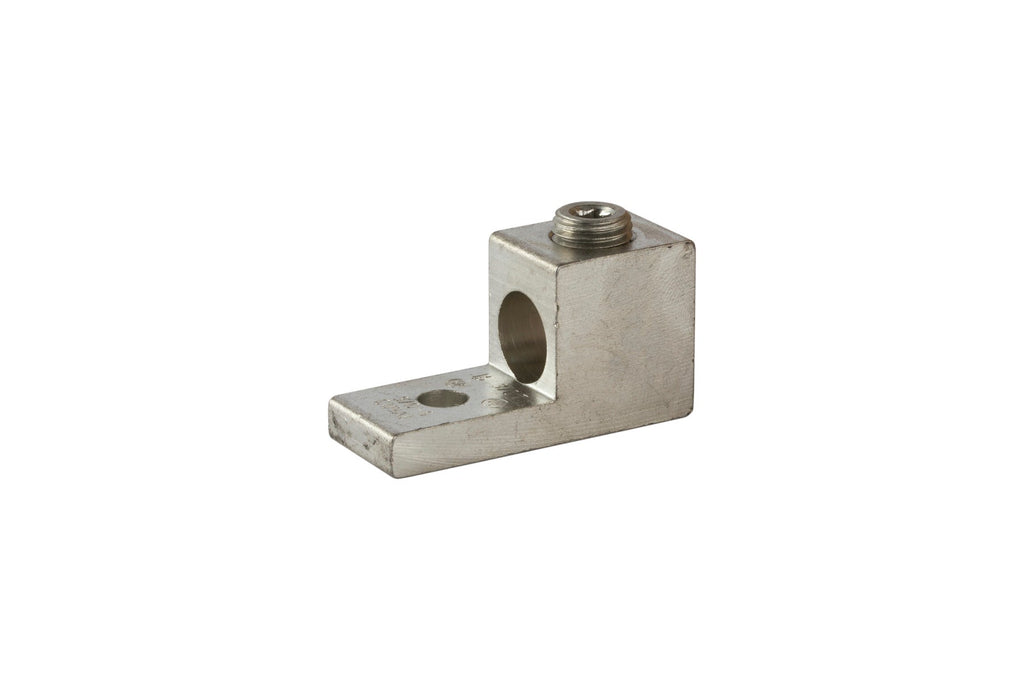

NSI 3/0T Dual Rated Mechanical Single Lug, 3/0 AWG – 6 AWG
Aluminum Dual-Rated Single Lug 3/0-6 AWG with 1/4″ bolt size for use with copper or aluminum conductors.
- Versatile and reusable set-screw connectors made of 6061T-6 aluminum alloy
- Electro-tin plated for low contact resistance
- For use with copper or aluminum conductors
- 1/4" Bolt Size
- Rated 600 volts (2000V max. per UL486B)
Specifications:
|
Voltage: |
600V |
| Material: | 6061T-6 Aluminum Alloy |
| Finish: | Tin Plated |
| Ul Standard: | UL 486A-486B |
| Conductor Type: |
Copper, Aluminum |
| Hex Wrench Size: | 3/16 |
| Wire Range: | 3/0 AWG – 6 AWG |
| Application: | Terminate |
