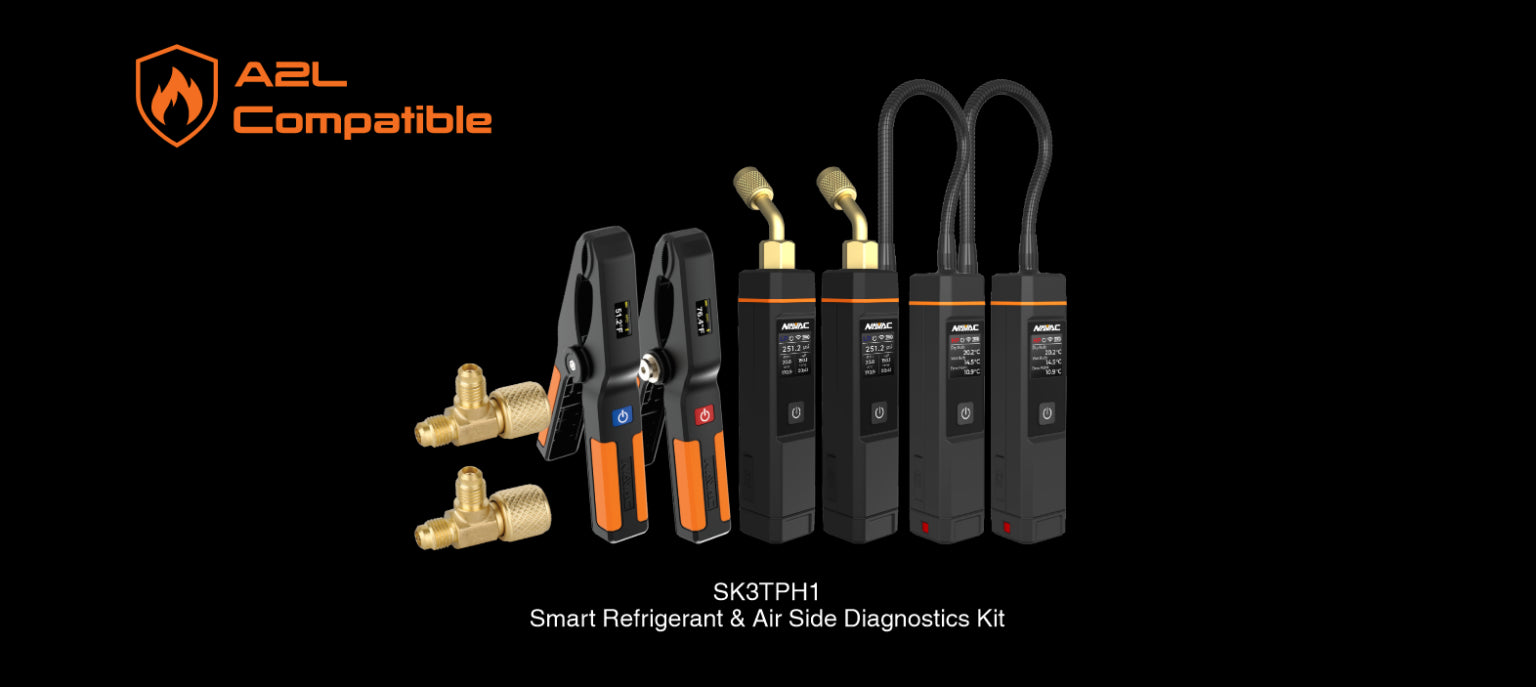

NAVAC SK3TPH1 Smart Refrigerant & Air Side Diagnostics Kit

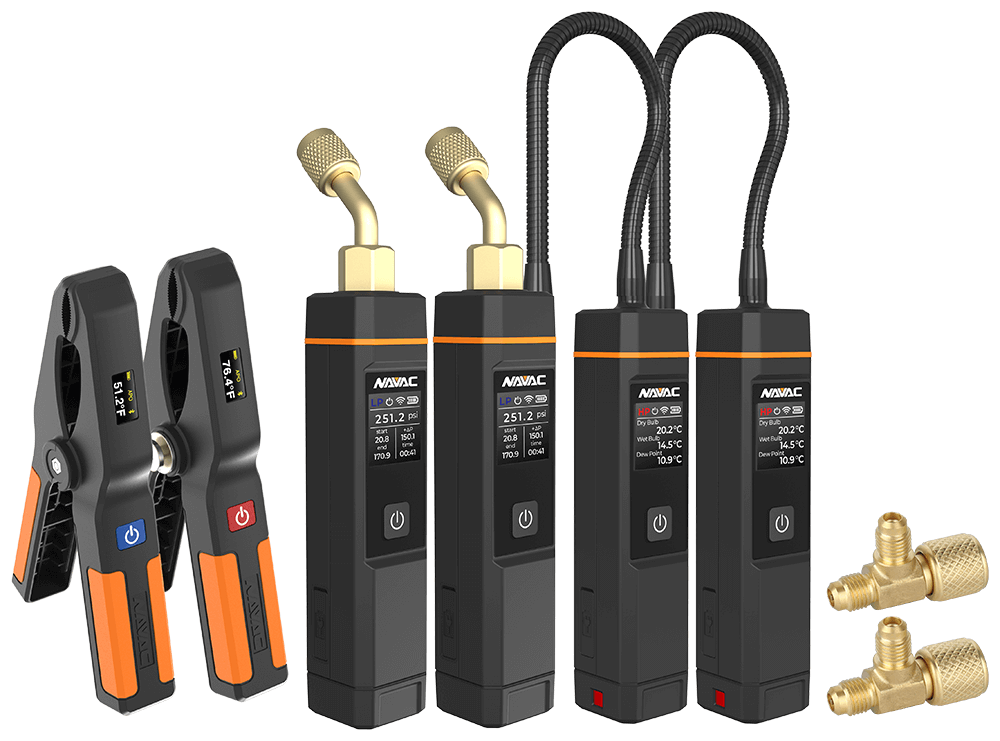

The SK3TPH1 Smart Refrigerant & Air Side Diagnostics Kit is an all-in-one solution for HVACR professionals. It includes two NST1 and NST2 Bluetooth Temperature Clamps with high-accuracy thermistor sensors, two NSP1 Bluetooth Pressure Probes with automatic VSAT/LSAT calculations, two NSH1 Bluetooth Psychrometers for detailed air-side data, and two F1030 1/4″ SAE Access Tee Connectors. Each probe (NSH1, NSP1) features a built-in digital display for standalone use, rechargeable lithium batteries, and user-friendly controls for smooth operation. This comprehensive kit ensures precision, efficiency, and convenience for system diagnostics and achieving optimal performance.
Model: NST1, NST2
- Temp Range: -40~257°F (-40~125°C)
- Accuracy: ± 2.3°F (± 1.3°C)
- Resolution: 0.1
- Sensor Type: Thermistor Pt100
- Temperature Units: °F, °C
- Max. Tube OD: 1-5/8″ (42mm)
- Battery Type: 2 x AAA
- Max. Bluetooth Range: 450ft (150m) line of sight
- Display Type: TFT
- Unit Weight: 0.35 lbs
- IP Rating: IP54
Model: NSP1
- Measurement Range: -29.0 inHg to 725 psi
- Maximum Overload Pressure: 1087 psi (7500 kPa)
- Accuracy: ±0.5% of full range
- Resolution: 0.01 psi
- Sensor Type: Ceramic pressure sensor
- Max. Bluetooth Range: 164 ft (50 m) line of sight
- Power Supply: Rechargeable 1200mAh Lithium Battery.
For the best charging experience, please use the provided cable, or USB-A to USB-C cables. - Rechargeable Battery Operating Time: Screen off: ＞200h; Screen on: ＞40h
- Unit Weight: 7.6oz (0.47lbs / 215g)
- Accessory: Carry bag
- Wireless Frequency: 2.4 GHz
- Auto Power Off (APO): 2 hours (can be disabled)
- Minimum Device Requirement: BLE4.0 or above, Android 7.0.0 or above, Apple iOS 12.0 or above
Model: NSH1
- Measurement Range: Temperature: -40°F to 249.8°F, Humidity: 0 to 100% RH
- Measurement Units: °F (Fahrenheit), °C (Celsius), % RH (Relative Humidity), °Ftd (Fahrenheit, dry bulb temperature), °Ctd (Celsius, dry bulb temperature), Wet Bulb °F, Wet Bulb °C
- Accuracy: Humidity: ±2.0%RH（10 to 90%RH) (at 77°F/25°C), ±5.0%RH（< 10%Rhor > 90%RH), (at 77°F/25°C) / Temperature: ±1.1°F (−4°F to 32°F) / ±0.6°C (-20~0°C), ±0.9°F (32°F to 140°F) / ±0.5°C (0~ 60°C), ±1.3°F (140°F to 248°F)/ ±0.7°C (60°C~ 120°C)
- Resolution: Humidity: 0.1%RH / Temperature: 0.1°C
- Sensor Type: Humidity: Capacitive Polymer Film / Temperature: Precision Thermistor
- Response Time: 10 seconds
- Max. Bluetooth Range: 164 ft (50 m) line of sight
- Power Supply: Rechargeable 1200mAh Lithium Battery.
For the best charging experience, please use the provided cable, or USB-A to USB-C cables.
- Rechargeable Battery Operating Time: Screen off: ＞200h; Screen on: >40h
- Unit Weight: 7.8oz 0.49lbs (220g)
- Accessory: Carry bag
- Wireless Frequency: 2.4 GHz
- Auto Power Off(APO): 2 hours(can be disabled)
- Flexible Probe: Length: 7.9 in (200 mm) / Diameter: 0.39 in (10mm)
- Minimum Device Requirement: BLE4.0 or above, Android 7.0.0 or above, Apple iOS 12.0 or above
Part No. F1030
- Fit Configuration: 1/4″ SAE M x 1/4″ SAE FE x 1/4′” SAE M
- Qty: 2 pack
Warning: This product operates under high pressure. Follow all safety guidelines regarding refrigerant handling. Including wearing Personal Protective Equipment such as safety glasses and gloves.
