Description

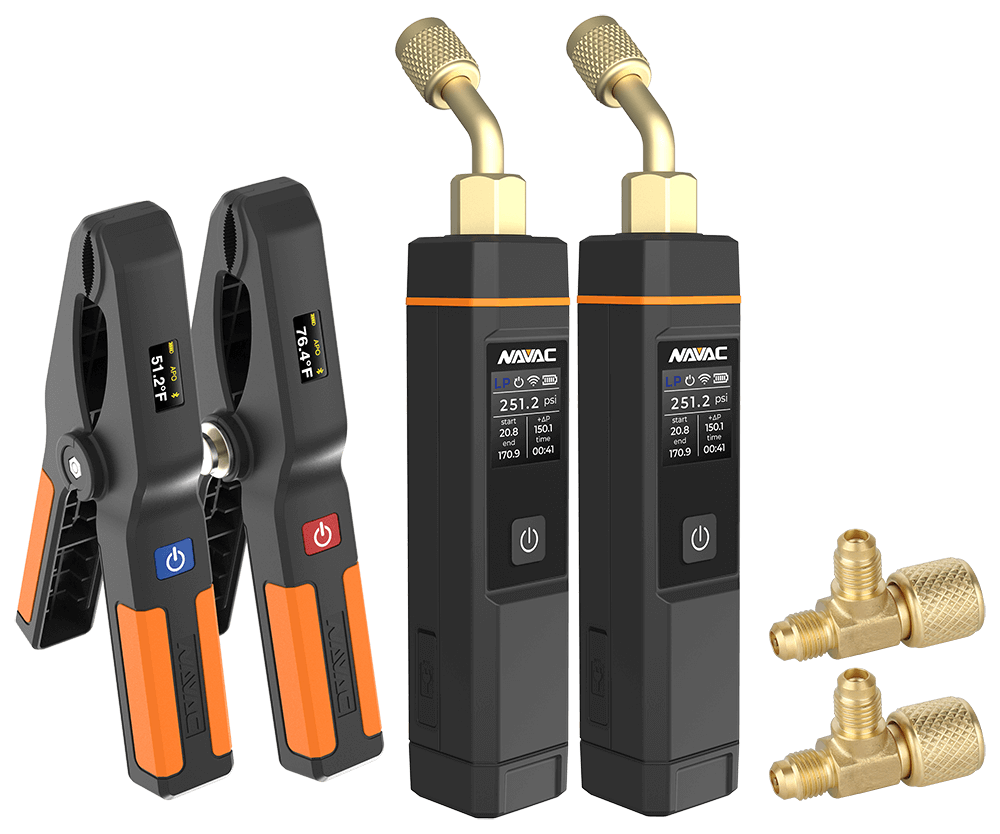

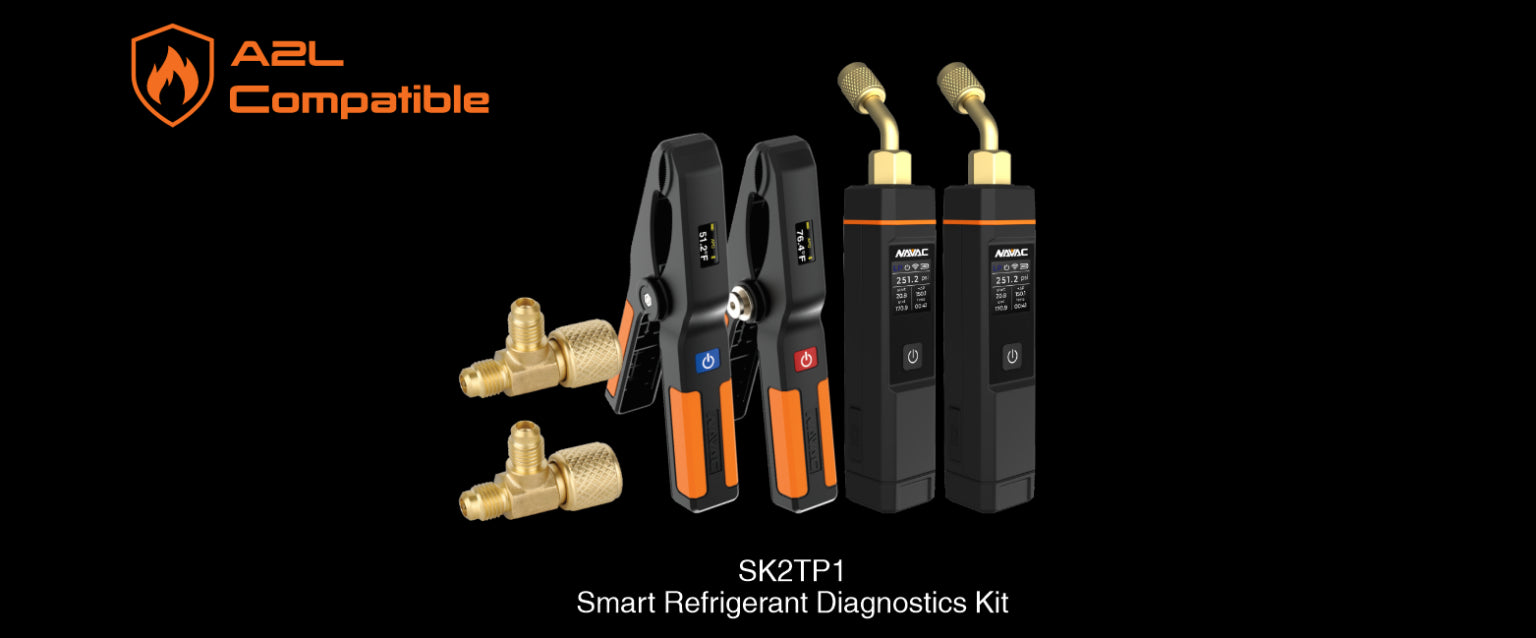

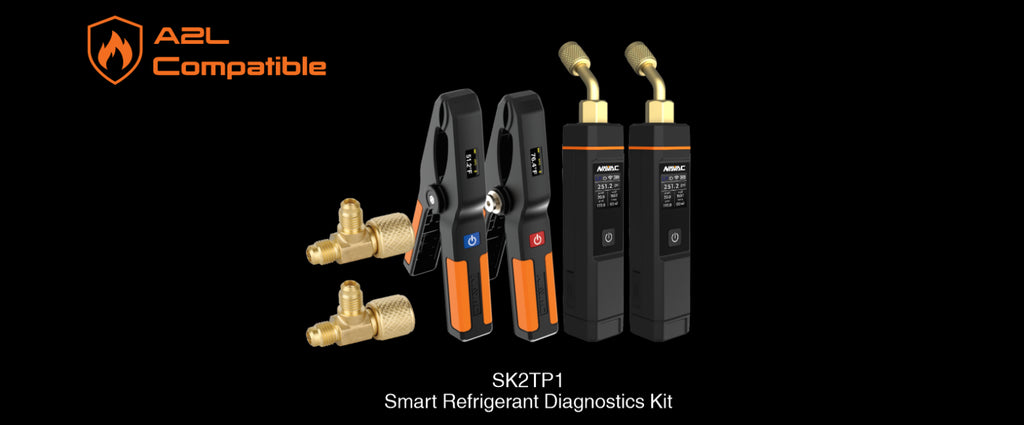

NAVAC SK2TP1 Smart Refrigerant Diagnostics Kit
The SK2TP1 Smart Refrigerant Diagnostics Kit is a comprehensive solution for HVACR professionals, featuring a pair of Bluetooth Temperature Clamps, two NSP1 Bluetooth Pressure Probes, and two 1/4″ sae Access Tee Connectors. Each probe in the kit includes a built-in digital display for standalone use. With wireless connectivity to the myNAVAC™ App, this kit delivers precision, efficiency, and convenience for refrigerant diagnostics and optimal performance.
Model: NST1, NST2
- Temp Range: -40~257°F (-40~125°C)
- Accuracy: ± 2.3°F (± 1.3°C)
- Resolution: 0.1
- Sensor Type: Thermistor Pt100
- Temperature Units: °F, °C
- Max. Tube OD: 1-5/8″ (42mm)
- Battery Type: 2 x AAA
- Max. Bluetooth Range: 450ft (150m) line of sight
- Display Type: TFT
- Unit Weight: 0.35 lbs
- IP Rating: IP54
Model: NSP1
- Measurement Range: -29.0 inHg to 725 psi
- Maximum Overload Pressure: 1087 psi (7500 kPa)
- Accuracy: ±0.5% of full range
- Resolution: 0.01 psi
- Sensor Type: Ceramic pressure sensor
- Max. Bluetooth Range: 164 ft (50 m) line of sight
- Power Supply: Rechargeable 1200mAh Lithium Battery.
For the best charging experience, please use the provided cable, or USB-A to USB-C cables. - Rechargeable Battery Operating Time: Screen off: ＞200h; Screen on: ＞40h
- Unit Weight: 7.6oz (0.47lbs / 215g)
- Accessory: Carry bag
- Wireless Frequency: 2.4 GHz
- Auto Power Off (APO): 2 hours (can be disabled)
- Minimum Device Requirement: BLE4.0 or above, Android 7.0.0 or above, Apple iOS 12.0 or above
Part No. F1030
- Fit Configuration: 1/4″ SAE M x 1/4″ SAE FE x 1/4′” SAE M
- Qty: 2 pack
Warning: This product operates under high pressure. Follow all safety guidelines regarding refrigerant handling. Including wearing Personal Protective Equipment such as safety glasses and gloves.
