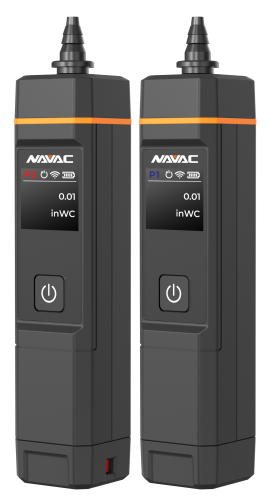

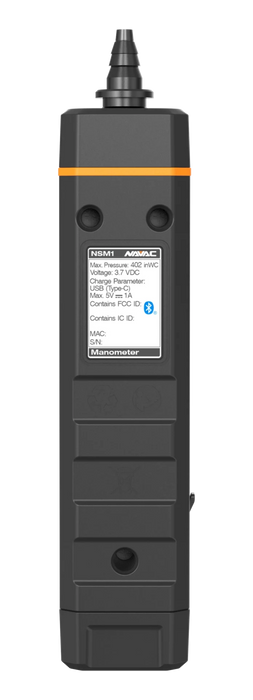

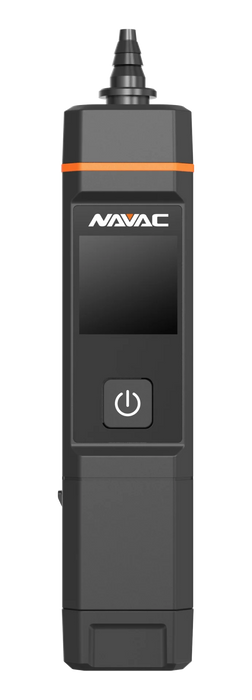

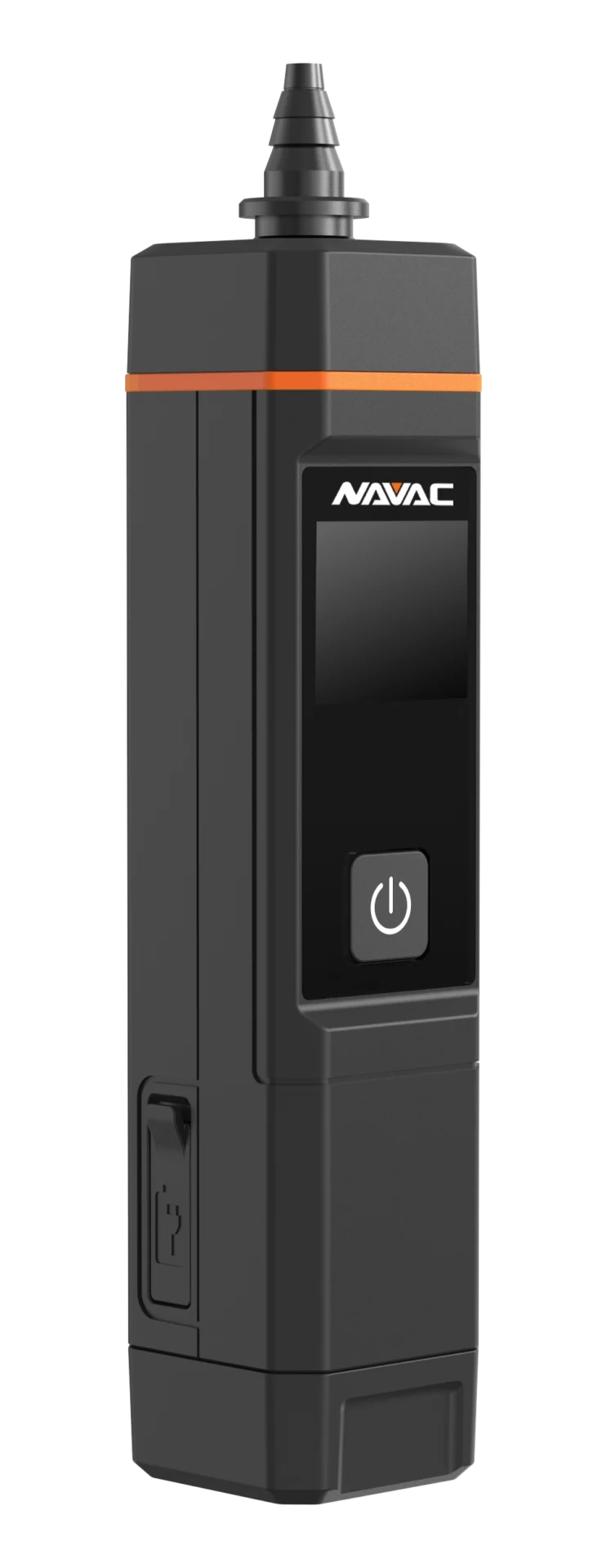

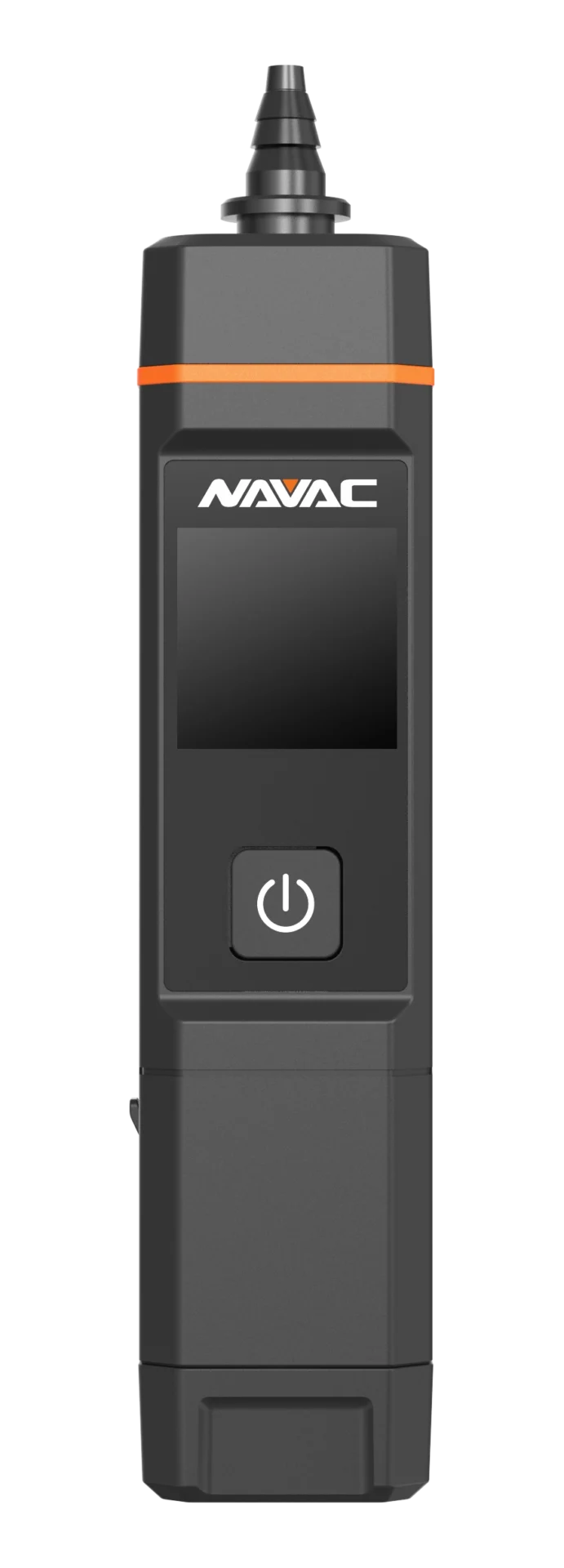

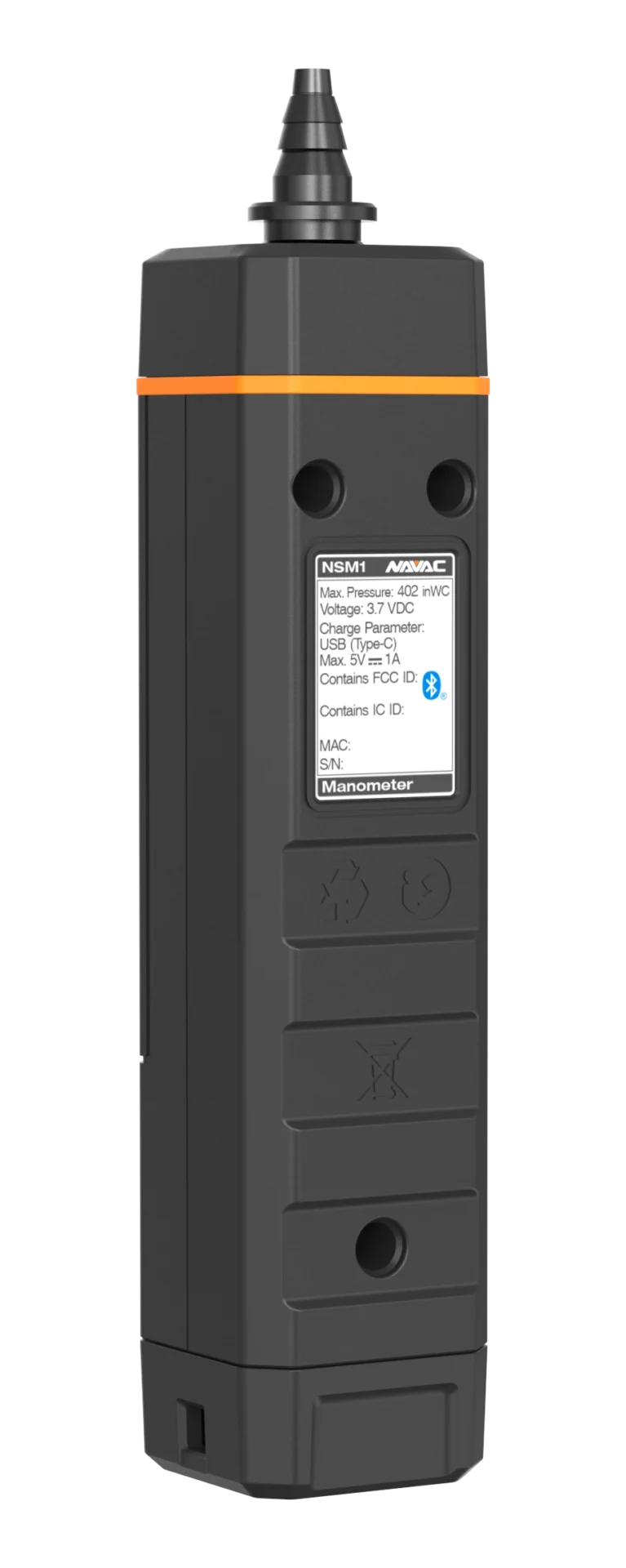

NAVAC NSM1K2 Bluetooth Manometer with Digital Display (NSM1, 2-pack)
NAVAC NSM1K2 Bluetooth Manometer with Digital Display (NSM1, 2-pack)

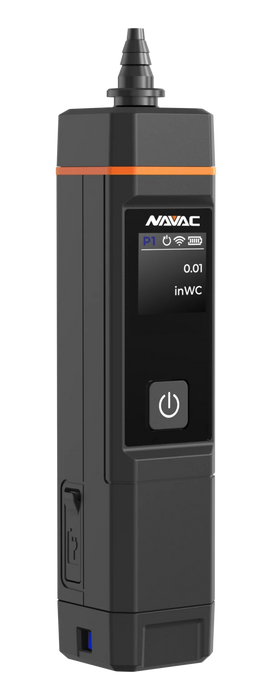

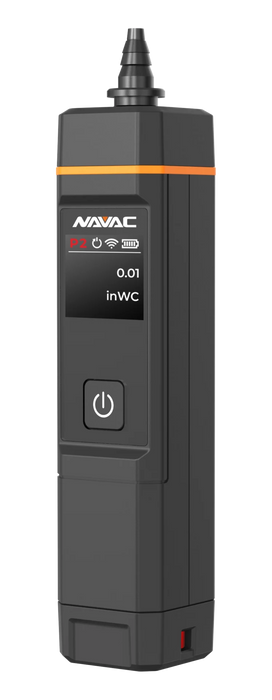

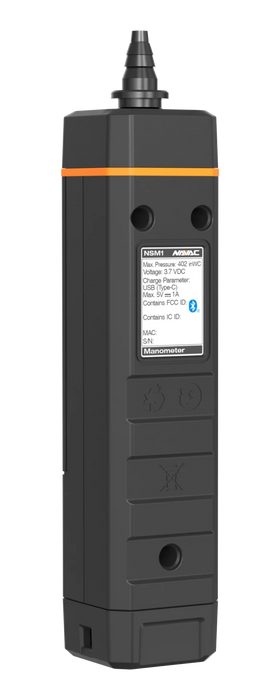

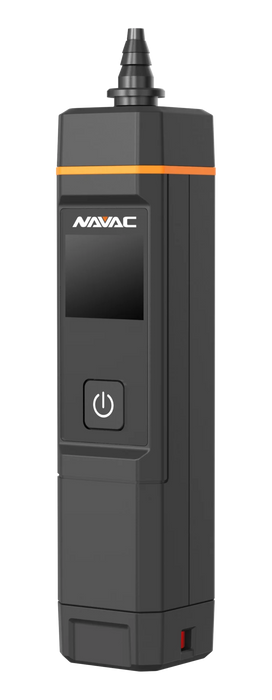

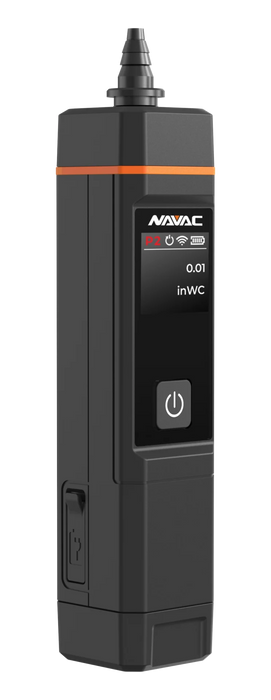

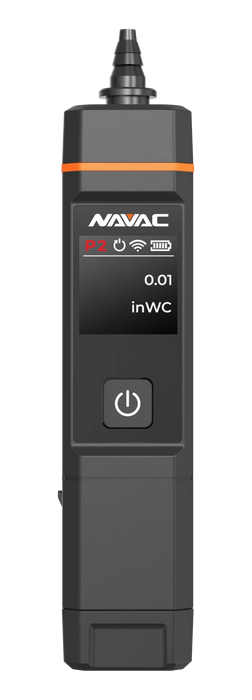

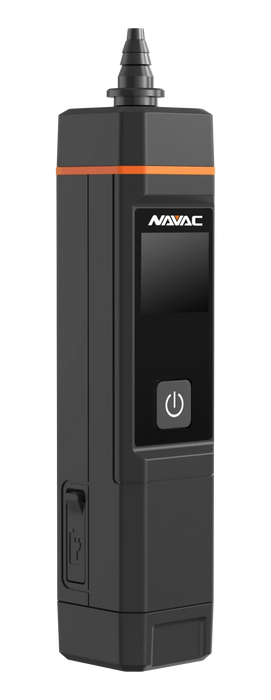

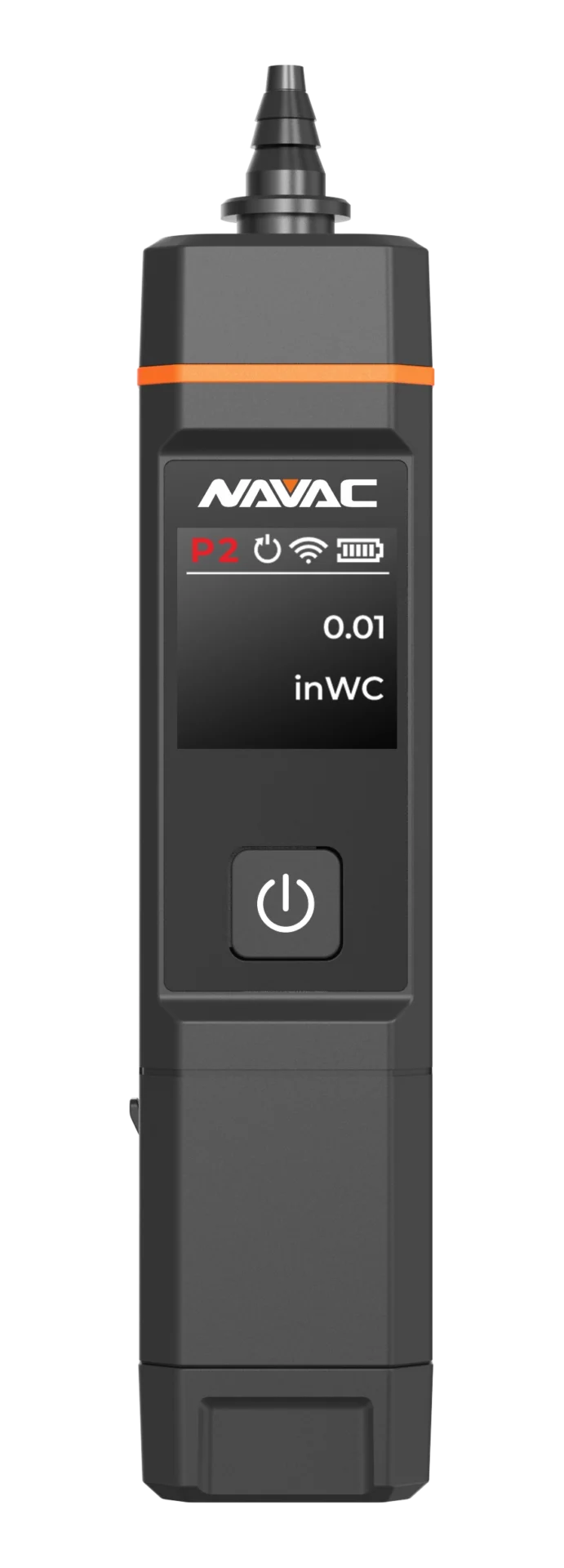

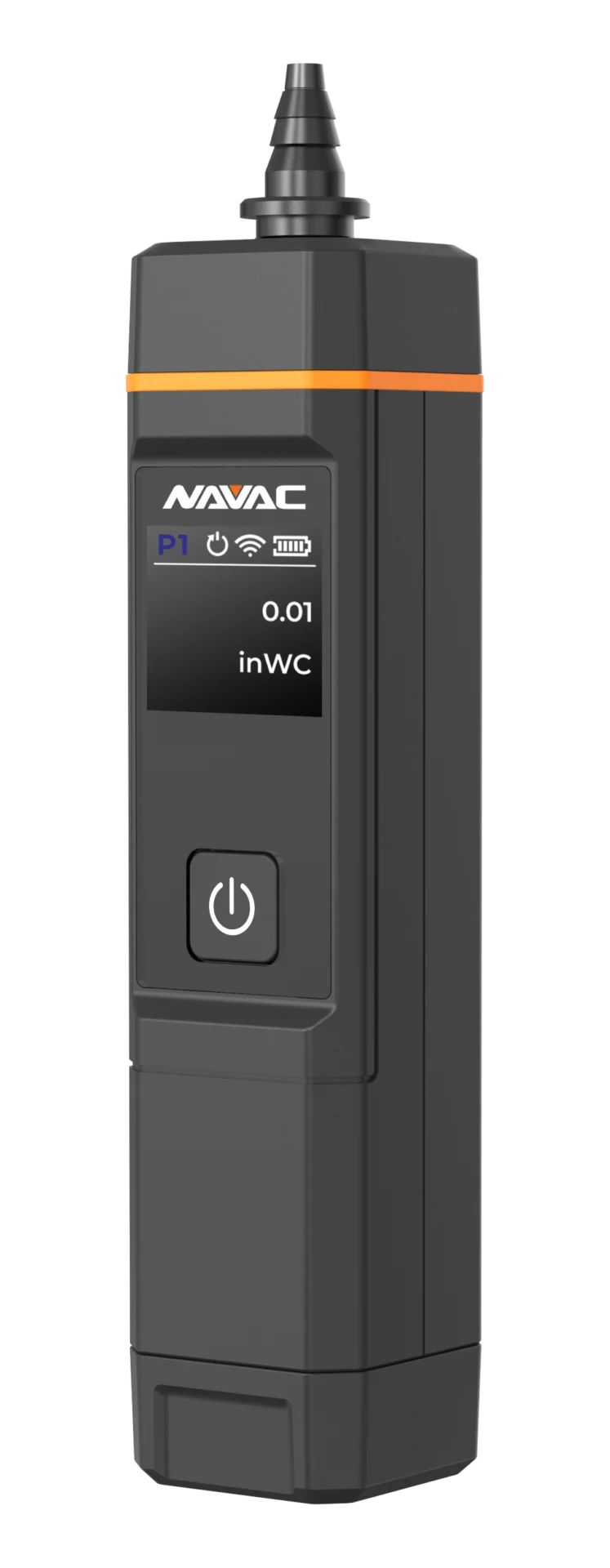

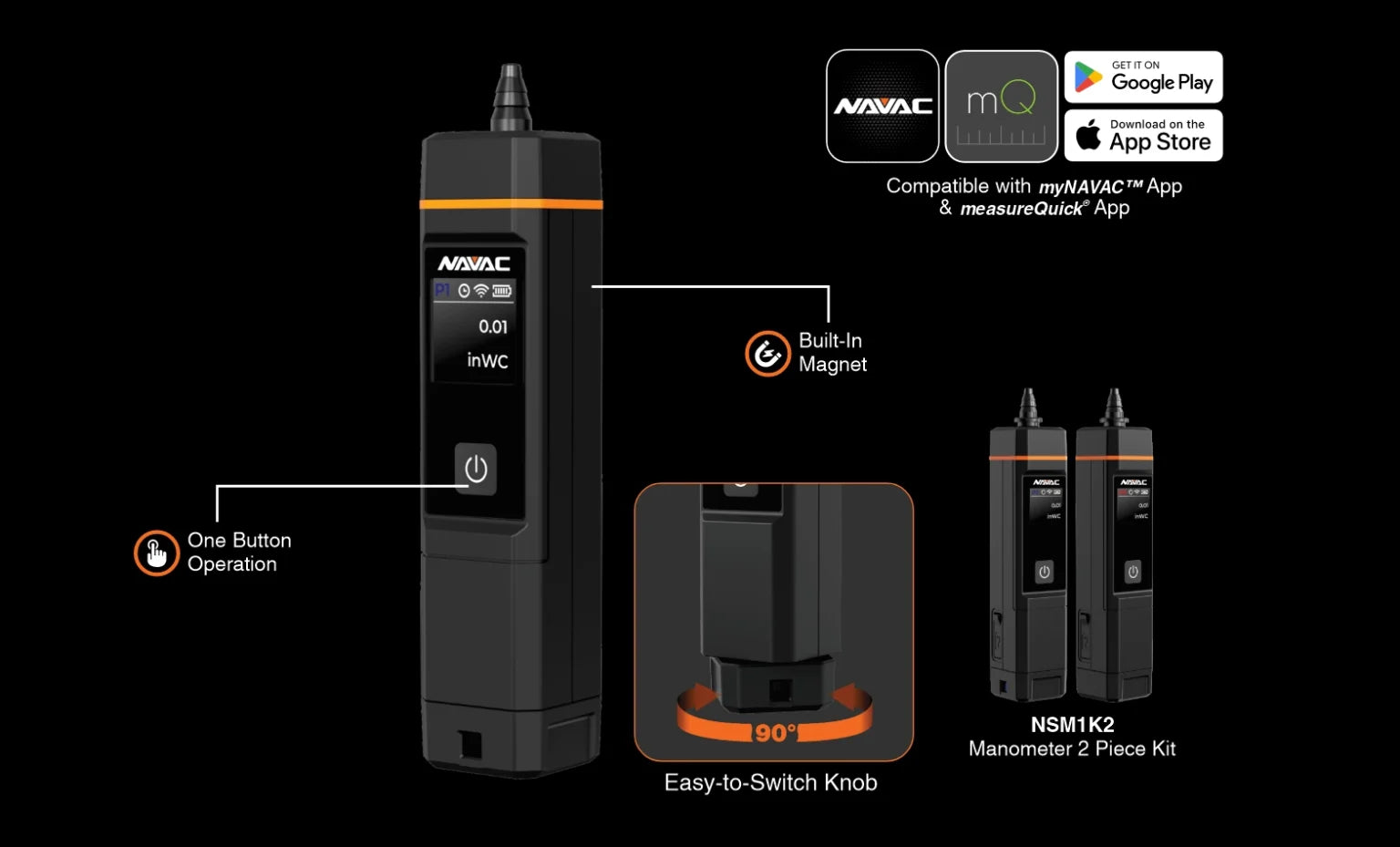

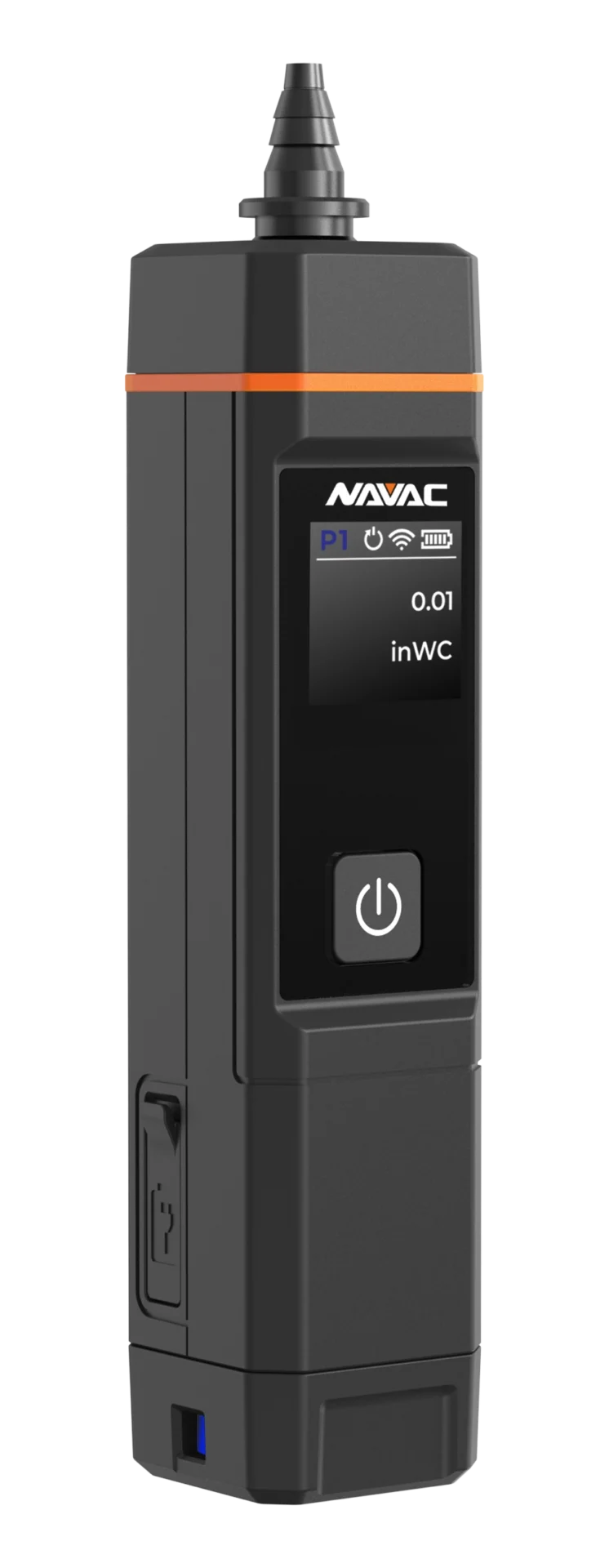

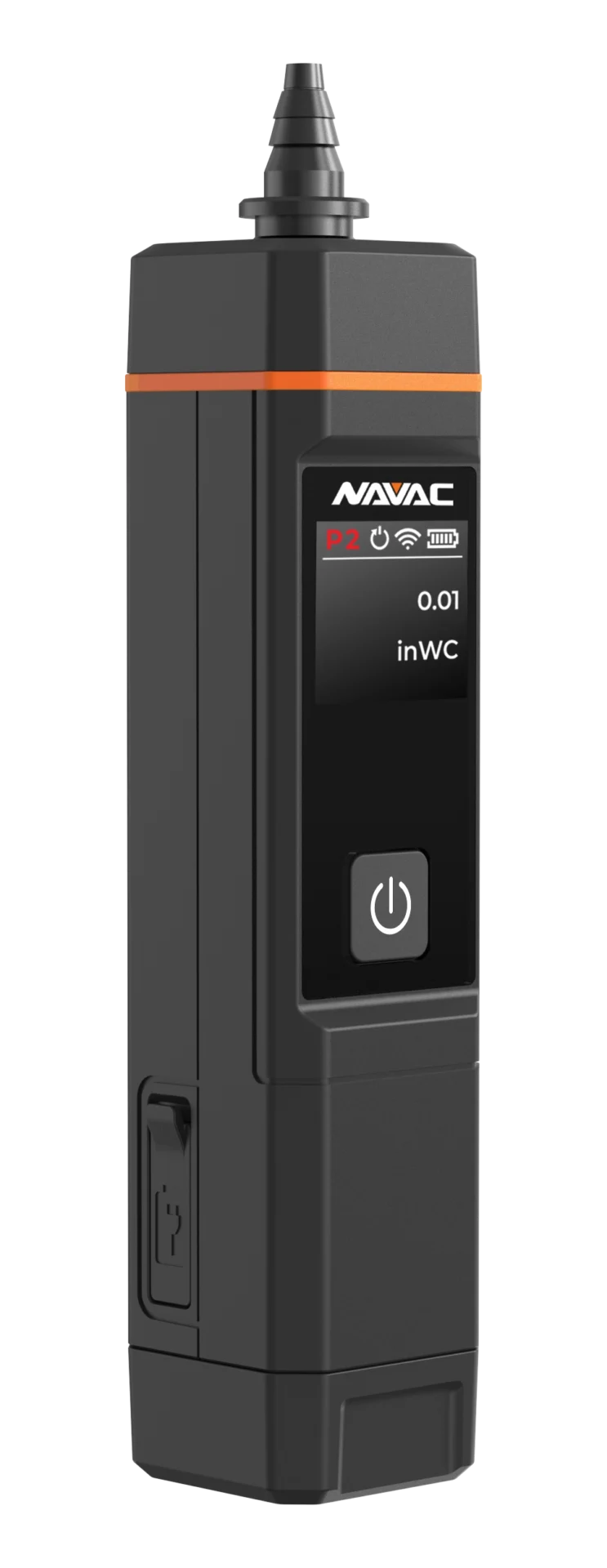

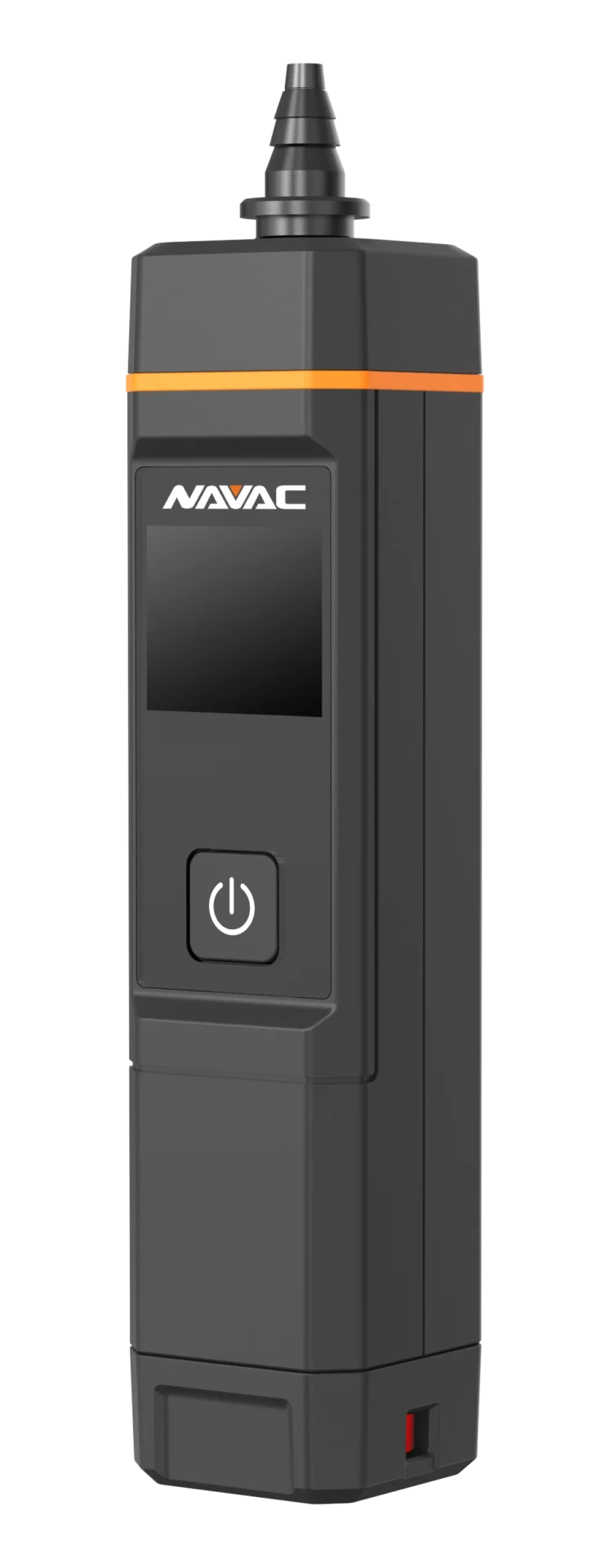

The NSM1 Bluetooth Manometer with Digital Display delivers precise, reliable air pressure measurement in a compact, easy-to-use design. Its large digital screen provides clear, accurate static pressure readings, whether used independently or wirelessly connected to the myNAVAC™ App via Bluetooth. Engineered for speed and accuracy, the NSM1 features a high-accuracy sensor with fast response and simple one-button operation, allowing technicians to work efficiently. Thoughtful details like a built-in magnet for hands-free use, a tip direction indicator, and a universal turn knob for different configurations make it versatile for job site diagnosis. Powered by a rechargeable lithium battery with long runtime and auto power-off, the NSM1 is a dependable digital tool designed to complete NAVAC’s probe offering while streamlining diagnostics in the field.
SPECIFICATIONS:
| Measurement Range: | -8 ~ 64 inWC |
| Maximum Overload Pressure: | 400 inWC (100 kPa) |
| Accuracy: | ±0.02 inWC on 0.00 ~ ±2.00 inWC ±1.5% FS on ±2.00 ~ ±60.00 inWC |
| Resolution: | 0.01 inWC, 0.1 mmWC, 0.01 mbar, 0.001 psig, 0.1 Pa, 0.0001 kPa, 0.001 Torr |
| Operating Environment: | -4 ~ 122°F (-20 ~ 50°C) Relative Humidity < 75% |
| Max. Bluetooth Range: | 164 ft (50 m) line of sight |

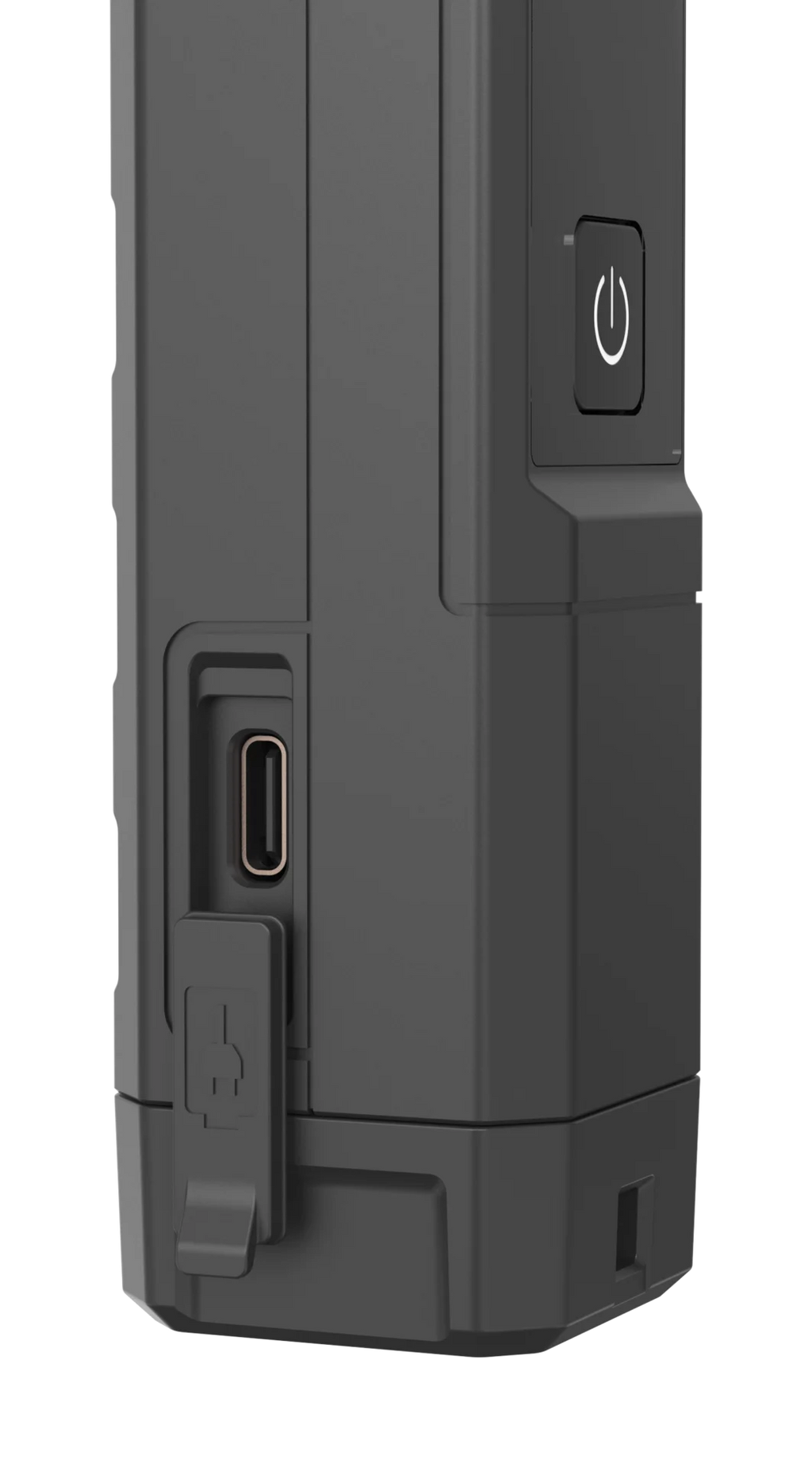

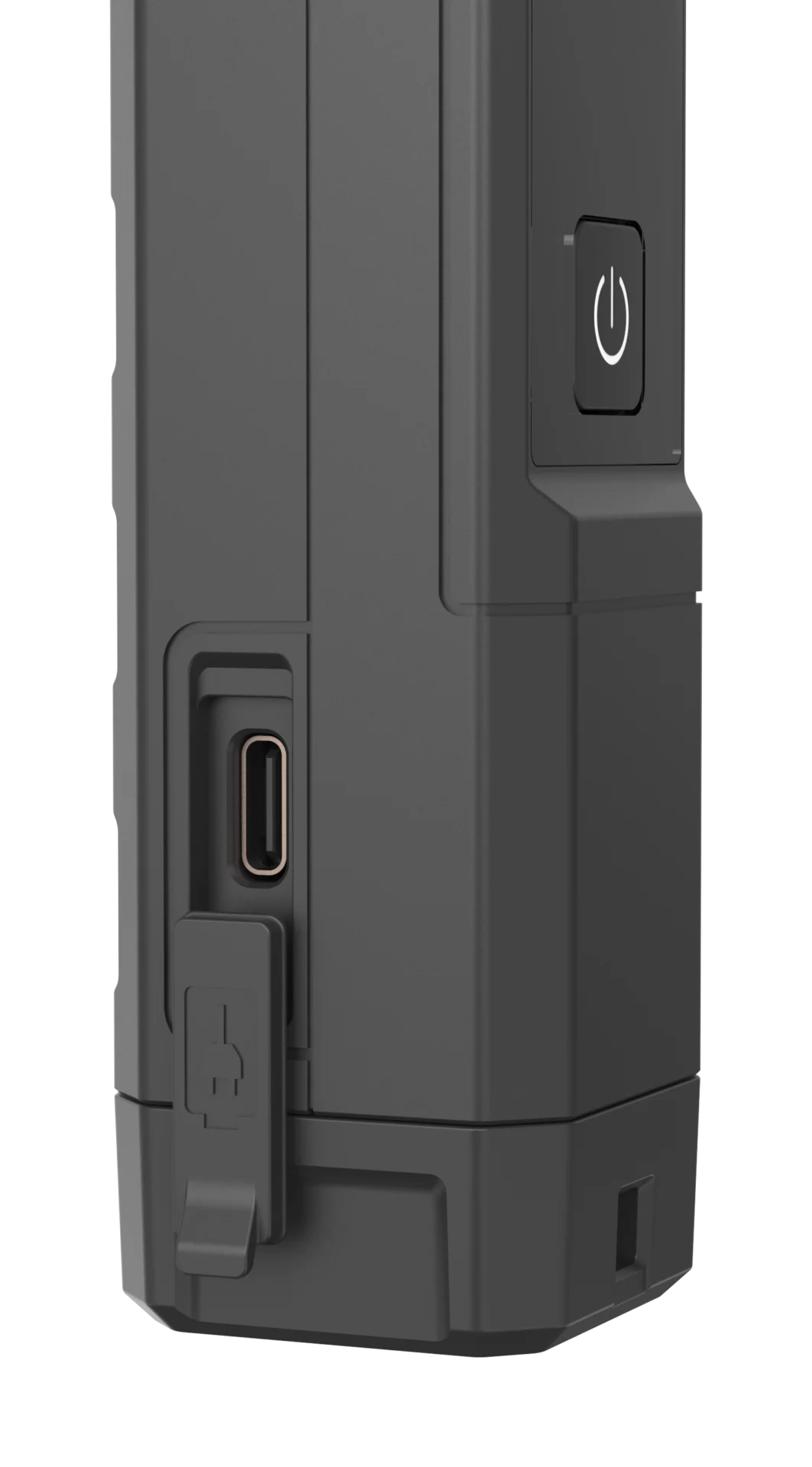

| Power Supply: | Rechargeable 1200mAh lithium battery, Type-C charging port |
| Rechargeable Battery Operating Time: | 150 hours |
| Wireless Frequency: | 2.4 GHz |
| Auto Power Off (APO): | 2 hours (can be disabled) |
| Minimum Device Requirement: | BLE 4.0 or above, Android 7.0.0 or above, Apple iOS 12.0 or above |
| Unit Weight: | 7.6 oz |
| Accessory: | Soft tube with brass adapter, static pressure probe with tube, gas detection adapter |
