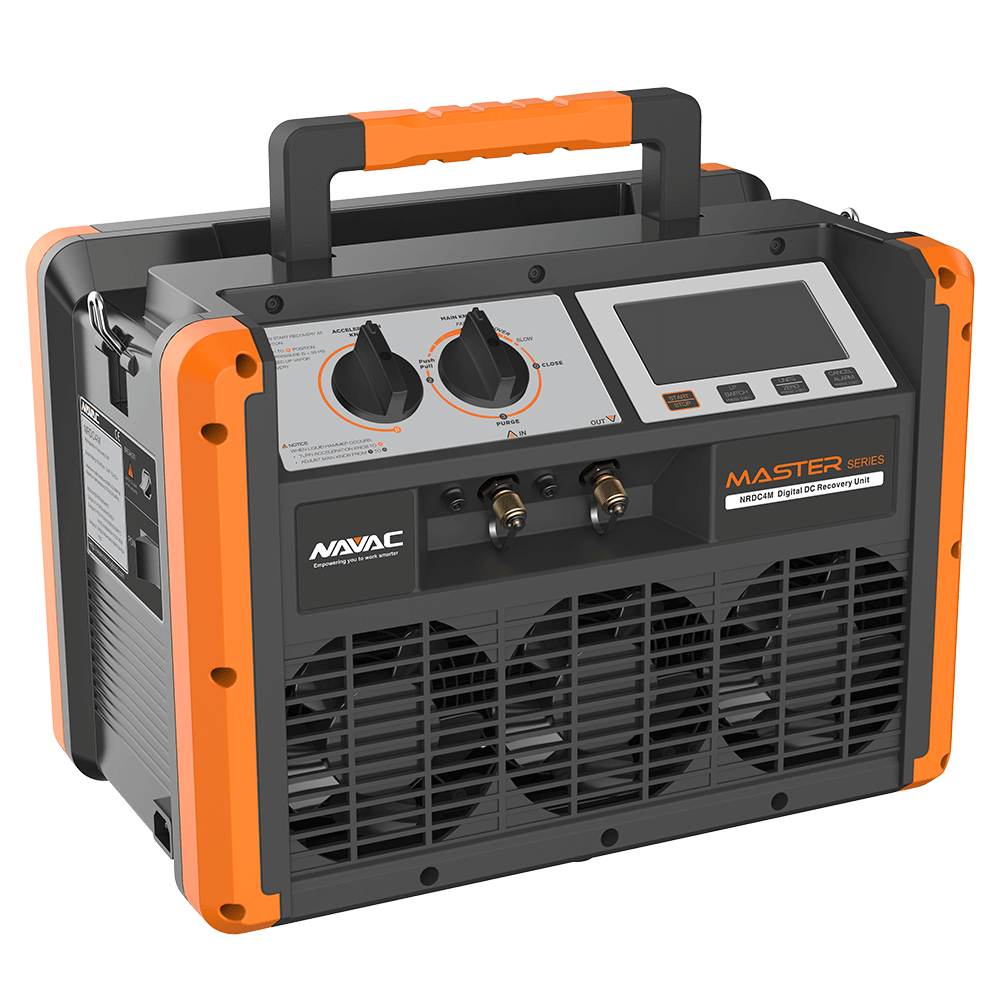

NAVAC NRDC4M 4-Cylinder, Brushless DC Refrigerant Recovery Unit, Master Series
NAVAC NRDC4M 4-Cylinder, Brushless DC Refrigerant Recovery Unit, Master Series
World’s First DC Inverter 4-Cylinder Recovery Unit
Tagged as the fastest and the most powerful machine in the current market, The NRDC4M recovery unit features a 4-cylinder structure that makes it up to 40% faster than the 2-cylinder unit. An oversized micro-channel coil with 3 high-speed cooling fans makes it the ideal recovery unit! The NRDC4M recovery unit is suitable for larger commercial systems and can be used for all commonly used refrigerants.
Leading Technology, Superior Quality, Best Experience.
Empowering You to Work Smarter!
4-Cylinder for Powerful Recovery
- Up to 40% faster than 2-cylinder units
- Oversized inlet port for faster recovery

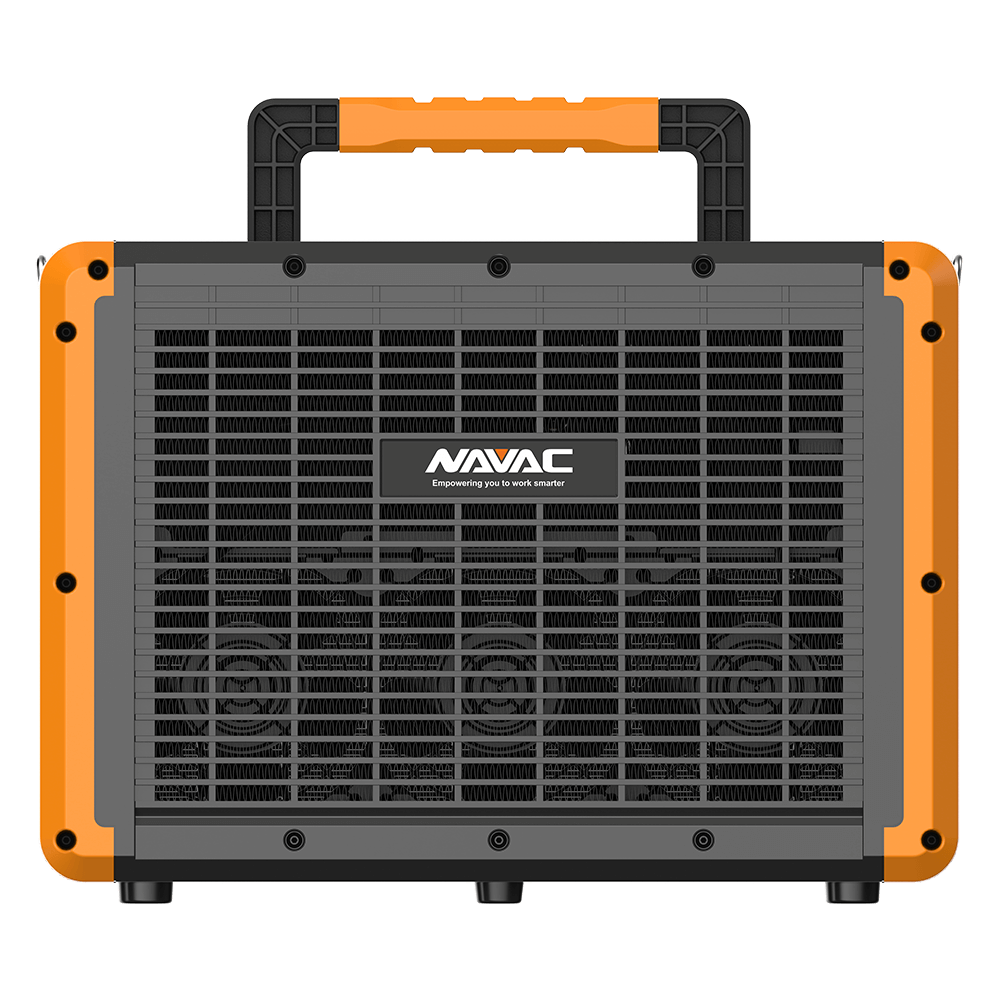

Super-Efficient Condenser
- Over-sized micro-channel coil
- 3 cooling fans
Brushless DC Motor
- More efficient
Large Digital Backlit Display
- Easy to read large LCD display
- Backlit for clarity
Dual Oil-Free Compressor
- Suitable for all commonly used refrigerants
Acceleration Knob Design
- To achieve faster vapor recovery
Specifications
-
Refrigerant Type:
- Category III: R-12, R-134a, R-401C, R-500, R-1234YF
- Category IV: R-22, R-401A, R-401B, R-402B, R-407C, R-407D, R-408A, R-409A, R-502, R-509
- Category IV: R-32, R-402A, R-404A, R-407A, R-407B, R-410A, R-454B, R-507
- Power Supply: 115V / 60Hz
- Motor: 1.5 HP
- Max Current Draw: 12A
- Compressor: Oil-less, Air-cooled, Piston style
- Automatic Safety Shut-Off: 558 psi / 38.5 bar
- Dimensions: 17" x 10.7" x 12.2"
- Weight: 41.9 lbs
UL Verified Recovery Rate (lbs/min)
-
Direct Vapor
- R-410A: 1.06
- R-22: 0.99
- R-134a: 0.84
-
Direct Liquid
- R-410A: 16.82
- R-22: 12.76
- R-134a: 9.19
-
Push/Pull Liquid
- R-410A: 18.23
- R-22: 16.76
- R-134a: 15.08
NRDC4M - Fastest Recovery Unit
