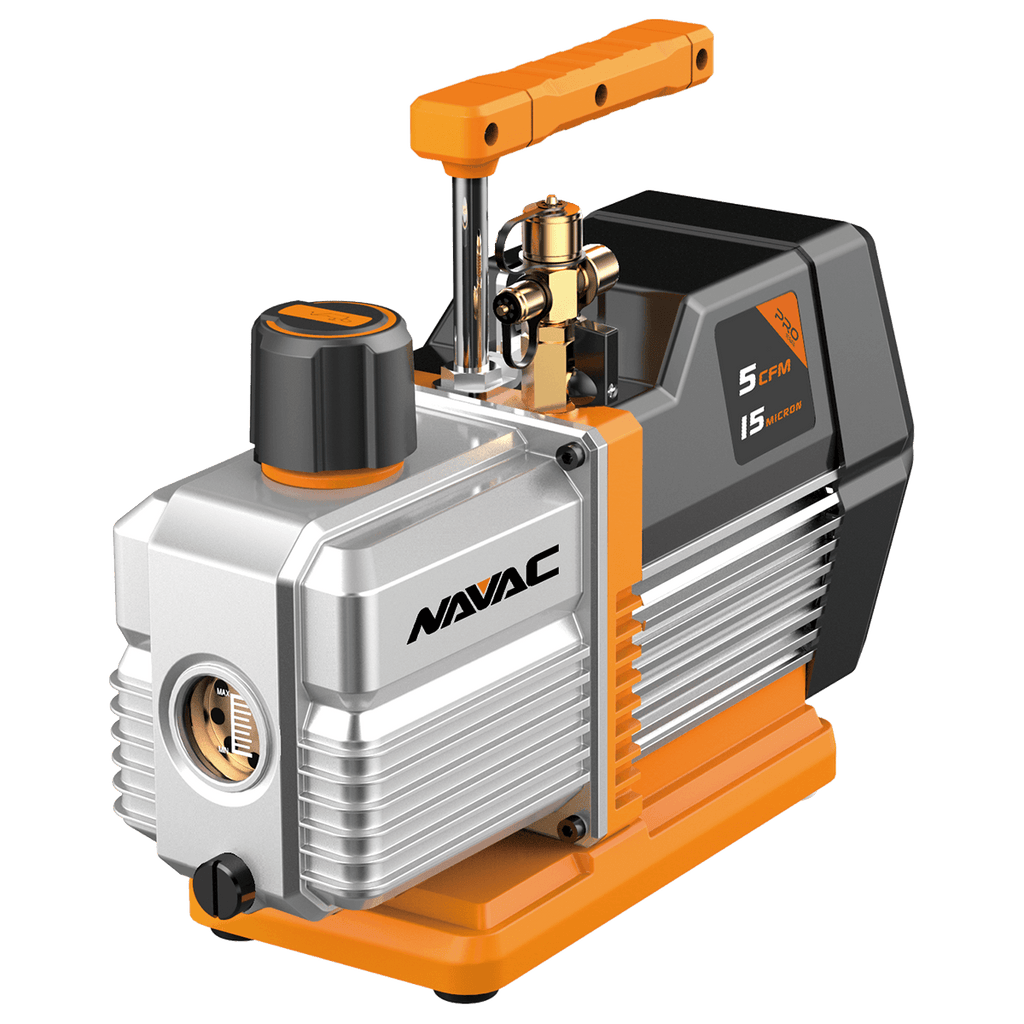

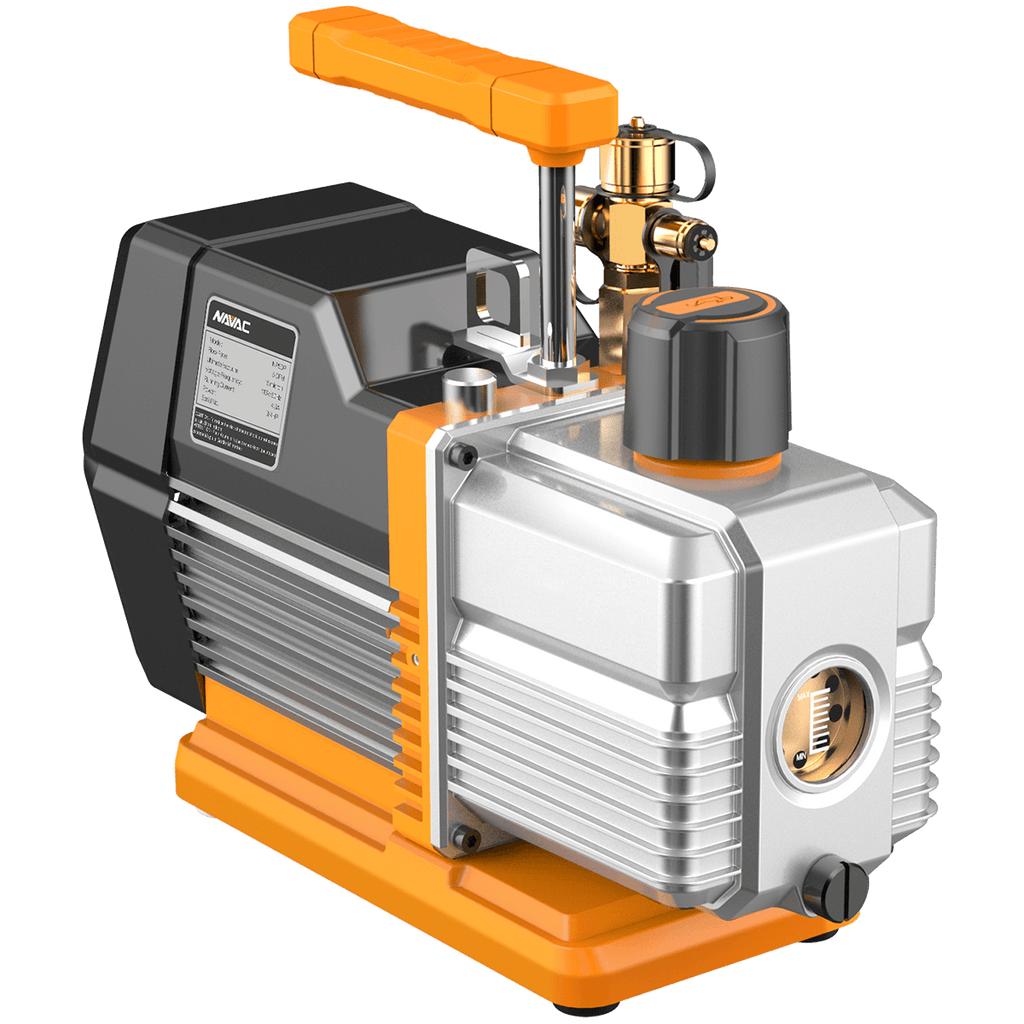

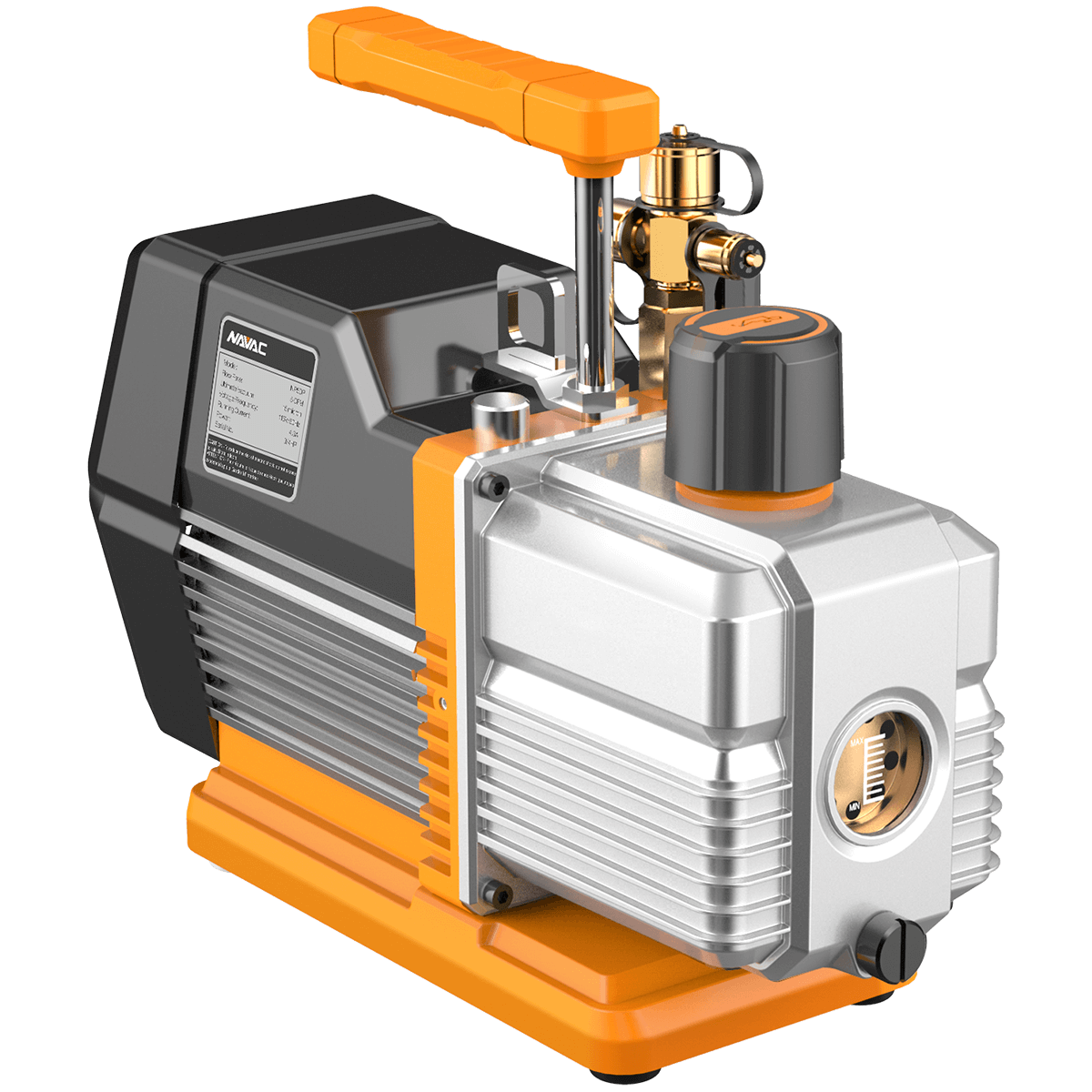

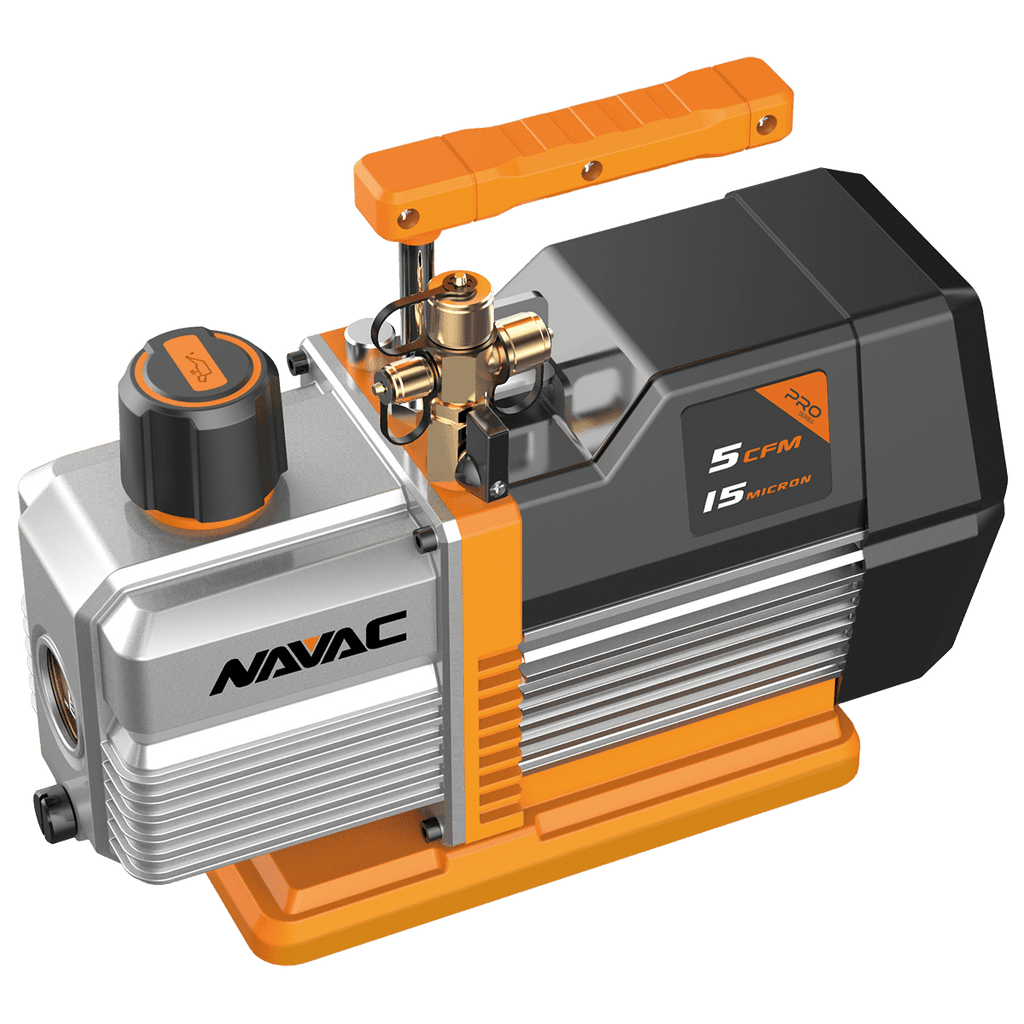

NAVAC NP5DP 5 CFM 2-Stage Vacuum Pump, PRO Series

PERFORMANCE • RELIABILITY

The NP5DP features twin cylinder for high ultimate vacuum, integrated cylinder structure for high performance and reliability and forced oil circulation for improved efficiency and durability.

Leading Technology, Superior Quality, Best Experience.

Empowering You to Work Smarter!

Dual-Stage Integrated Cylinder Design

• High ultimate vacuum
• High reliability

Internal Check Valve

• Prevent oil backflow

Lifting Hook

• Safe & convenient for roof top use

Forced Oil Circulation

• Improved efficiency and durability

 Specifications

• Power Supply:  115V / 60Hz
• Flow Rate:  5 CFM
• Ultimate Vacuum:  15 microns
• Pump Design:  Dual Stage, AC Motor
• Motor Power:  3/4 HP
• Inlet Port:  1/4", 3/8", 1/2" Flare
• Oil Capacity:  17 oz
• Dimensions:  14" x 5" x 11.3"
• Weight:  24.3 lbs
