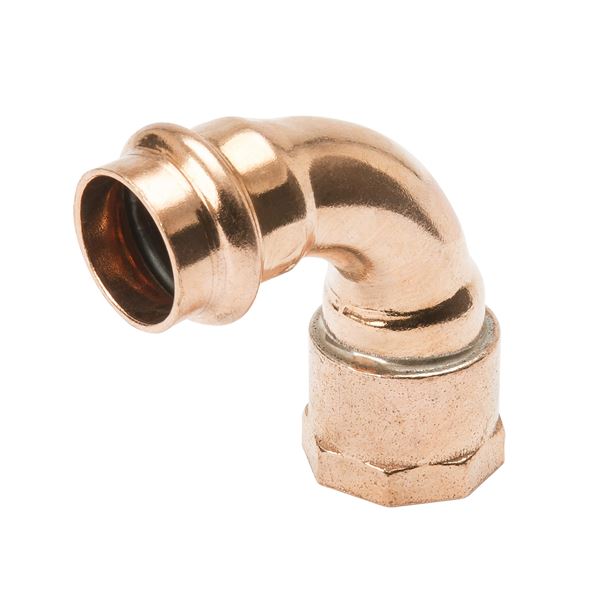

Mueller Streamline PF 01532 3/4" Copper Press x FPT 90° Elbow

Streamline® PRS™ Copper-Press Fittings is a flameless joining alternative for plumbing or mechanical applications. Available sizes ranging from 1/2” to 4” in diameter.

Applications

• Potable water
• Hydronic heating (w/ glycol)
• Chilled water
• Compressed air (200 PSI max)
• Non-medical gases (140 PSI max)
• Low pressure steam (5 PSI max)
• Vacuum (29.2” mercury max @ 140°F)

Specifications

• Operating pressure: 300 PSI CWP max
• Operating temperature range: -20°F — 250°F
• Approved for installations in above and below ground applications as allowed by local code.


Approvals & Certifications

• ASME B16.51
• IAPMO PS-117
• NSF/ANSI 61
• NSF/ANSI 372
• CSA
• ABS Tier II PDA /Class III Applications.
