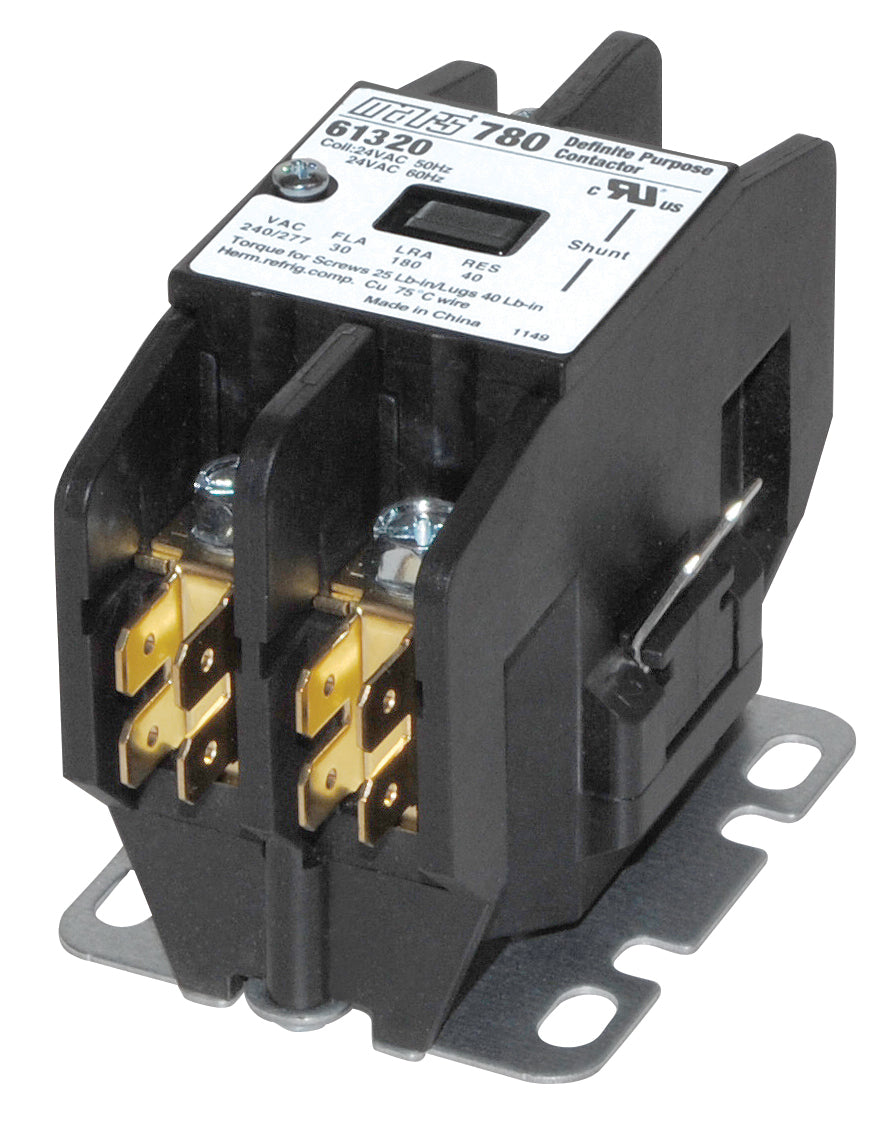

Mars 61320 1-1/2 Pole 30 Amp Definite Purpose Contactor, 24V Coil

MARS 780 - 1 pole with shunt contactors are designed for demanding applications. The enclosed body design provides quiet operation and improved durability by reducing the intrusion of dust and dirt. Silver-cadmium oxide contacts provide increased contact life when switching inductive loads.

MARS 780 Professional Grade Definite Purpose Contactors

• Designed for use on refrigeration, air conditioning and electric heating systems
• Engineered for today's most demanding commercial refrigeration and HVAC applications
• Enclosed body provides a quieter running contactor and a longer life expectancy
• Oversized Arch Window to simplify wiring
• High Performance Copper & Brass Conductors maximize current carrying capability creating a cooler running contactor
• Multi-purpose Coil Terminals allow the use of QC terminals or stripped wires
• Removable Coils allow field replacement of damaged coils
• Removable Cover provides full access to the contacts
• Thermoplastic Housing resists dusting and contamination of the contacts to maintain maximum conductivity

• Full Load Amps:  30
• Resistive Amps:  40
• Coil Voltage:  24
• Poles:  1+ Shunt
• Dimensions (In.):  3.20W x 4.20L x 2.40H
