Description

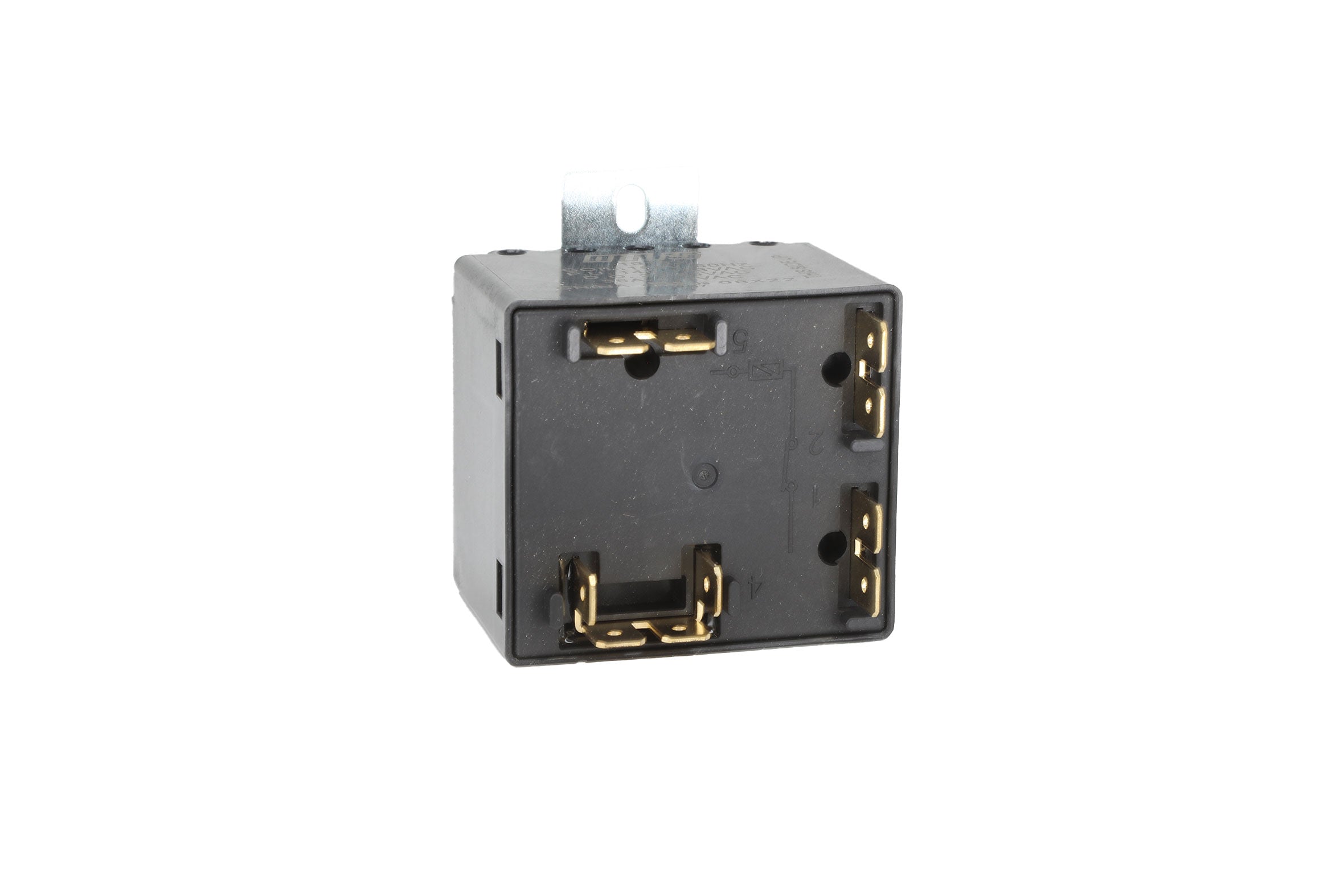

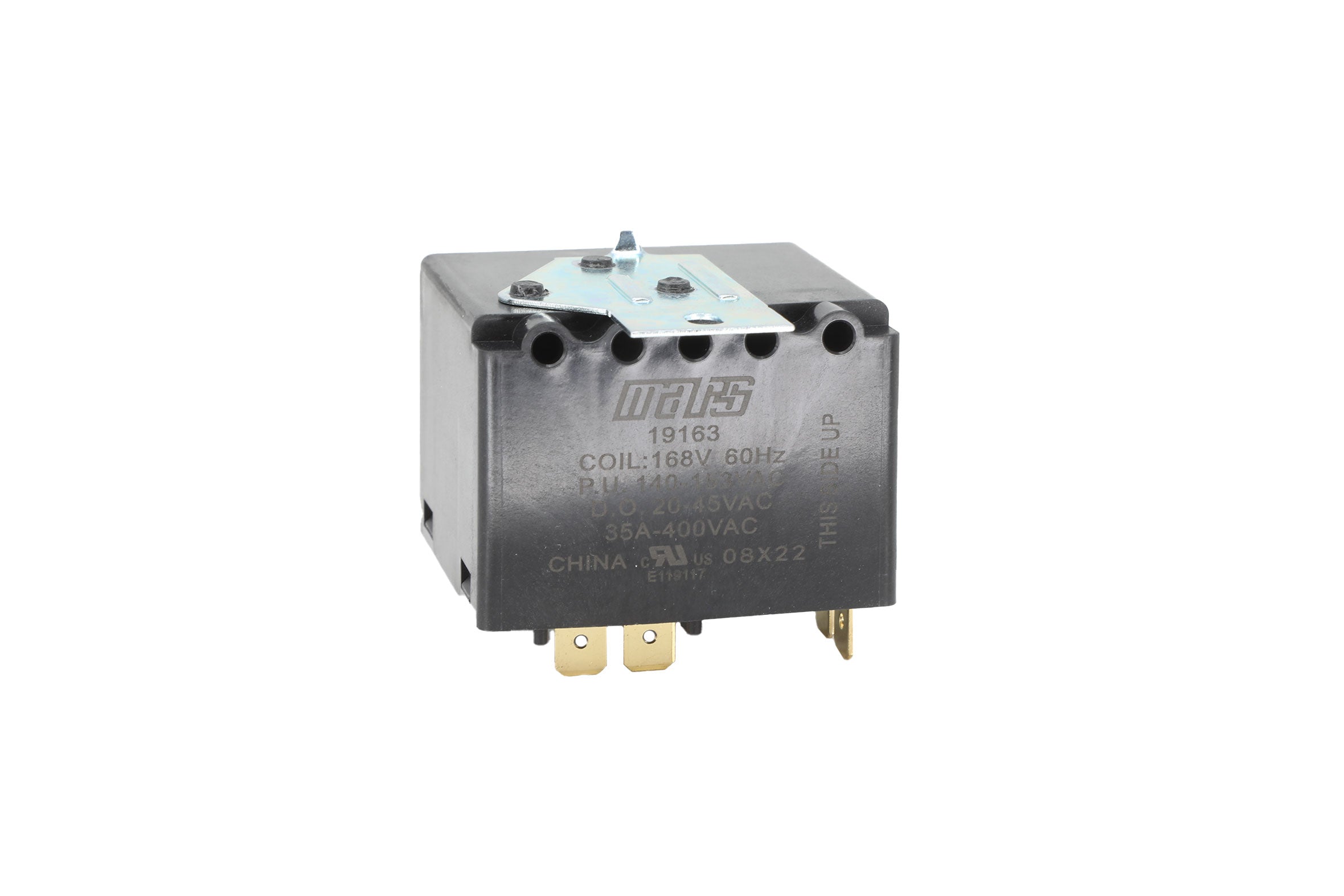

MARS 19163 163 HVAC Potential Relay, 168V
MARS series relays are manufactured for the HVAC industry. These relays meet all requirements for original equipment relays.
- 50/60 Hz
- cULus
- Contact rating 35 amp, 400 VAC
- Operating position tab up
- Class "B" insulation
Specifications
| Contact Rating Amps: | 35 |
| Pick-up Voltage: | 140-153 |
| Relay Type: | Motor Starting |
| Mounting: | Tab |
| Hold Voltage: | 168 |
| Drop-Out Voltage: | 30-65 |
| Hz: | 60 |
| Terminal Style: | 1/4" Quick Connect |
| HP Rating: | 1/3 |
