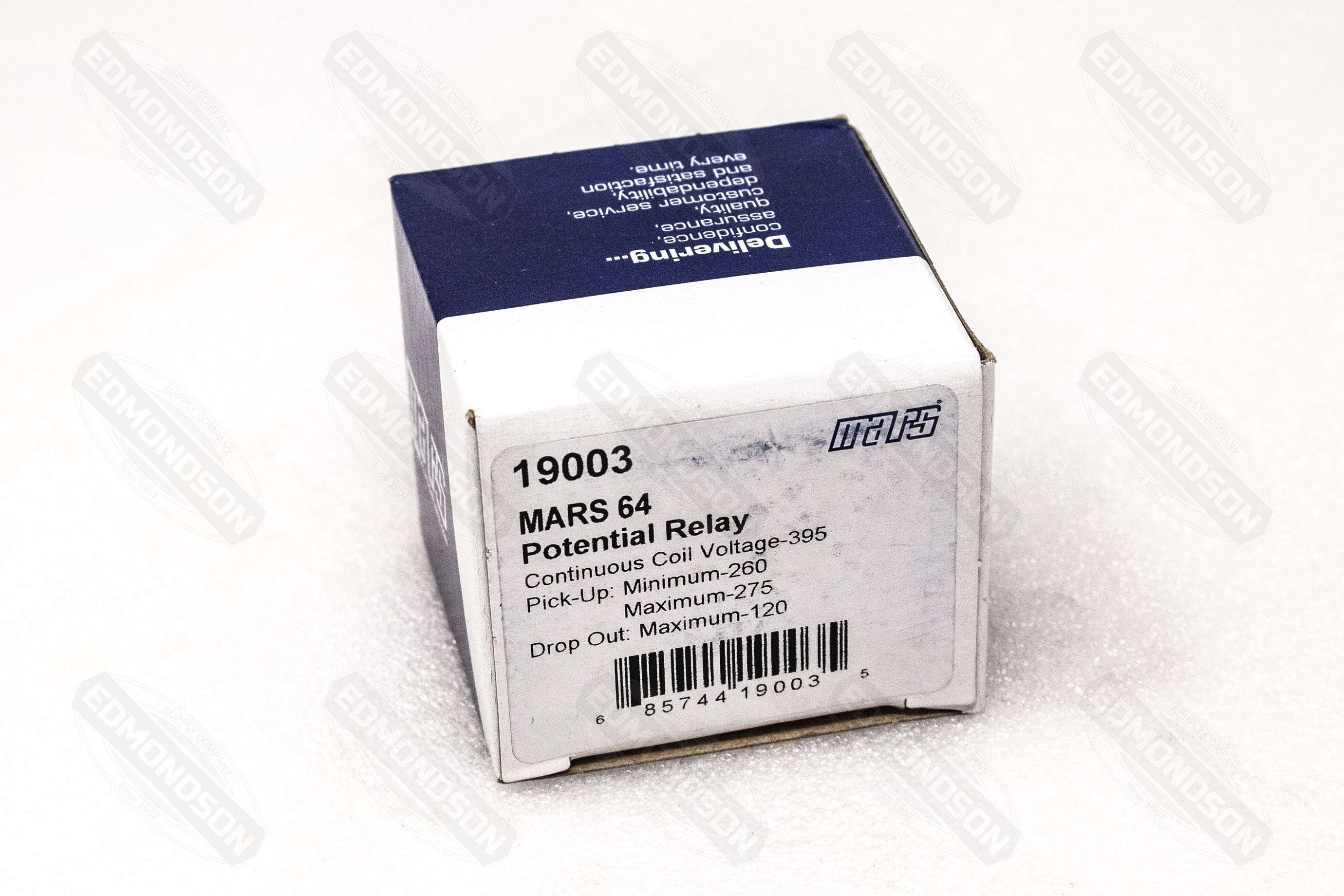

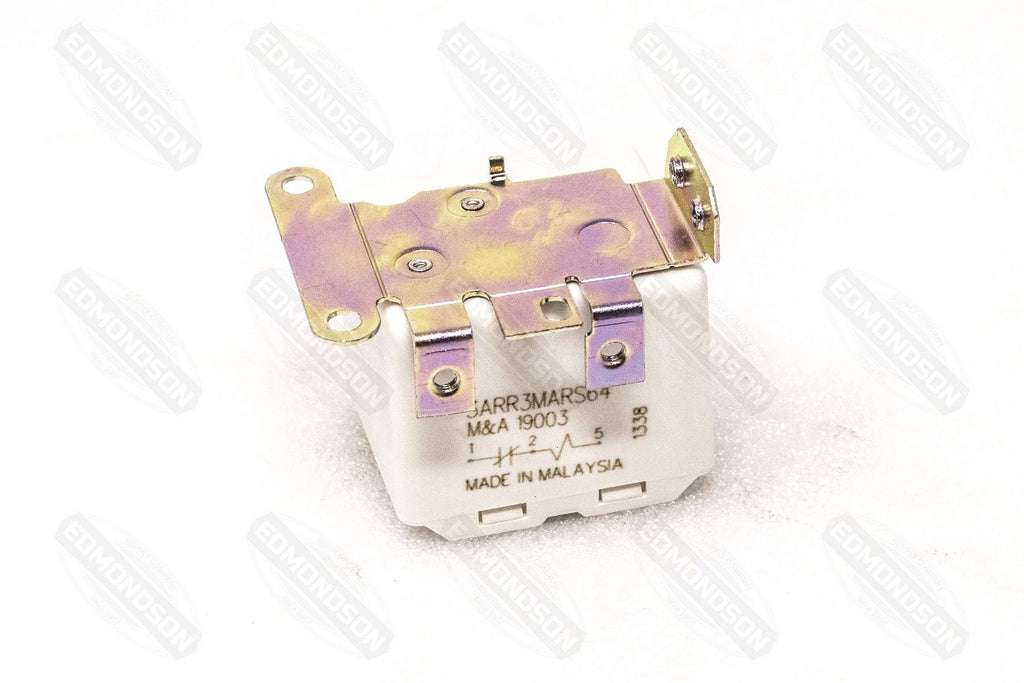

MARS 19003 64 Universal Potential Relay, 395V

$57.00
SKU 19003
Currently 16 in stock.

MARS 19003 64 Universal Potential Relay, 395V

The MARS refrigeration potential relay service kit has become an industry standard since its introduction over fifty years ago. Its long-term reliability and easy replacement have been the key to its success. The wide calibration ranges and the universal bracket make the MARS potential relay service kit a must on every service truck.

  • Genuine MARS relays replace thousands of O.E.M. models
  • Non-Positional
  • Wide range of selectivity

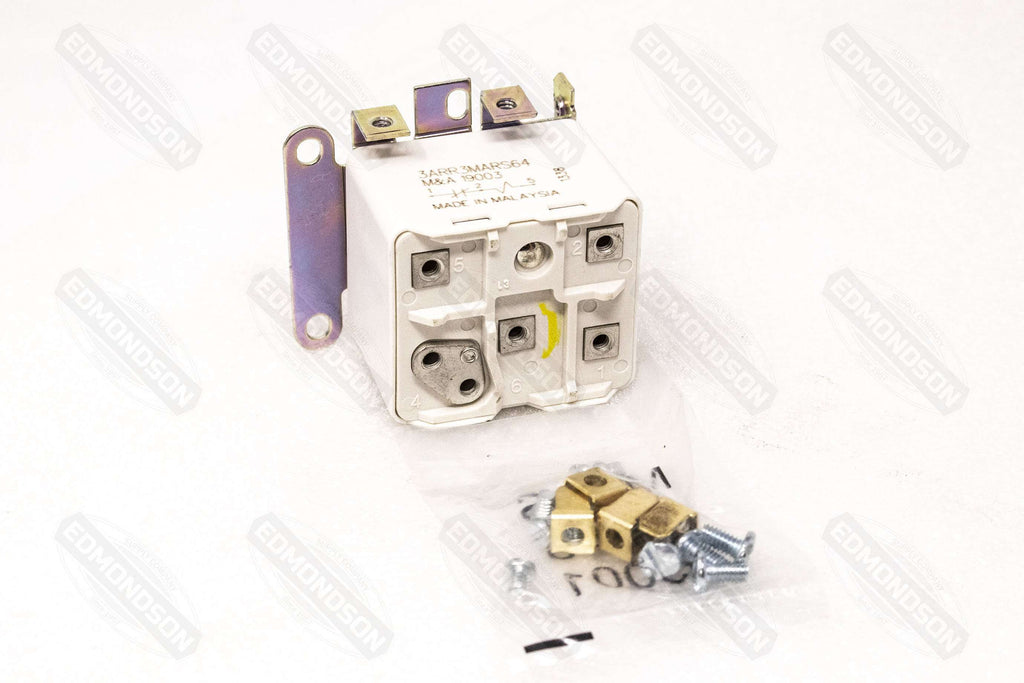

  • QC-6 Kit included with each relay to convert screw-on to push-on
  • Instructions and wiring diagram included in each relay

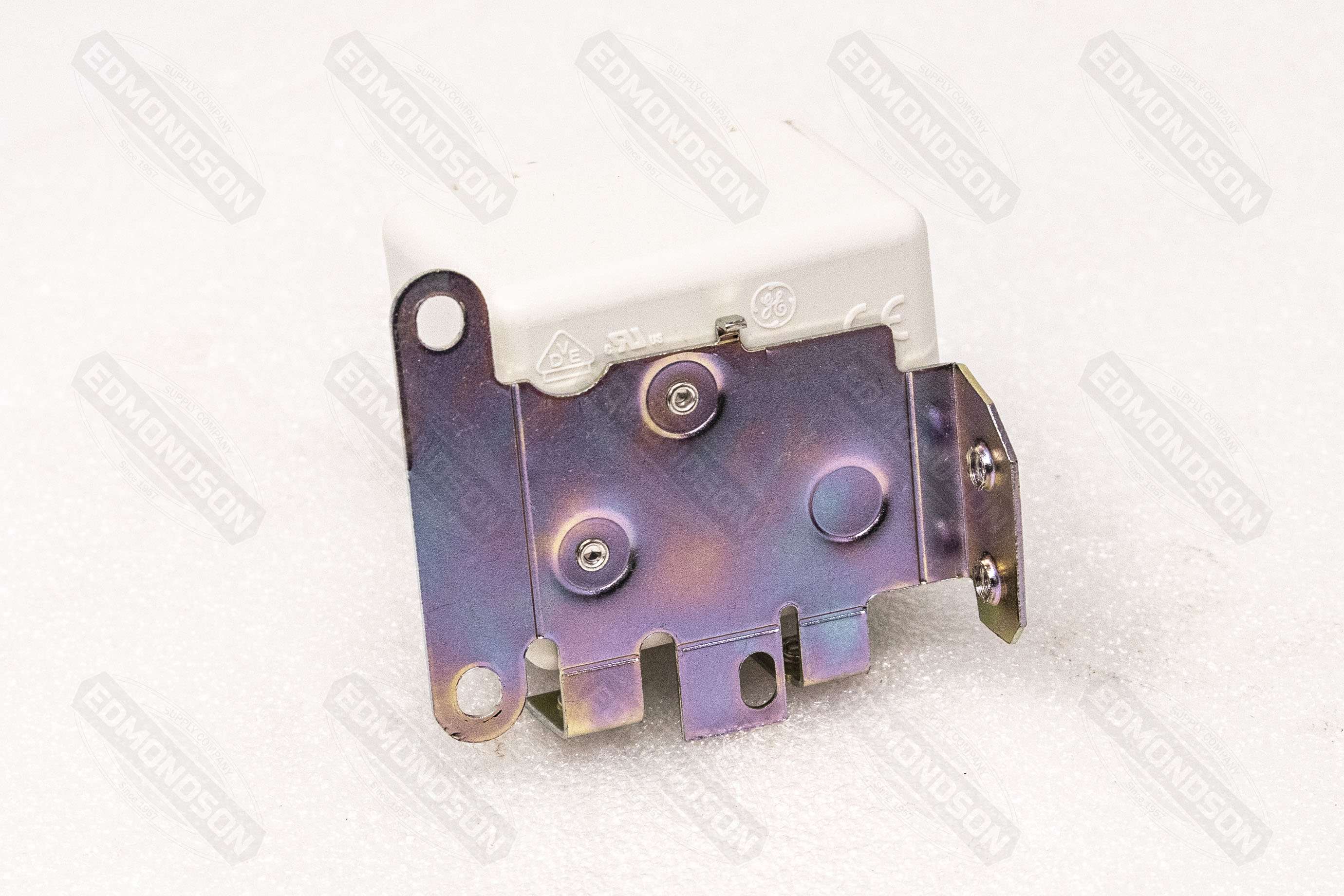

  • Universal break-off bracket on each relay. Simply snap-off parts not needed
  • UL and CSA listings available



Specifications
Contact Rating Amps: 35
Pick-up Voltage: 260 to 275
Relay Type: Motor Starting
Mounting: 4 Holes Screw Type Steel
Hold Voltage: 395
Drop-Out Voltage: 120
Hz: 60
Terminal Style: Quick Connect
HP Rating: 1/3
