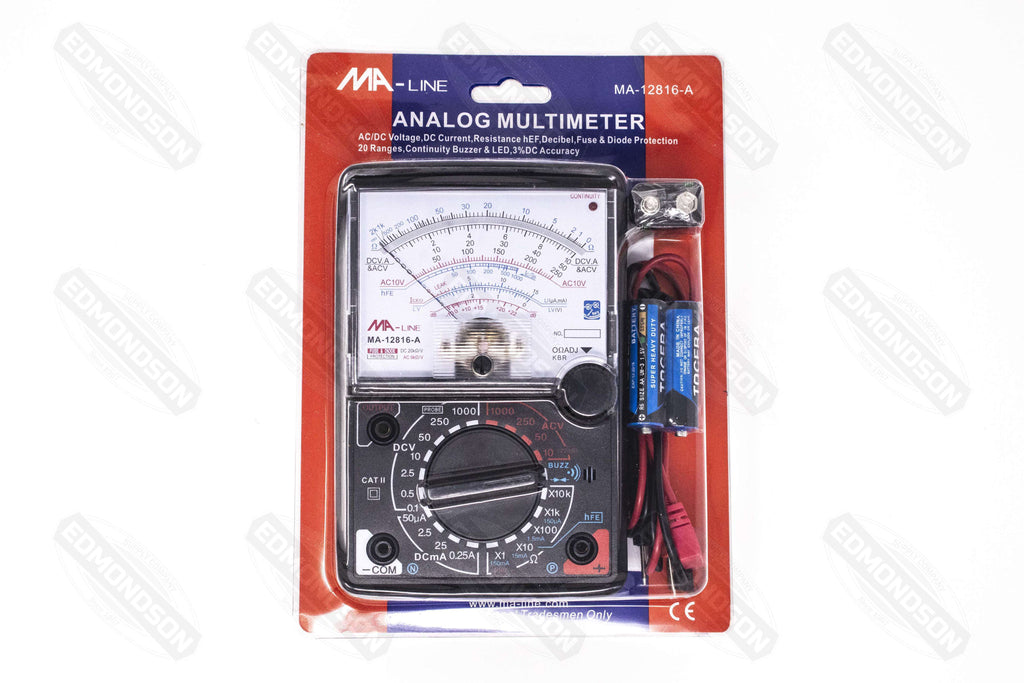

MA-Line MA-12816-A Analog Multimeter

$18.95
SKU MA-12816-A

MA-Line MA-12816-A Analog Multimeter

Specifications:

DC Voltage:

  • Ranges:  0.1-0.5-2.5-10-50-250-1000V
  • Accuracy at FSD:  3; (1000V; 5)
  • Sensitivity:  20k Ω/V
  • Extension:  25k V(with HV probe extra)

AC Voltage:

  • Ranges:  10-50-250-1000V
  • Accuracy at FSD:  4; (1000V; 5)
  • Sensitivity:  9k Ω/V
  • Decibelmeter:  -10 to +22dB (0dB=1mw/600Ω)

DC Current:

  • Ranges:  50 µ A(at 0.1 VDC position), 2.5mA, 25mA, 0.25mA, *10A
  • Accuracy at FSD:  3(10A; 5)
  • Volte Drop:  250mV

Resistance:

  • Ranges:
    • x1-0.2Ω up to 2kΩ, Midscale, at 20Ω
    • x10-2Ω up to 20kΩ, Midscale, at 200Ω
    • **x100-20Ω up to 200kΩ, Midscale, at 2kΩ
    • x1k-200Ω up to 2MΩ, Midscale, at 20kΩ
    • x10k-2kΩ up to 20MΩ, Midscale, at 200kΩ

Accuracy at FSD:  3

Iceo:  150µ A-1.5mA - 15mA

hFE:  0-1000 (with connector extra)

Size:  148 x 100 x 35

Weight:  280g



9V battery & 2 AA batteries included
9V battery required for 10KΩ
