Lucas Milhaupt 95060 Sil-Fos 5 28 Rods, 5% Silver

$47.89
SKU 95060

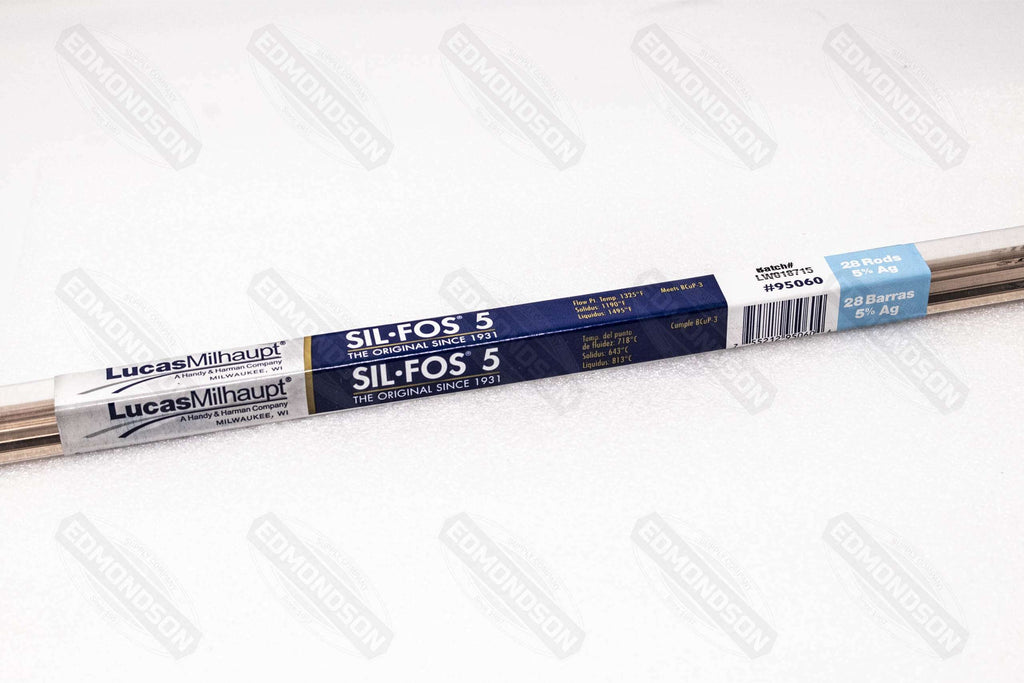

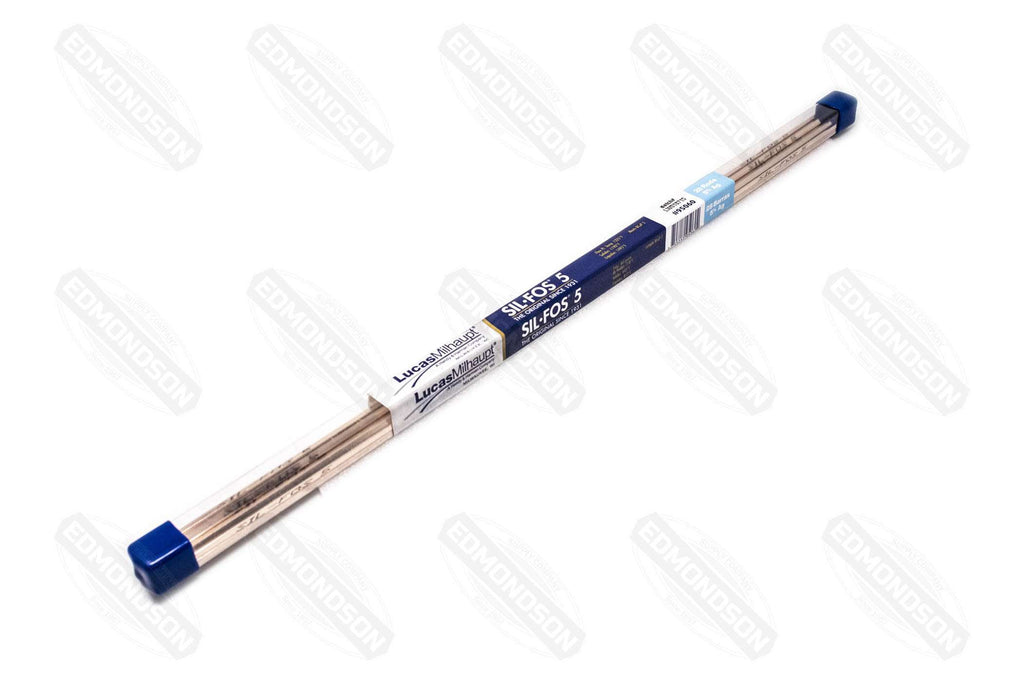

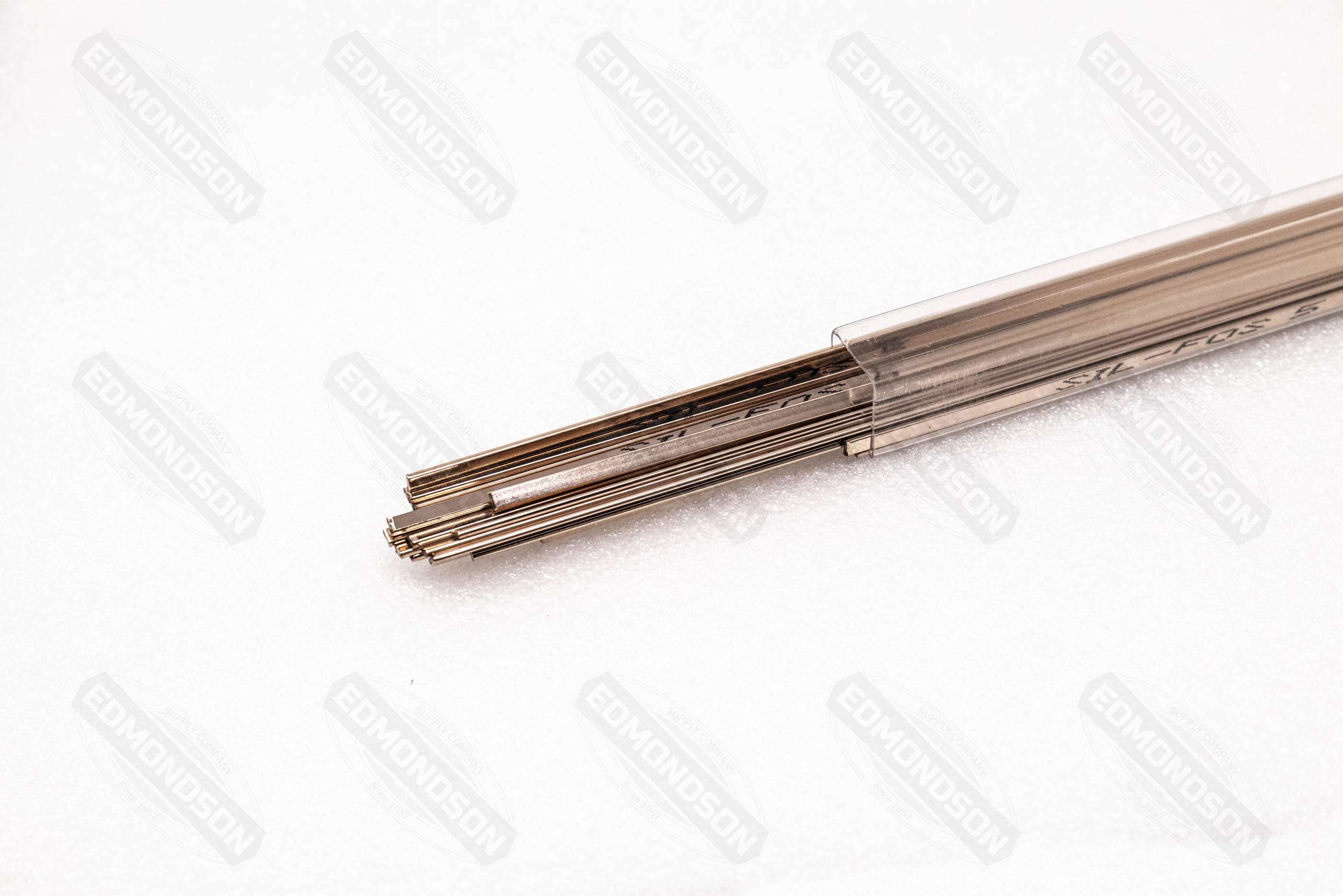

Lucas Milhaupt 95060 Sil-Fos 5 28 Rods, 5% Silver

Sil-Fos 5 is a silver-copper-phosphorus alloy for copper-copper brazing but can also be used to join brass with an appropriate flux (e.g. Handy Flux, Ultra Flux). It is a more cost effective Ag-Cu-P alloy, though it does not penetrate deep joints easily.

  • Joins CU to CU (phosphorus serves as flux)
  • Joins CU to Brass (flux is recommended)
  • Lower cost alternative to higher silver content Ag-Cu-P alloys
  • Medium flow
  • Made in USA



Product Specifications

Name: SIL-FOS 5
Nominal Composition:

Silver 5.00

Copper 89.00

Phosphorous 6.00

Liquidus: 1495 °F, 813 °C
Solidus: 1190 °F, 643 °C
AWS: AWS: BCuP-3



Industry Applications:

HVAC/R refrigerant systems, air conditioning coils, evaporator coils
