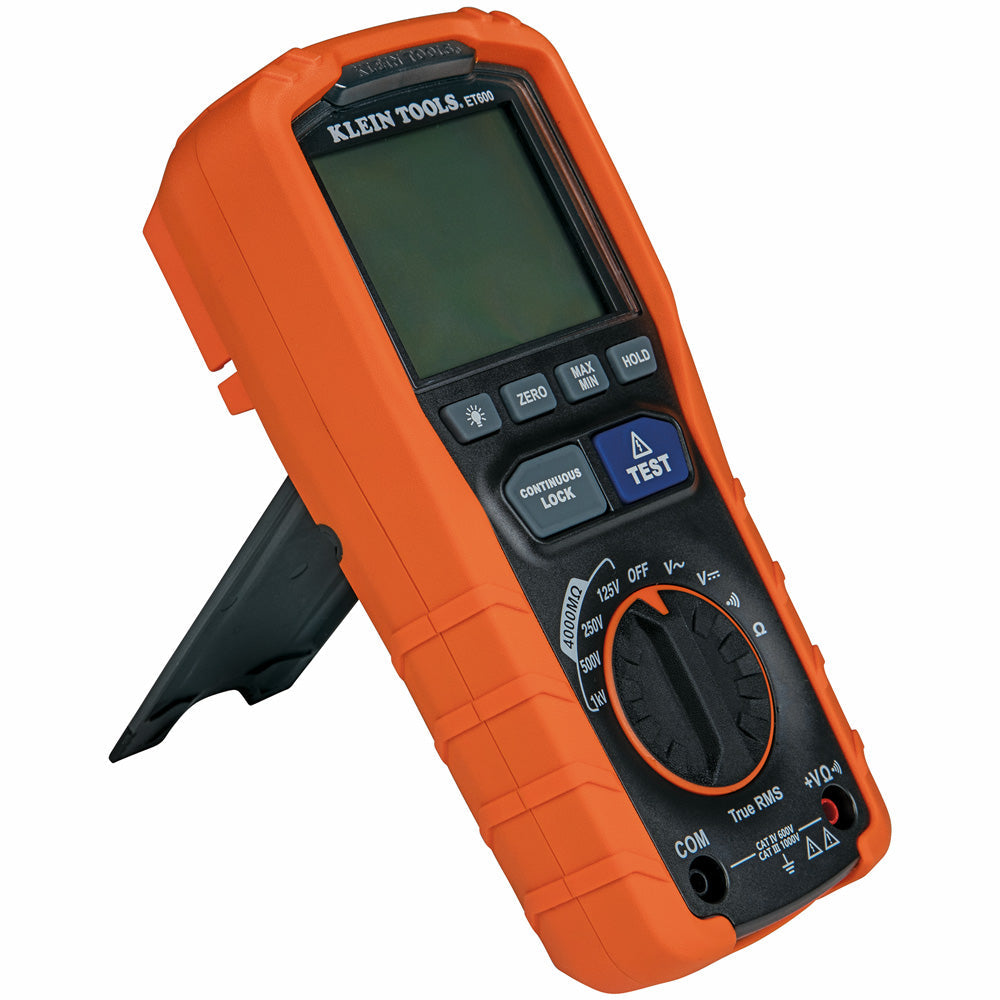

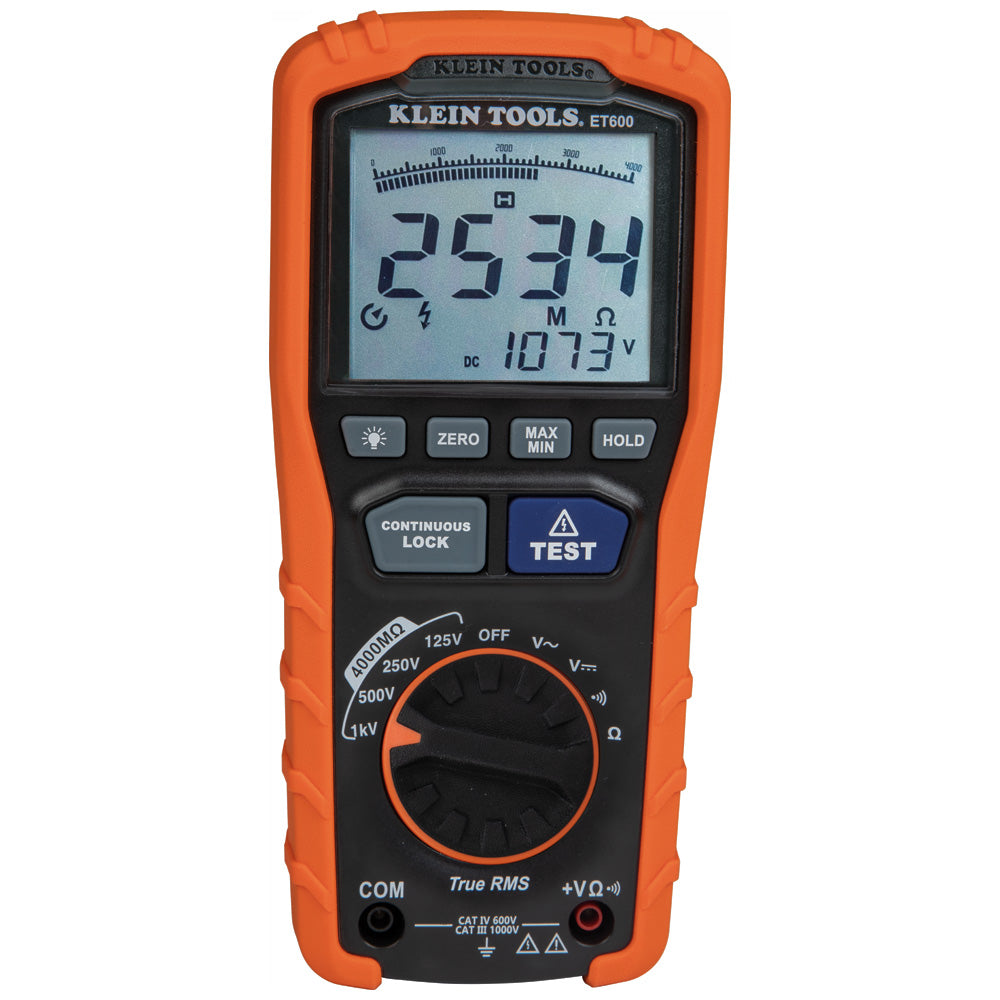

Klein Tools ET600 Insulation Resistance Tester
The ET600 is a multi-function Megohmmeter capable of producing 125V, 250V, 500V, and 1000V test voltages for insulation resistance measurements up to 4000MΩ. Also tests AC/DC voltages up to 1000V with automatic ranging True RMS technology. Convenient lock function and built-in stand for hands free operation. Dual-function backlit display monitors process.

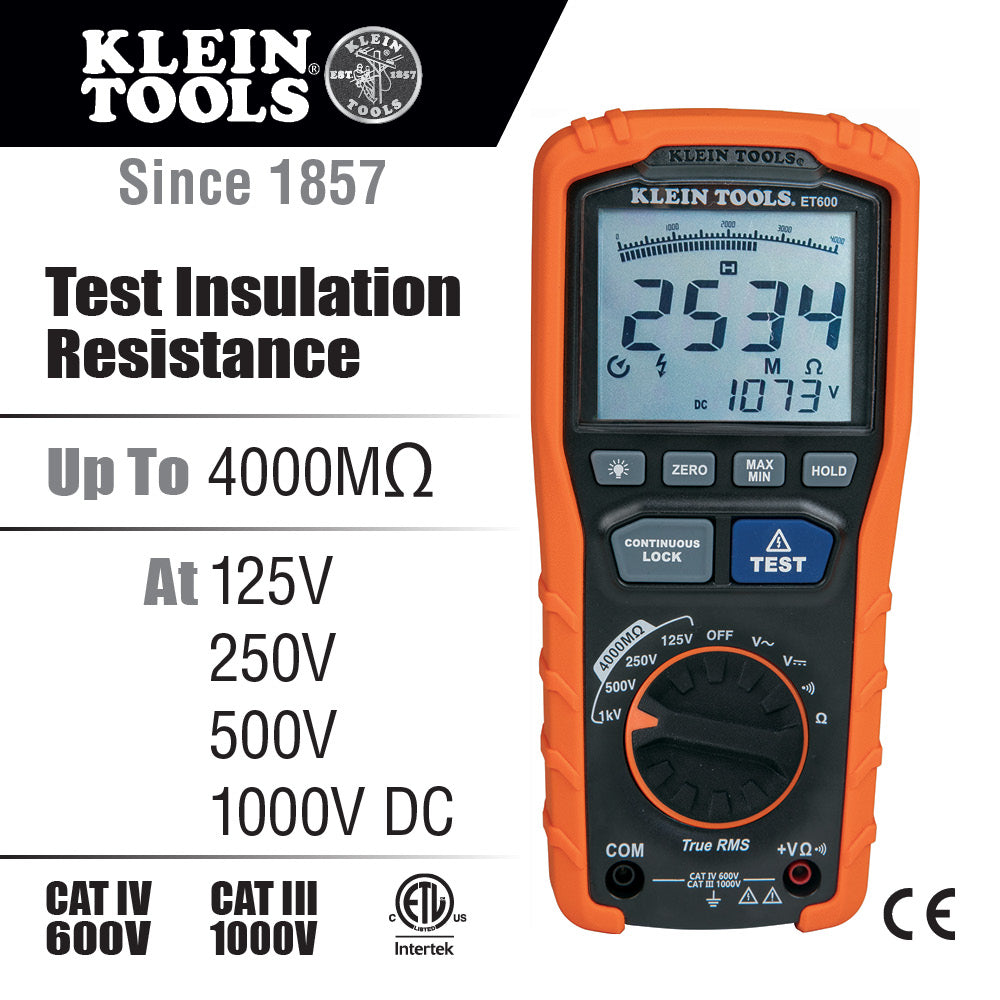

- Voltage Tester tests insulation resistance up to 4000MΩ at 125V, 250V, 500V, and 1000V DC
- Megohmmeter with test and lock buttons for simple insulation testing
- Warning alarm and high voltage icon for detection of voltage
- Measures up to 1000V AC/DC, resistance, and continuity
- Automatic ranging True Root Mean Square (TRMS) technology for increased accuracy

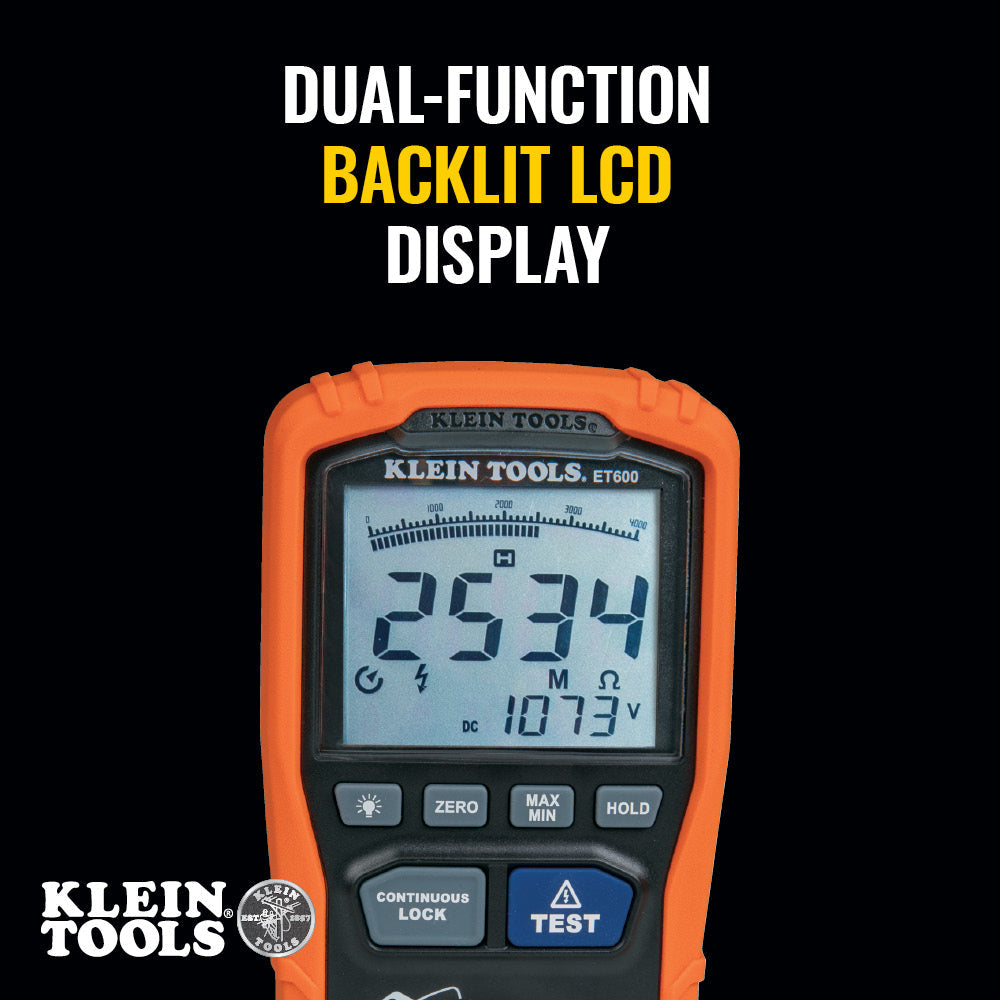

- Backlit display with bar graph, Auto-power off, High Voltage, Max/Min, and Hold icons

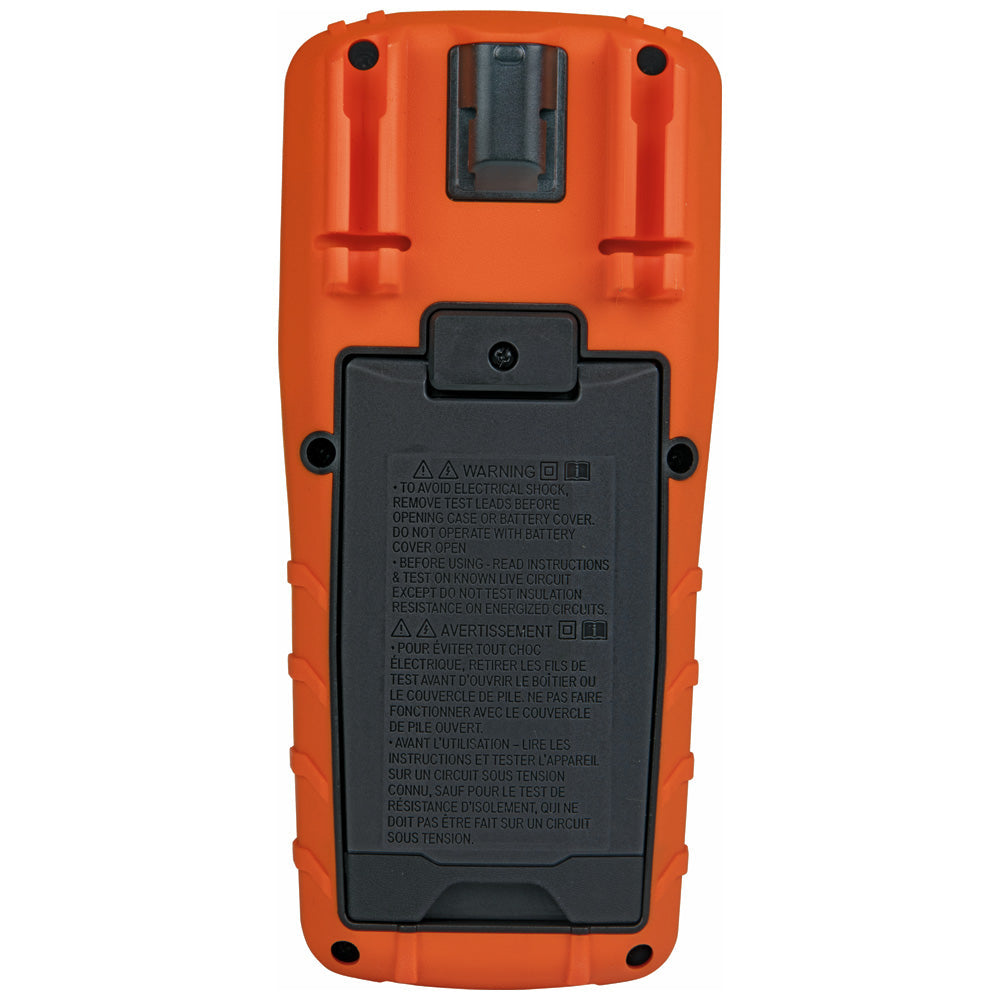

- Low battery indicator with easily replaceable battery and fuse

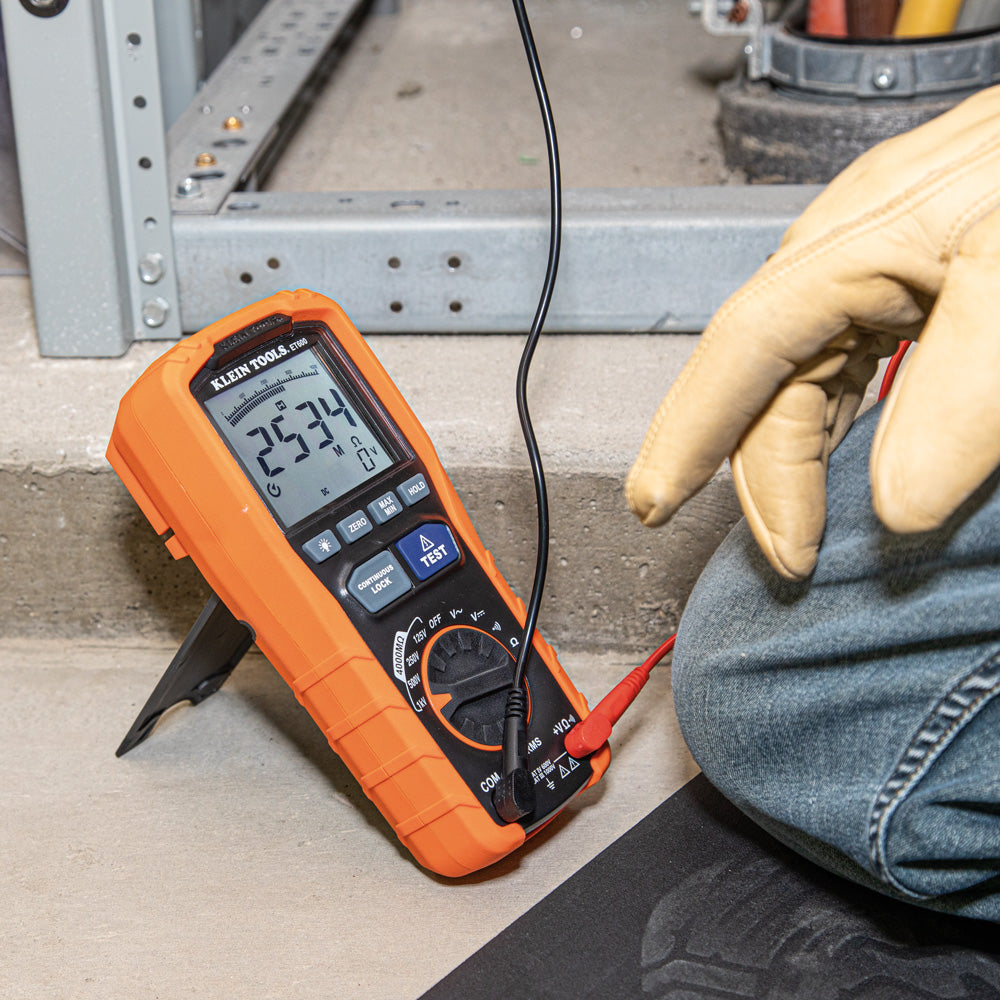

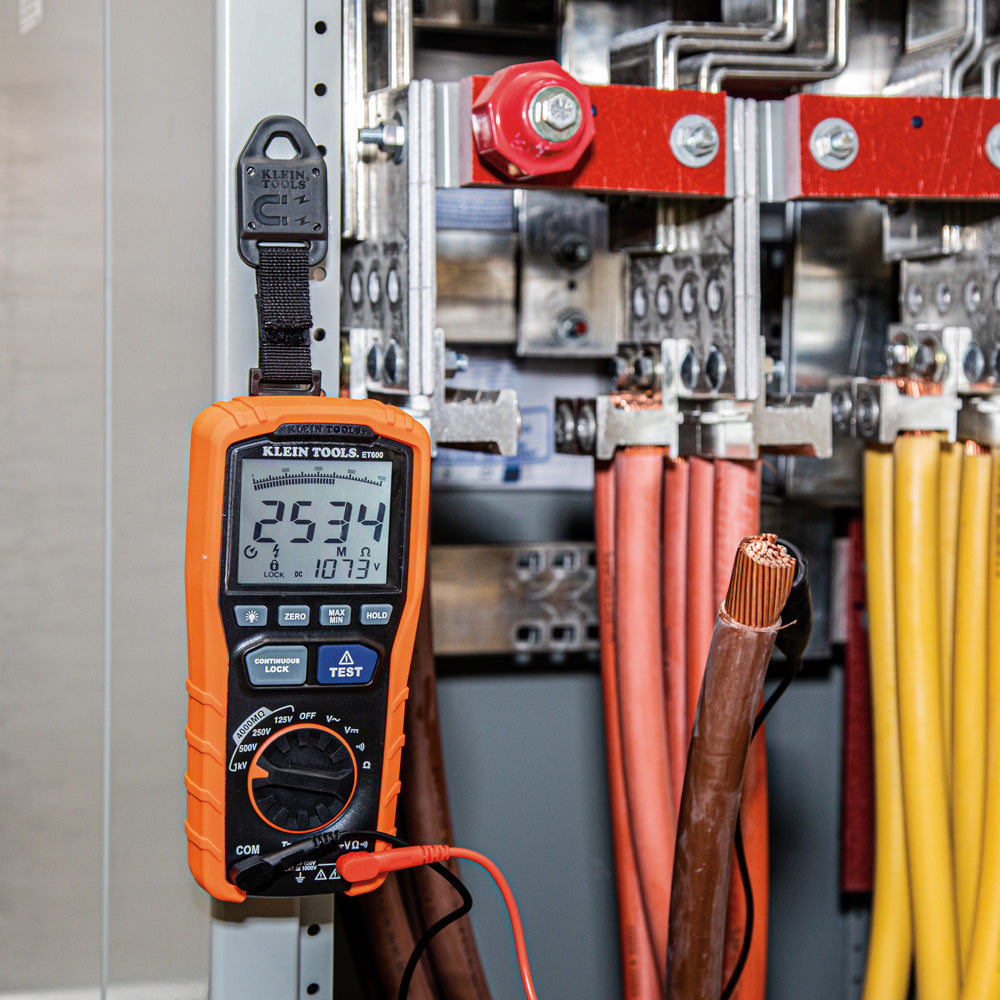

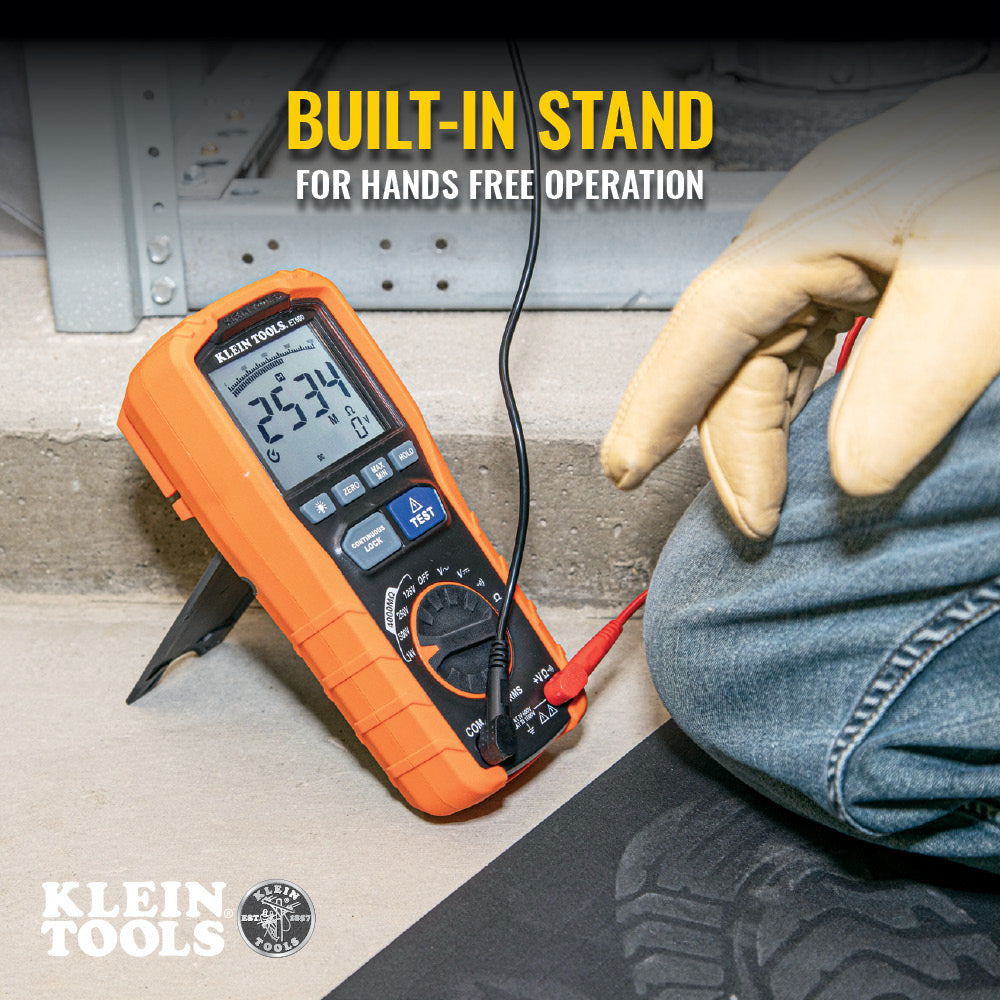

- Built-in stand and optional magnetic hanger for hands free operation
- Test verification of conformity to EN61557-1,-2,-4
- CAT IV 600V and CAT III 1000V safety rating

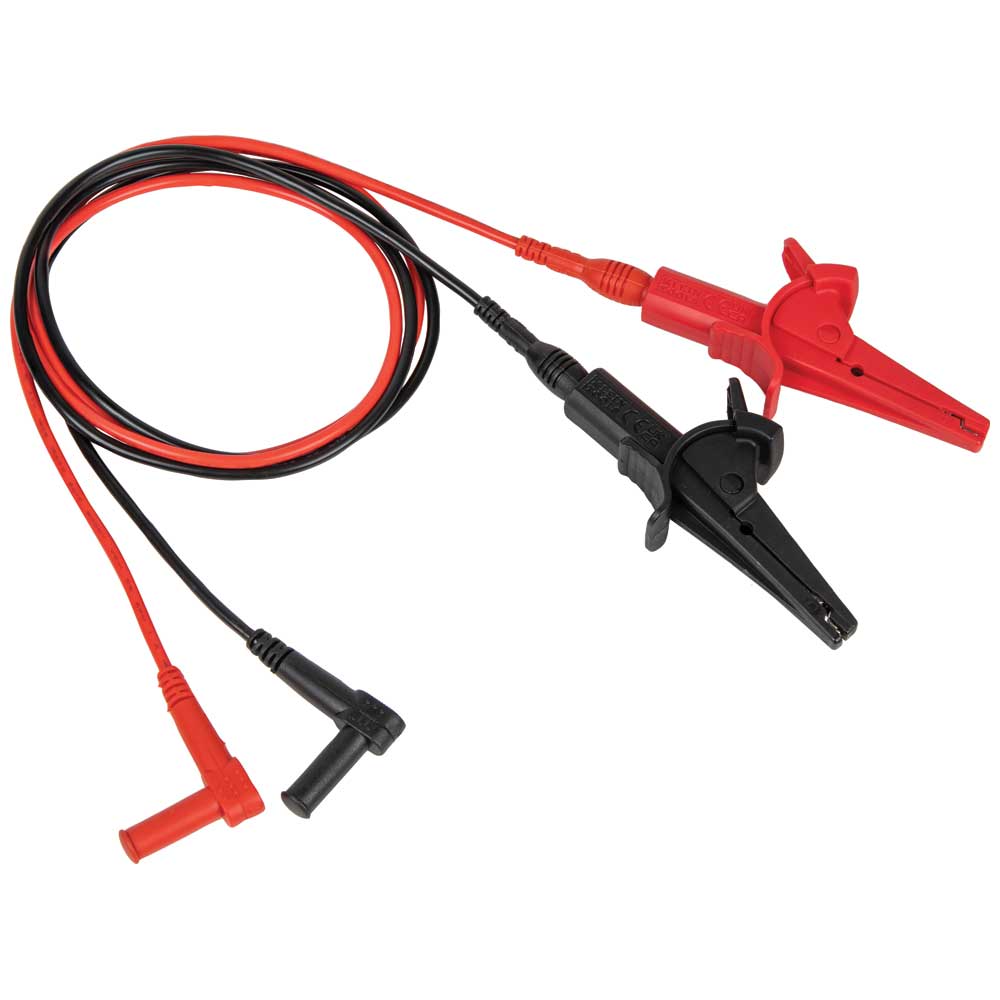

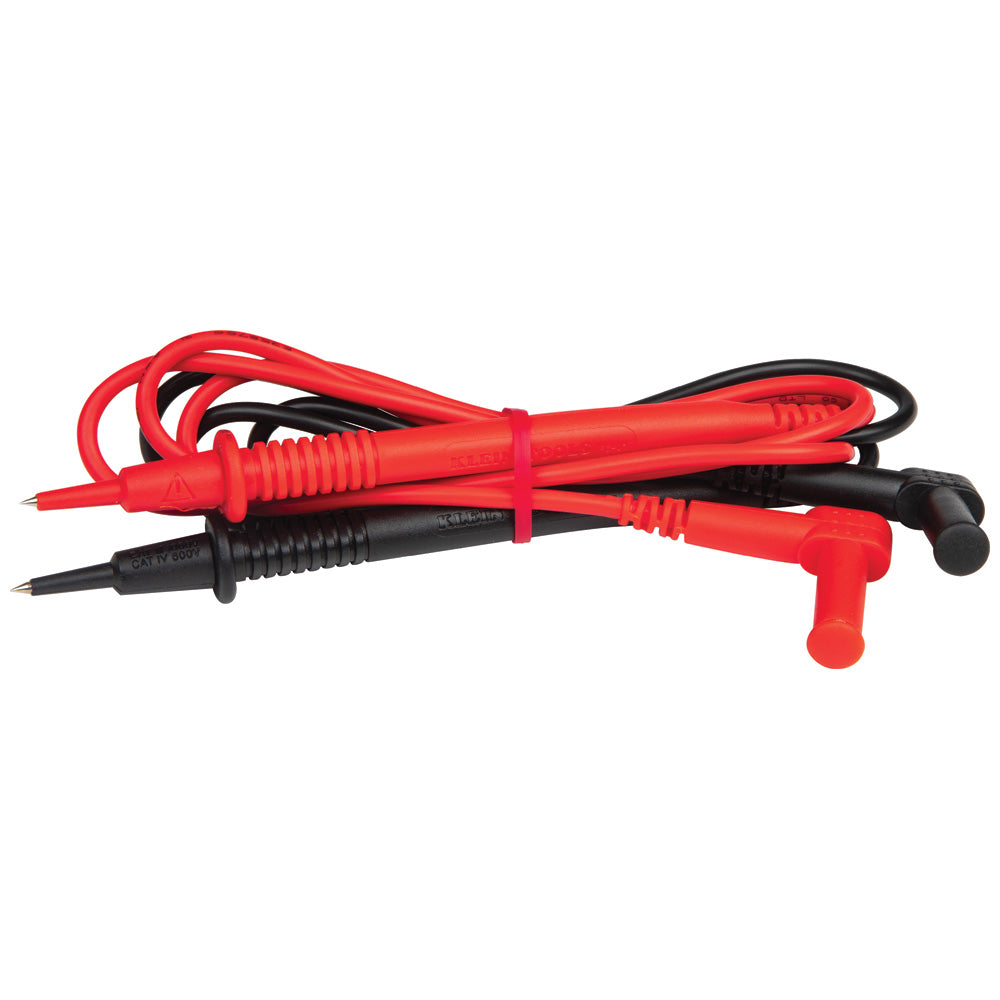

- Includes Right Angle Test Leads and Heavy-Duty Alligator Clip Test Leads
PRODUCT SPECIFICATIONS:
- Type: Insulation Resistance Tester

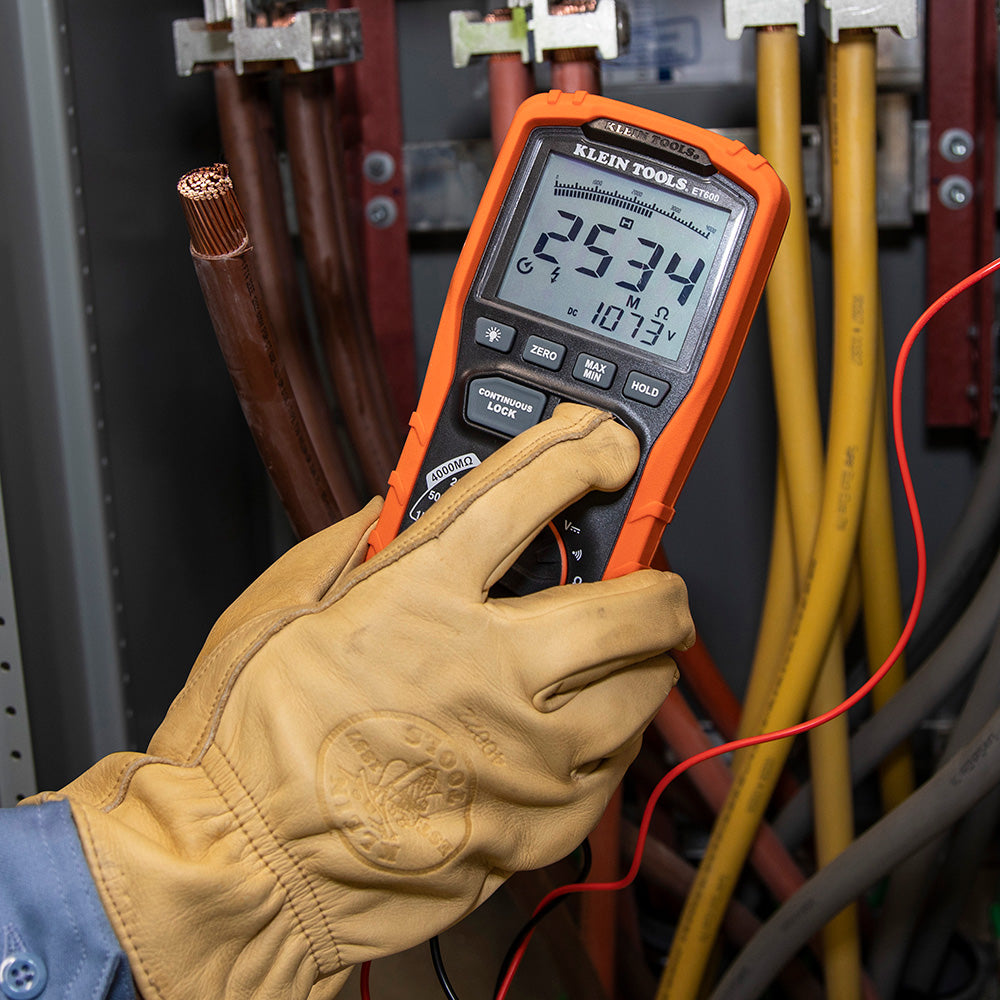

- Application: Installation, Troubleshooting, and Preventive Maintenance of Electrical Wiring and Electrical Equipment, Measures 1000V AC/DC, Resistance, and Continuity
- Special Features: Lock Button for Insulation Resistance Testing
- Material: ABS, Polycarbonate, Electrical Components
- Batteries: 6 x AA
- Display: 4000 Count LCD
- Color: Orange/Black
- Functions: Insulation Resistance, Voltage AC/DC, Resistance, and Continuity
- Voltage: 125V, 250V, 500V, and 1000V DC; 1000V AC/DC
- Ohms (Resistance): 400kΩ
- Standard: CAT IV 600V/CAT III 1000V, EN61557-1, EN61557-2, EN61557-4

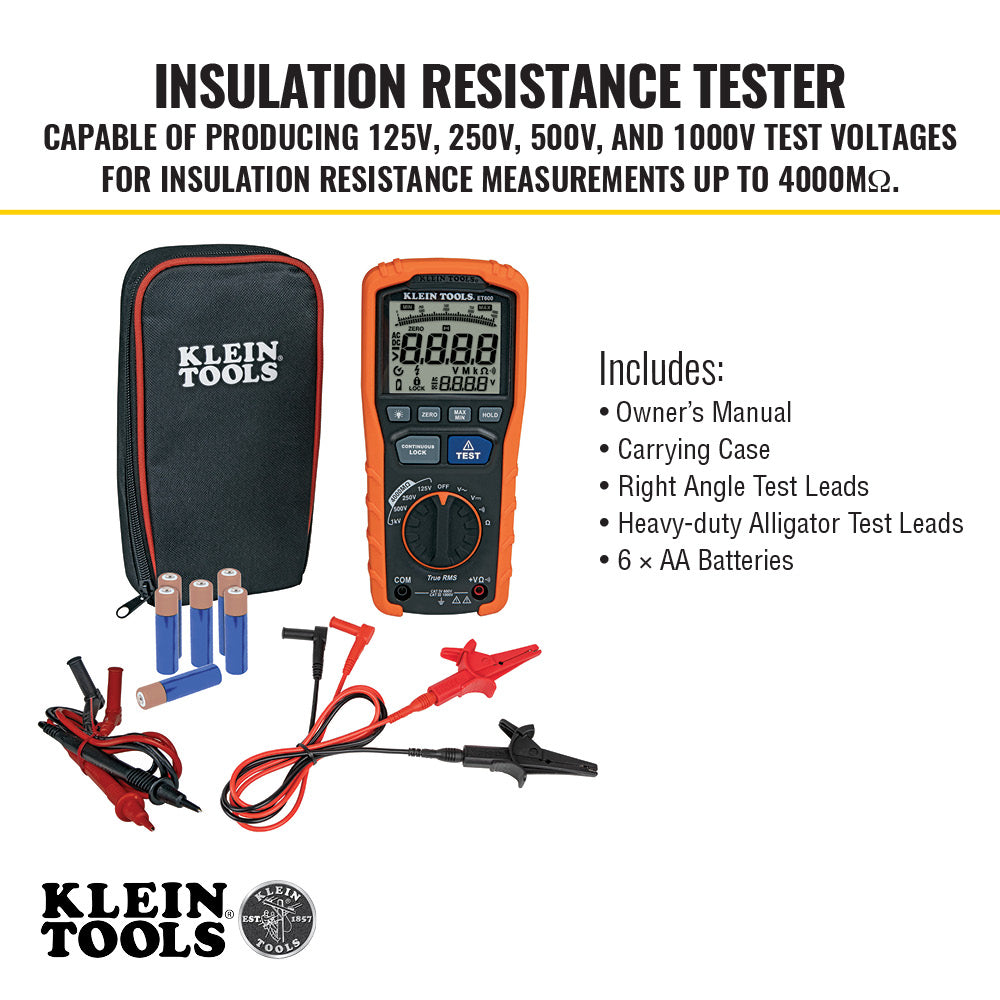

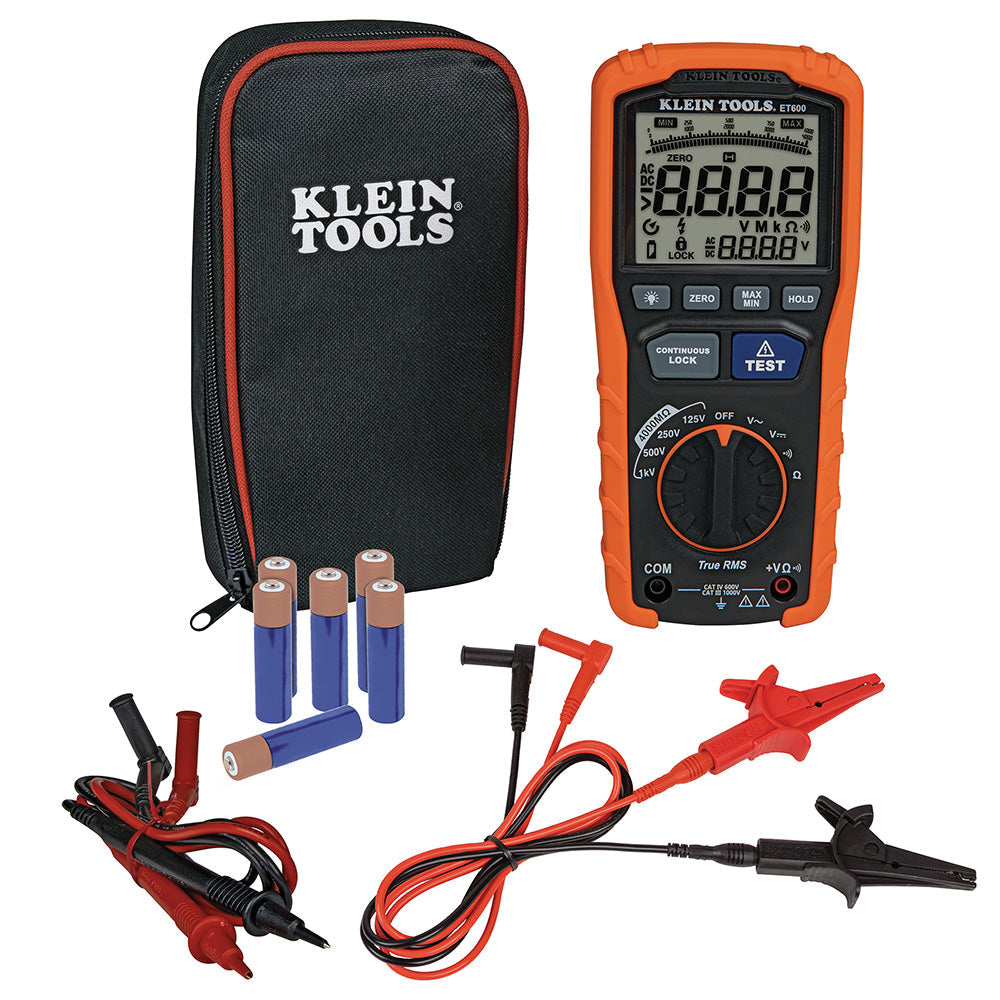

- Included: Tester; CAT III/CAT IV Safety Rated Test Leads; Heavy-duty Alligator Clip Test Leads; Batteries; Carrying Case; Instruction Manual
- Overall Length (Inch): 7.93
- Overall Length (cm): 20.1
- Overall Height (Inch): 2.32
- Overall Height (cm): 5.9
- Overall Width (Inch): 3.59
- Overall Width (cm): 9.1
- Weight (oz): 22.4
- Weight (g): 635
