Klein Tools ET270 Auto-Ranging Digital Multi-Tester with Standard/GFCI Receptacle Tester
Klein Tools' ET270 is an auto-ranging digital multi-tester that measures AC/DC voltage, resistance, continuity, and performs a battery test. It also tests wiring conditions in standard 120VAC and GFCI electrical receptacles and inspects North American GFCI devices. Comes with Right-Angle Test Leads, Receptacle Test Cord, Instructions, and all required batteries.

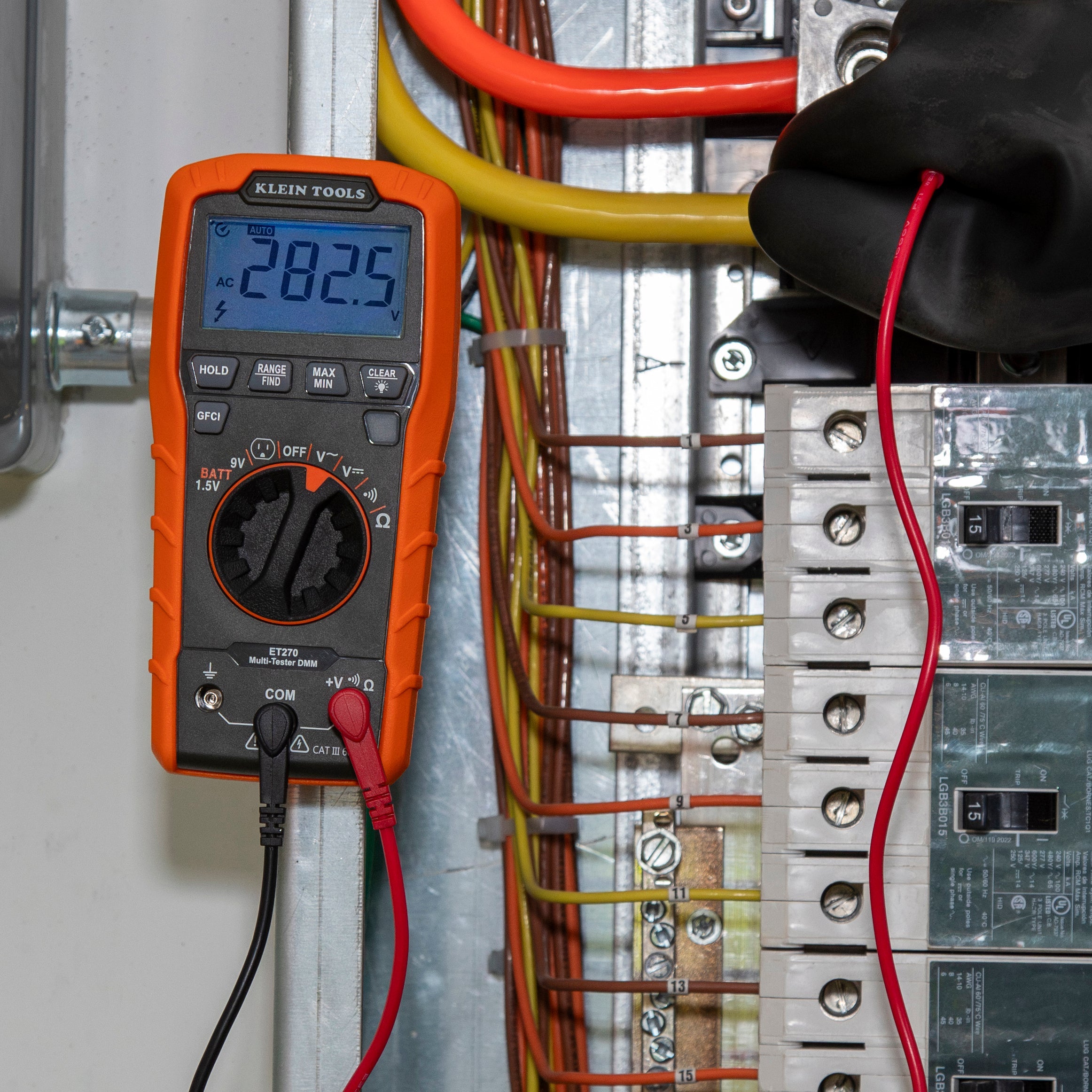

- Digital multimeter is auto-ranging and measures AC/DC voltage, resistance, audible continuity, and performs 9V and 1.5V battery tests
- Detects and identifies common wiring faults in standard and GFCI electrical outlets

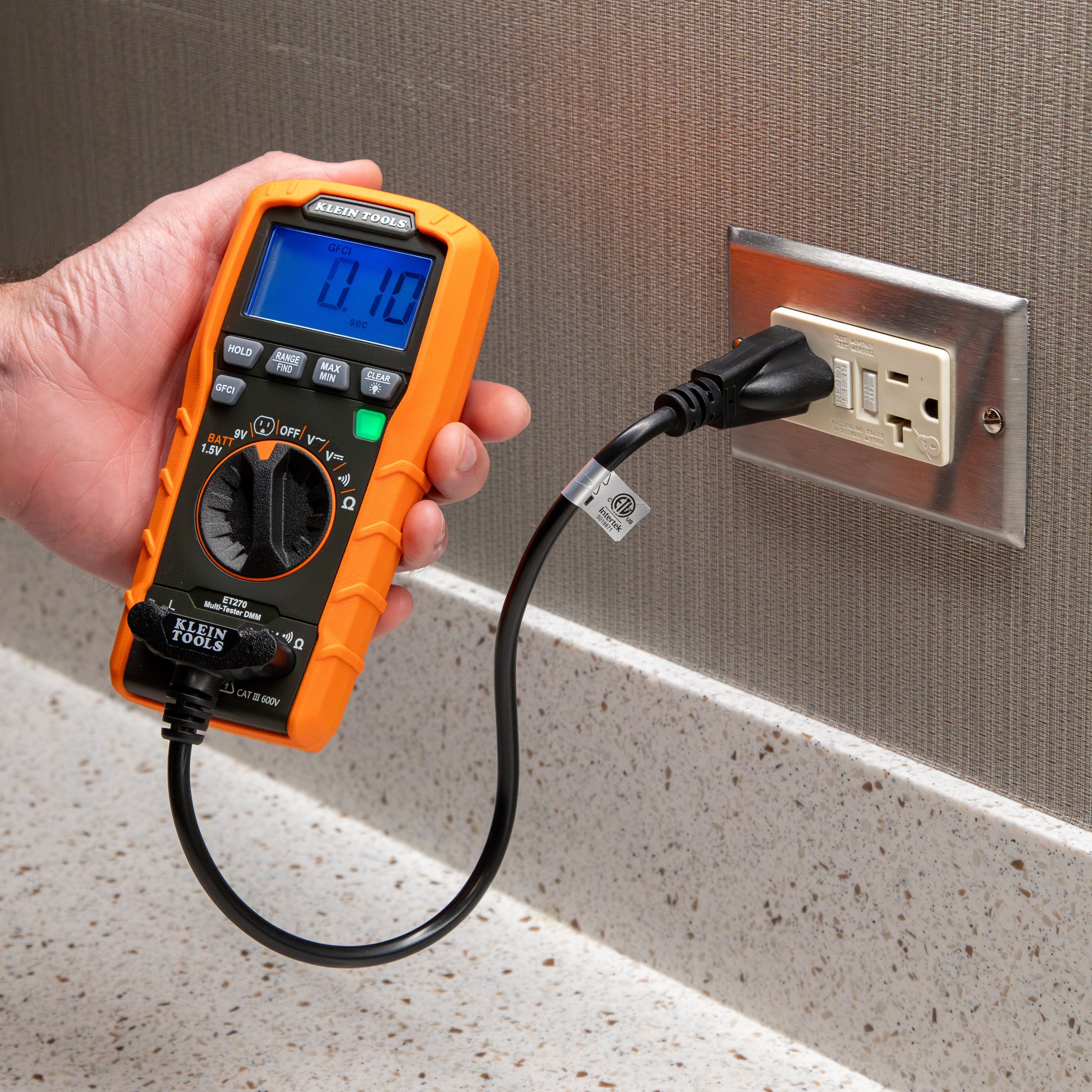

- Inspects GFCI devices, including time to trip the device
- FIND mode indicates which breaker corresponds to a given receptacle

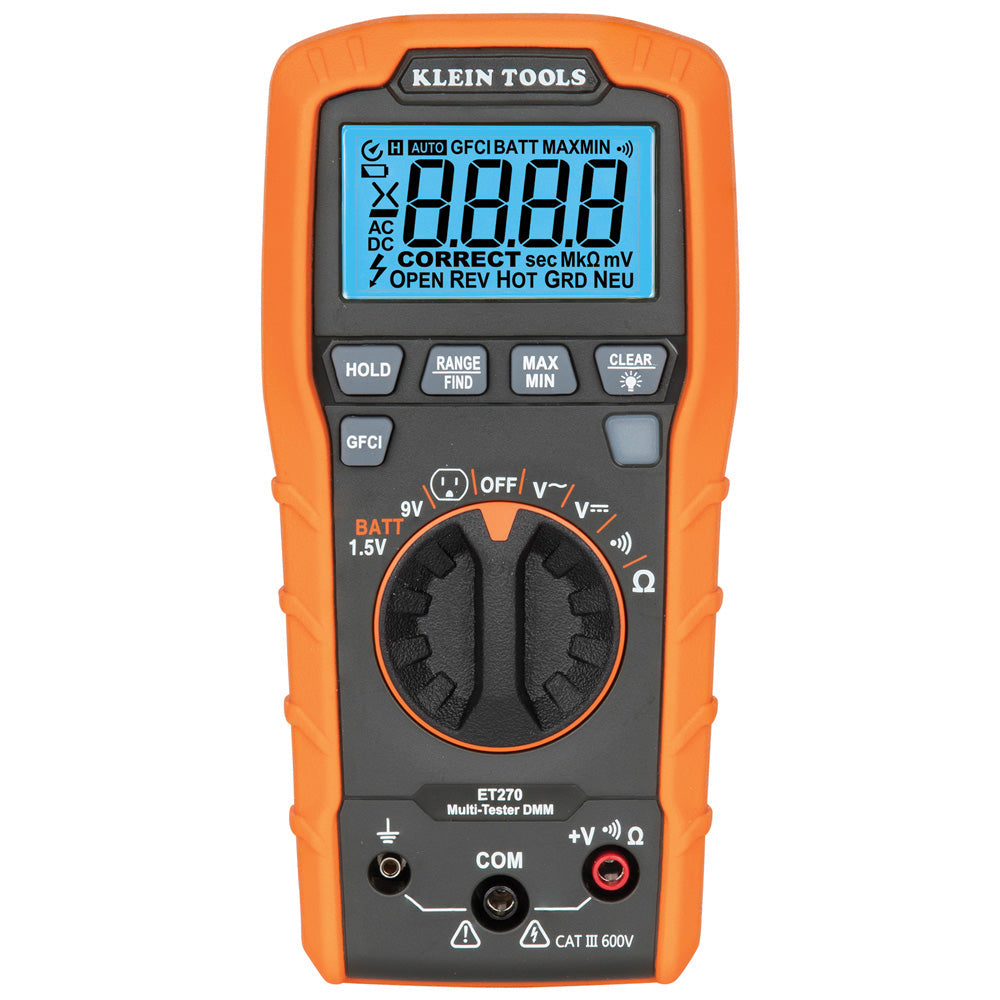

- Features include backlit display, data hold, default to auto-range with option for manual-range; max/min

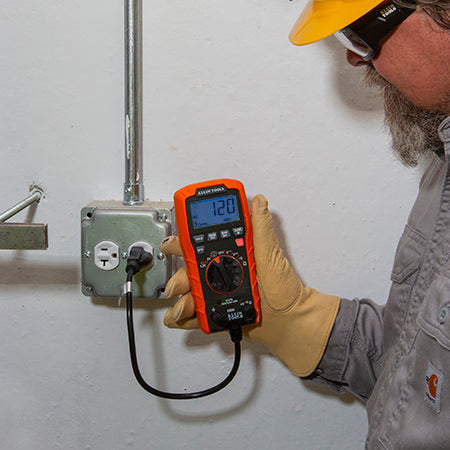

- Receptacle test is designed for use with North American 120V AC 3-wire electrical outlets
- Built to withstand a 6.6-Foot (2 m) drop, this meter is designed to be durable and reliable even in demanding working environments

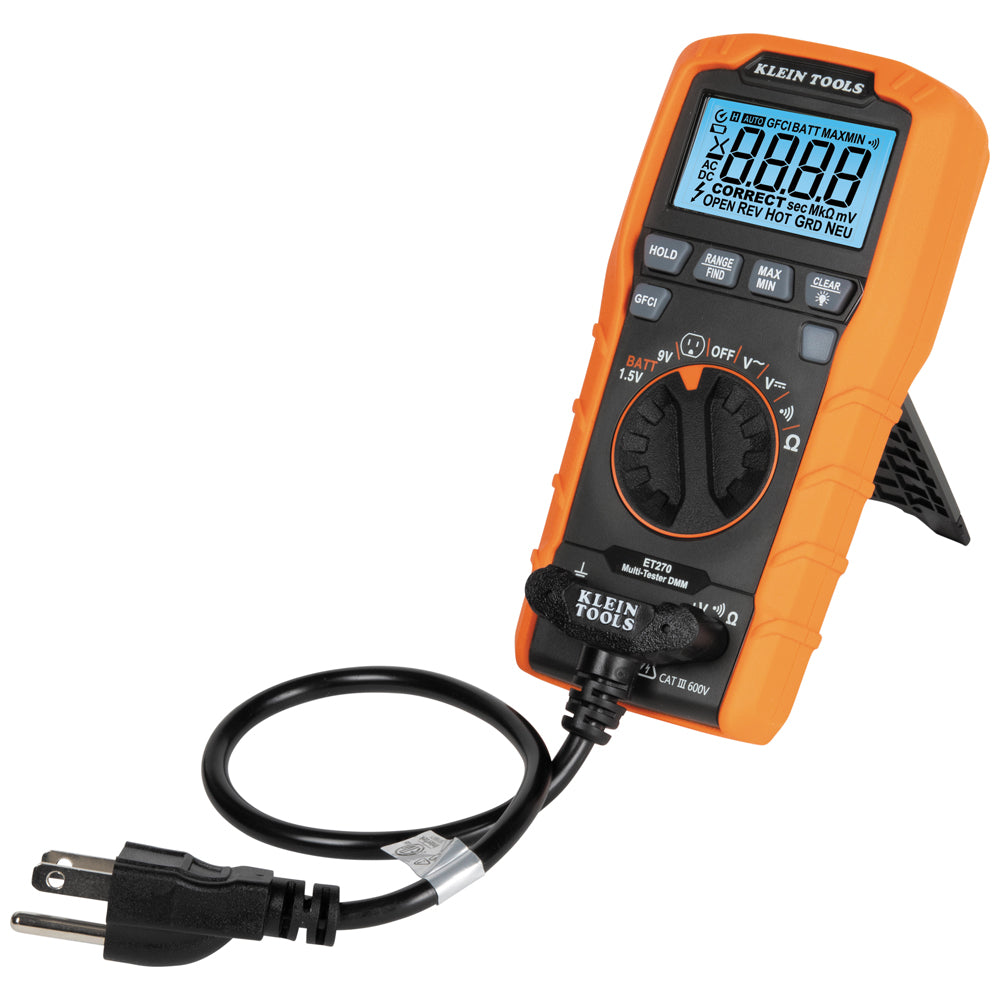

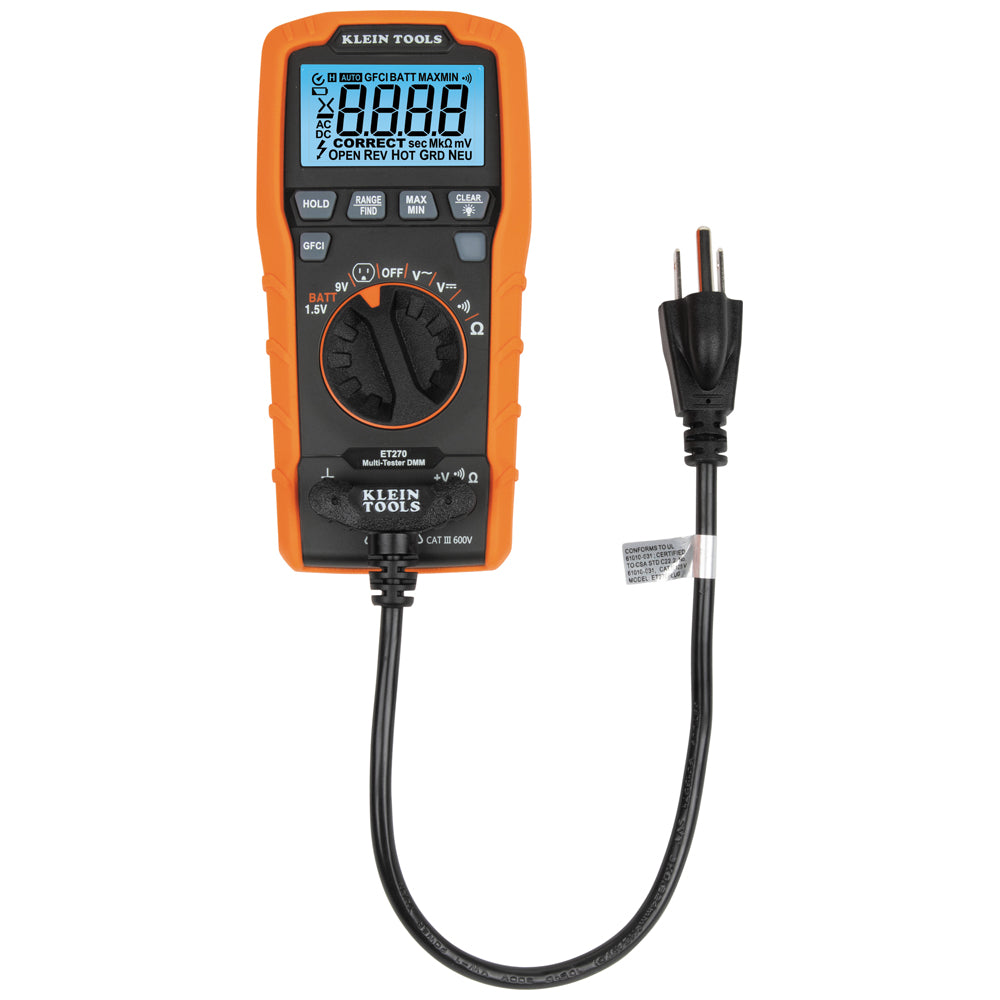

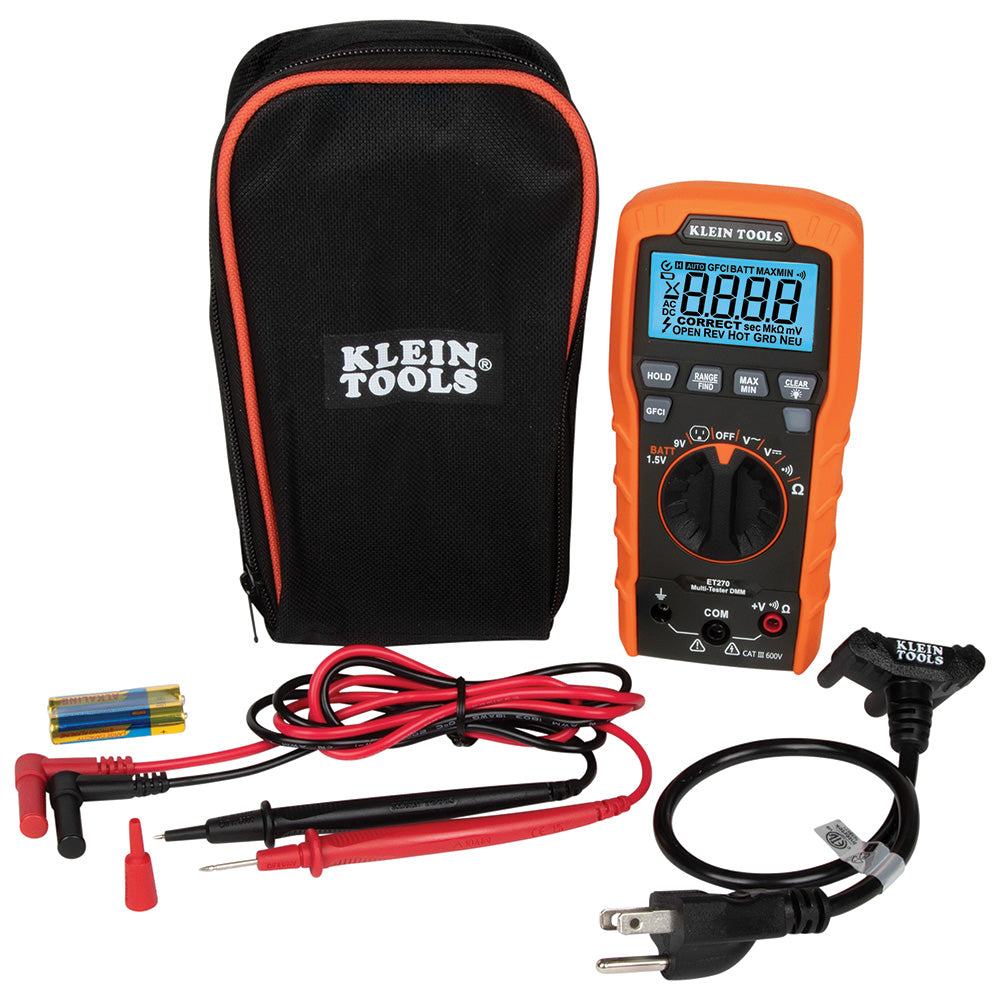

- Digital Multimeter comes with test leads, receptacle test cord, instructions, batteries, all in a convenient storage pouch
PRODUCT SPECIFICATIONS:
- Type: Digital Multimeter and GFCI Receptacle Tester
- Application: Testing and Measuring Voltage; Detects and Identifies Common Wiring Problems in GFCI Receptacles
- Special Features: Data Hold; Auto-Range with Option for Manual-Range; Min/Max Values; Backlight
- Material: ABS and Electrical Components
- Batteries: 2 x AAA
- Drop Protection: 6.6' (2 m)
- Display: 4000 Count LCD
- Color: Orange/ Black
- Functions: AC/DC Voltage; Resistance; Continuity; Battery Test; Finds Breaker to Corresponding Receptacle; Shows Amount of Time it Takes to Trip GFCI; Detects and Identifies Common Wiring Problems in GFCI Receptacles
- Voltage: 600V AC/DC
- Frequency: 50 to 60Hz
- Ohms (Resistance): 40MΩ
- Standard: CAT III 600V, Class 2, Double insulation
- Accuracy: 65°F to 83°F (18°C to 28°C): +/- (% of Reading + Number of Least Significant Digits)
- Included: Digital Multimeter; Right-Angle Test Leads; Receptacle Test Cord; Batteries; User Manual; Storage Pouch
- Overall Length (Inch): 6.41
- Overall Length (cm): 16.3
- Overall Height (Inch): 1.84
- Overall Height (cm): 4.7
- Overall Width (Inch): 3.13
- Overall Width (cm): 8
- Weight (oz): 21.1
- Weight (g): 598
