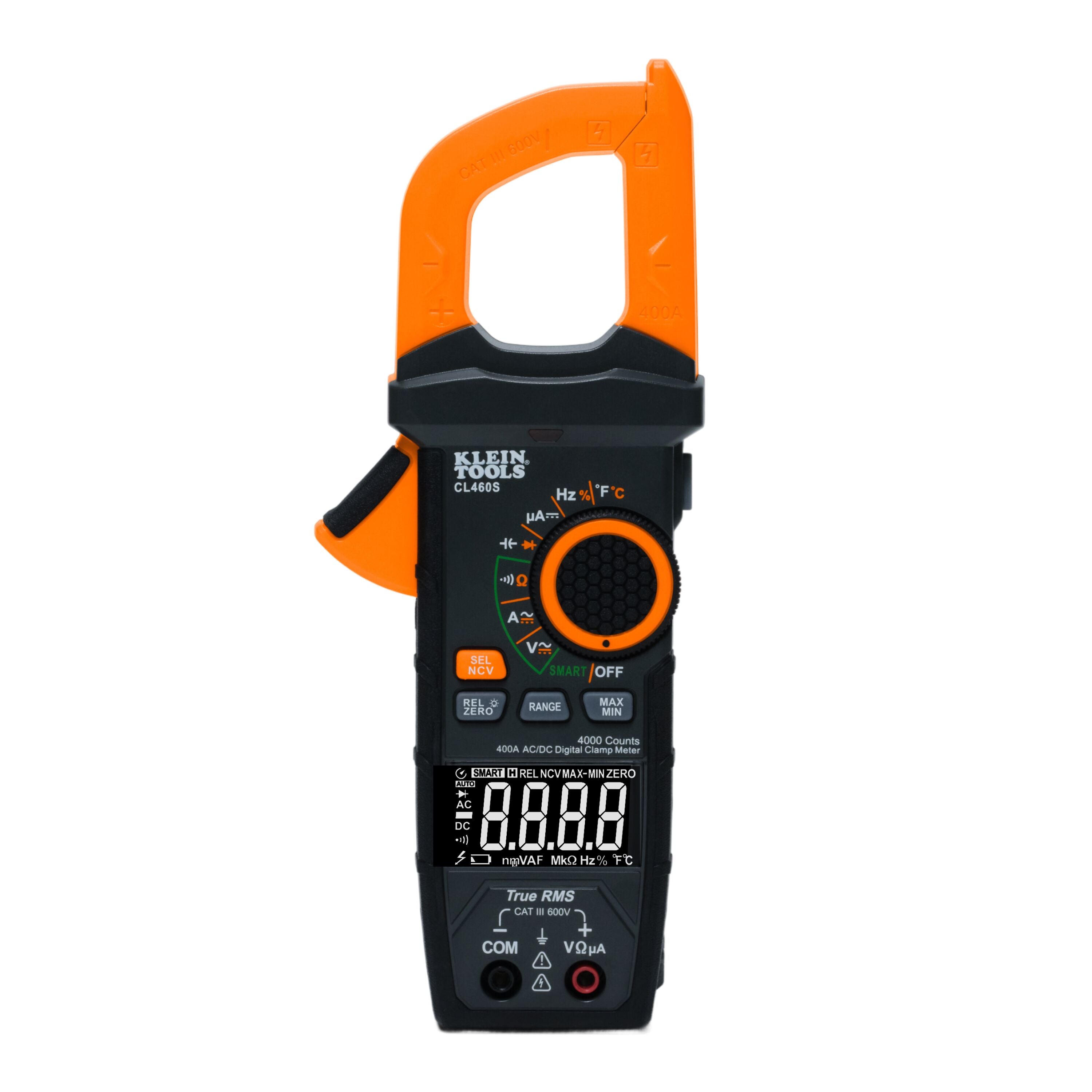

Klein Tools CL460S 400A AC/DC Auto-Ranging Smart Digital Clamp Meter

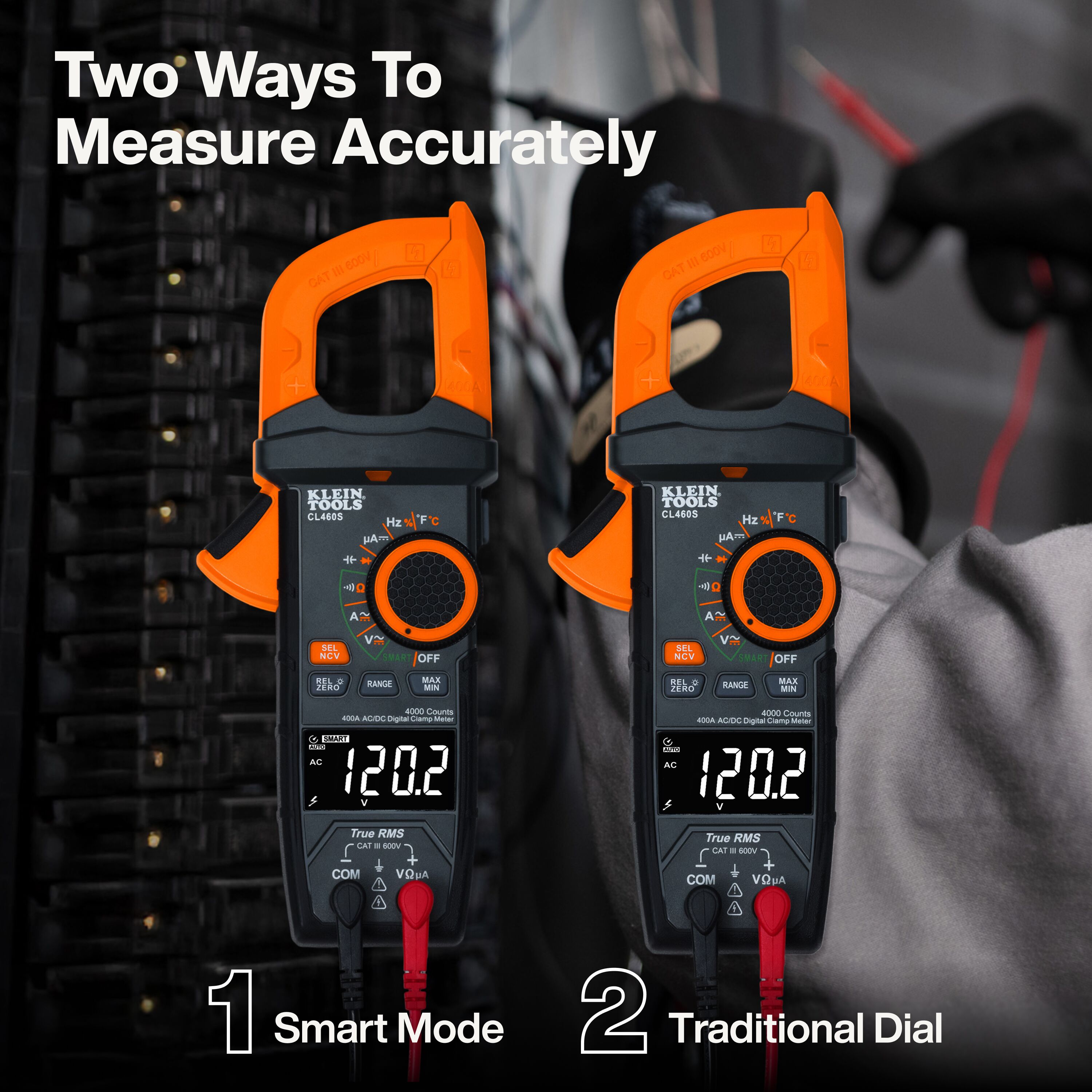

Klein Tools CL460S Smart Digital Clamp Meter combines auto-detection technology with traditional dial control for ultimate versatility. Smart mode automatically switches between voltage, current, resistance, and continuity without manual selection. Features 400A AC/DC capacity, TRMS accuracy, and superior backlit reverse-contrast display for clear readings in any environment. Hands-free magnet mount and test lead holder maximize convenience.

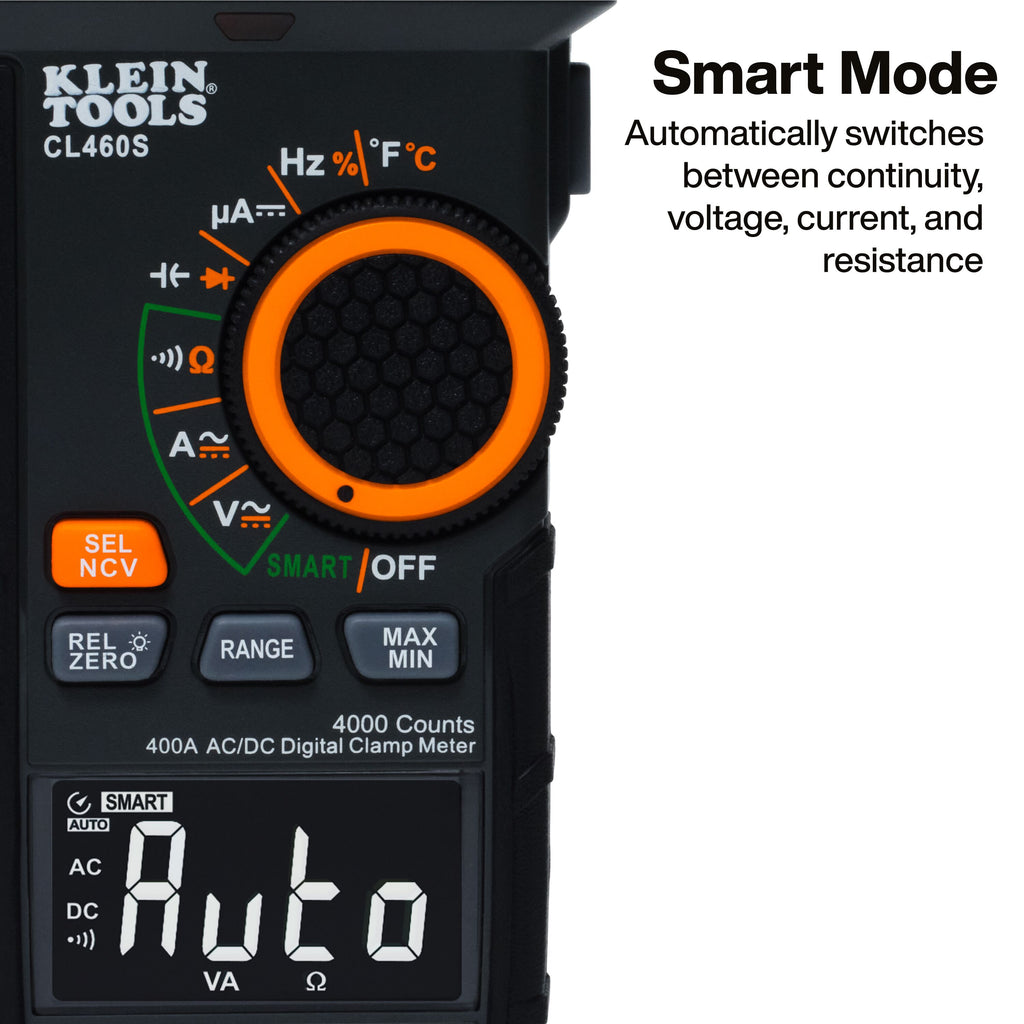

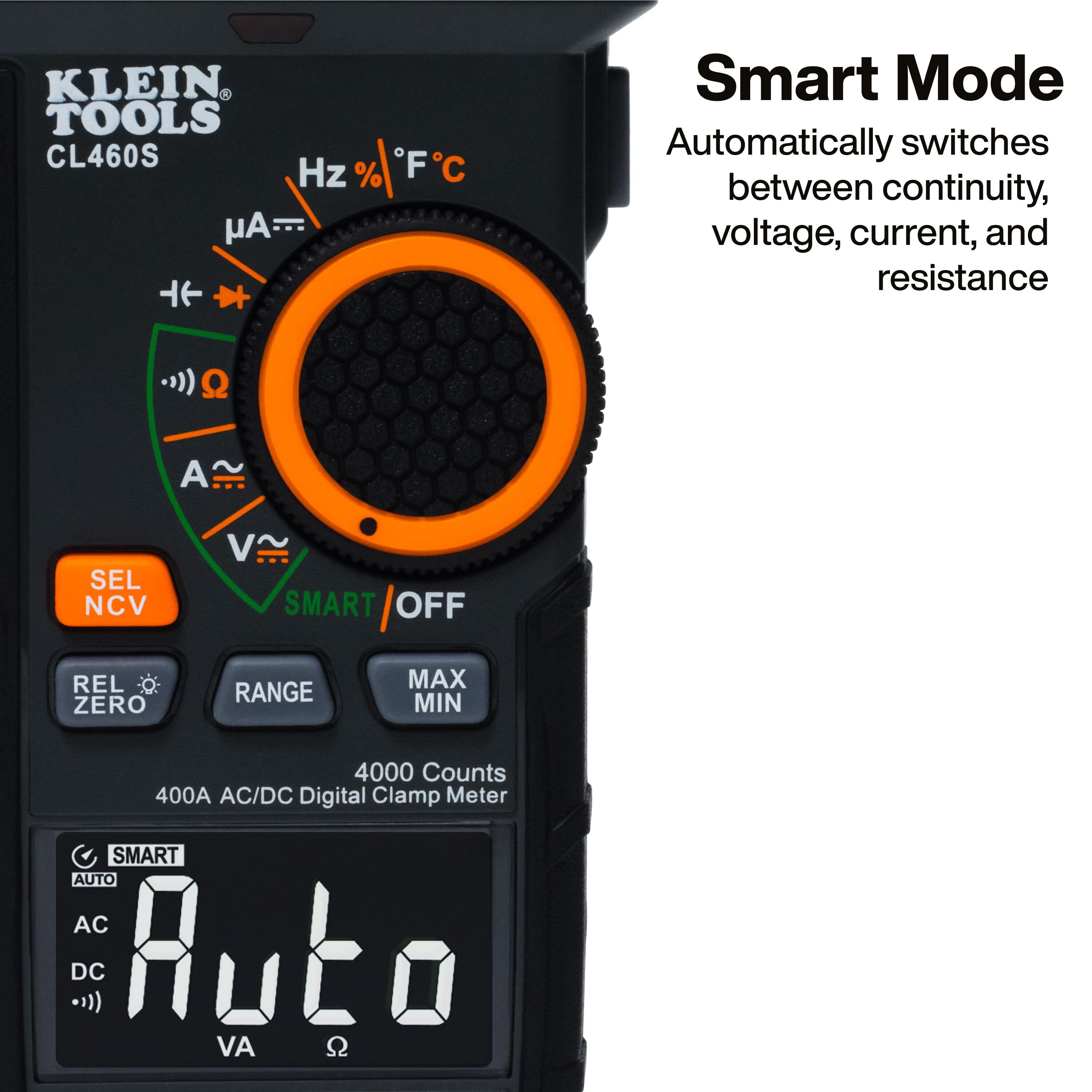

- Smart mode technology automatically detects measurement type and switches between continuity, voltage, resistance, and current without dial adjustment
- Measures AC/DC voltage up to 600V, 400A AC/DC current, 40MΩ resistance
- Reverse-contrast display with optimized backlighting ensures exceptional readability in any lighting condition
- Auto-ranging precision combined with TRMS technology ensures reliable measurements for all applications

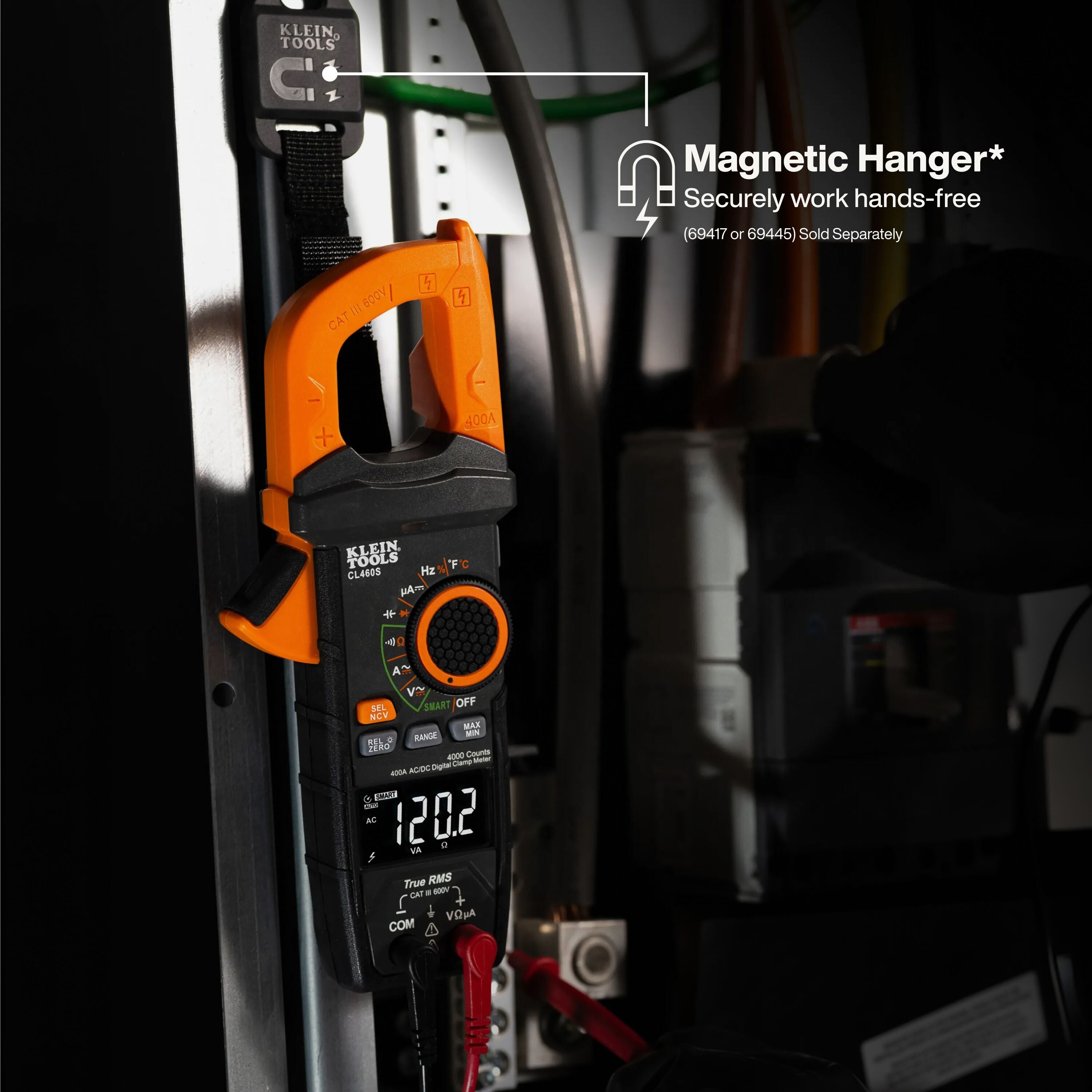

- Hands-free operation with test lead holder on back and optional magnetic hangers (Cat. No. 69445 or 69417) for convenient positioning
- Slim and durable design with rugged construction built to withstand demanding jobsite conditions
- Advanced measurement capabilities deliver professional grade performance for electrical testing applications
PRODUCT SPECIFICATIONS:
- Type: Closed Clamp Meter
- Application: Variety of Electrical Diagnostic and Troubleshooting Applications
- Special Features: SMART Mode, Backlit Reverse-Contract Display; Built-in Lead Holder
- Material: ABS/Electronics
- Batteries: 3 x AAA
- Battery Life: 22 hr
- Auto-Power Off: Yes
- Jaw Size (Inch): 1.25
- Jaw Size (cm): 3.2
- Drop Protection: 6.5' (2 m)
- Display: 4000 Count LCD
- Display Size (Inch): 1.5
- Functions: SMART Mode, AC/DC Voltage, AC/DC Current, Resistance, DC Micro Amps, Audible Continuity, Temperature, Non-Contact Voltage Testing, Diode Test, Capacitance, Frequency/Duty Cycle, Min/Max Value, Rel/Zero, Data Hold Capability
- Auto Ranging: Yes
- TRMS: Yes
- Voltage: 600V AC; 600V DC
- Frequency: 10Hz - 60kHz
- Current: 400 AC/DC
- Capacitance: 4000µF
- Ohms (Resistance): 40MΩ
- AC Voltage: 600V
- DC Voltage: 600V
- DC Polarity Indicator: Yes
- DC Micro-Amp: 400µA
- Temperature Range: -40° to 1832°F (-40° to 1000°C)
- Accuracy: See Instructions
- Standard: CAT III 600V; Class 2 Double Insulation; CE Certified

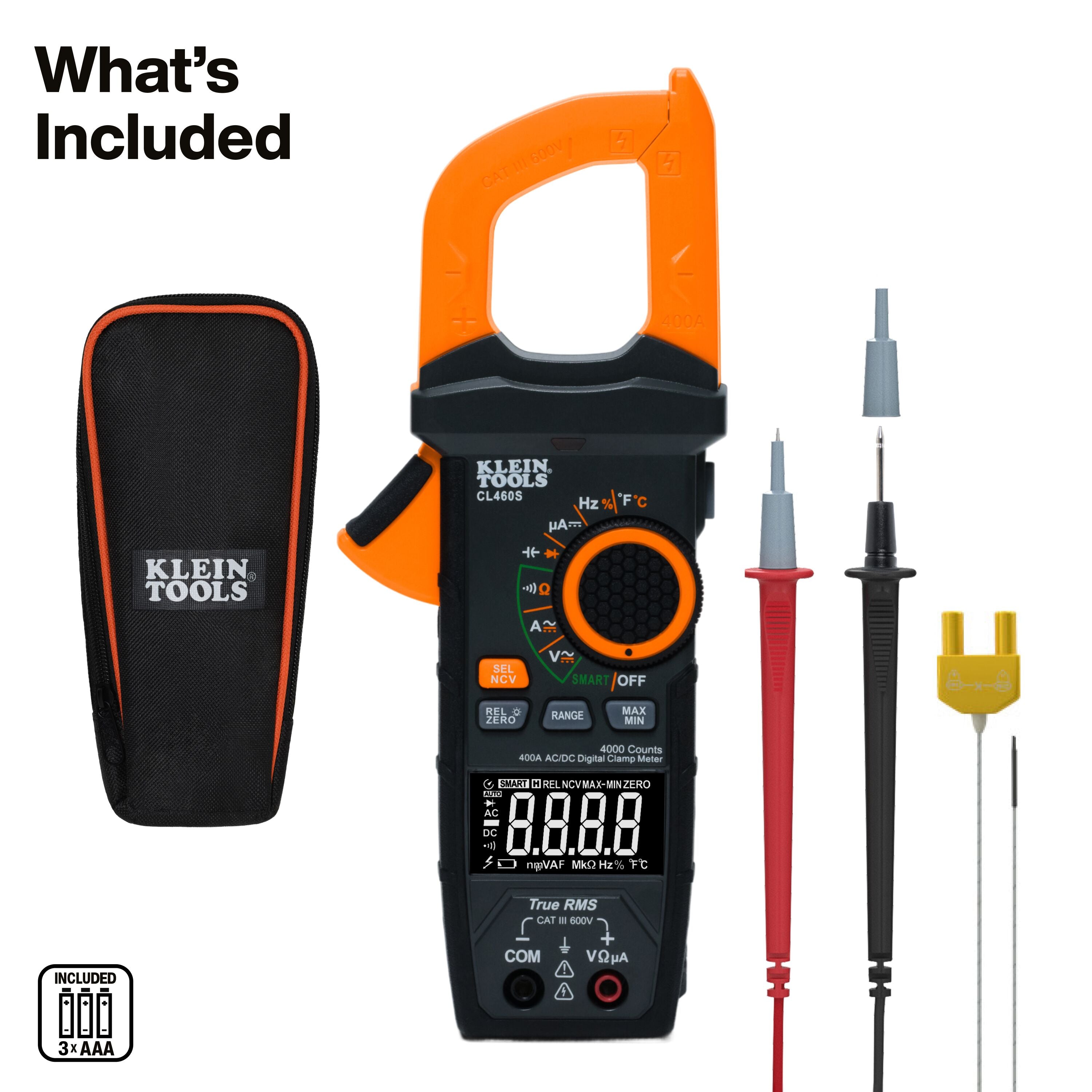

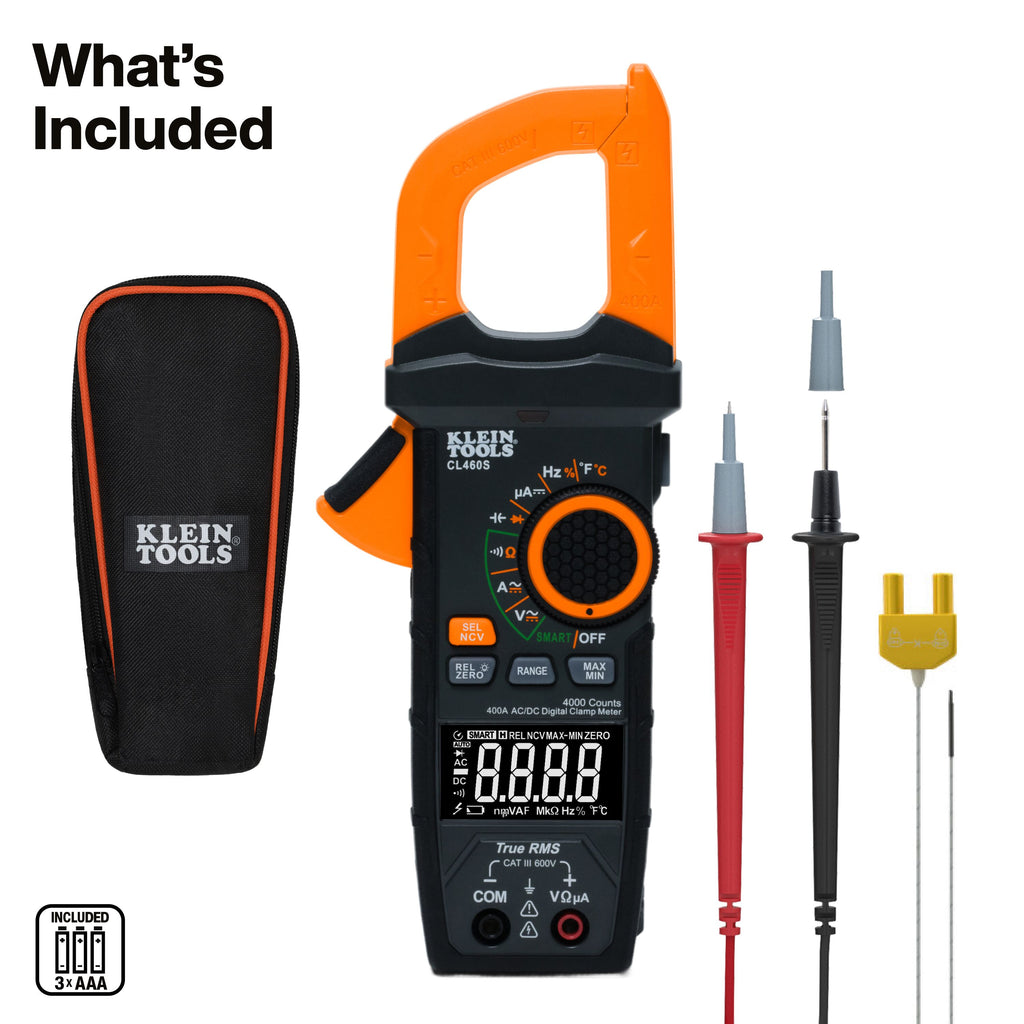

- Included: Clamp Meter; Right-Angle Input Test Leads; Thermocouple; Carrying Case; Instruction Manual; 3 x AAA Batteries
- Overall Length (Inch): 3.5
- Overall Length (cm): 8.9
- Overall Height (Inch): 8.7
- Overall Height (cm): 22.1
- Overall Width (Inch): 1.5
- Overall Width (cm): 3.8
- Weight (oz): 11.92
- Weight (g): 338
