Description

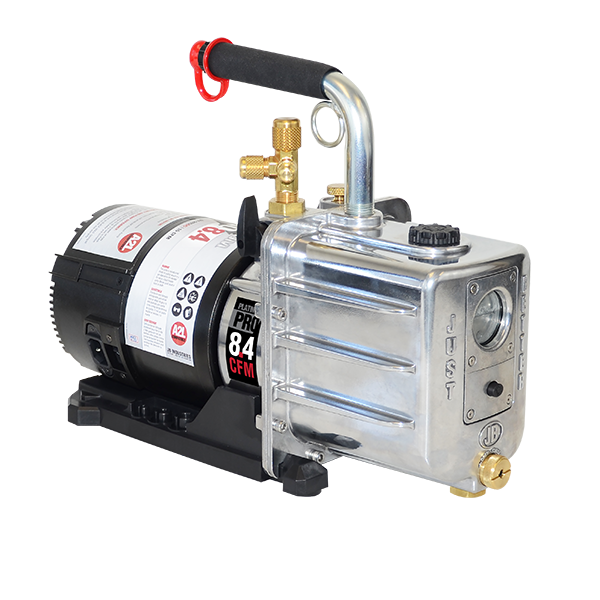

JB Industries DV-240DC PLATINUM PRO Dual Voltage DC Motor 8.4 CFM Vacuum Pump, A2L Compatible
8.4 CFM PLATINUM PRO DC Motor Vacuum Pump with Quart of Oil
CRAFTED WITH ATTENTION TO DETAIL.

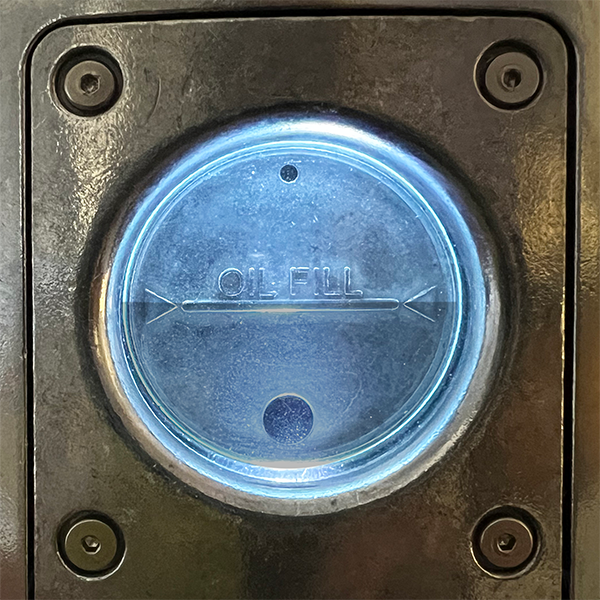

- Check oil level at any time with LED back-lit sight glass

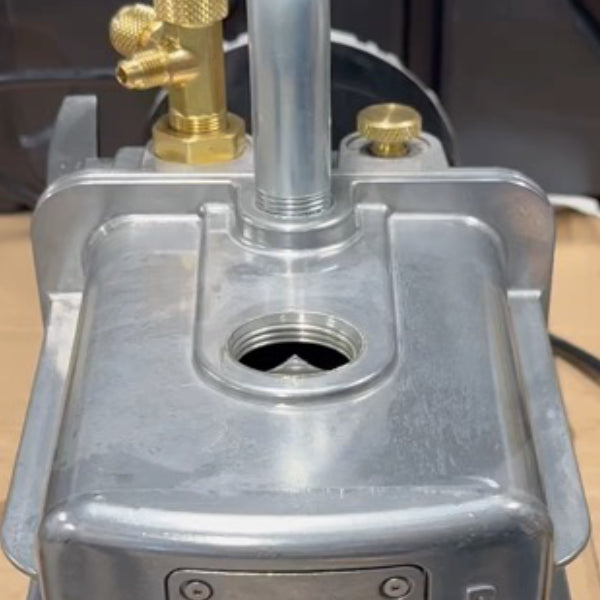

- Integrated bottle seal piercing spike for quick oil changes
- Wide, four point stable base for better balance
- IEC 10 ft. locking cord.
FEATURES
- A2L Compatible
- 1/2 HP DC motor with broad operating voltage range
- Dual-voltage 115/230V
- DC motor with sliding voltage switch
- Angled easy access 1/4", 3/8" or 1/2" intake tee
- Ergonomic 1/2" NPT handle and lift ring for easier hoisting
- Check oil level at any time with LED back-lit sight glass
- IEC 10' Locking Cord

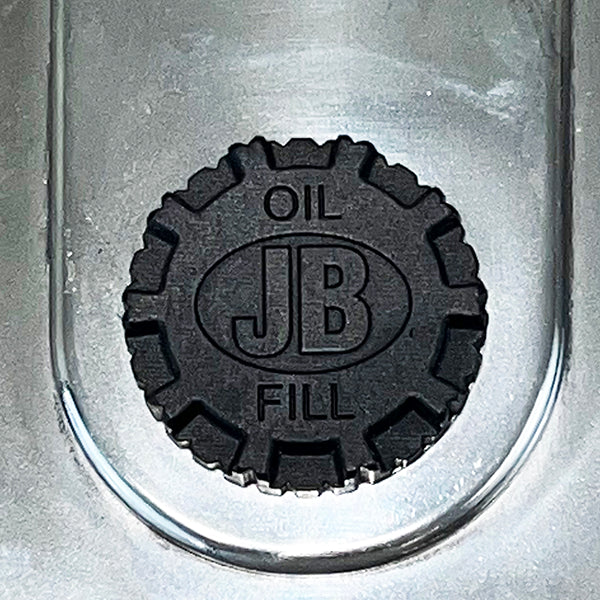

- One-shot, full quart oil fill - Integrated bottle seal piercing spike for quick oil changes

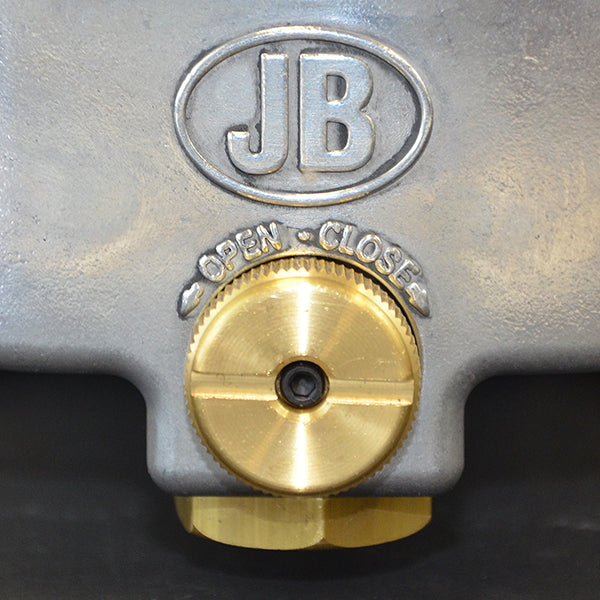

- Drains oil 3x faster with 1/4 turn ball valve drain
- Blank-off isolation valve isolates the pump from the system
- Gas ballast for extended oil life
- Wide, four point stable base for better balance with cap storage
- 100% Factory Tested
- Premium all metal construction with heavy-duty finned aluminum housing,
- American-manufactured brass fittings and stainless steel valving
- 100% Field Repairable
- 2-Year Warranty
SPECIFICATIONS
| Quantity Per Pack: | 1 pack |
| CFM: | 8.4 |
| Motor: | 1/2 HP, Dual Voltage, DC |
| Intake Port: | 1/2" x 1/4" x 3/8" |
| Oil Capacity: | 21oz |
| Power Cord: | USA, 10' IEC Locking Cord |
| Voltage: | Dual Voltage 115v/230v |
DIMENSIONS
| Length: | 14" |
| Width: | 18" |
| Height: | 9" |
| Weight: | 24 lbs. |
