JB Industries DV-22N Digital Vacuum Gauge

Save 24%
Original price $270.90
Current price $204.57
Currently 15 in stock.

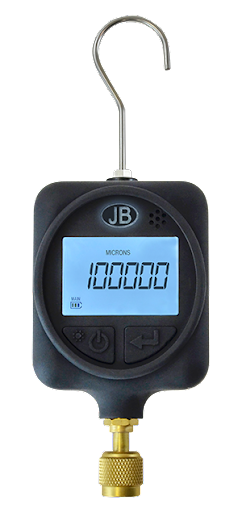

JB Industries DV-22N Digital Vacuum Gauge

The improved DV-22N Digital Vacuum Gauge is an easy-to-use, compact vacuum gauge featuring a sleek new design with enhanced user settings and an extended range sensor.


  • Extended range MEMS sensor
  • Vacuum reading range 100,000 to 10 microns
  • Easy-to-read backlit display
  • Improved response time for instantaneous vacuum reading
  • Allows for direct connection to the A/C unit without a hose
  • Audible and visual alarms when target vacuum level is achieved
  • Intuitive user menu with custom setting options
  • Low battery indicator with automatic shutoff
  • Measures in Microns, PSIA, inHg, Pascals, Torr, mTorr and mBar



  • Vacuum Reading Range:  100,000 to 10 microns
  • Working Temperature:  +32°F to 120°F (+0°C to 48.9°C)
  • Power Supply:  Three AA batteries (included)
  • Dimensions:  9" length x 3.25" width x 1.5" depth


DV-22N Flyer

Operating Manual
