iO HVAC Controls ZP4-ESP-KIT 4 -Zone, Two-Position Forced Air Zone Control Panel

Save 7%
Original price $595.46
Current price $552.93
Currently 2 in stock.

iO HVAC Controls ZP4-ESP-KIT 4 -Zone, Two-Position Forced Air Zone Control Panel

The ZP4 with ESP is a 4 zone, two-position forced air zone control panel. The panel can be used with single-stage, multi-stage, heat pump or dual fuel equipment with up to 3 stages of heating and 2 stages of cooling. Slide switch configuration makes setup quick and easy. This zone control system comes with built in ESP static pressure control which eliminates the need for a bypass damper when used with the standard 3-wire MD damper series. A wide range of control options provides ultimate application flexibility.


  • 4 zone universal panel with ESP capability
  • Smallest universal panel offered by iO
  • Up to 2H/2C conventional or 3H/2C heat pump and dual fuel
  • Auto changeover
  • First call priority with time share
  • 2 zone, 2nd stage capacity control
  • Purge cycle option
  • Adjustable high and low limits
  • Adjustable high and low balance points
  • Easy switch configuration
  • Fused protected inputs and outputs

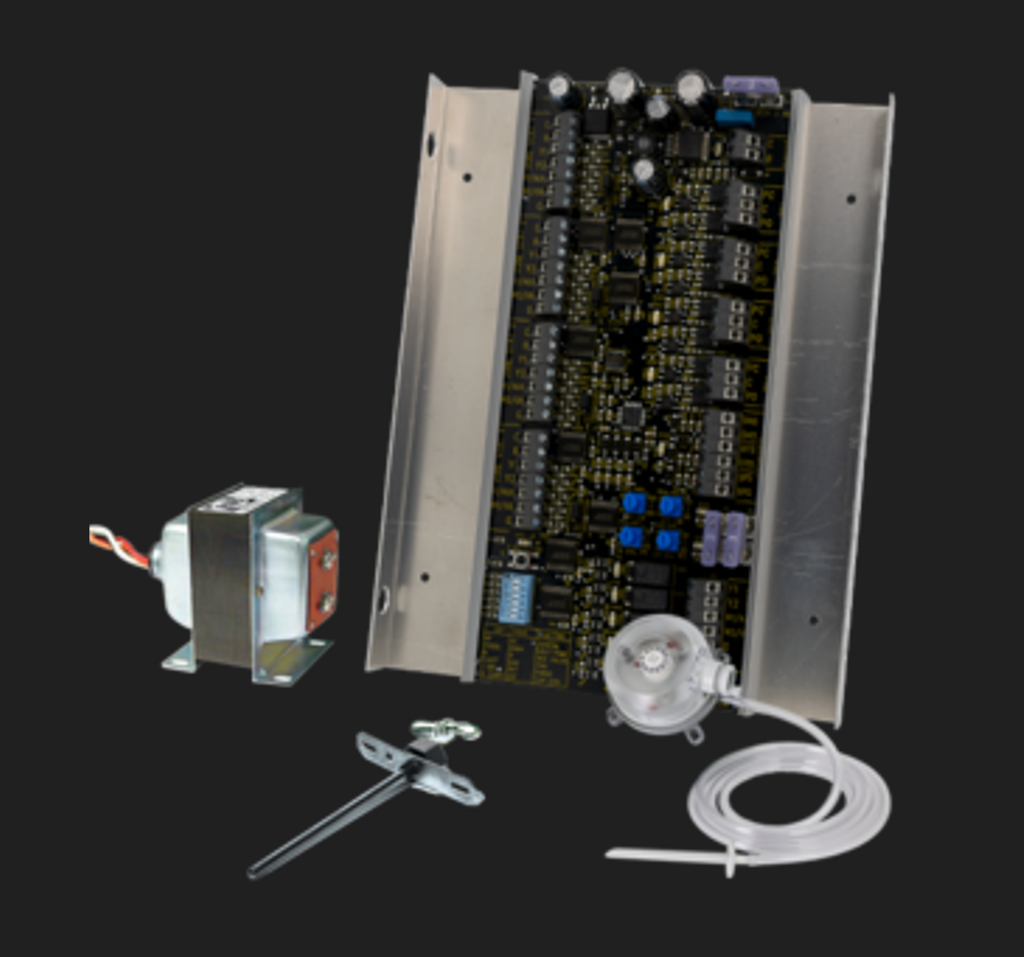

Kit Includes:

  • Panel
  • Static pressure sensor
  • 1 duct temperature sensor
  • 40VA transformer



    Construction Aluminum enclosure with snap-on panel cover
    Mounting Snap Track with 2 back plate screws
    Dimensions 8.75” Height x 7” Width x 1.5” Depth
    Operating Temperature -40° F to 150° F
     Time Delays

    5 minute changeover

    3 minute off on high or low limit

    20 minute time share

    Discharge Air Limits

    Low Limit (30° F to 55° F)

    High Limit (100° F to 180° F)
