iO HVAC Controls ZP3-HPS-KIT 3-Zone Heat Pump Zone Control Panel Kit

Sold out
Original price $204.71
Current price $190.09
SKU ZP3-HPS-KIT
Currently 0 in stock.

iO HVAC Controls ZP3-HPS-KIT 3-Zone Heat Pump Zone Control Panel Kit

These forced air zoning systems represent the most contractor-friendly solution today.  The ZP3-HPS can be installed on heat pump or dual fuel systems. Both can be used in residential or light commercial applications.

Features

  • Up to 3 zones
  • Up to 3H/2C
  • Auto changeover
  • First call priority with time share
  • Electronic discharge air sensor
  • LED status indication
  • Independent fan control by zone
  • Short cycle protection
  • Competitively priced
  • 10-year warranty

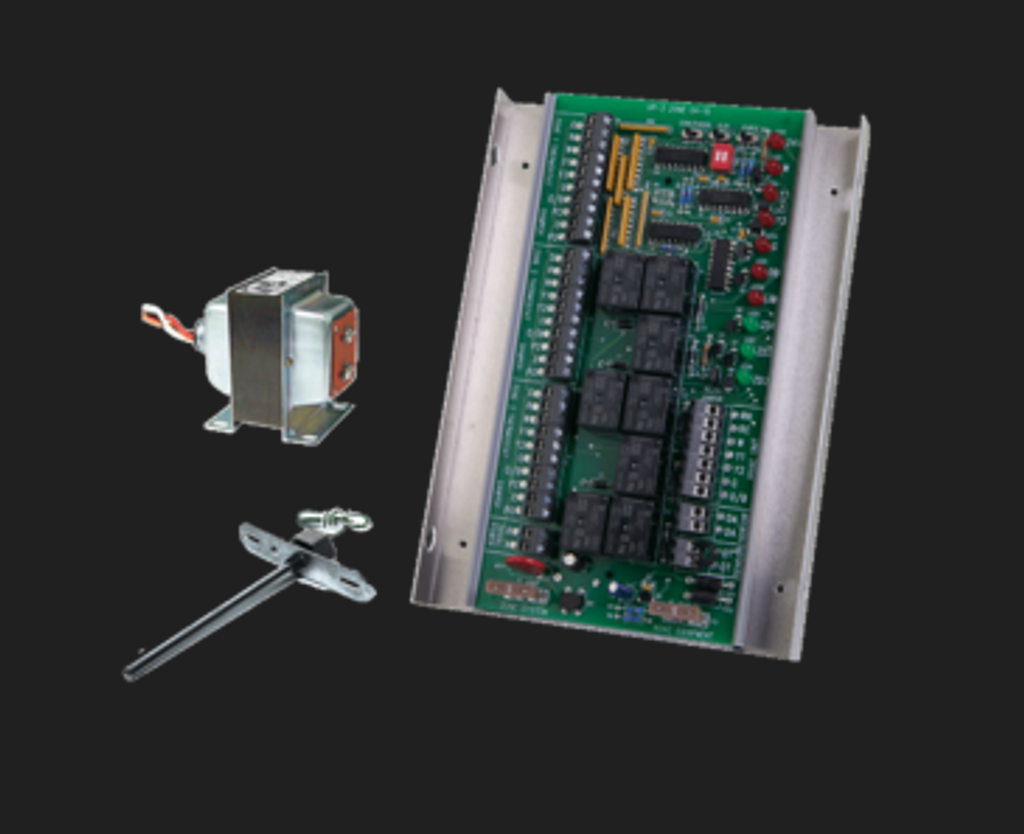

Kit Includes:

  • Panel
  • Duct temperature sensor
  • 40VA transformer



    Specifications

    Construction Aluminum enclosure with snap-on panel cover
    Mounting Snap Track with 2 back plate screws
    Dimensions 8.00” Height x 6.00” Width x 1.50” Depth
    Operating Temperature -40° F to 150° F
     Time Delays

    3 minutes off between cooling calls

    3 minutes off on low limit

    20 minute time share

    Discharge Air Limits

    Preset Low Limit (45° F)

    Adjustable High Limit (130° F to 160° F)
