iO HVAC Controls iO-WR Wireless Relay
Save 7%
Original price
$236.60
Current price
$219.70
SKU iO-WR
iO HVAC Controls iO-WR Wireless Relay

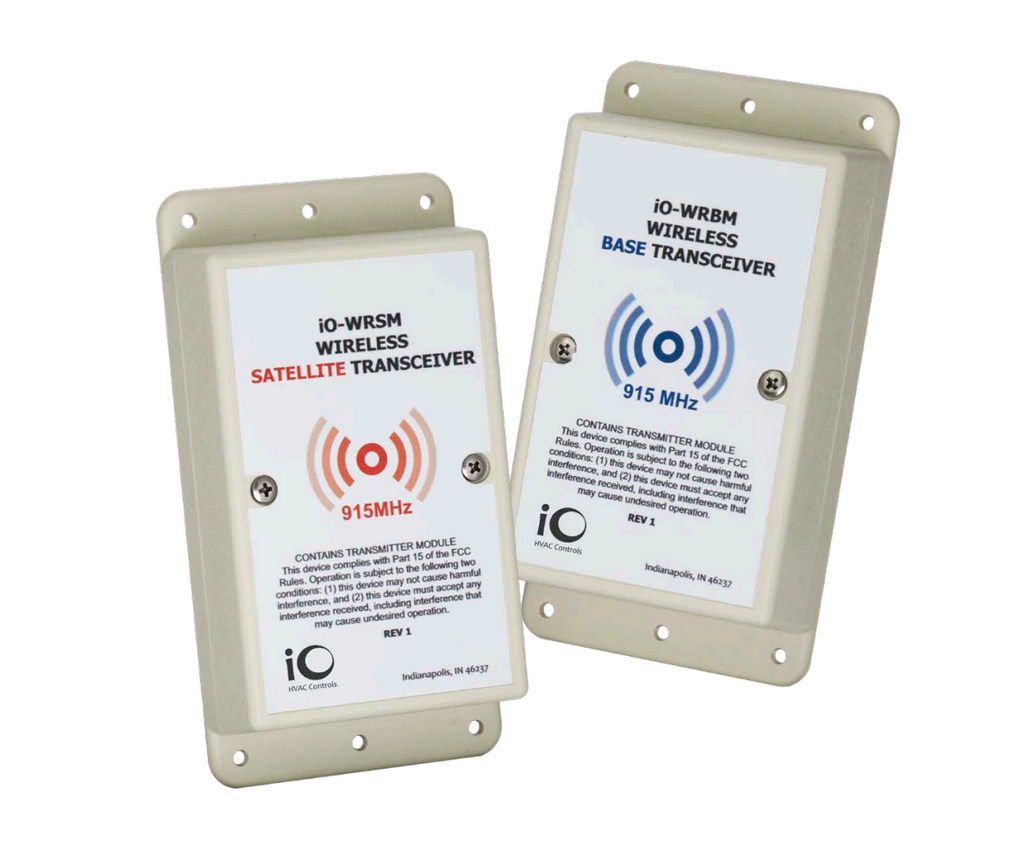

The iO-WR Wireless Relay Kit contains 2 four-channel transceivers. The base module has 3 transmitting channels and 1 receiving channel. The satellite module has 3 receiving channels and 1 transmitting channel. Each transceiver module uses a redundant transmission protocol for failsafe protection. If either module does not receive a valid “ON” or “OFF” transmission signal within 60 seconds, the output(s) will be turned off.
Features:
- Cooling equipment
- Heating equipment
- Condensing units
- Fans, pumps, lighting
- Industrial equipment
- Built-in signal strength indicator
- Satellite transceiver is equipped with weatherproof gasket so no separate
enclosure needed to be outdoors
Specifications: Base Module
- Dimensions: 2.50” Height x 2.25” Width x 1.00” Depth
- Input Voltage: 24VAC
- Channels: 4 channels (3 send, 1 receive)
- Contact Rating: 1A per channel
- Addresses: Up to 6 relay kits can be installed in the same building
- Frequency: 915MHz proprietary protocol
- Range: 100’ from satellite module depending on building type
- Warranty: 1 Year
Specifications: Satellite Module
-
Dimensions: 2.50” Height x 2.25” Width x 1.00” Depth
-
Input Voltage: 24VAC
-
Channels: 4 channels (1 send, 3 receive)
-
Contact Rating: 1A per channel
-
Addresses: Up to 6 relay kits can be installed in the same building
-
Frequency: 915MHz proprietary protocol
-
Range: 100’ from base module depending on building type
General Specifications:
Contact Rating: 1 A per channel
Contact Type: N/A
Dimensions: N/A
Frequency: 915 MHz proprietary protocol
Humidity Range: N/A
Input Voltage: 24 VAC
Mounting Bracket Type: N/A
Range: 100 ft from base/ satalite module depending on building type
Relay Type: N/A
Temperature Range: N/A
Type: N/A
Warranty: 1 Year
