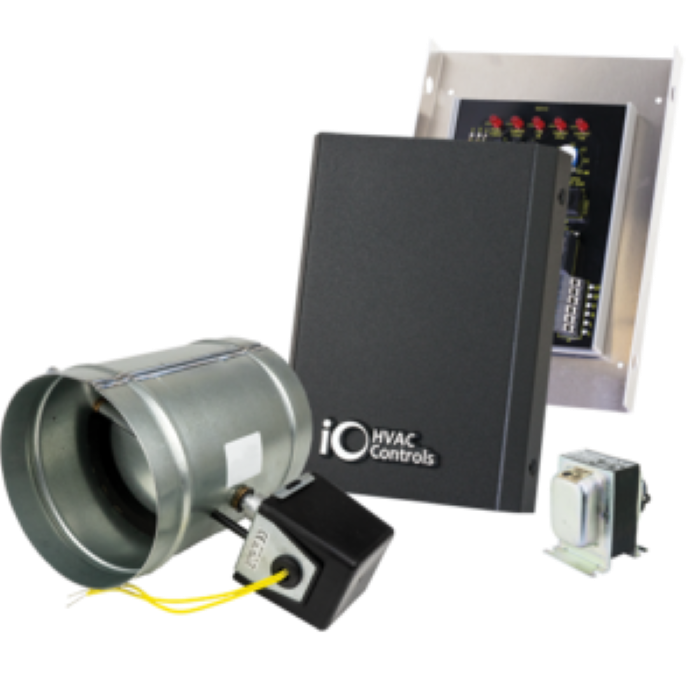

iO HVAC Controls iO-FAV-04 Fresh Air Ventilation Control Panel, 4" Round 2-position Damper, 120/24 20VA Transformer

Save 7%
Original price $222.98
Current price $207.05
SKU iO-FAV-04
Currently 1 in stock.

iO HVAC Controls iO-FAV-04 Fresh Air Ventilation Control Panel, 4" Round 2-position Damper, 120/24 20VA Transformer

Products typically ship within 1 business day.

The fresh air ventilation system is designed to introduce fresh air into a building through an intake damper controlled by a micro-processor logic panel. The iO-FAV has single adjustment setup, exhaust fan control option, outdoor temperature and/or humidity limit option and damper override capabilities. The iO-FAV comes with a 20VA transformer and your choice of round damper size. The control panel is available separately (iO-FAVPAN) and can be ordered with additional size dampers.


FEATURES

  • Micro-controller logic panel
  • Status LEDs
  • Single adjustment setup
  • Meets ASHRAE Standard 62.2
  • Exhaust fan control options
  • Shut off switch on panel
  • Outdoor temperature and humidity lockout option
  • Optional on-demand CO2 ventilation



    Product Brochure

    Specifications



     Mounting:

     Aluminum enclosure with snap-on panel cover

    Panel Dimensions:  8.00” Height x 6.00” Width x 1.50” Depth
    Adjustable Ventilation Schedule:  1 – 60 minutes
    Power:

    24VAC

    Damper:  24VAC, 10VA, power open/spring close actuator
