iO HVAC Controls iO-CL75 Temp-Stat™ 75° Cooling Temporary Construction Thermostat

Save 7%
Original price $8.73
Current price $8.11
Currently 17 in stock.

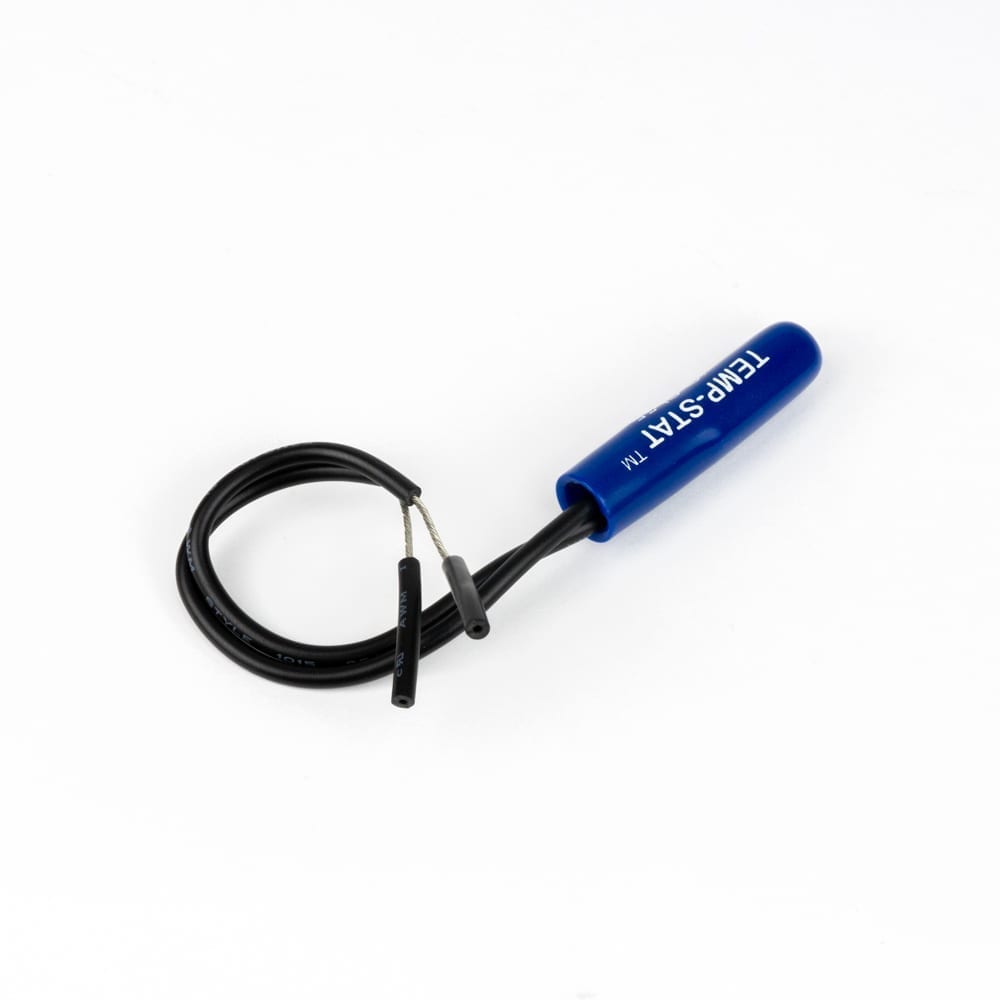

iO HVAC Controls iO-CL75 Temp-Stat™ 75° Cooling Temporary Construction Thermostat, Individual

iO Temp-Stats are creep action, nonadjustable thermostats with conductive bimetal construction that have gold diffused contacts for low internal resistance. Temp-Stats are available for both heating and cooling applications. Each Temp-Stat is metal encapsulated and protected by an outer PVC jacket. Temp-Stats are electro mechanical switches for low voltage applications of less than 1Amp @ 24VAC. They are not a NOT resistive load or sensor.

iO Temp-Stats can be used in numerous HVAC applications where a non-adjustable thermostat is required. They are most commonly used to prevent excessive energy waste caused by trades people turning up or down a conventional thermostat. Additionally, iO Temp-Stats are used as temporary devices that can withstand dust, plaster, spackle, paint and other contaminants during construction. This allows the permanent thermostat to be installed after the construction work is completed.



  • Dimensions:
    • Overall Length:  5.875"
    • Wire Lead Length:  4.74"
  • Construction:
    • Thermostat:  Metal encapsulated with outer PVC jacket
    • Leads:  Pre-stripped, 20 AWG stranded rated at 600V with PVC jacket
  • Electrical:
    • Voltage:  For 24 Volt control circuits only
    • Maximum Current:  1.0 Amp
    • Differential:  1.5° F
