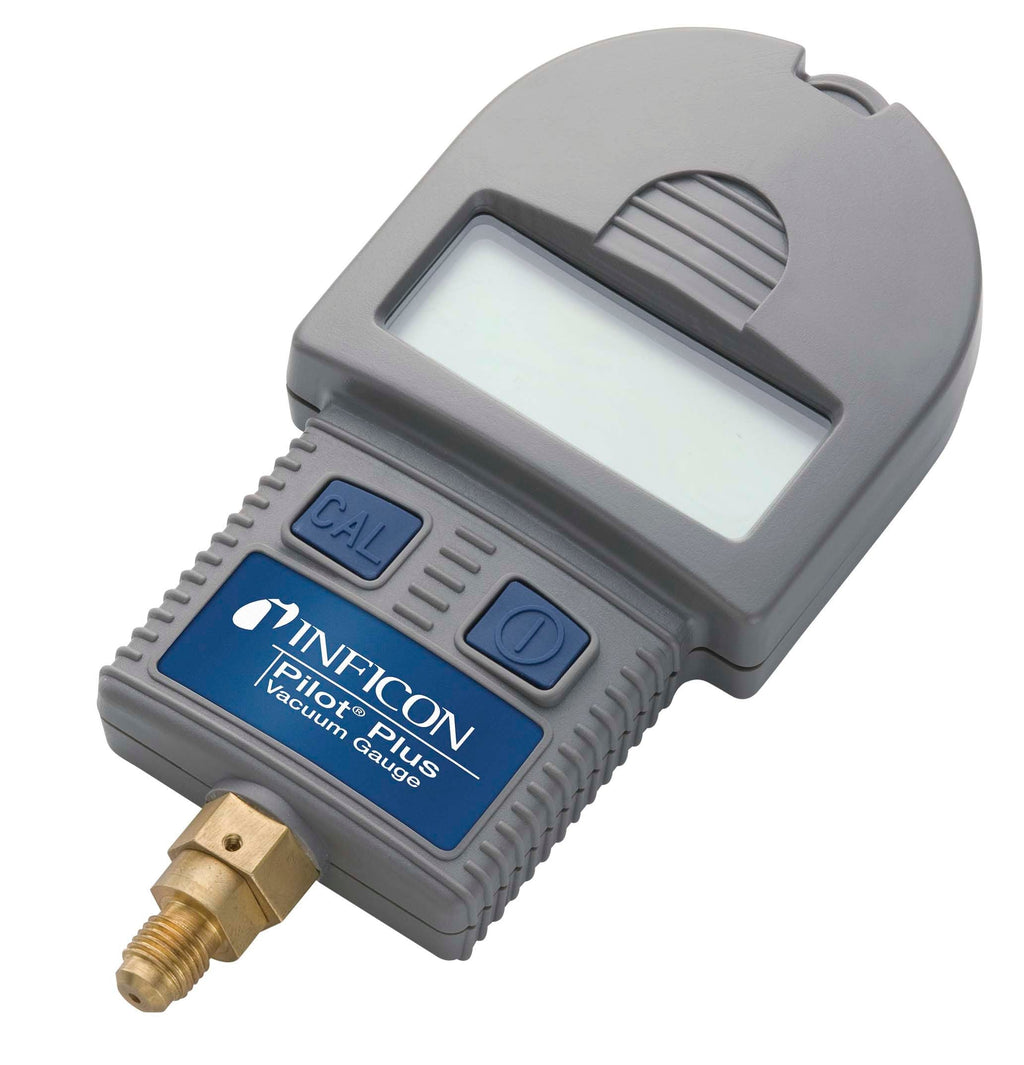

Inficon Pilot® Plus Vacuum Gauge

Save 20%
Original price $342.00
Current price $273.99
SKU 710-202-G1
Currently 3 in stock.

Inficon Pilot® Plus Vacuum Gauge

Superior Accuracy, Filter-Protected Sensor, and Extended Battery Life Provide More Jobsite Productivity

INFICON Pilot Plus Vacuum Gauge incorporates several innovative features for unsurpassed performance. Like the original Pilot Vacuum Gauge, it's the only gauge to use a Pirani sensor for greater accuracy and the ability to measure the entire vacuum process, from atmosphere down to one micron. You'll know instantly if your connections are vacuum-tight.



ADVANTAGES

  • Full range measurement from atmosphere to 1 micron
  • Unique filter design protects sensor from contamination
  • Runs on one 9V battery
  • Pirani sensor for superior accuracy
  • Displays units in microns, Pascal, Torr, or millibar
  • Rugged carrying case included



FEATURES

  • Auto shut-off after 60 minutes to conserve battery
  • Large, easy-to-read LCD display
  • Operates for 45 hours on one 9V battery
  • Quick calibration specific to local pressure
  • Low battery indicator
  • Plastic storage case included
  • Made in the USA



Brochure

Operating Manual



Specifications

Base Unit Includes 9V battery, filters, storage case
Battery Life 45 hours
Power Source (1) 9V alkaline battery, included
Controls On/off, unit selection, quick calibration
Display Units microns, Pascal, millibar, Torr
Display Range atm (760,000 microns) to 1 micron (0.01 mbar, 0.001 Torr, 0.1 Pa)
Auto Shut-Off After 60 minutes; last reading displayed when restarted
Accuracy

0 to 200 micron:  ±10 micron

>200 micron:  ±10% of reading

Maximum Overpressure 150 psi (7.76 x 106 microns)
