Inficon Compass® Refrigerant Leak Detector

Save 20%
Original price $448.00
Current price $358.99
SKU 717-202-G1
Currently 3 in stock.

Inficon Compass® Refrigerant Leak Detector

A new direction in features, function and value

Integral to Compass is the INFICON heated diode sensor technology, delivering outstanding sensitivity to all refrigerants yet resisting jobsite contaminants such as dust, dirt and oil.

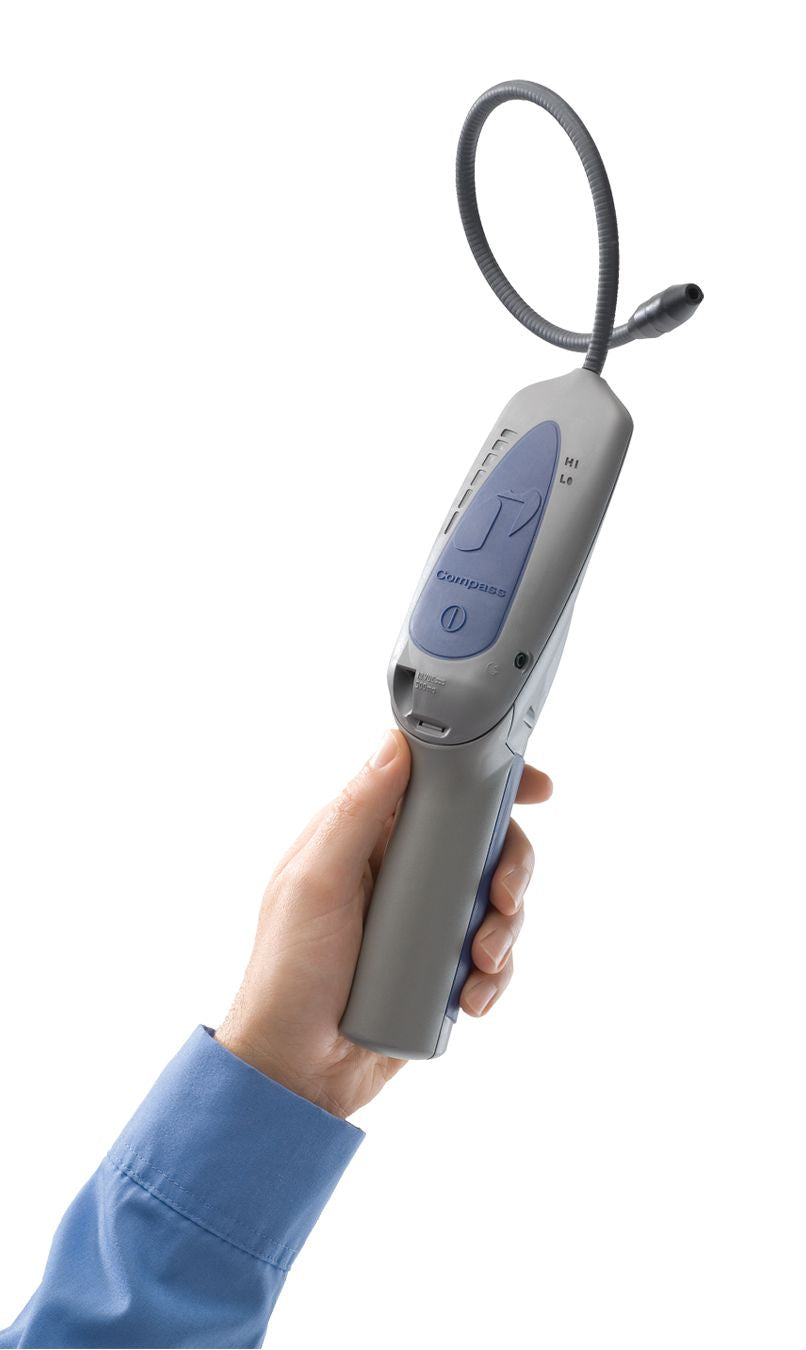

For maximum versatility and ease of use, Compass has features such as rechargeable batteries, the ability to operate on AC power, adjustable high/low sensitivity and a series of LED leak indicators. The ergonomic design with rubberized grip fits your hand perfectly for comfortable, secure operation.



  • Sensitivity of 0.15 oz./year (4 g/year)
  • Detects all CFCs, HCFCs, HFCs, and HFOs
  • Proven heated diode sensor for reliable leak checking
  • No false alarms from soap solutions
  • Runs on rechargeable battery or AC adapter
  • Advanced filter keeps out water, dirt, and oil
  • Rugged carrying case included



  • Runs on NiMH batteries or AC adapter
  • Headphone jack
  • 2-year over-the-counter replacement warranty
  • Made in the USA



Operating Manual

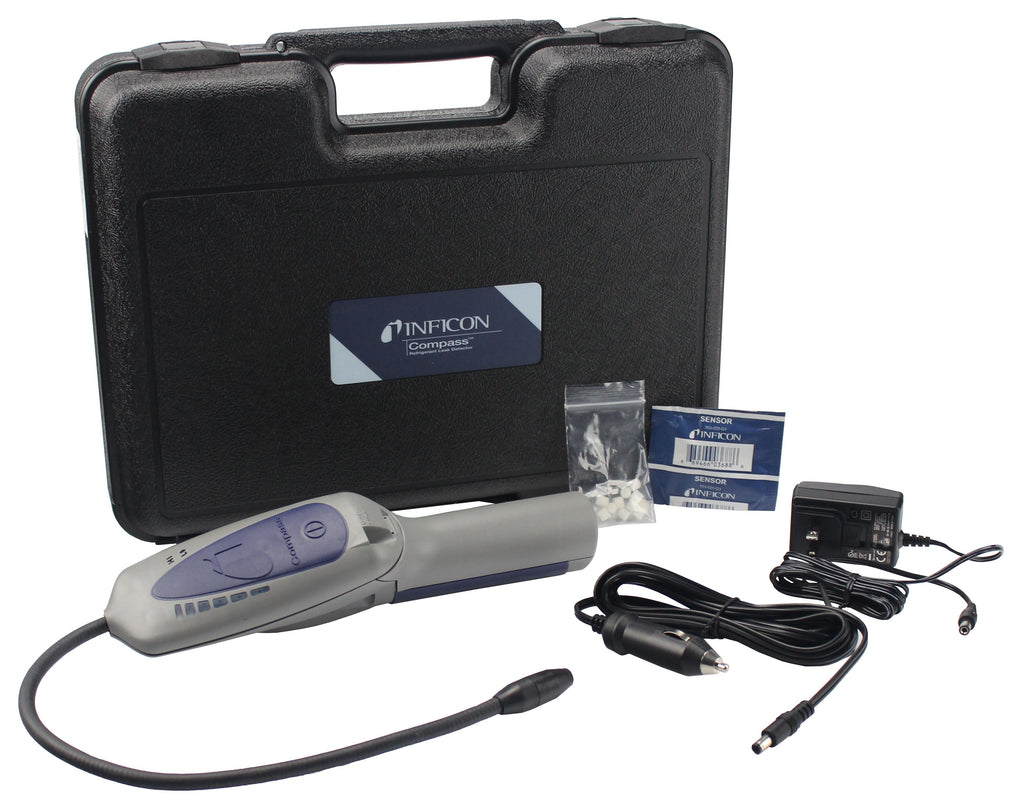

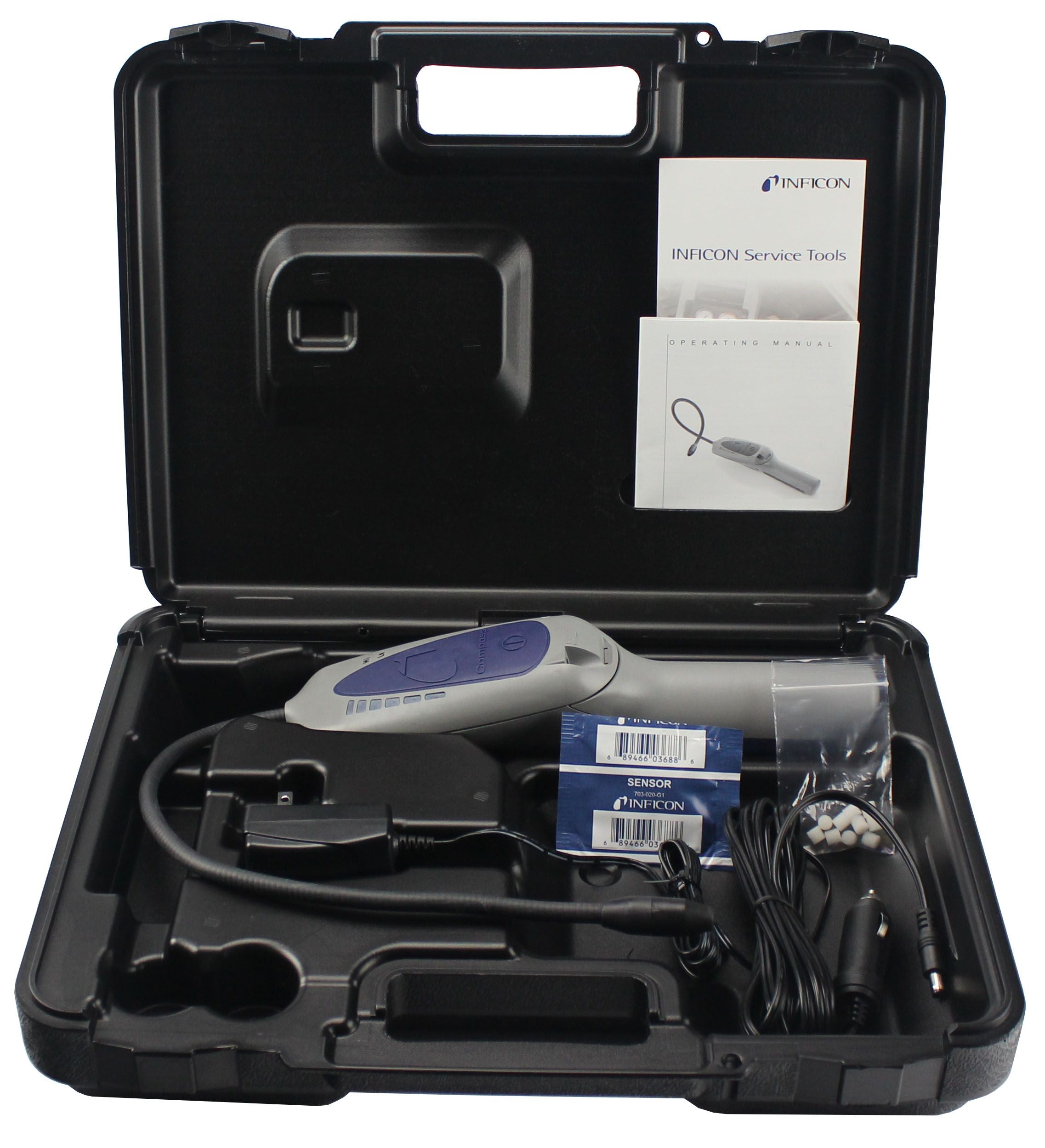

Base Unit Includes Sensor, NiMH battery, spare filters, wall charger, 12 V car charger, hard plastic carrying case
Operating Temperature -20 to 50 °C (-4 to 122 °F)
Minimum Sensitivity 0.15 oz/year (4 g/a)
Power Source NiMH battery, AC adapter
Battery Life 5.5 hours
Weight with Batteries 1.15 lb. (0.522 kg)
Probe Length 15 in. (38 cm)
Certifications CE marking per safety and EMC
