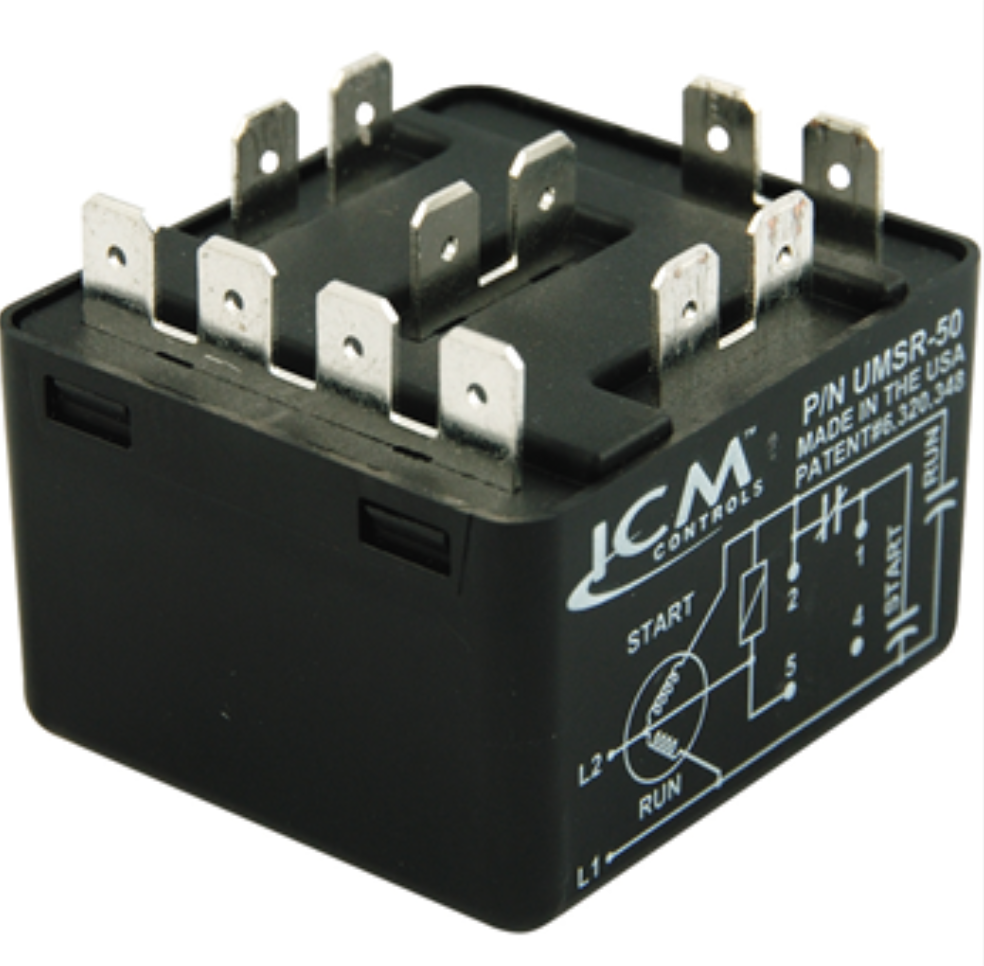

ICM Controls UMSR-50 Universal Motor Starting Relay

ICM Controls UMSR-50 Universal Motor Starting Relay

Save 4%
$23.83
$22.97
SKU UMSR-50
Currently 228 in stock.

ICM Controls UMSR-50 Universal Motor Starting Relay

ICM’s award-winning Universal Motor Starting Relay incorporates patented differential voltage sensing and a non-positional mounting configuration to offer a single replacement for all standard potential relays. Great way to reduce inventory. Replacement for all standard potential relays.
  • Patented differential voltage sensing
  • No user-adjustments required
  • Non-positional mounting configuration
  • 50A Switching capabilities
  • Universal mounting bracket for easy installation
  • .250″ quick connect termination
  • Safety timer
  • Ideal for A/C, commercial refrigeration, heat pump, or any single-phase motor application up to 10HP



SPECIFICATIONS

Input:
  • Voltage Rating: 110-270 VAC, Single Phase
  • Maximum Voltage Contact Rating: 502 VAC (absolute)
Motor Power Rating: Up to 10 HP

Operating Position: Non-positional

Safety Time Out: Approximately 1-second per 100 microfareds

Consumption: 5VA max.

Insulation: Class B (130°C); Conforms to IEC 1000- standards(6kV impulse / 6kV contact)

Life Expectancy (minimum operations):
  • Mechanical: 1 x 10(6)
  • Electrical:
         1 x 10(6) at 16A 400 VAC
         5 x 10(5) at 35A 400 VAC (break only)
         5 x 10(5) at 50A 400 VAC (break only)
Contact Rating: 50A (break only), 400 VAC cos Ø = 0.7 to 0.8

REPLACES

  • All standard potential relays

  • SUPCO: APR5, SUPR
