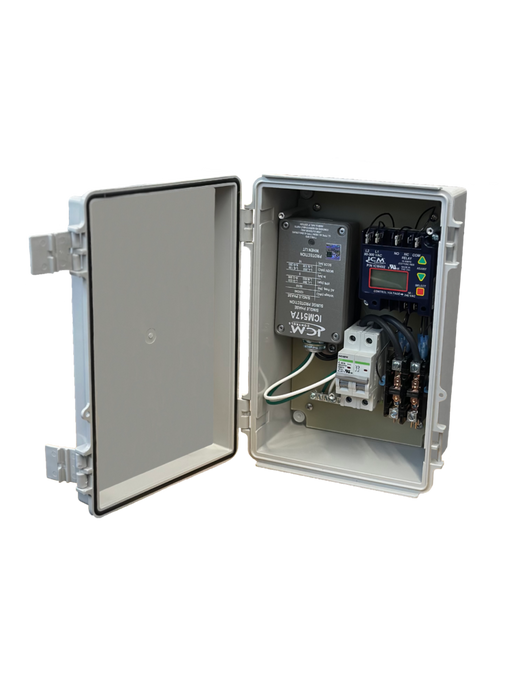

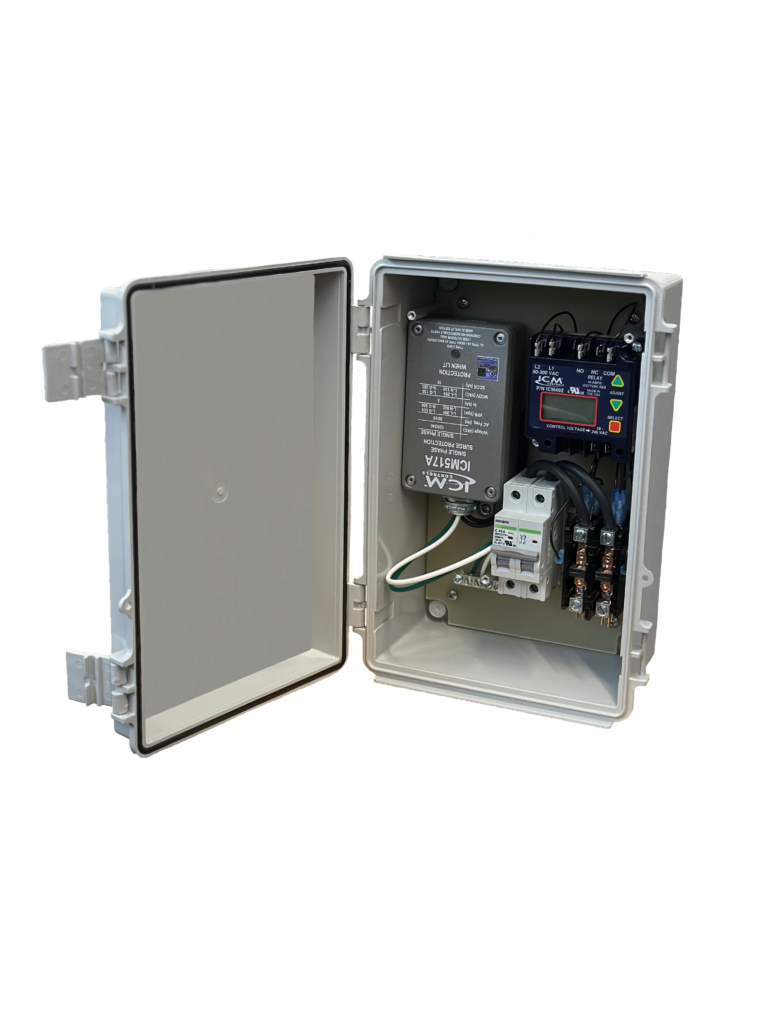

ICM Controls Sentry 3N1 Surge Disconnect Line Voltage Monitor

Single Phase Surge Protection, Line Voltage Monitoring, and Disconnect

The Sentry 3N1 combines the benefits of a ICM517A single phase surge protective device, and an ICM492 single phase voltage monitor while incorporating a disconnect breaker into one easy to install solution. It provides techs and homeowners a convenient way to break the power, protect against power surges and over/under voltage issues that can cause damage to circuit boards and motors in residential and commercial single phase 240 VAC HVAC/R equipment.

• All Components Pre-wired for 240 volts
• Modular Design with field replaceable components
• Field Programmable Voltage Monitor
• 5-fault memory for Voltage Monitor
• Easy-view backlit, LCD digital display on Voltage Monitor
• Protects against over and under voltage, and rapid short cycling
• Separate 40amp Contactor, fully disconnects from the service
• 40amp internal breaker allows for easy switching of power on and off
• Superior TMOV technology provides safe and reliable surge protection
• Built to withstand the high impact of a major surge event
• Proudly Assembled in America
• NEMA type 4X Rating
• Limited lifetime product. Up to a 3-year $10,000 connected equipment warranty
• UL Listed: ICM517A – E347279
• UL Rated: ICM492 – E53944


SPECIFICATIONS:

ICM517A Surge Suppressor:

• Maximum Surge Current: 100,000 amps
• Diagnostics green light indicates surge suppression present
• Protection modes: L-L, L-G
• Robust cast aluminum enclosure for secondary safety

ICM492 Voltage Monitor:

• User Adjustable settings:
• Voltage set point: 95-280 VAC
• Anti-short cycle time delay: 0-720 seconds
• Over/under voltage setting: 5-25%
• Response time: 0.1 to 10 seconds
• Accuracy: ±2%

Inputs:

• Line voltage: 240 VAC
• Frequency: 50/60 Hz
• Breaker: 40 amp at 240 VAC

Outputs:

• Type: Contactor
• 2-Pole contact ratings: 40A FLA, 240A LRA
