ICM Controls ICM866U Universal Hard Start Kit

ICM Controls ICM866U Universal Hard Start Kit

$45.47
SKU ICM866U
Currently 15 in stock.

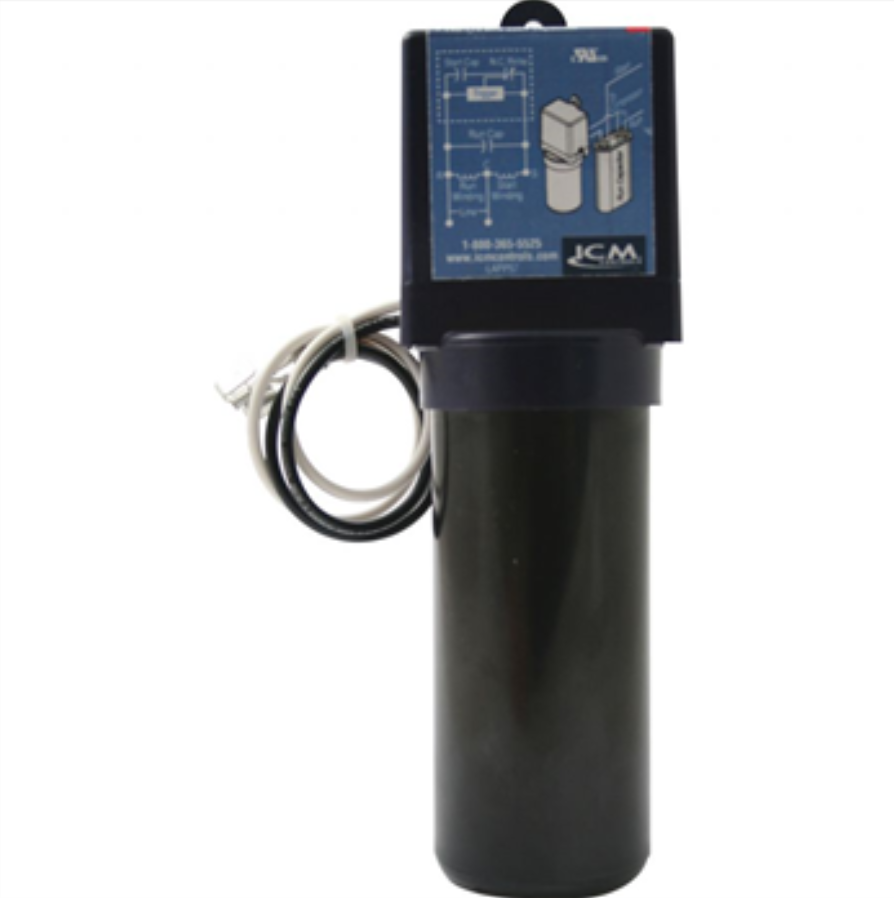

ICM Controls ICM866U Universal Hard Start Kit



The most advanced universal hard start kit on the market! Rated for 1/12 to 5 HP applications, the ICM866U combines award-winning, high-powered relay output design with advanced patented circuitry for greater precision and reliability!



Patented circuitry with differential voltage sensing technology

  • Monitors differential compressor auxiliary voltage
  • Precisely engages/disengages the start capacitor
  • Not affected by ambient temperatures
  • Recycles instantly

Self-adjusting to changes in voltages

  • Does not rely on relay with pre-set, factory default ranges
  • Eliminates guesswork in “tweener” applications
  • Extends motor life



Rated for 1/12 to 5 HP applications

  • Reduces inventory, saves $$$
  • One model is all you need



Simple, two-wire installation

  • Faster install time
  • Minimizes risk of accidental miswires



Multi-voltage operation – 115 or 230 VAC motors

  • 145-175 µF @ 330V
  • UL Recognized



SPECIFICATIONS

• Multi-voltage operation – 115 or 230 VAC motors
• 145-175 µF @ 330V
• Recommended Range: 1/12 to 5 HP application
• UL Recognized


    REPLACES:

    SUPCO: SPP5, SPP6, SPP5E, SPP6E, SPP7E, SPP8E, SPP9E, SPP10E

    KICKSTART: KS1, TO-5, KS8

    5-2-1: CSR-U1, CSR-U2, CSR-U3

    WATSCO: WSX1

    MARS: 32708, SS1, SS5, 32703, 32704, 32701, 32702

    DIVERSITECH: DST-5, DST-6


    Sell Sheet
