ICM Controls ICM495-60A 60 Amp Disconnect with Internal Surge Protection (Non Fused)

Save 3%
$99.68
$96.94
SKU ICM495-60A
Currently 17 in stock.

ICM Controls ICM495-60A 60 Amp Disconnect with Internal Surge Protection (Non Fused)


The ICM495 is a UL Listed Electrical Disconnect with an Internal Surge Protective Device built-in. The ICM495 is available in two models 30A Fused and 60A Non Fused. The included Surge Protective Device is intended for 120VAC Single-Phase or 240VAC Split-Phase configurations. Designed to protect equipment from transient surges. The ICM495 is a great low cost option to protect some of the most valuable equipment on the property, including: Air conditioning units, heat pumps, mini-split systems, pool & spa equipment and more…
  • UL Listed Electrical Disconnect including both enclosure & surge protector
  • 120VAC single-phase, 240VAC split-phase
  • Features an internal surge protective device
  • Maximum Surge Current Rating of 100kA
  • Highest UL rating for nominal discharge current (in 20kA), for increased longevity & durability of the SPD
  • Constructed with 2 high-quality thermally protected MOV’s (TFMOV)
  • Completely factory wired for quick and easy installation
  • NEMA type 3R rated powder coated metal enclosure for indoor/outdoor use
  • Fully accessible mounting holes, no disassembling required
  • Braided strap thoroughly grounding both the enclosure and cover

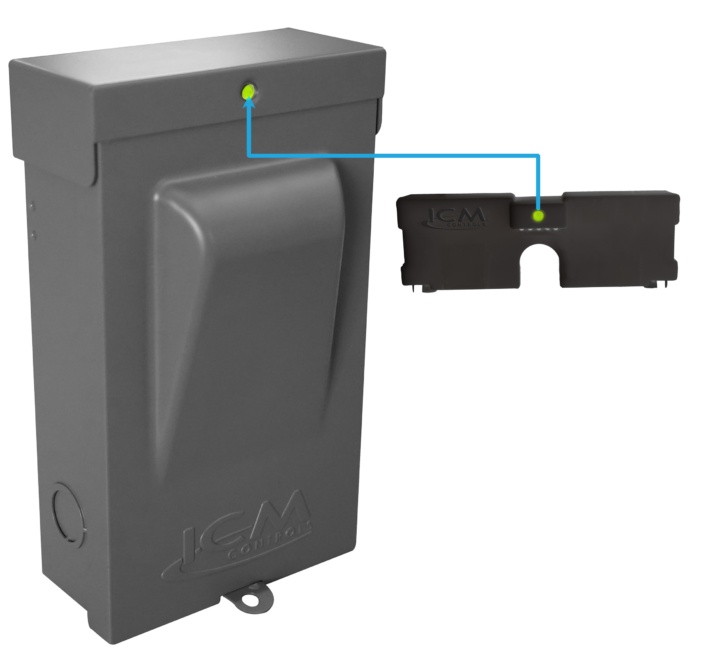

  • LED indicator light showing when surge protection is operational
  • 30A Fused & 60A non-fused models available
  • Made in the USA
  • Limited lifetime product, up to a 3-year $10,000 connected equipment warranty




Protects Against:

  • Lightning strikes

  • Power outages & recoveries

  • Downed power lines

  • Startup of larger equipment

  • Equipment failure

  • Short circuits and more...



SPECIFICATIONS:

  • Service Voltage: Split Phase 240 VAC; 30A at -40°C min. and 25°C max., 240 VAC; 25A at -40°C min. and 55°C max., 240VAC; 60A at -40°C min. and 55°C max.
  • Short Circuit Current Rating (SCCR): 10 kA
  • Maximum Surge Current: 100 kA (single event)
  • Nominal Discharge Current (In): 20 kA (15 multiple events)
  • SPD Type: Type 2 applications only
  • Surge Protection Technology: TFMOV
  • Protection Mode: L1-L2, L1-G, L2-G
  • Maximum Continuous Operation Voltage (MCOV): L-L: 300 VAC, L-G: 150 VAC
  • VPR (Vpk): Mode: L-L = 1200, L-N = 700
  • Input Power Frequency: 50/60 Hz
  • Diagnostics: Green LED indicates surge protection present
  • Enclosure Rating: NEMA/Type 3R metal enclosure for outdoor and indoor installation
  • Installation Point: Located within sight of the motor controller/equipment
  • Dimensions: 9.0” L x 5.25” W x 2.50” D
  • Operating Temperature: -40°F to 131°F (-40°C to 55°C)
  • Operating Humidity: Less than 85%, non-condensing
  • Operating Altitude: Less than 2000 meters
  • Agency Certification and Approvals: ANSI/UL1449 5th Edition cULus Listed Device



REPLACES:

All standard disconnect boxes rated for equal voltage and current configurations:

30A – MARS: 83916, RectorSeal: 96417 w/ RSH-50

60A – MARS: 83915, RectorSeal: 96419 w/ RSH-50
