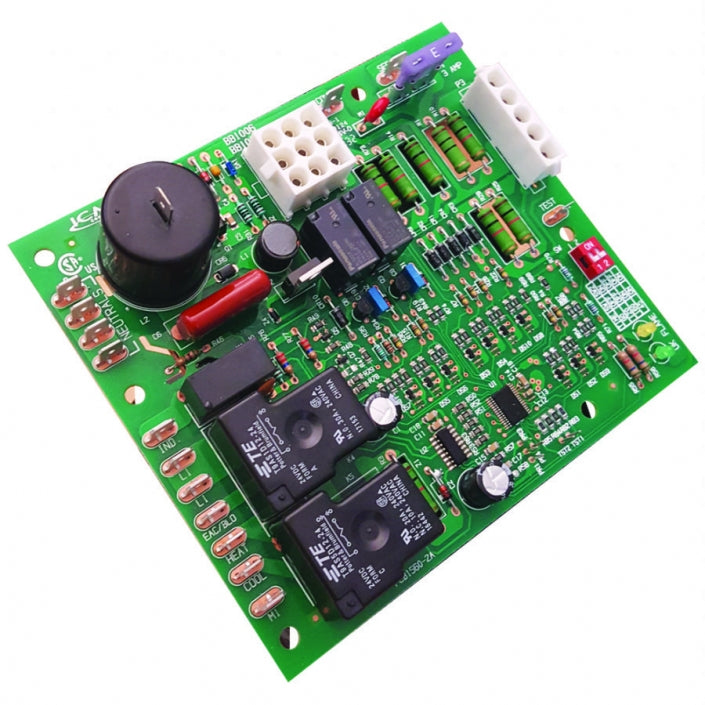

ICM Controls ICM2906 Direct Spark Ignition (DSI) Control Board - Renzor 195573

Save 25%
Original price $157.18
Current price $118.66
SKU ICM2906
Currently 40 in stock.

ICM Controls ICM2906 Direct Spark Ignition (DSI) Control Board - Renzor 195573

  • Direct Spark Ignition (DSI) control board
  • Cooling and heating fan outputs
  • Microprocessor-based
  • Controls inducer motor, blower motor, air cleaner (if equipped), spark igniter & gas valve
  • Monitors timing, trial for ignition, system switches, flame sensing and lockout
  • Compatible with LP or natural gas
  • LED indication for status and fault codes to aid in troubleshooting



Sell Sheet

Installation Guide



SPECIFICATIONS

  • Voltage: 18-30 VAC
  • Frequency: 60 Hz
  • Inducer Blower Output:
    • Type: Relay
    • Rating: 1/6 HP @125 VAC
  • Gas Valves:
    • Type: Relay
    • Rating: 1A @ 24 VAC
  • Heat Blower Output:
    • Type: Relay
    • Rating: 1/4 HP @125 VAC
  • Cool Blower Output:
    • Type: Relay
    • Rating: 1 HP @125 VAC
  • Operating Temperature: -40°F to 165°F (-40°C to 74°C)

  • Dimensions: 14.5” x 5”



REPLACES

  • Reznor: 195573
  • UTEC: 1097-211
