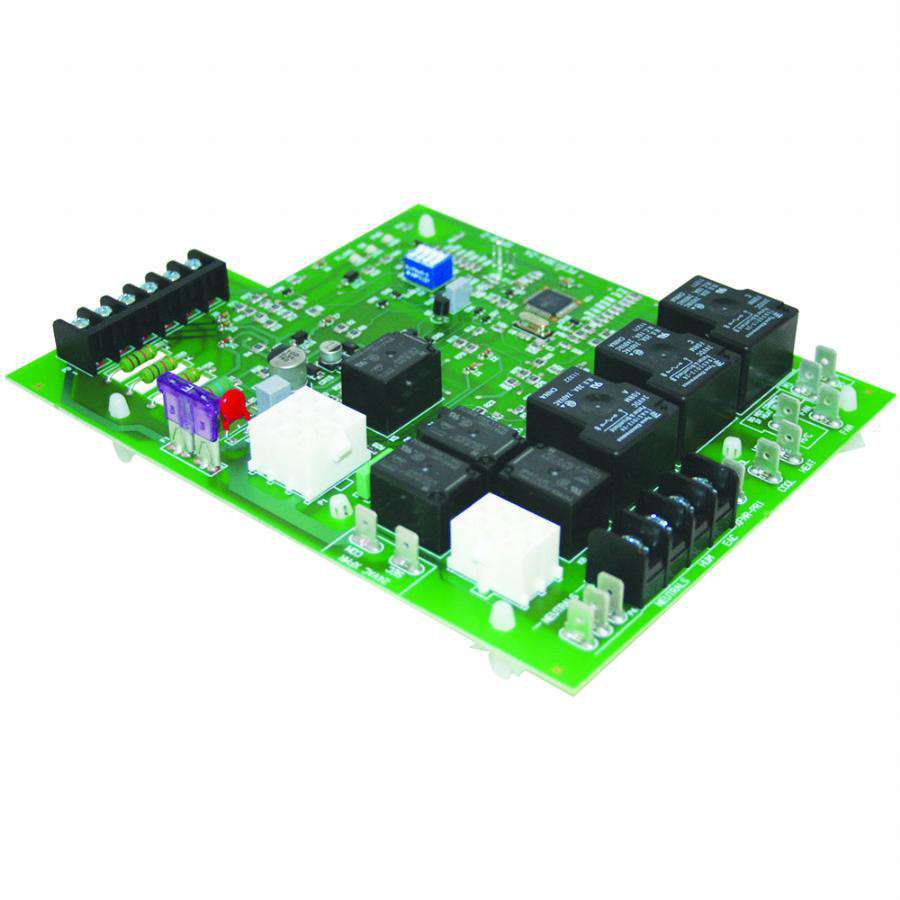

ICM Controls ICM288 Furnace Control Board - Replacement for Rheem 62-24084-82
- Low cost form, fit and functional replacement for Rheem 62-24084-82 circuit boards
- Microprocessor-based design
- Monitors pressure, roll-out and limit switches
- Controls gas valve, inducer draft motor, circulating blower and hot surface ignitor
- Reverse polarity detection
- Twinning compatible with other ICM288 control boards
- Diagnostic LEDs for testing/troubleshooting
SPECIFICATIONS
- Voltage Range: Line 98-132 VAC @ 60HZ
- Ignitor: 5A, 120 VAC
- Cool Blower: 10A, 2HP, 240 VAC
- Heat: 5A, 1/2 HP, 250 VAC
- Inducer Blower: 4A, 120 VAC
- Gas Valve: 1A, 24 VAC
- Humidifier Motor: 0.5A, 24 VAC
- Electronic Air Cleaner: 1A, 120 VAC
