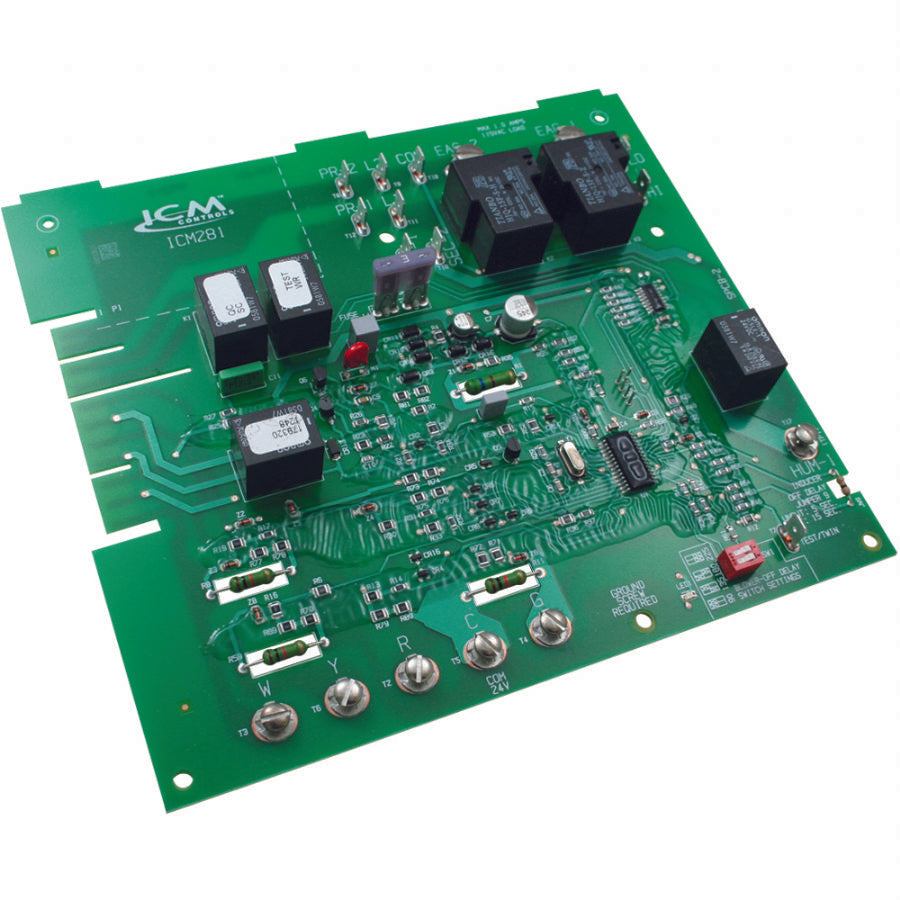

ICM Controls ICM281 Furnace Control Board - Replacement for Carrier CES0110057-xx

Save 16%
Original price $144.36
Current price $120.74
SKU ICM281
Currently 26 in stock.

ICM Controls ICM281 Furnace Control Board - Replacement for Carrier CES0110057-xx

  • Low cost form, fit and functional replacement for Carrier CES0110020, CES0110048 and CES0110057-xx series, control boards
  • Control gas valve, ignitor, blower motor, inducer, humidifier and air cleaner
  • Microprocessor-based for precise timing
  • Functions with all 24 VAC thermostats
  • Designed for 100% gas shutoff in case of ignition failure
  • Model selection of 80+ and 90+ furnace operation
  • Reverse polarity protection
  • Secondary brownout voltage protection
  • Heating and cooling fan functions in response to standard thermostat
  • Provides diagnostic LEDs to aid in troubleshooting
  • Twinning compatible with another ICM281 board



SPECIFICATIONS

  • Line Voltage:  98-132 VAC @ 60 Hz
  • Operating Temperature:  -40°F to 176°F (-40°C to 75°C)
  • Ignitor:  5A, 120 VAC
  • Cool Blower:  30A, 2 HP, 240 VAC
  • Heat:  5A, 1/2 HP, 240 VAC
  • Inducer Blower:  4A, FLA-8.0 LRA @ 120 VAC
  • Gas Valve:  1.5A, 30 VAC



Replaces

  • Carrier:  CES0110020, CES0110048, CES0110057-00, CES0110057-01, CES0110057-02, HH84AA016
