Description

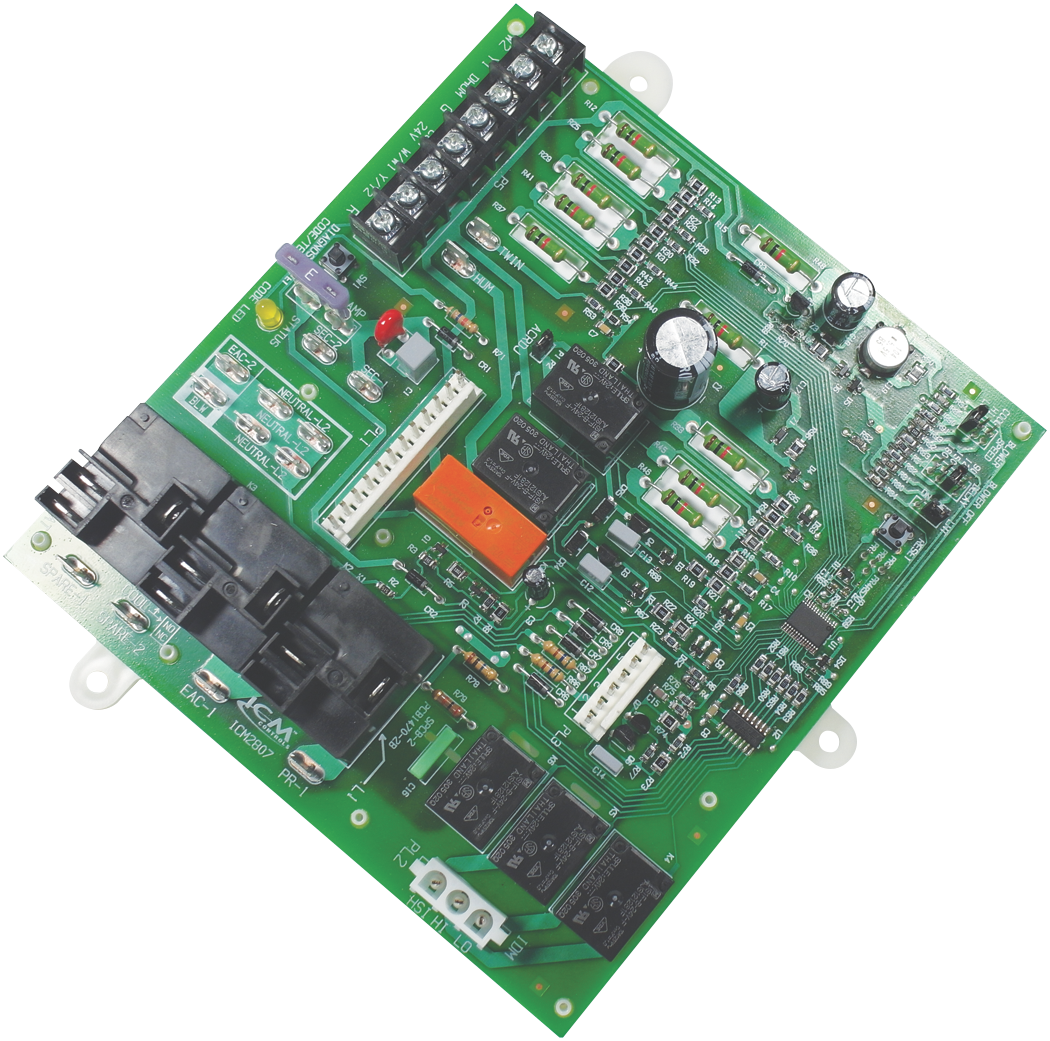

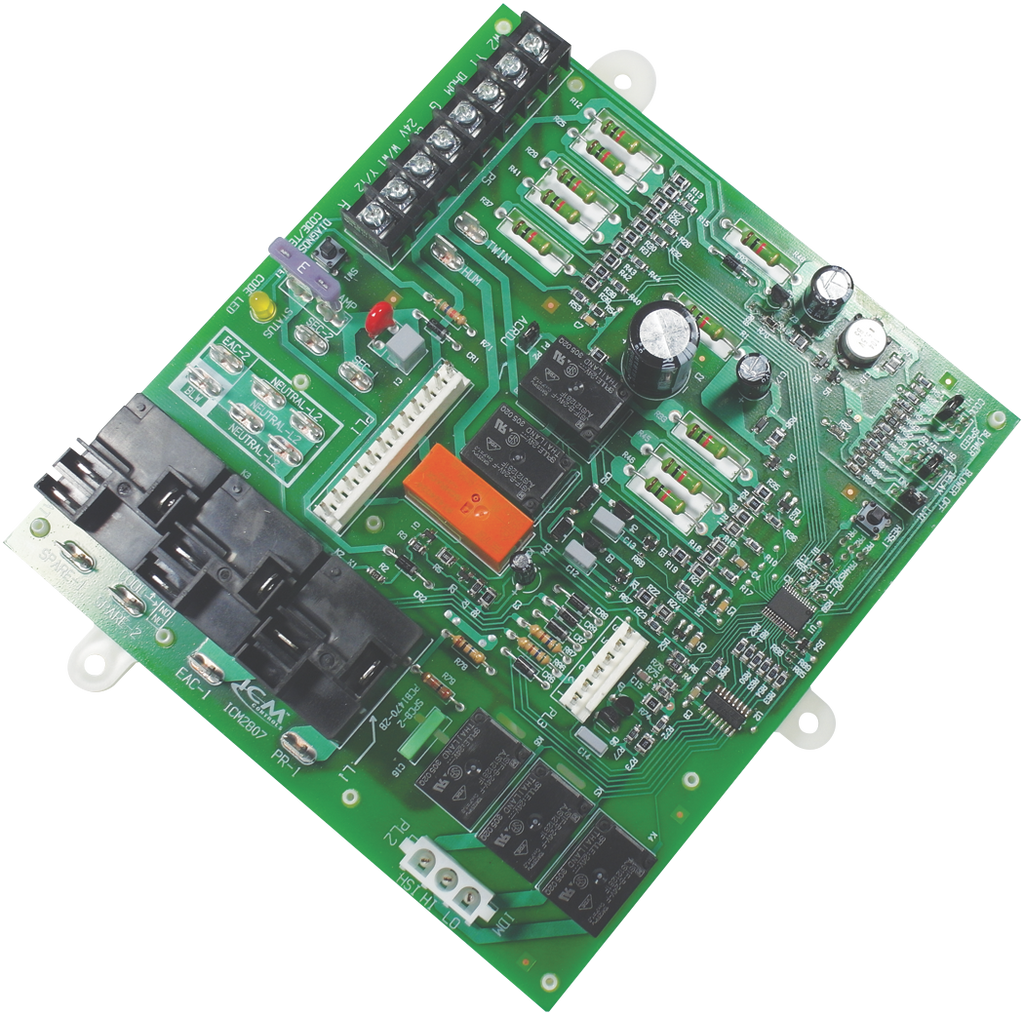

ICM Controls ICM2807 Furnace Control Board - Replacement for Carrier HK42FZ017
The ICM2807 is a low cost fit, form and functional replacement for the Carrier HK42FZ017 furnace control board.
- Controls gas valve, ignitor, blower motor, inducer, humidifier and air cleaner
- Microprocessor-based precision
- Designed for 100% gas shutoff in case of ignition failure
- Twinning compatible with another ICM2807 control
- Reverse polarity protection
- Secondary brownout voltage protection
- Compatible with 24 VAC standard thermostat
- Continuous Blower Speed Jumper
- Limit Switch Lockout Time
- Limit Switch Lockout After Power Interruption
- Self-Diagnostics
- Provides diagnostic
- Weight: 1
- Height: 1.5
- Width: 6.5
- Length: 7
SPECIFICATIONS:
Electrical Ratings
- Voltage Range: Line (98 to 132VAC) @ 60Hz
-
Ignitor: 5A @ 120 VAC
-
Cool Blower: 10 HP, 120 VAC
-
Low Heat: 5A, 1/2 HP, 120 VAC
-
High Heat: 10A, 1 HP, 120 VAC
-
Inducer Motor: 4A, FLA-8.0 LRA @ 120 VAC
-
Gas Valve: 1.5A @ 30 VAC
-
EAC: 1A@120 VAC
-
Humidifier: 0.5A & 24 VAC
Environment:
- Ambient Temperature:
- Operating: -40°F to 176°F
- Humidity: 5% to 95% R.H. (non-condensing) @ +55°F
