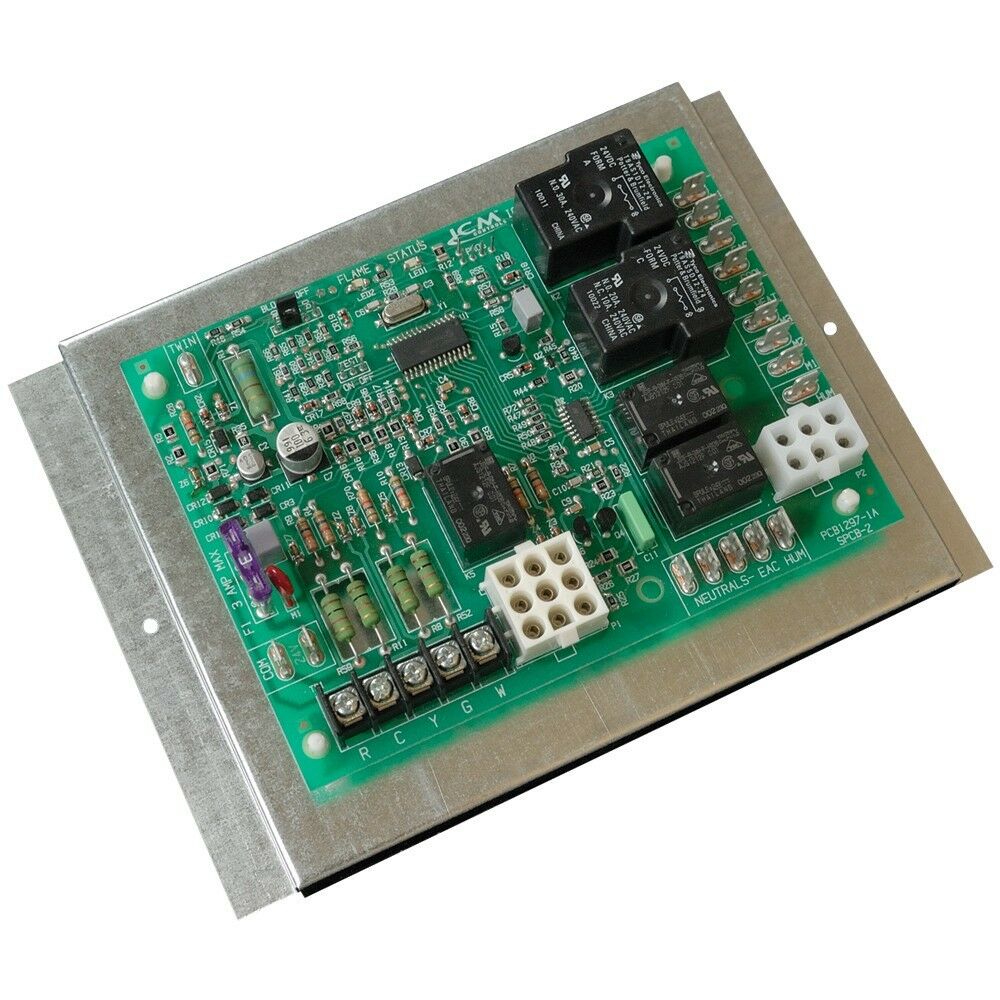

ICM Controls ICM2805A Furnace Control Board - Replacement for Nordyne

Save 5%
Original price $142.05
Current price $134.25
SKU ICM2805A
Currently 30 in stock.

ICM Controls ICM2805A Furnace Control Board - Replacement for Nordyne

  • Low cost form, fit and functional OEM replacement control board for Nordyne: 624631
  • For use with G3, G4, G5, G6, M2 and M3 furnace modules
  • Controls gas valve, inducer draft motor, circulating blower and hot surface ignitor
  • Monitors timing, trial for ignition, flame sensing, lockout, plus pressure, rollout and limit switches
  • Microprocessor-based precision
  • Twinning compatible with another ICM2805A furnace control
  • Diagnostic LEDs aid in testing and troubleshooting



SPECIFICATIONS

  • Line Voltage Range:  120/240 VAC @ 60 Hz
  • Ignitor:  5A, 120 VAC
  • Cool Blower:  10A, 2 HP, 240 VAC
  • Heat:  5A, 1/2 HP, 250 VAC
  • Inducer Blower:  4A, 120 VAC
  • Gas Valve:  1A, 24 VAC
  • Humidifier Motor:  0.5A, 24 VAC
  • Electronic Air Cleaner:  1A, 120 VAC



Replaces

  • Nordyne:  624631, 624631B (for use with G3, G4, G5, G6, M2 and M3 furnace modules)



ICM2805A Installation Guide

Wiring Diagram 1

Wiring Diagram 2

Wiring Diagram 3
