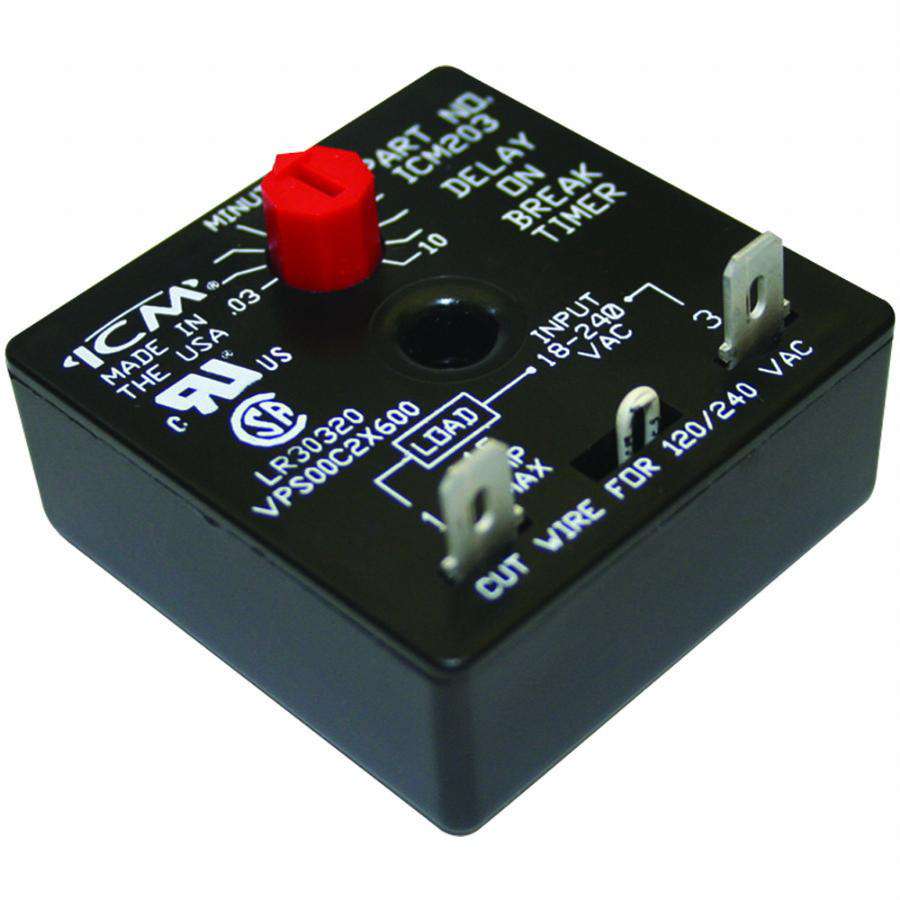

ICM Controls ICM203 Delay on Break Timer with .03-10 Minute Adjustable Time Delay, Universal 18-240 VAC

Save 17%
Original price $18.92
Current price $15.70
SKU ICM203
Currently 995 in stock.

ICM Controls ICM203 Delay on Break Timer with .03-10 Minute Adjustable Time Delay, Universal 18-240 VAC

  • Compressor lockout/anti-short cycle timer
  • Helps to protect compressors from damage caused by rapid short cycling
  • Simple, 2-wire hookup
  • Adjustable timing
  • Universal voltage



Mode of Operation

With application of power, the load is energized. When the thermostat opens or when there is a loss of power, the load is de-energized and the delay period begins. The compressor will not start again during the delay period. The ICM203 provides true thermostat interruption protection, even in the presence of a trickle current.



SPECIFICATIONS

Input
  • Voltage:  18-240 VAC
  • Frequency:  50/60 Hz

Output

  • Output Ratings:
    • Maximum:  1.5 amps
    • Minimum:  40 mA
    • Inrush:  15 amps
Knob-Adjustable Time Delay:
  • .03-10 minutes (1.8-600 seconds)
DIMENSIONS
  • Weight: 0.1lb
  • Height: 1.25"
  • Width: 2"
  • Length: 2"



Installation Guide
