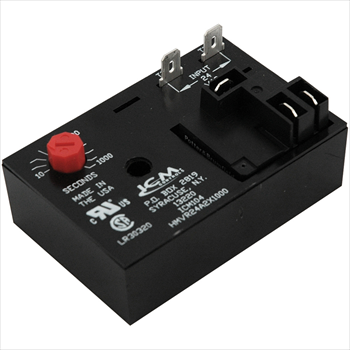

ICM Controls ICM104 Delay on Make Timer

Save 4%
Original price $37.48
Current price $35.81
SKU ICM104
Currently 65 in stock.

ICM Controls ICM104 Delay on Make Timer

  • Highly precise digital circuitry
  • High power, SPDT relay output
  • Input to output isolation
  • Works with anticipator-type thermostats
  • Repeat accuracy .5% over voltage and temperature range



SPECIFICATIONS:

  • Voltage:  18-30 VAC
    • 1.5 amps
    • 15 amp inrush
    • 10 mA holding current
  • Frequency:  50/60 Hz
  • Input Voltage: 18-30 VAC

  • Output:
    • N.O.: 20 amps @ 240 VAC
    • N.C.: 10 amps @ 240 VAC
    • Form: SPDT, 1 form C
    • Knob-adjustable time delay: 10-1,000 seconds



REPLACES:

  • Mars: 32394, 32398



MODE OF OPERATION:

When power is applied to the input, the time delay begins. After the time delay is complete, the load energizes.
