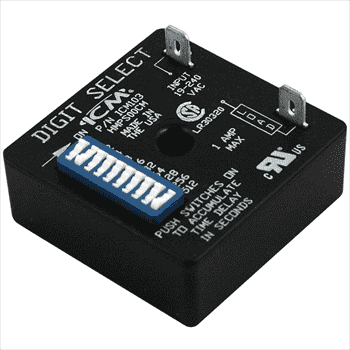

ICM Controls ICM103 Delay on Make Timer with 1-1,023 Second Time Delay, Universal 18-240 VAC

Save 29%
$24.02
$16.99
SKU ICM103
Currently 203 in stock.

ICM Controls ICM103 Delay on Make Timer with 1-1,023 Second Time Delay, Universal 18-240 VAC

  • Highly precise digital timing
  • Switch-settable time delays
  • Ideal for ice machine applications
  • Universal voltage operation
  • Repeat accuracy .5% over voltage and temperature range



MODE OF OPERATION

When power is applied to the input, the time delay begins. After the time delay is complete, the load energizes and remains energized as long as power is applied. The control is reset by removing power during or after the time delay period.



SPECIFICATIONS

  • Voltage:  18-240 VAC
    • 1 amp
    • 10 amp inrush
    • 40 mA holding current
  • Frequency:  50/60 Hz
  • Switch-settable delays:  Range from 1-1,023 sec.
  • Voltage drop:  2.5 V @ 1 amps
  • Dimensions:  2" x 2"



REPLACES

  • A-1:  7061
  • Gemline:  1C213
  • Ice-O-Matic:  TD3001A
  • Mars:  32394, 32396
  • Robertshaw:  3310-068
  • Supco:  TMF-19, TMF-80
