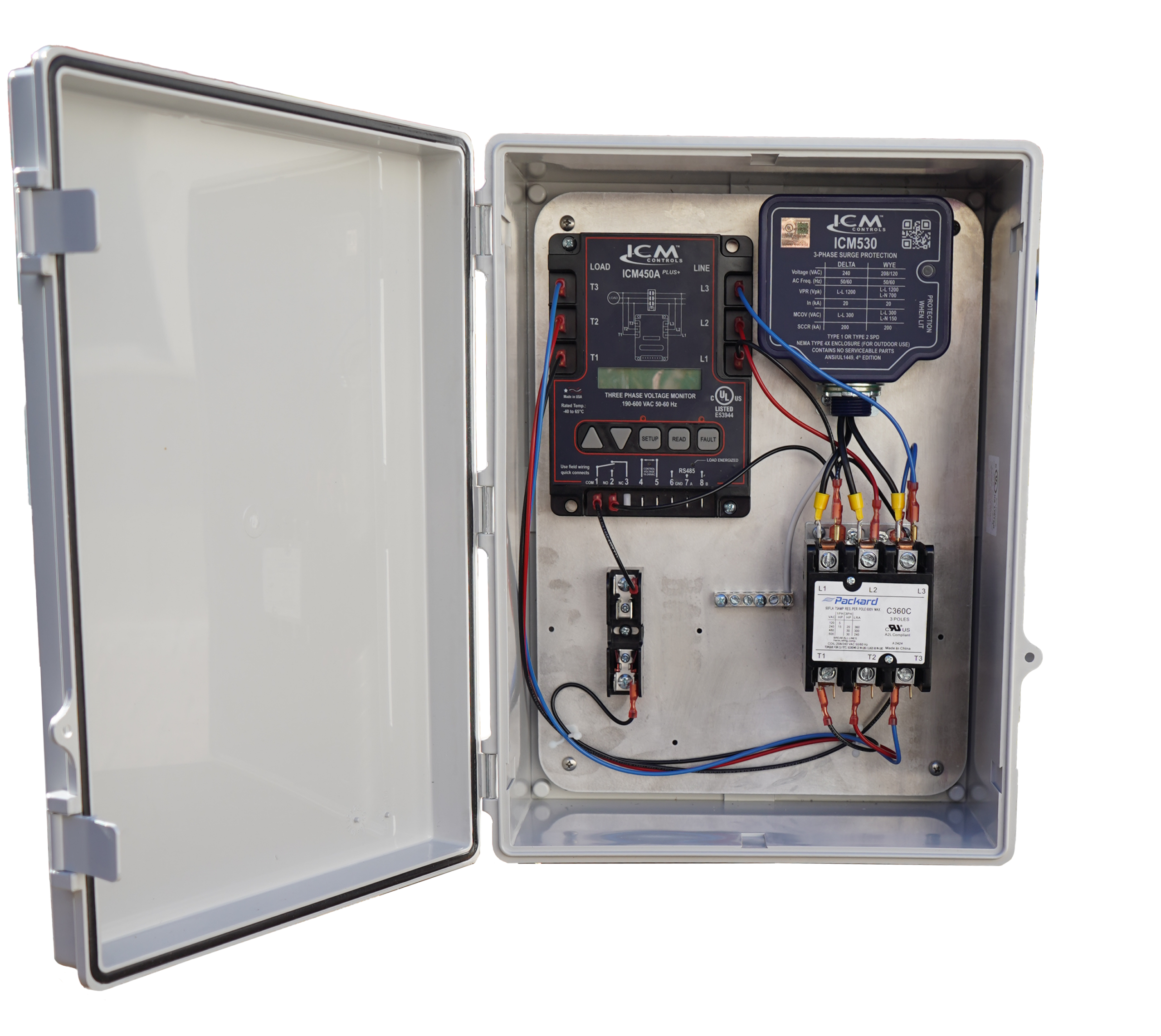

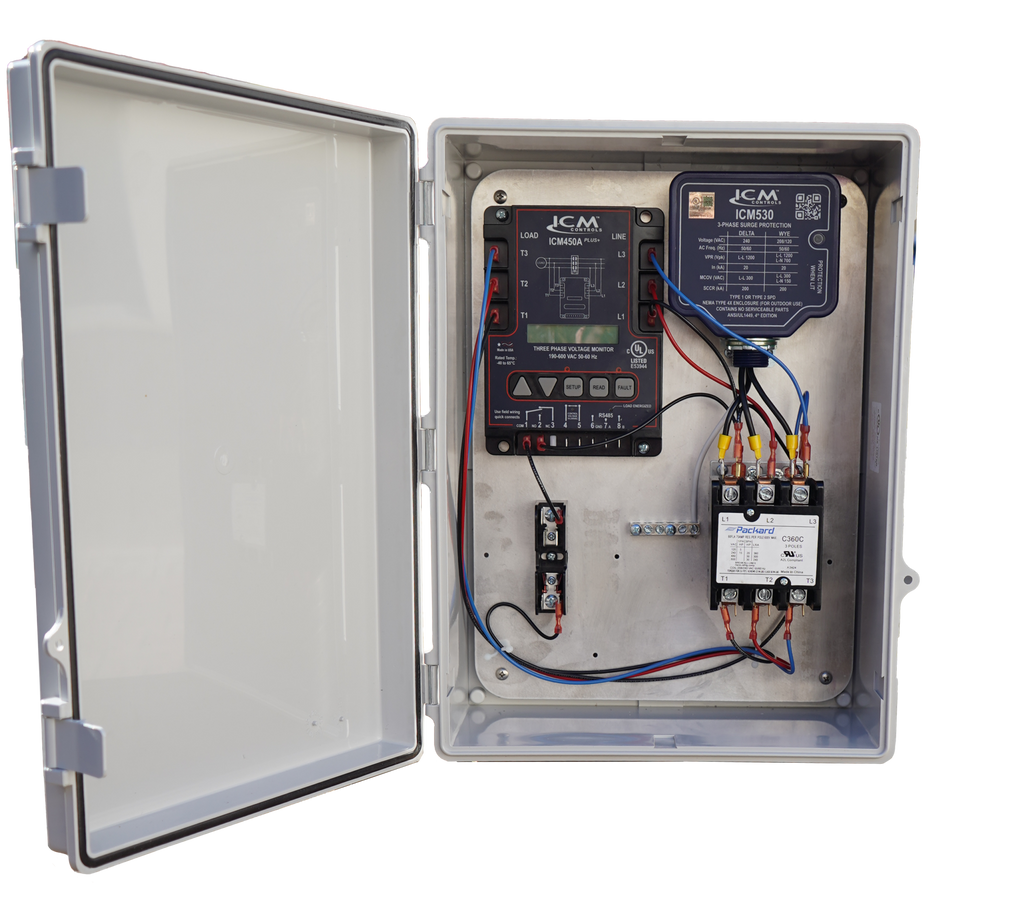

ICM Controls 3VMS-60-208 3-Phase Surge Protection and 3-Phase Voltage Monitor 60A, 208VAC

The 3VMS combines the benefits of the ICM450A PLUS+ programmable 3-phase line voltage monitor and a ICM531 type 1 and type 2 three-phase Surge Protective Device (SPD) into one easy-to-install solution. The 3VMS protects against both power surges and over/under voltage issues that can cause damage to circuit boards and motors in residential and commercial three-phase 208VAC HVAC/R equipment.

*All individual components are replaceable

• All Components pre-wired for 208VAC
• Modular design with field replaceable components
• Field programmable voltage monitor with backlit LCD display and large fault history
• Protects against over and under voltage, phase loss, phase reversal, phase unbalance and rapid short cycling
• Real time clock for date and time stamp of fault events
• Separate 3-pole, 60amp contactor, fully disconnects from the service
• Superior TFMOV technology provides safe and reliable surge protection, up to 150kA max surge event
• Built to withstand the high impact of a major surge event
• NEMA 4X Rating

• UL Listed: E518971




SPECIFICATIONS:

Inputs:

• Nominal Voltage: 208 VAC
• Operating Voltage: 190 – 252VAC
• Frequency: 50/60 Hz
• SCCR: 5kA


Outputs:

• Contactor: 60A FLA, 208/240VAC
• Surge Protection Device: Maximum surge current: 150,000 amps
• Diagnostic green LED light indicates surge protection present
• Protection modes: L-L, L-N


Line Voltage Monitor (3VMS Default Settings):

• Voltage set point: 240VAC
• Phase Unbalance: 7%
• Over/Under Voltage: 5%
• Delay on Break (ASC) : 15 seconds
• Delay on Fault: 3 seconds
• Reset Mode: 0 (auto)
• Control Mode: OFF
• Date and Time: ON
• Language: English
