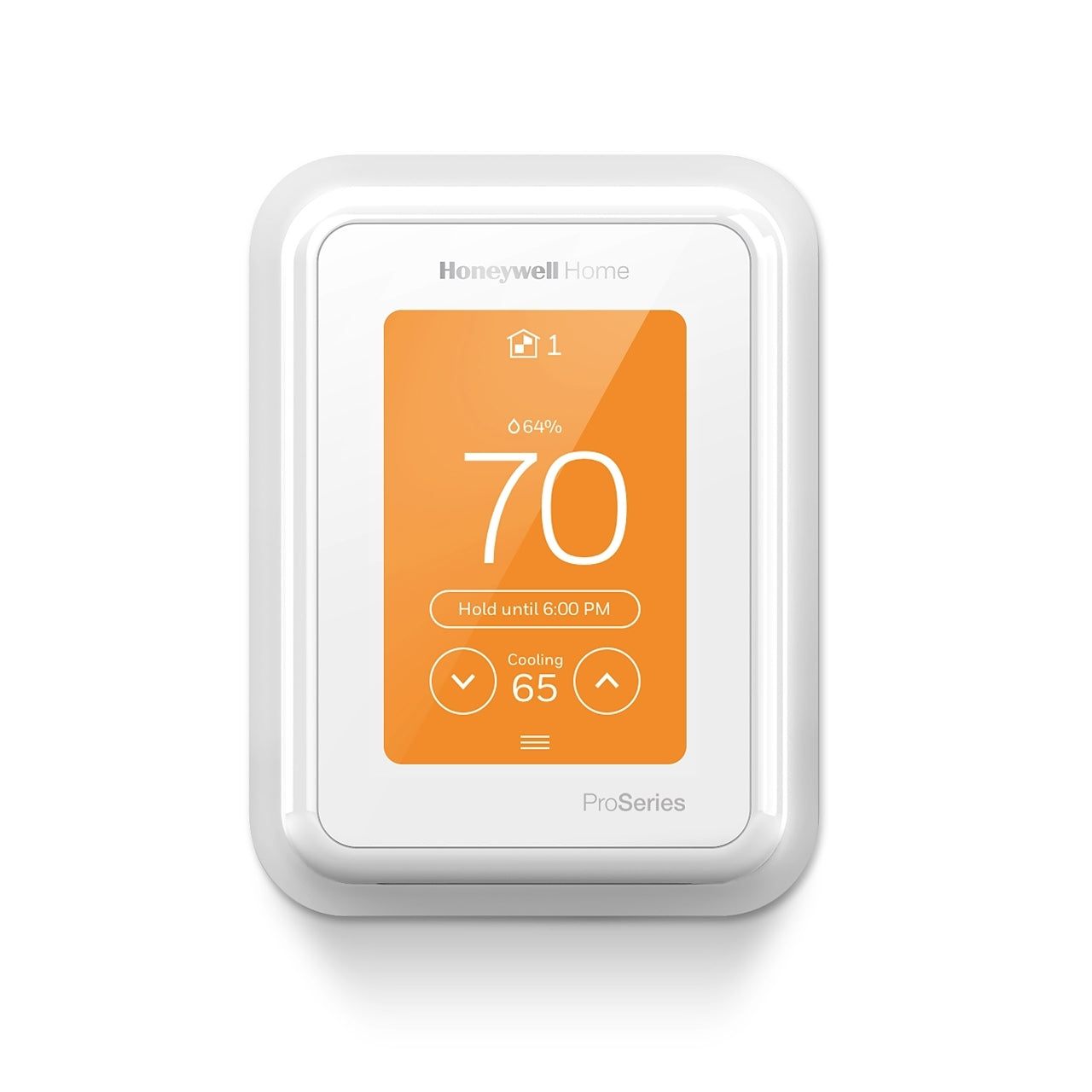

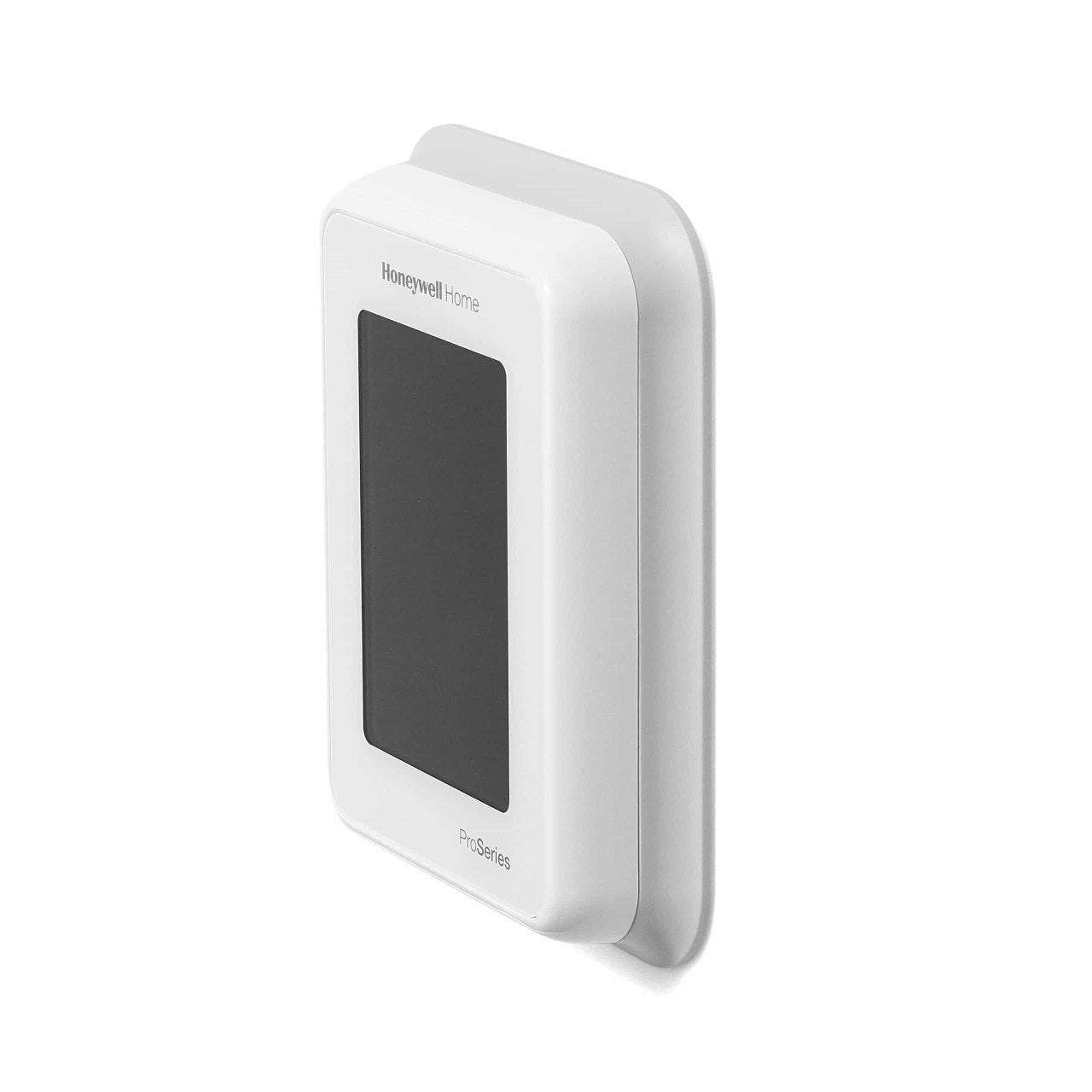

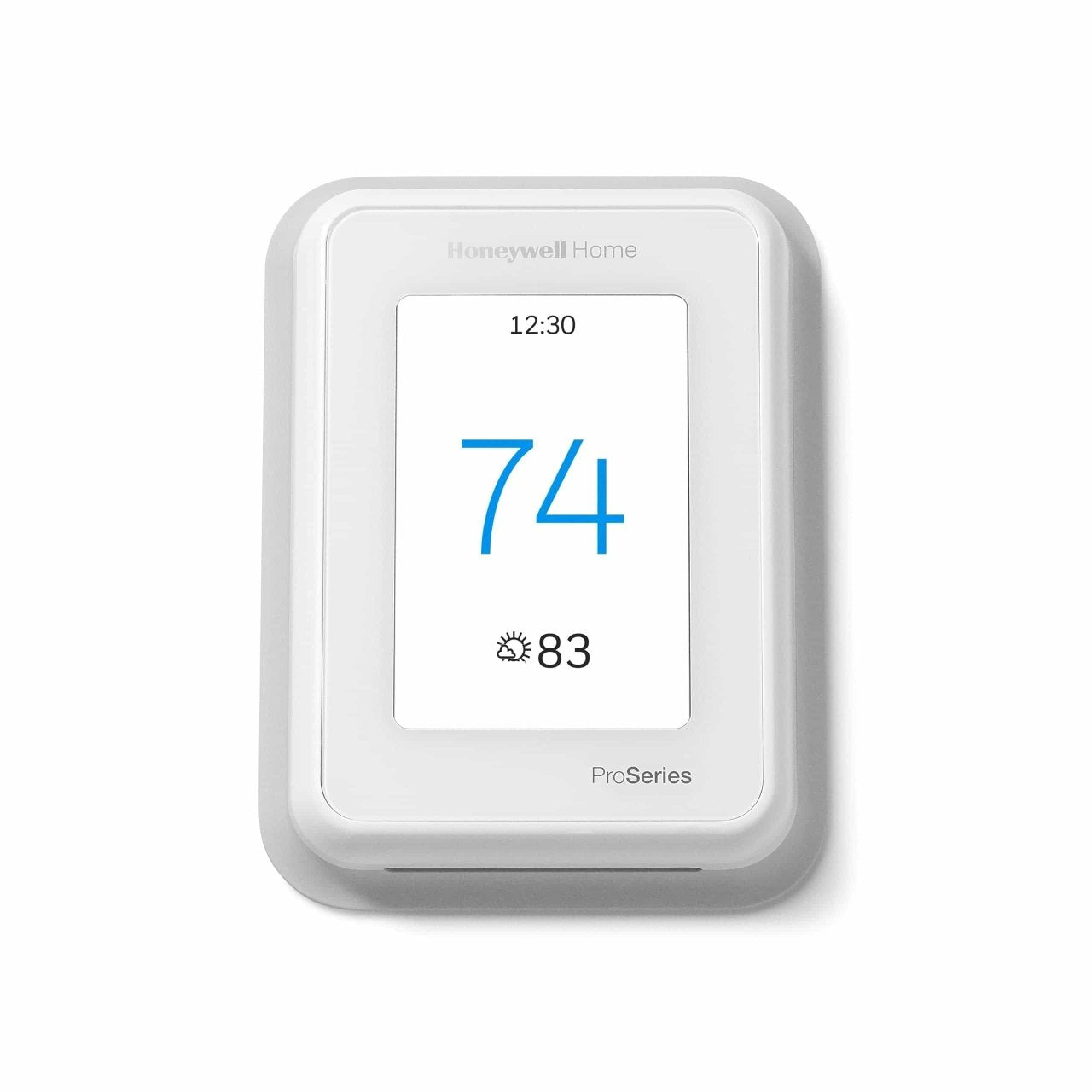

Honeywell Home YTHM1004R3001/U T10+ Pro Smart Thermostat Kit with EIM, Indoor, Outdoor, Return & Supply Sensors

$477.69
SKU YTHM1004R3001/U
Currently 6 in stock.

Honeywell Home YTHM1004R3001/U T10+ Pro Smart Thermostat Kit with EIM, Indoor, Outdoor, Return & Supply Sensors

Products usually ship within 1 business day.

Sense the temperatures and humidity in the places that matter most with the T10 or T10+ Pro Smart Thermostat. Focus on the rooms you choose by adding Smart Room Sensors and setting a schedule, or let the sensors respond to your lifestyle. T10+ kits with EIM allow you to control more stages and IAQ products without running wires.

The T10 or T10+ Pro Smart with RedLINK® Room Sensor allows homeowners to prioritize comfort in the rooms that matter most, using time-based scheduling, motion detection or geofencing. Priority settings optimize comfort by using sensors in the areas of the house where people are.

Features:

  • Smart WiFi thermostat with RedLINK® technology
  • Color graphical LCD touchscreen display
  • Configurable daytime and nighttime backlight settings
  • Up to 3H/2C Heat Pump or 2H/2C Conventional
  • T10+ models can be used with Slab sensor
  • Up to 4H/2C Heat Pump or 3H/2C Conventional (T10+ with EIM)
  • Controls Humidification, Dehumidification, or Ventilation (all three with T10+ and EIM)
  • Demand Response Program availability
  • On-screen menus with familiar installer setup (ISU) steps
  • Optional geofencing
  • Flexible programming (7, 5-2, 5-1-1, 1, Off)
  • Location-based temperature control
  • Dual Fuel compatible

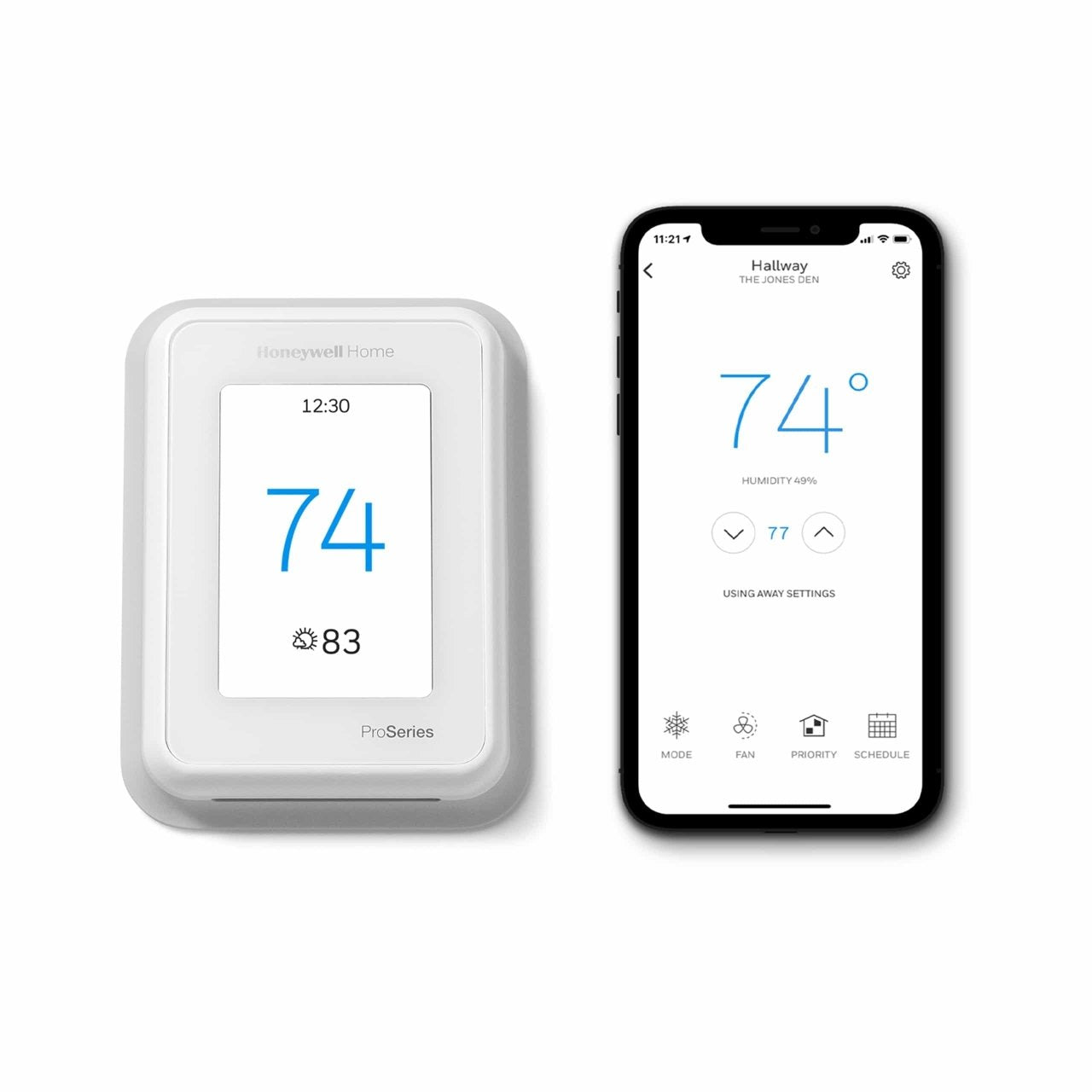

  • Utilizes the Resideo App
  • Works with Amazon Echo, Google Assistant, and more
  • ENERGY STAR® Certified
  • Supports WiFi 802.11 B/G/N 2.4 and 5 GHz
  • Dry contact alerts including system shut down with full drain pan alert


    T10+ Smart Thermostat Brochure

    Installation Instructions

    Installation Guide for Equipment Interface Module

    User Guide

    Submittal Sheet


    Specifications

    Application:
    24 Vac systems Heat Pump, Conventional, Gas, Oil, Electric, Steam / Gravity Systems & Dual Fuel
    Dimensions (in.): 4.9" H x 3.7" W x 0.93" D

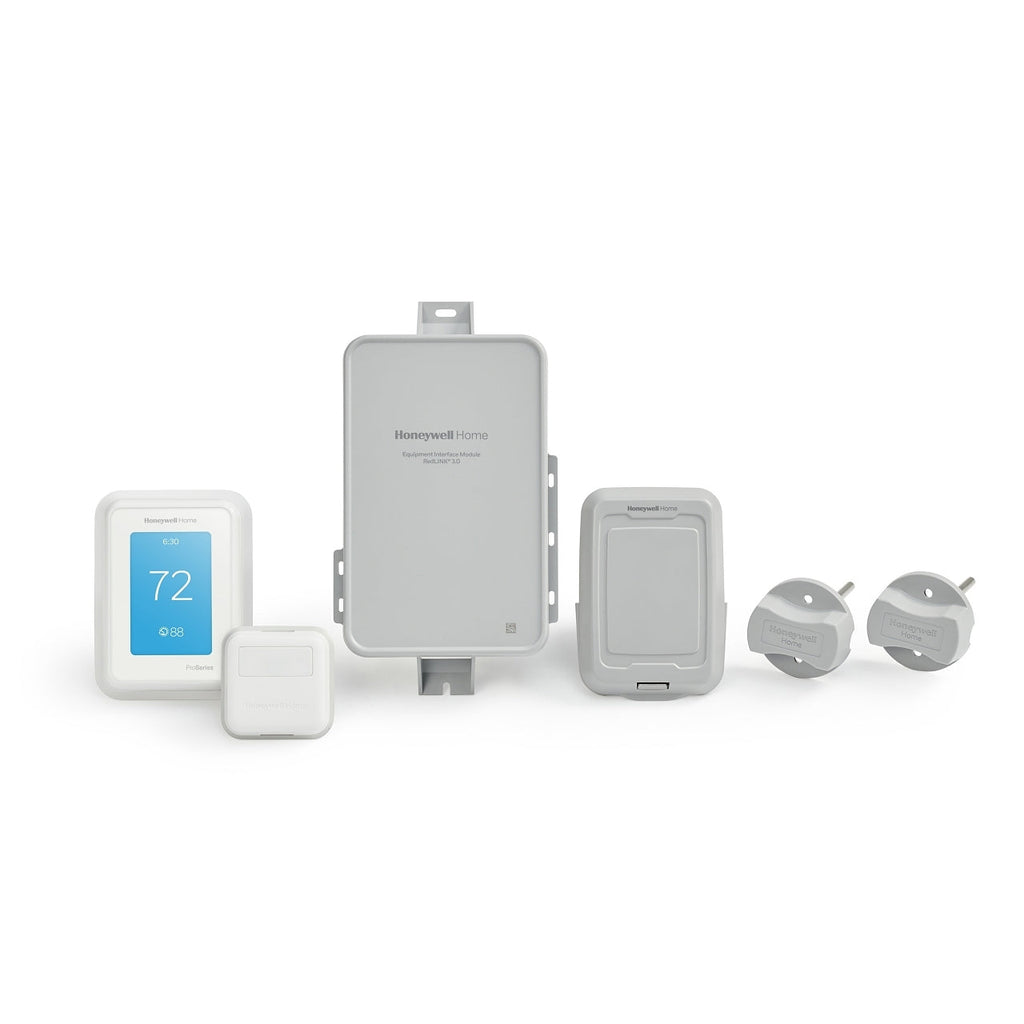

    Includes: T10+ Pro Smart Thermsotat, THM04R3000 EIM for T10+ only, Return Air Sensor, Supply Air Sensor, Wireless Indoor Sensor, Wireless Outdoor Sensor, UWP Mounting System, Cover plate, Mounting hardware
    Electrical Ratings: 20 to 30 Vac
    Frequency: 50 Hz; 60 Hz
    Stages: Up to 3 Heat/2 Cool Heat Pump Systems, Up to 2 Heat/2 Cool Conventional Systems

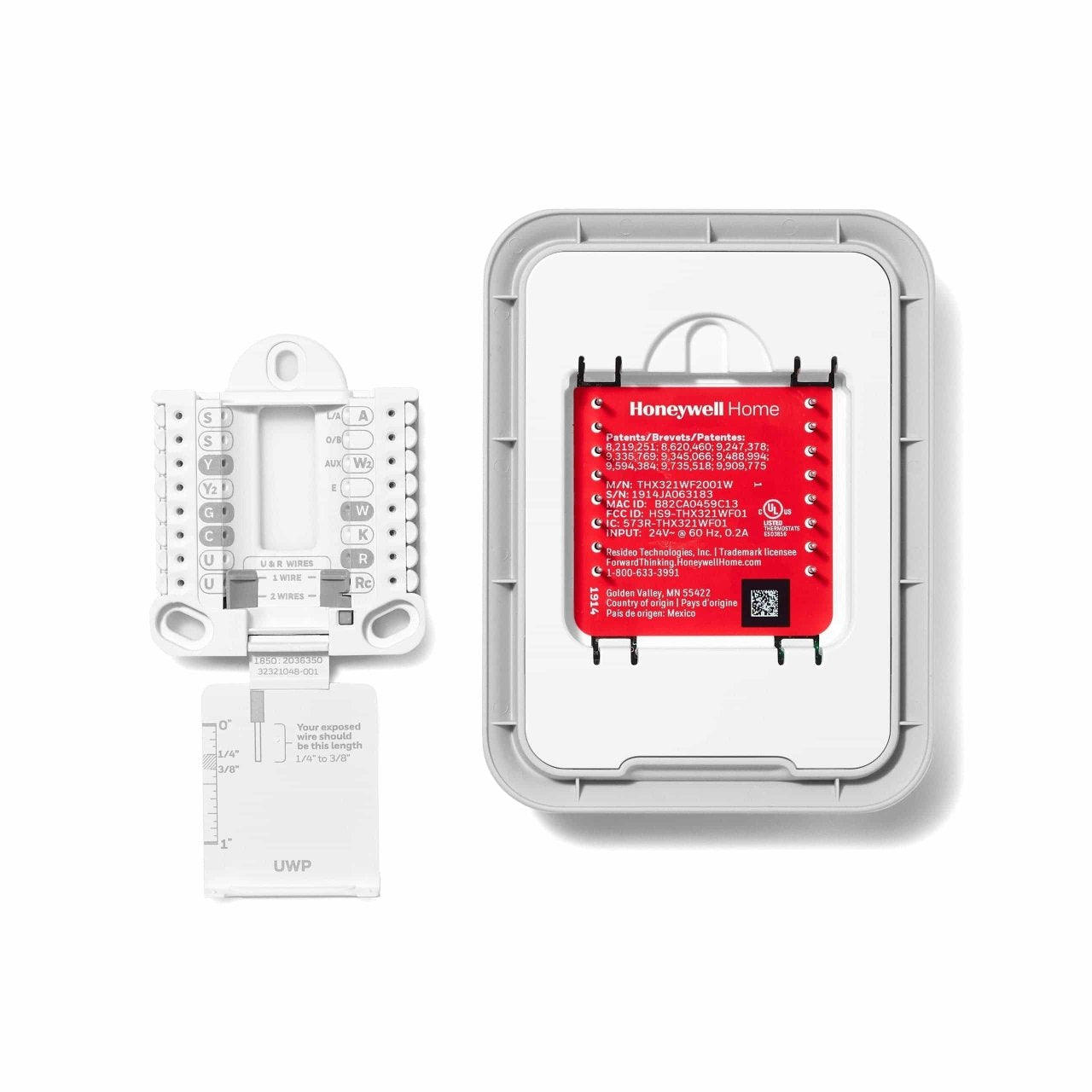

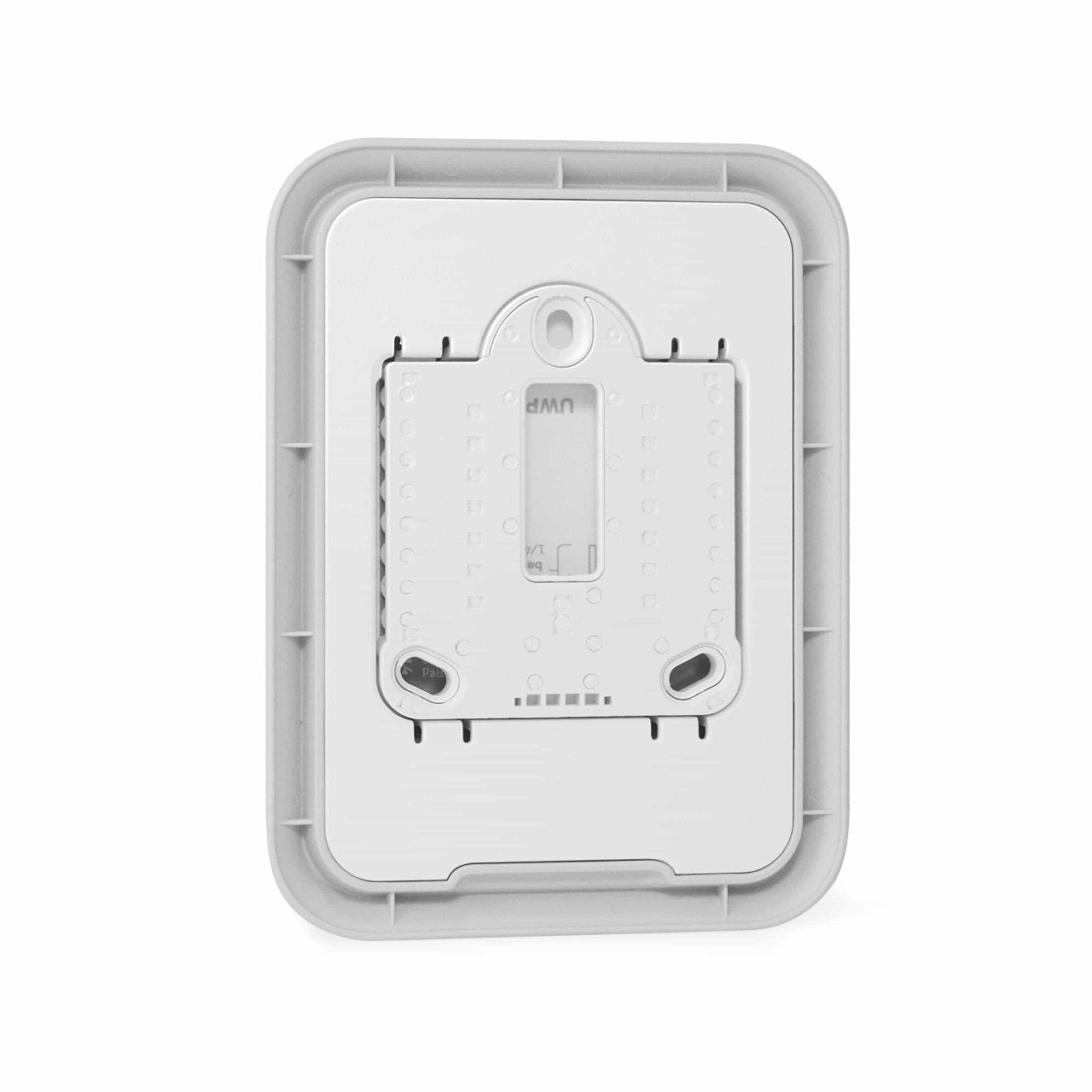

    Electrical Connections: UWP Mounting System for thermostat. EIM to wall, stud, or return duct
    Operating Humidity Range (% RH): 5 to 90% RH, non-condensing
    Switch Positions (System): HEAT-OFF-COOL-AUTO-EM.HEAT
    Switch Positions (Fan): AUTO-ON-CIRC-FOLLOW SCHEDULE
    Operating Temperature Range (F): 37 F to 102 F
    Network Communications: WiFi
    Power Method: Hardwired
    Ambient Temperature Range (F): 32 F to 120 F
    Display: Touchscreen
    Displayed Information: Indoor Temperature, Indoor Humidity, Menu Button, Down Button, Up Button, Status Display
    Programmability: 7-Day Programmable, 5-1-1 Programmable, 5-2 Programmable, 1 Week, Manual / Not Programmed, Uses Sensors for Priority Scheduling, Geofencing
    IAQ Capability: Humidification, Dehumidification, Ventilation
    Energy Star Certified: Yes
    Display Size: 7.27 sq. in.
    Changeover: Auto or Manual
    Setting Temperature Range (F): Heat: 40 F to 90 F; Cool 50 F to 99 F
    Humidification Setting Range: 0% to 90% RH
    Dehumidification Setting Range: 10% to 100% RH
    Cool Current: 0.02 A to 1.0 A running
    Heat Current: 0.02-1.0 A
    Fan Current: 0.02-.05 A
    External Sensors Available:
    Wireless RedLINK Indoor temperature, humidity, and motion C7189R3002 Included. Optional wireless outdoor temperature & humidity sensor C7089R3013 ordered separate. C7189U1005 wired indoor sensor, C7089U1006 wired outdoor sensor, AC112-01 floor slab sensor
    Parts Needed for Operation (not included):
    THM04R3000 EIM available separate or in the YTHM1004R kits
    Transmitter Range:
    For RedLINK Transmitter - Max distance for open air line-of-site is about 1500 feet. This may be reduced depending on materials in-between the radios. It is up to 200 ft in a typical home.
    Transmitter Frequency:
    RedLINK Transmitter - 900 Mhz frequency range
