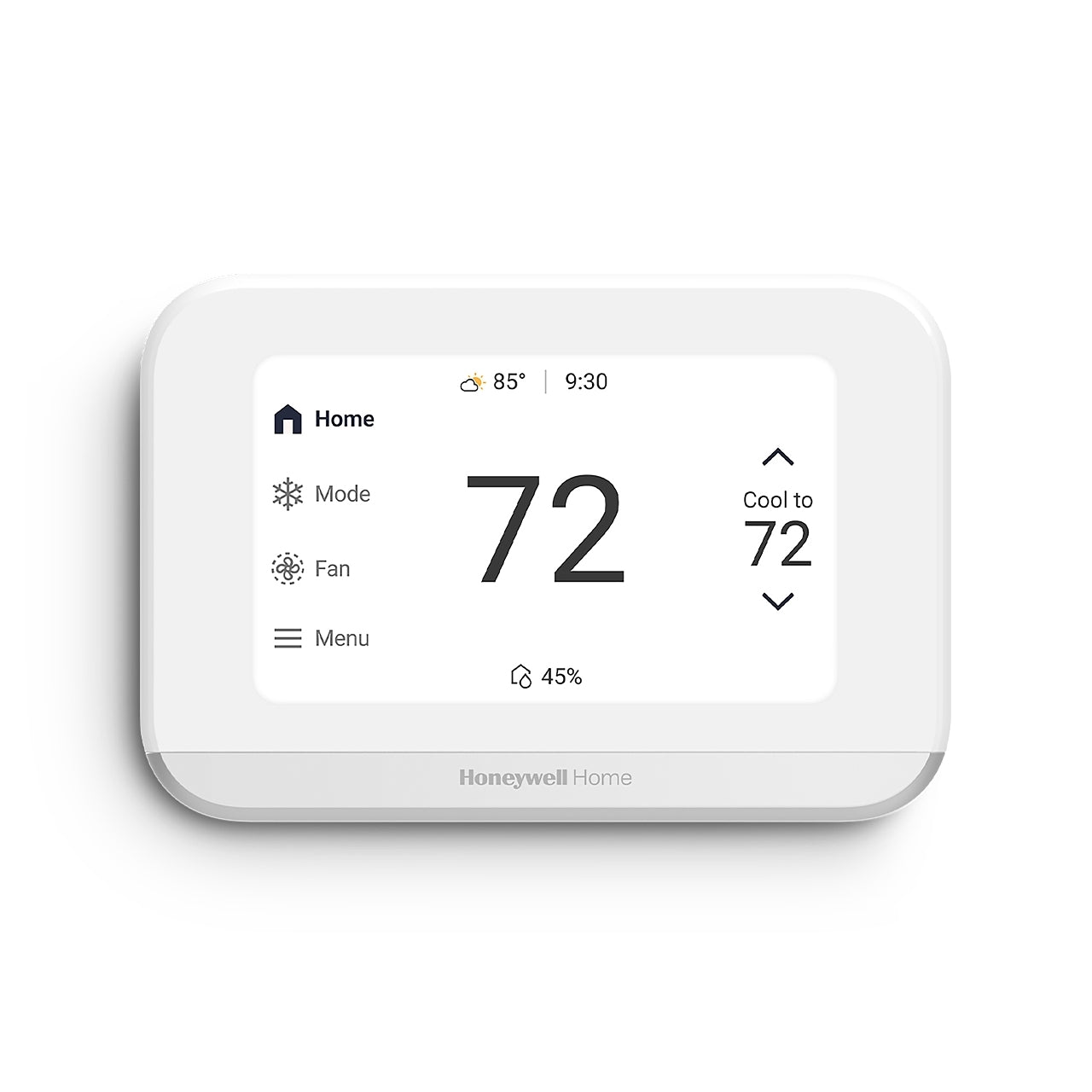

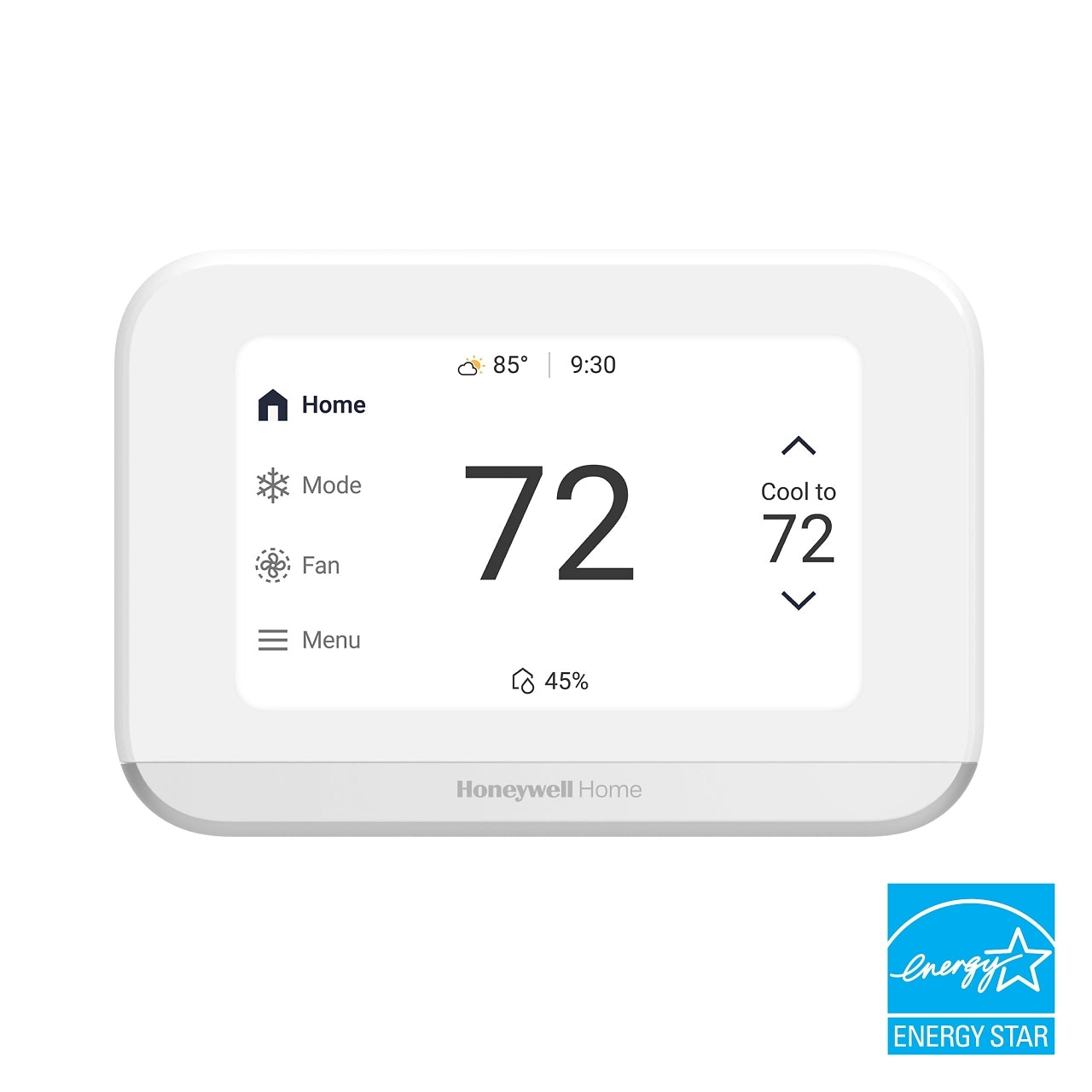

Honeywell Home THX1000W1/U ElitePRO™ S1000 Smart Thermostat in White
The sleek Honeywell Home ElitePRO S1000 Smart Thermostat delivers modern design, customizable touchscreens, and advanced humidity monitoring and control¹.
Combined with Pro-IQ™ services, ElitePRO smart thermostats help you compete at the top while super-charging your business.
Features:
- Works with residential and commercial systems up to 4H/2C heat pump or 3H/2C conventional
- Control up to 2 IAQ devices1 with configurable outputs
- Monitor indoor humidity
- Decorative silver accent piece
- Expandable application coverage and simplified installation with use of equipment interface module1 (EIM)
- Compatible with dual fuel, fan-coil, PTAC, and radiant systems
- Advanced occupancy detection helps save energy2
- Redlink™ 3.0 technology connects wirelessly with Room Sensors (temp, humidity, & motion), EIM, and Outdoor Sensors (temp & humidity)
- Prioritize the comfort of the room of choice with remote Room Sensors3
Added Pro-IQ benefits4
- Create, save, and apply installation templates using the Resideo Pro app for fast setup and reduced errors
- Display company info on-device and in-app for easy customer contact
- Monitor HVAC alerts and remotely modify settings to quickly resolve issues
1Additional equipment or accessories may be required
2Auto-away feature enablement required
3Additional sensors sold separately
4Pro-IQ enrollment required
ElitePRO Smart Thermostat Comparison Chart
Specifications
|
Application: |
Residential or light commercial, 24 Vac systems; Gas, Oil, Electric Warm Air, Hydronic, Fan coil unit, PTAC. IAQ control. |
| Dimensions (in.): | 5.25 W X 3.54 H X 0.96 D |
| Includes: | ElitePRO® S1000 Series Thermostat, UWP Wall Plate, Decorative Cover Plate with J-Box Adapter, Screws and Anchors |
| Electrical Ratings: | 20 to 30 Vac |
| Frequency: | 60 Hz |
| Stages: | Up to 4 Heat/2 Cool Heat Pump systems, Up to 2 Heat/3 Cool for conventional systems |
| Operating Humidity Range (% RH): | 5 to 90% RH, non-condensing |
| Switch Positions (System): | (Touchscreen) Heat, Off, Cool, Auto, Emergency Heat |
| Switch Positions (Fan): | (Touchscreen) on, auto, circ, (fan speeds for some systems) |
| Operating Temperature Range (F): | 37° to 102° F |
| Network Communications: | Redlink 3.0, WiFi (2.4 and 5 GHz), and Matter |
| Power Method: | Hardwired |
| Display: | Touchscreen |
| Programmability: | Time-Based or Smart Away; Residential or Commercial |
| Terminal Designations: | R, RC, C, W, O/B, G, Y, Y2, W2-AUX, E, L-A, K |
| Energy Star Certified: | Yes |
| Display Size: | 4.3 sq. in |
| Changeover: | Auto or Manual |
| Setting Temperature Range (F): | Heat: 40 °F to 90 °F|Cool: 50 °F to 99 °F (with optional limits) |
| Humidification Setting Range: | 0% to 90% RH |
| Dehumidification Setting Range: | 0% to 90% RH |
| For Use With: | THP9045A C-wire adapter, C7189R3010-2 room sensor, C7089R3013 wireless outdoor sensor, EIM4010 Equipment Interface Module |
Replaces These Models:
TH9320WF3003/U, TH9320WF5003/U, TH6320WF2003/U
