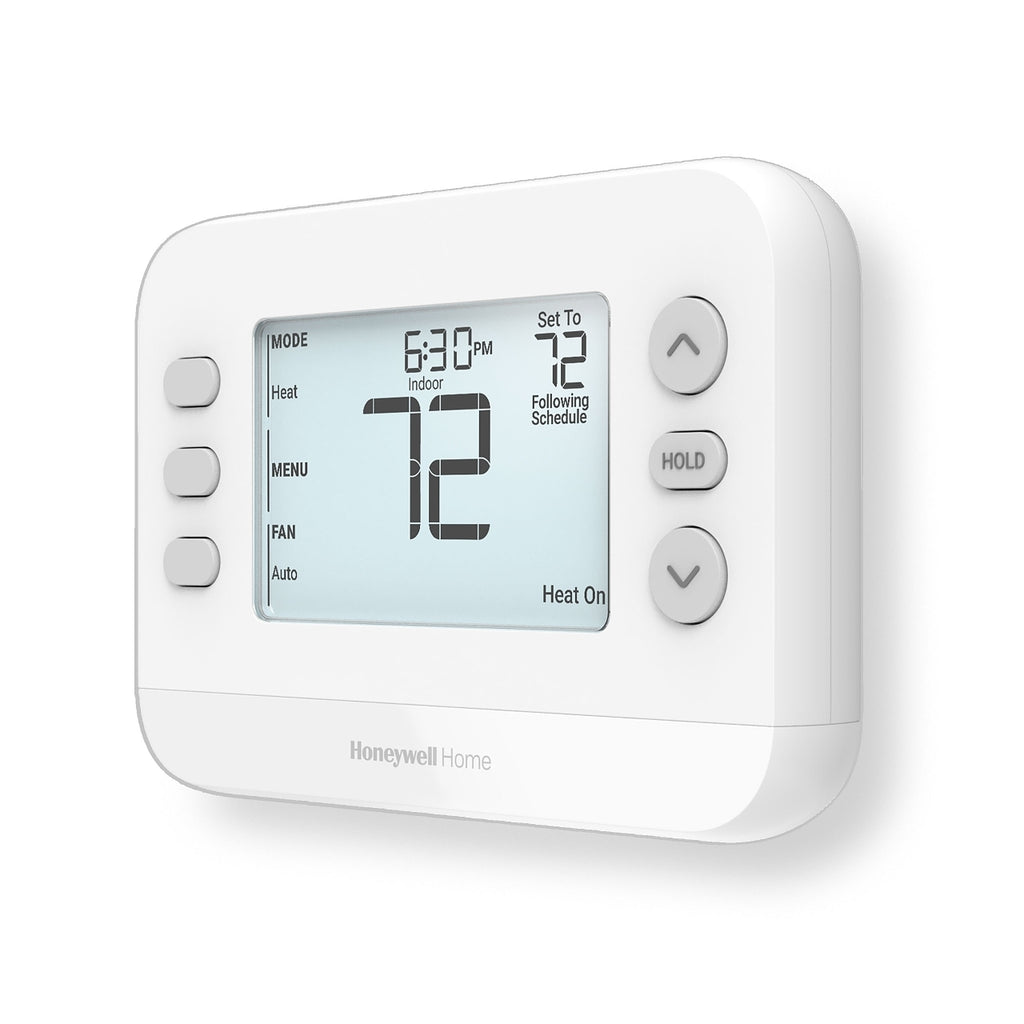

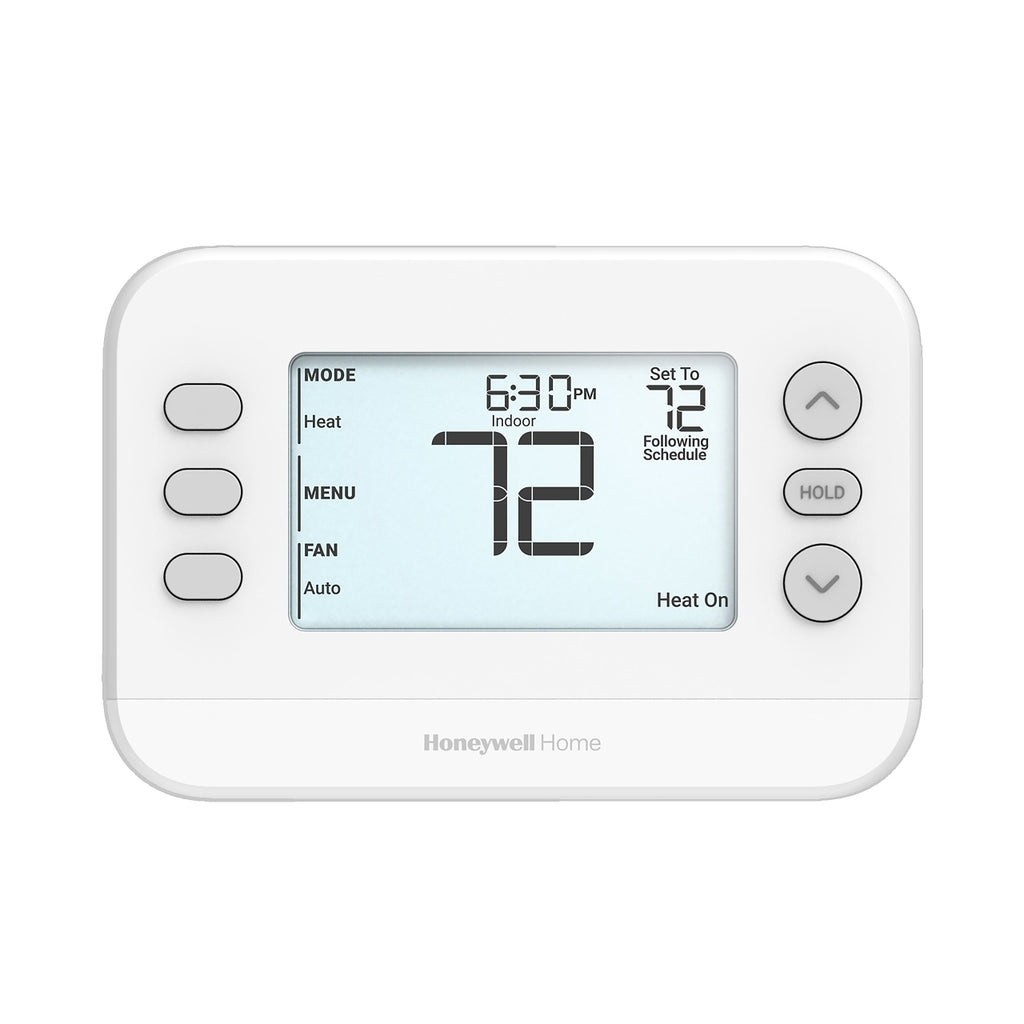

Honeywell Home TH2320U4006/U FocusPRO® P200 Programmable Thermostat, 3 Heat / 2 Cool
$59.79
SKU TH2320U4006/U
Honeywell Home TH2320U4006/U FocusPRO® P200 Programmable Thermostat, 3 Heat / 2 Cool
The Honeywell Home FocusPRO® P200 is designed for pro ease-of-use and profitability. It reduces job complexities and time on-site while supporting recurring business thanks to its broad system compatibility, UWP® wall plate, large display and clear font, snap-on private label, and competitive price.
The FocusPRO® P200 Programmable Thermostat offers your customers optimized functionality that’s easy to use. Homeowners can customize the FocusPRO® P200 Programmable Thermostat to fit their personal schedules with the user-friendly design, large display, and programable functionality.
Features:
- Supports up to 3H/2C heat pump and 2H/2C conventional
- UWP® wall plate supports speedy installation and easy upgrade
- Private label with customized snap-on accent piece
- Flexible scheduling in 5-1-1 day, 5-2 day, 7 day, or 1 week increments, or turn scheduling off
- Large display with clear font
- Optional always-on backlight when hardwired
- Customizable display settings
- Intuitive interface for easy navigation
- Choose to receive filter reminders
- Heat low limit defaults to 40°F (4°C) but configurable to 32°F (0°C) for garage applications
- Dual fuel compatible
- Wired outdoor sensor compatible
- Fan lockout after cool call option
Replaces These Models:
TH6220D1002/U, TH6220D1028/U, TH2210DH1000/U, TH2210DV1006/U, TH4210U2002/U
Specifications
|
Application: |
24 Vac heat + cool systems. Gas, Oil, Electric, or Steam/Radiant hot water Systems. Heat pumps with Auxiliary Heat |
| Dimensions (in.): | 5.125 in. W x 3.438 in. H x 1.188 in. D |
| Includes: | Thermostat, UWP mounting plate, Decorative cover plate with J-box adaptor, Mounting hardware, AA batteries, Literature |
| Mounting: | UWP Mounting System |
| Electrical Ratings: | 20 to 30 Vac |
| Frequency: | 60 Hz |
| Stages: | Up to 3 Heat/2 Cool Heat Pumps, Up to 2 Heat/2 Cool Conventional Systems |
| Dual Fuel: | Yes |
| Filter Change Reminder: | Yes |
| Energy Star Certified: | No |
| Electrical Connections: | UWP Mounting System |
| Operating Humidity Range (% RH): | 5 to 90% RH, non-condensing |
| Switch Positions (System): | HEAT-OFF-COOL-AUTO-EM.HEAT |
| Switch Positions (Fan): | AUTO-ON-CIRC |
| Operating Temperature Range (F): | 32 °F to 120 °F |
| LEDs: | LED Back Light |
| Power Method: | Battery or Hardwired |
| Accuracy (F): | 1 °F |
| Differential Temperature (F): | ±1 °F |
| Switch Type: | Relay |
| Programmability: | 7-Day Programmable, 5-1-1 Programmable, 5-2 Programmable, 1 Week |
| Terminal Designations: | RC, R, C, W, W2-AUX, Y, Y2, O/B, G, K, L, E, S, S |
| Display Size: | 4.84 sq. in. |
| Changeover: | Auto or Manual |
| Setting Temperature Range (F): | Heat: 32 F to 90 F; Cool 50 F to 99F |
| External Sensors Available: | C7089U1006 wired outdoor sensor |
