Hilmor 1839131 4-Valve Aluminum Manifold Set - R22-404A-410A

$373.11
SKU 1839131

Hilmor 1839131 4-Valve Aluminum Manifold Set - R22-404A-410A

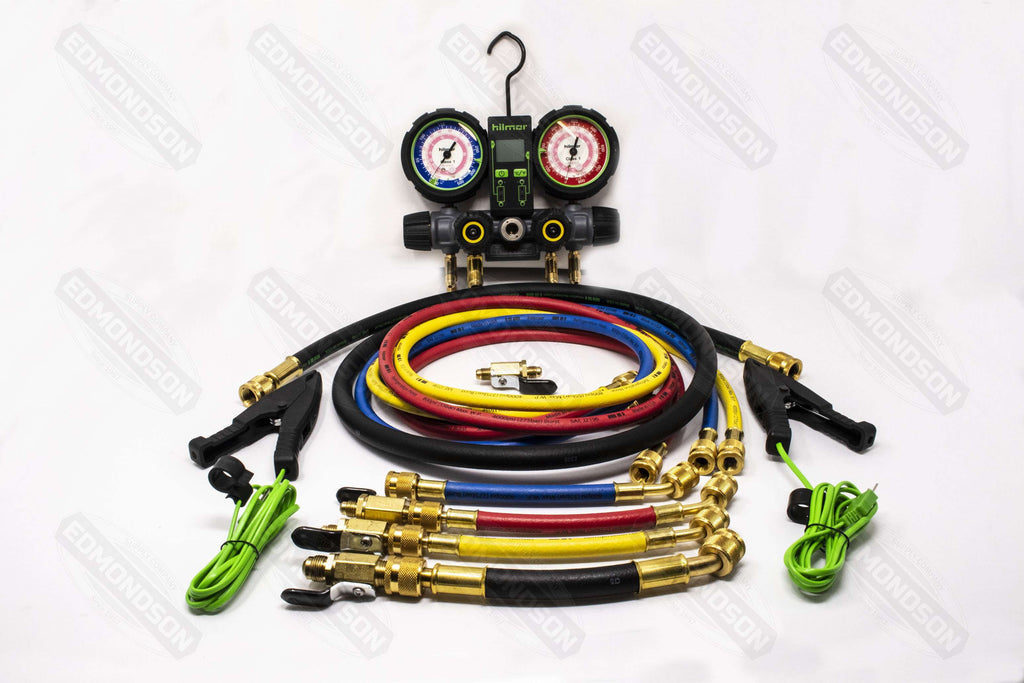

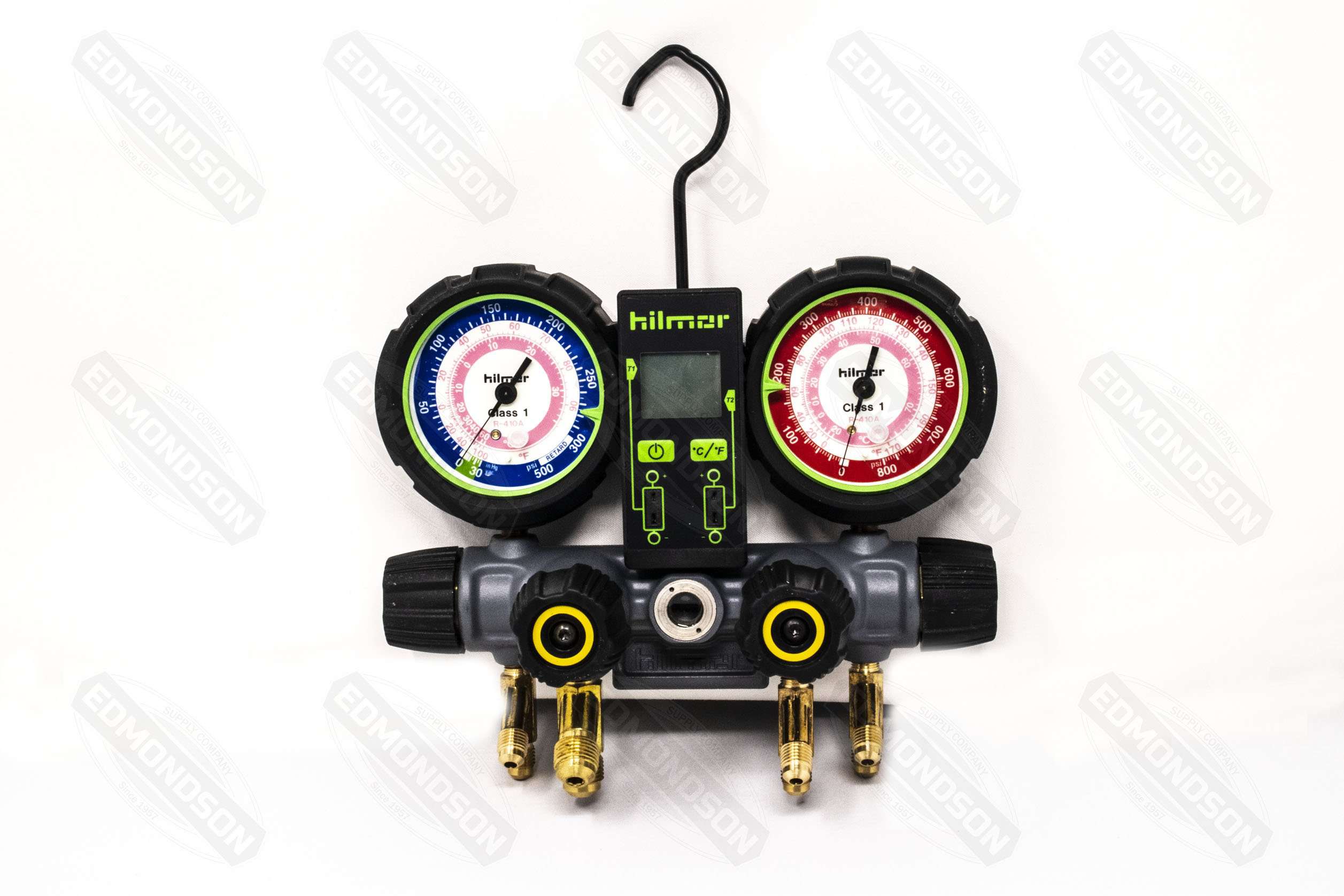

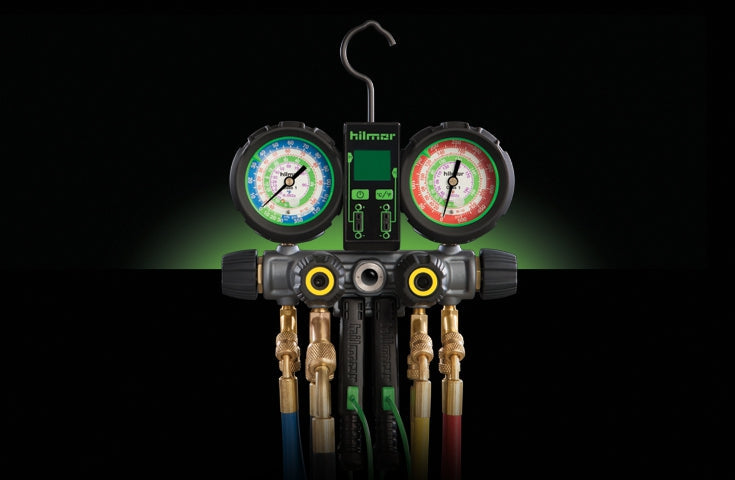

Bumped, bruised, beaten up and knocked around. Your tools take a lot of abuse. That’s why hilmor has retooled manifolds and gauges to handle any climate. The hilmor 4-valve Aluminum Manifold is built to last with a forged aluminum body. It’s designed to be leak-resistant with replaceable stainless steel valve seats, SAE-style O-rings and a securely seated large sight glass. Need faster vacuum pulls? It has you covered with a true 3/8” bore throughout the valve. Front-mounted hose positions and a permanent location for temperature clamps result in added convenience. And it’s finished off with comfort-grip rubberized handles optimally sized for easy turns. Set sold with our hilmor Dual Readout Thermometer and 60" refrigeration hoses with ball valve adapters.

  • Extra Confidence - Built to last with a forged aluminum body. Designed to be leak-resistant with replaceable stainless steel valve seats, SAE style O-rings and a securely-seated, large sight glass.
  • Quick on the Job - Get faster vacuum pulls with a true 3/8" bore throughout the valve.
  • Comfort Grip - Rubberized handles are optimally sized for easy turns.



Product Name R22-404A-410A - with 60" Hoses and Ball-Valve Adapters
Temperature F
Pressure Range Low -30"HG/300/500 psi
Pressure Range High 0/800 psi
Accuracy Class 1 - 1% Accuracy (full scale)
Gauge Connection Type 18" NPT Male Fitting
Valve Type Double O-ring Piston Style
Valve Seat (Orifice) Replaceable Stainless Steel (SAE style straight thread with o-ring)
Sight Glass Bonded steel with SAE style straight thread with o-ring
Vacuum Port 38" full bore (quantity 1)
Charge Ports 14" (quantity 3)

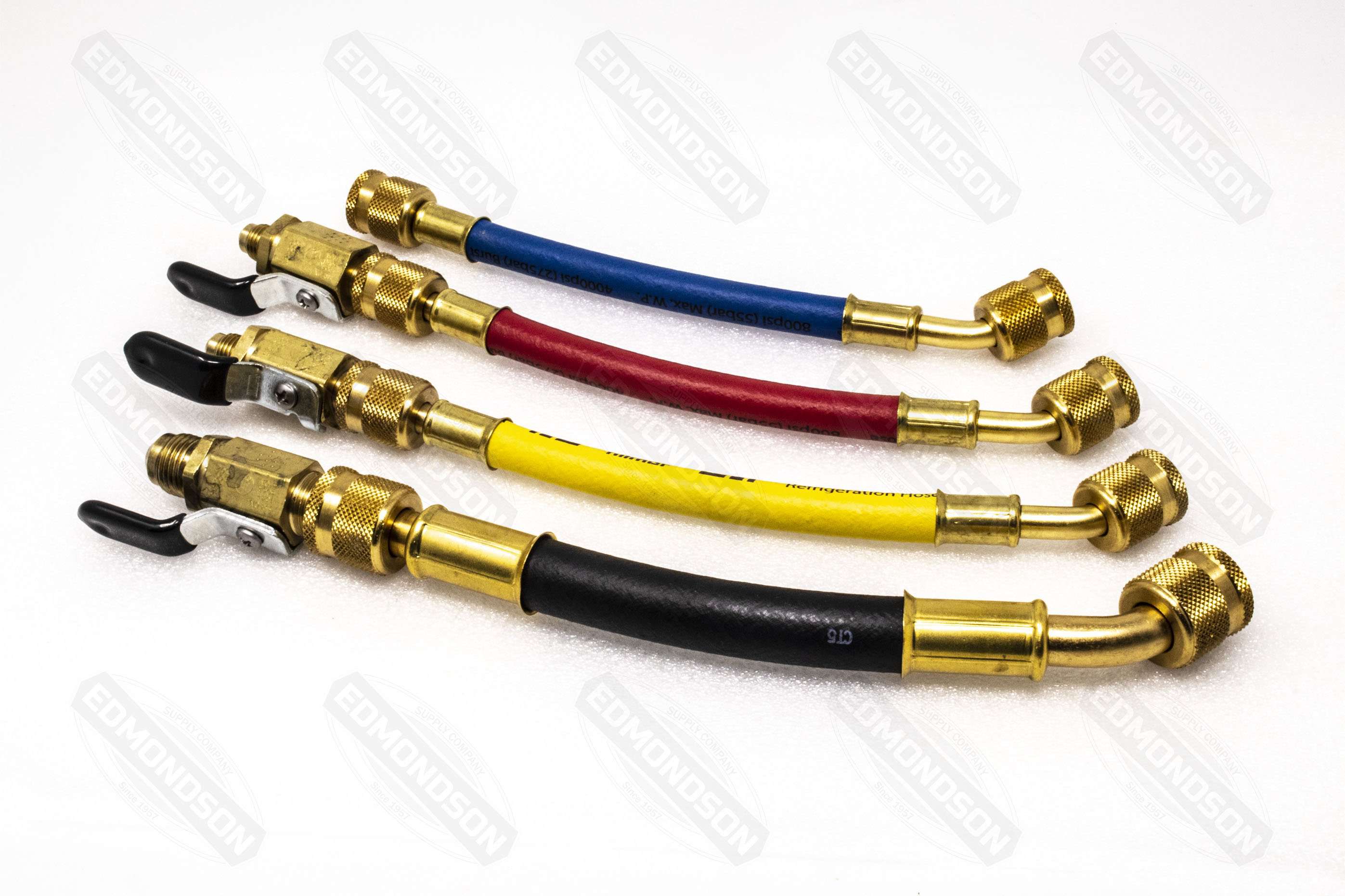

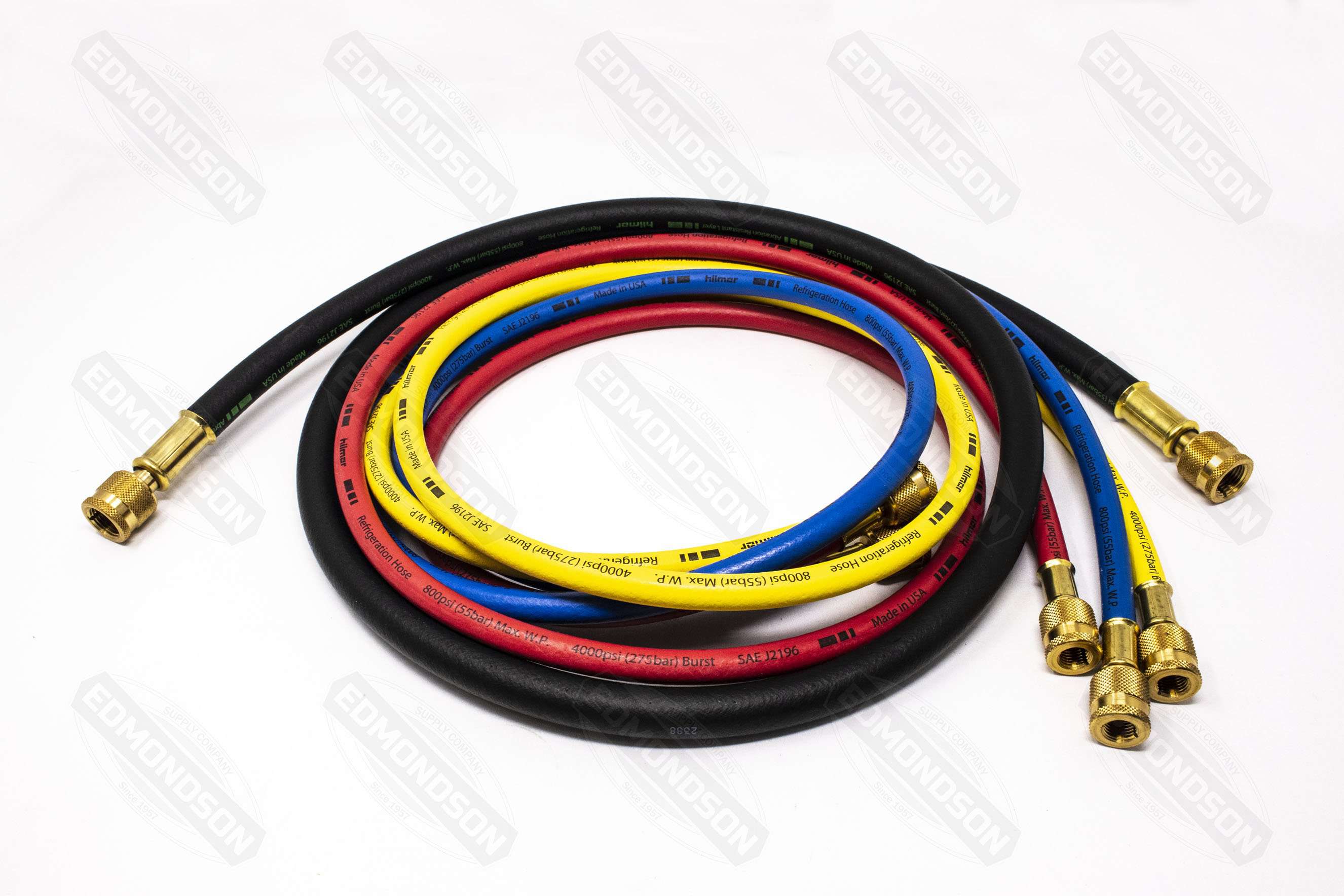

Hoses Included 1839143 H60BVS4 60" Hoses with Ball Valve - Set of 4
Thermometer Included DROT2TCC Dual Readout Thermometer

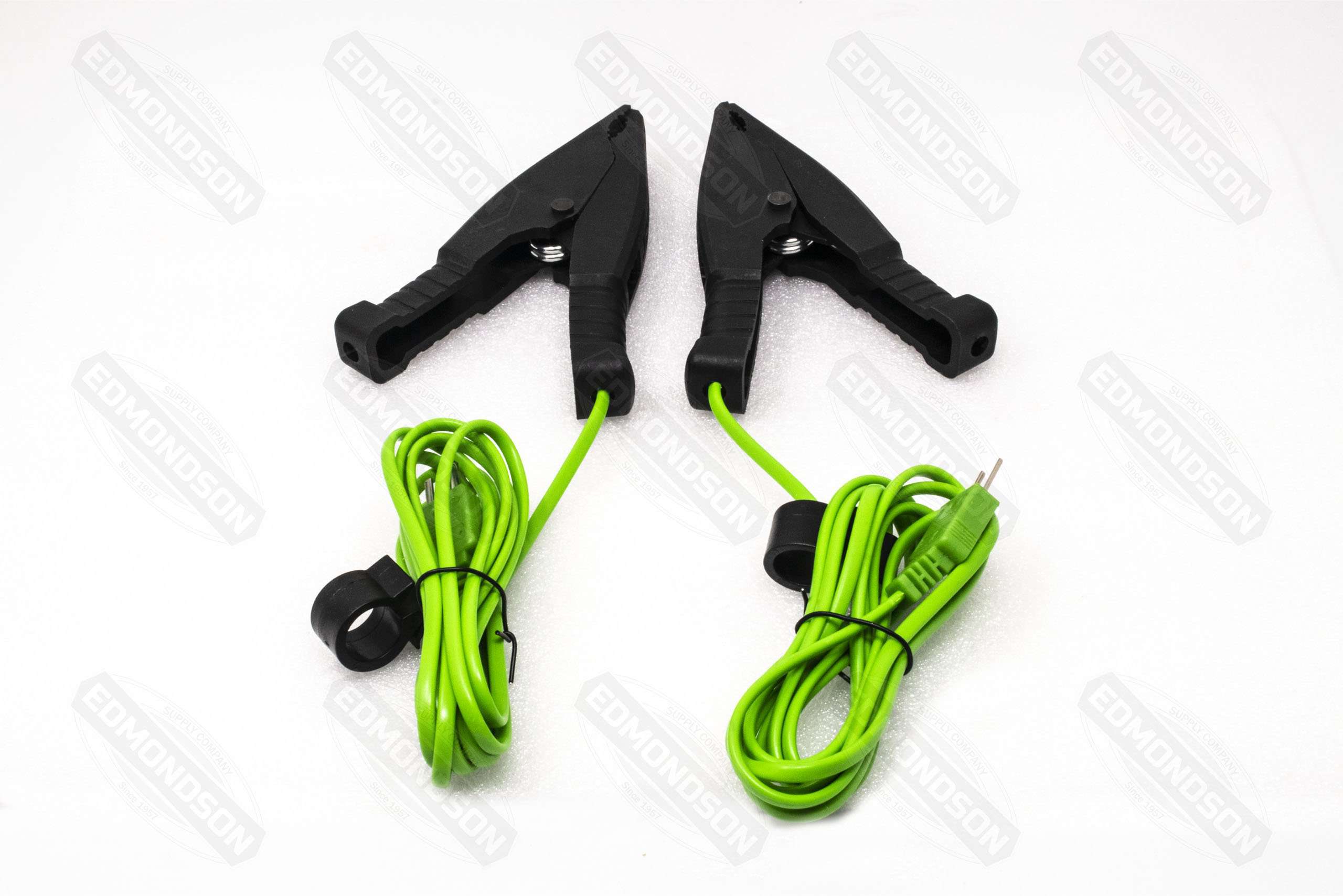

Thermocouples Included 2 TCC Thermocouple Clamps
